Quick install guide

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 01/08/2016

For the latest information, technical specications, and support for

this product, please visit www.startech.com/ST121USBHD.

Packaging contents

• 1 x HDMI over CAT6 transmitter

• 1 x HDMI over CAT6 receiver

• 2 x Ethernet cables

• 2 x USB to Mini-USB cables

• 1 x universal power adapter (NA/EU/UK/AU)

• 1 x mounting kit

• 1 x quick install guide

System requirements

• 1 x HDMI® enabled video source device with cabling (i.e. computer,

Blu-ray Player)

• 1 x HDMI enabled display with cabling (i.e. television, projector)

• 2 x available USB power source or AC electrical outlet at the

location for the transmitter and receiver

• (Optional) 4x USB peripheral devices

ST121USBHD

HDMI® over CAT6 extender with 4-port USB hub - up to 165 ft (50m)

*actual product may vary from photos

Preparing your site

1. Determine where the local video source (i.e. computer, Blu-ray

Player) will be located and set up the device.

2. Determine where the remote display will be located and place or

mount the display appropriately.

Notes: Please ensure that the transmitter and receiver units are

situated near an available AC electrical outlet or a USB power source.

Make sure all devices are turned o before beginning installation.

Hardware Installation

1. Install Transmitter Unit

a) Position the transmitter unit near the video source (i.e.

Computer, Blu-ray Player).

b) Connect an HDMI cable from the video source device (i.e.

computer, Blu-ray Player) to the HDMI in port on the transmitter

Unit.

c) If you’ve chosen to connect USB peripheral devices (Optional)

using the USB hub, please connect a USB to Mini-USB cable (not

included) from the USB host connection port on the transmitter

to an available USB port on your source device (i.e. computer).

Note: All USB ports on this extender are USB 2.0

Note: While two USB to Mini-USB cables are included, these are

required to provide power to the extender and receiver. A third

cable that is not included is required for console support.

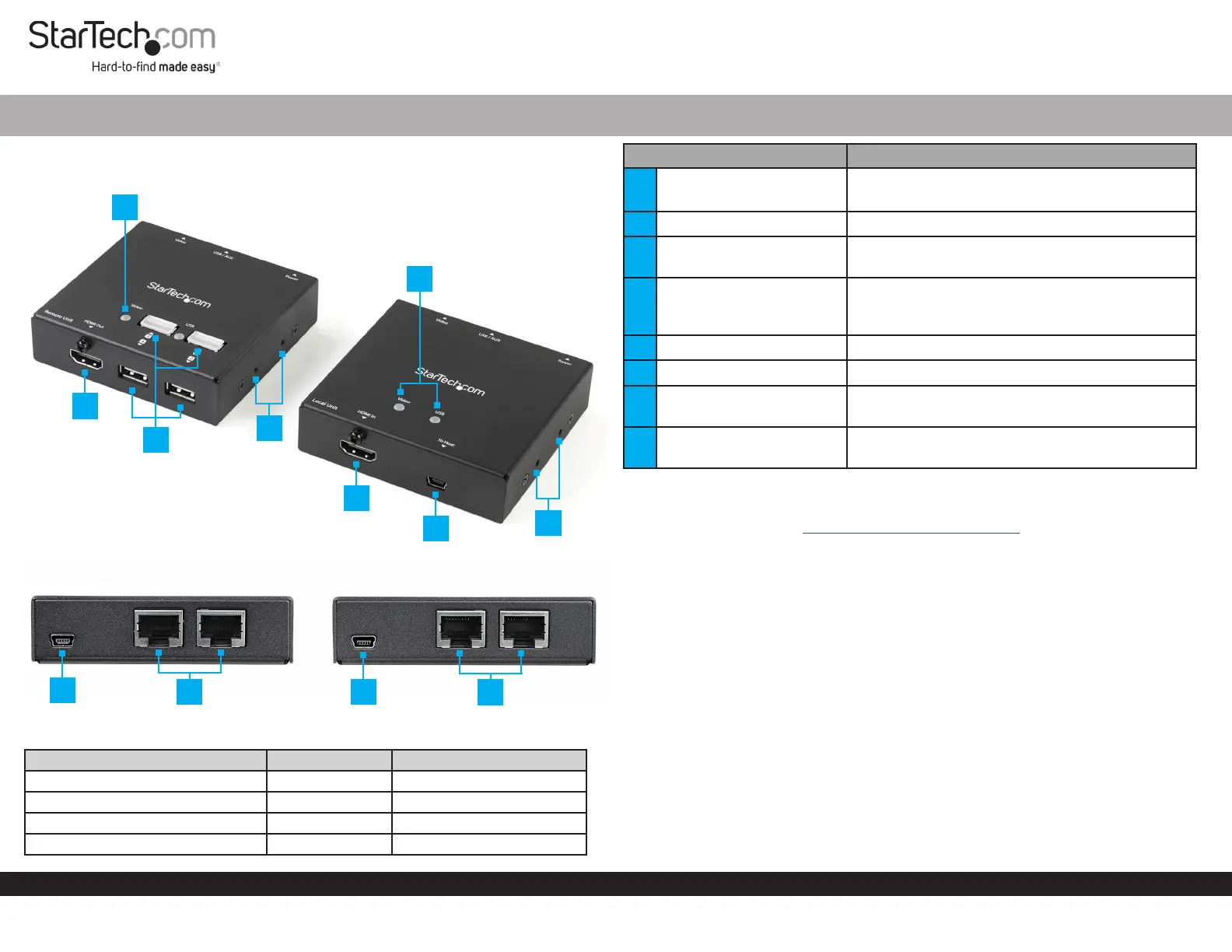

Product overview

Front view

Rear view

Transmitter Unit Receiver Unit

HDMI

input

USB host

connection

(Mini-USB)

HDMI

output

USB hub

ports

power

source

(Mini-USB)

link out A (RJ-45

Connector)

3. link out B

(RJ-45 Connector)

power

source

(Mini-USB)

3. link out B

(RJ-45 Connector)

link out A (RJ-45

Connector)

USB hub ports

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

d) Connect a power source to the transmitter unit, by connecting

one of the included USB to Mini-USB cables from the power

source port on the transmitter unit to a USB power source. If a

USB power source is not available, you can connect the included

power adapter to an electrical outlet.

2. Install RJ45 terminated Cat5e or CAT6 Ethernet Cables

a) Connect an RJ45 terminated Cat5e/6 Ethernet cable

(not included) to the link out A (RJ-45 connector) on the

transmitter unit.

b) Connect another RJ45 terminated Cat5e/6 Ethernet cable

(not included) to the link out B (RJ-45 connector) on the

transmitter unit.

Note: If you are using surface cabling, ensure you have enough

Ethernet cabling to connect the Host Unit to the Remote Unit’s

location, and that each end is terminated with an RJ45 connector.

The cabling should not go through any networking equipment

(i.e. router, switch).

If you are using premises cabling, ensure that the Ethent cabling

between the Host Unit and the Remote Unit has been properly

terminated in a wall outlet in each location and there is a patch

cable long enough to connect the Remote Unit and the Host Unit

to their respective outlets. The cabling should not go through any

networking equipment (i.e. router, switch).

c) Connect the other end of the Ethernet cable (from link out A)

to the link in A (RJ-45 connector) on the receiver unit.

d) Connect the other end of the Ethernet cable (from link out B)

to the link in B (RJ-45 connector) on the receiver unit.

3. Install Receiver Unit

a) Position the receiver unit near the video display (i.e. television,

projector).

b) Connect the video source to the HDMI out port on the receiver

unit using an HDMI cable (not included).

c) (Optional) If you’ve chosen to connect USB peripheral devices

through the extender, connect each of your peripheral devices to

one of the available USB hub ports on the receiver unit.

d) Connect a power source to the receiver unit, by connecting one

of the included USB to Mini-USB cables from the power source

port on the transmitter unit to a USB power source. If a USB power

source is not available, you can connect the included power

adapter to an electrical outlet.

4. Your source video image will now appear on the remote video

display, and your USB peripheral devices can be operated

from the remote location.

Note: The performance of this extender will vary depending

on the length and type of your cabling. Please review the chart

below to determine the best solution for your setup.

Cable type Distance Max. resolution

Shielded CAT6 50m (maximum) 1080i

40m 1080p

Unshielded CAT6 30m (maximum) 1080p

Shielded and

unshielded CAT5e 15m (maximum) 1080p
