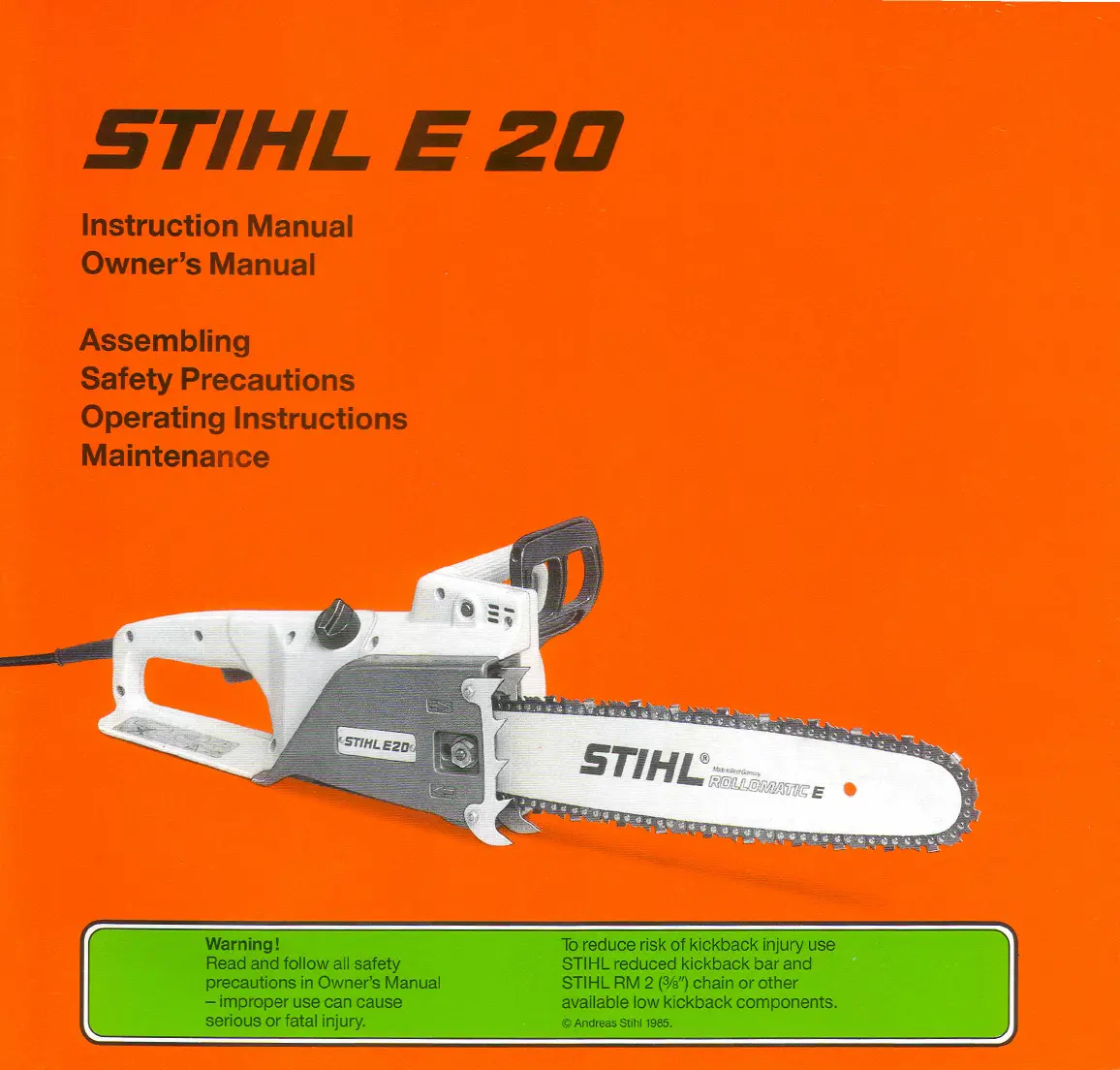

Stihl Sågmaskin E 20

Läs nedan 📖 manual på svenska för Stihl E 20 (40 sidor) i kategorin Sågmaskin. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF
Sida 1/40
A.
Kickback Safety Precautions
!Warning!
Kickback may occur when the nose or
tip of the guide bar touches an object, or
when the wood closes in and pinches
the saw chain in the cut. Tip contact in
some cases may cause a lightning fast
reverse reaction, kicking the guide bar
up and back towards the operator.
Pinching the saw chain along the top of
the guide bar may push the guide bar
rapidly back towards the operator. Either
of these reactions may cause you to lose
control of the saw which could result in
serious personal injury.
Section 5.12 of ANSI B 175.1-2000 sets
certain performance and design criteria
related to chainsaw kickback. STIHL has
developed a color code system using
green and yellow to help you select a
powerhead, bar and chain combination
that complies with the kickback
requirements of the ANSI Standard.
See the sections entitled "Safety
Precautions" and "Specifications" of this
manual.
Do not rely exclusively upon the safety
devices built into your saw. As a
chainsaw user, you should take several
steps to keep your cutting jobs free from
accident or injury.
1. With a basic understanding of
kickback, you can reduce or
eliminate the element of surprise.
Sudden surprise contributes to
accidents.
2. Keep a good firm grip on the saw
with both hands, the right hand on
the rear handle, and the left hand on
the front handle, when the engine is
running. Use a firm grip with thumbs
and fingers encircling the chainsaw
handles. A firm grip will help you
reduce kickback and maintain
control of the saw. Don't let go.
3. Make sure the area in which you are
cutting is free from obstructions. Do
not let the nose of the guide bar
contact a log, branch, or any other
obstruction while you are operating
the saw.
4. Cut at high engine speeds.
5. Do not overreach or cut above
shoulder height.
6. Follow manufacturer's sharpening
and maintenance instructions for
the saw chain.
7. Only use replacement bars and
chains specified by the
manufacturer or the equivalent.
B.
Other Safety Precautions
1. Do not operate a chainsaw with one
hand! Serious injury to the operator,
helpers, bystanders, or any
combination of these persons may
result from one-handed operation. A
chainsaw is intended to be used
with two hands.
2. Do not operate a chainsaw when
you are fatigued.
3. Use safety footwear; snug-fitting
clothing; protective gloves; and eye,
hearing, and head protection
devices.
4. Do not allow other persons to be
near the chainsaw when starting or
cutting with the chainsaw. Keep
bystanders and animals out of the
work area.
continued on the back inside cover
Important Safety Precautions for Chain Saw Users
Main Parts and Controls 2
Definitions 3
Safety Precautions 4
Mounting the Bar and Chain 23
Tensioning the Saw Chain 24
Checking Chain Tension 24
Chain Oil 24
Filling Chain Oil Tank 25
Chain Brake 25
Connecting Saw to Power Supply 26
Switching On 26
Switching Off 26
Overload Circuit Breaker 27
Checking Chain Lubrication 27
During Operation 28
After Finishing Work 28
Taking Care of Guide Bar 28
Checking and Replacing
the Chain Sprocket 29
Motor Cooling 30
Storing the Machine 30
Maintaining and Sharpening
the Saw Chain 31
M i t n n e h ta n e a c C ar 34
Specifications 35
Ordering Spare Parts 36
Adresses 36
This manual contains operating and
safety instructions for all STIHL E 220
series chainsaws.
Pay special attention to the safety
precautions outlined on pages 4 to 20.
Allow only persons who understand this
Manual to operate your chainsaw.
To receive maximum performance and
satisfaction from your STIHL chainsaw,
it is important that you read and under-
stand the maintenance and safety
precautions before using your saw.
Contact your STIHL dealer or the
STIHL distributor for your area if you do
not understand any of the instructions in
this Manual.
Warning!
Because a chainsaw is a high-speed
wood-cutting tool, some special safety
precautions must be observed as with
any other power saw to reduce the risk of
personal injury. Careless or improper use
may cause serious or even fatal injury.
STIHL’s philosophy is to continually
improve all of its products. As a result,
engineering changes and improvements
are made from time-to-time.
If the operating characteristics or the
appearance of your saw differ from
those described in this Manual,
please contact your STIHL dealer for
information and assistance.
0458 107 3021. M0,75. B2. Rei. Printed in Germany
2002 Andreas Stihl AG & Co., Waiblingen
Contents
Printed on chlorine-free paper
Printing inks contain vegetable oils,
paper is recyclable
E 220 1
