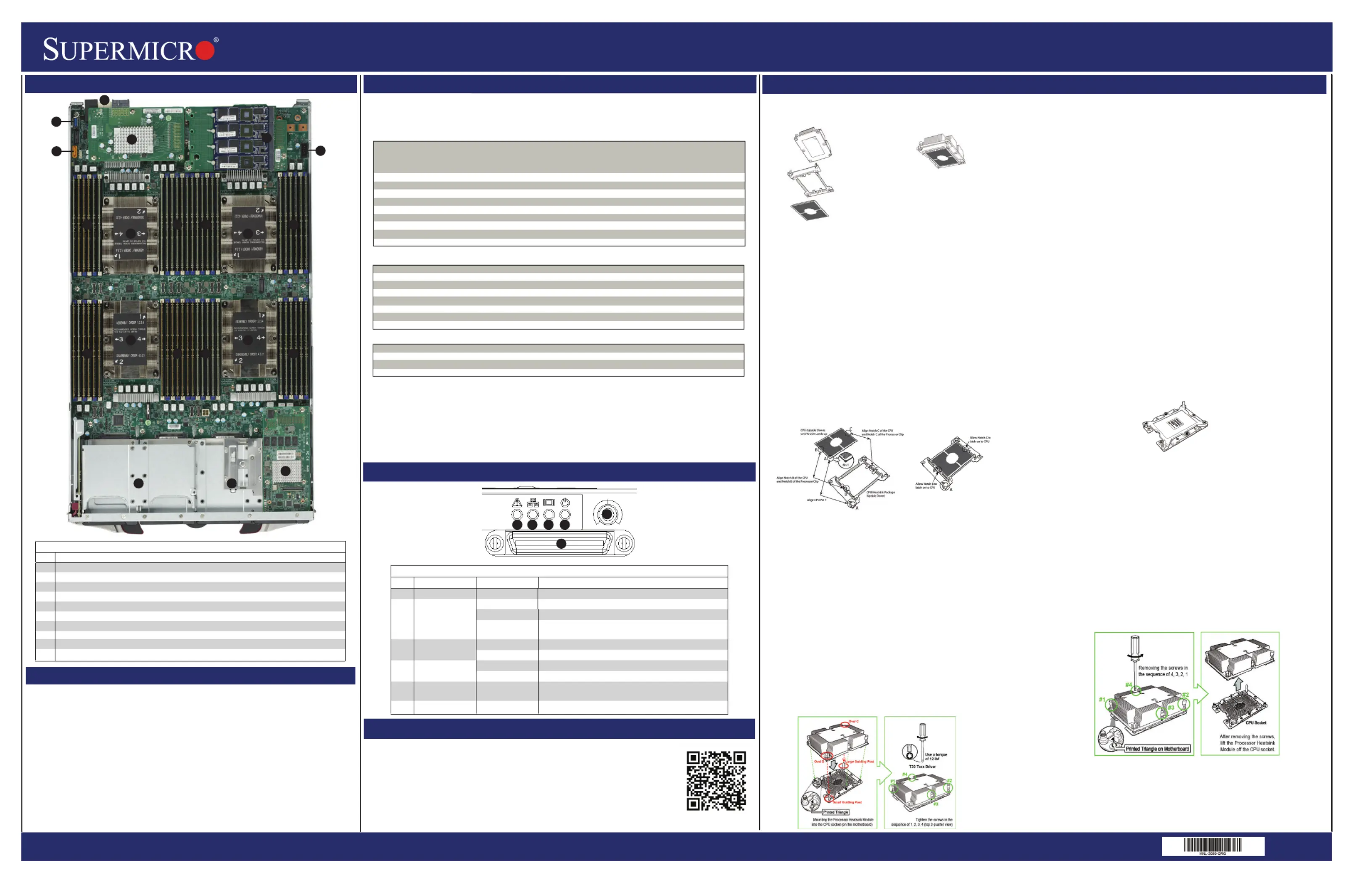

SuperBlade SBI-8149P-C4N/T8N Blade Module Quick Reference Guide

Memory Support

http://www.supermicro.com MNL-2089-QRG Rev 1.0

Board Layout

Supports up to 6 TB of RDIMM/3DS LRDIMM DDR4 2666 MHz speed and 8 GB, 16 GB, 32 GB, 64 GB and 128 GB size

SDRAM memory in forty-eight (48) 288-pin DIMM sockets for each node.

See https://www.supermicro.com/support/resources/memory/X11_memory_config_guide.pdf for details.

The Processor Heatsink Module (PHM) contains 1) a heatsink,

2) a narrow processor clip, and 3) the SKX(-F) processor.

1. Heatsink

2. Narrow Processor Clip

3. SKK Processor

Bottom View

Attaching the Processor to the Narrow Processor Clip to Create

the Processor Package Assembly

To properly install the CPU into the narrow processor clip, please follow

the steps below.

1. Locate pin 1 (notch A), which is the triangle located on the top of the

narrow processor clip. Also locate notch B and notch C on the processor clip.

2. Locate pin 1 (notch A), which is the triangle on the substrate of the CPU.

Also, locate notch B and notch C on the CPU as shown below.

3. Align pin 1 (the triangle on the substrate) of the CPU with pin 1 (the triangle)

of the narrow processor clip. Once they are aligned, carefully insert the CPU

into the processor clip by sliding notch B of the CPU into notch B of the

processor clip, and sliding notch C of the CPU into notch C of the processor clip.

4. Examine all corners of the CPU to ensure that it is properly seated on the

processor clip. Once the CPU is securely attached to the processor clip, the

processor package assembly is created.

Note: Please exercise extreme caution when handling the CPU. Do not touch the

CPU LGA-lands to avoid damaging the LGA-lands or the CPU. Be sure to wear

ESD gloves when handling components.

Attaching the Processor Package Assembly to the Heatsink to Form

the Processor Heatsink Module (PHM)

After you have made a processor package assembly by following the instructions on the

previous page, please follow the steps below to mount the processor package assembly

onto the heatsink to create the Processor Heatsink Module (PHM).

1. Locate "1" on the heatsink label and the triangular corner next to it on the heatsink.

With your index finger pressing against the screw at this triangular corner, carefully hold

and turn the heatsink upside down with the thermal-grease side facing up. Remove the

protective thermal film if present, and apply the proper amount of the thermal grease as

needed. (Skip this step if you have a new heatsink because the necessary thermal

grease is pre-applied in the factory.)

2. Holding the processor package assembly at the center edge, turn it upside down. With

the thermal-grease side facing up, locate the hollow triangle located at the corner of the

processor carrier assembly ("a" in the graphic). Note a larger hole and plastic mounting

clicks located next to the hollow triangle. Also locate another set of mounting clicks and a

larger hole at the diagonal corner of the same (reverse) side of the processor carrier

assembly ("b" in the graphic).

3. With the back of heatsink and the reverse side of the processor package assembly

facing up, align the triangular corner on the heatsink ("A" in the graphic) against the

mounting clips next to the hollow triangle ("a") on the processor package assembly.

4. Also align the triangular corner ("B") at the diagonal side of the heatsink with the

corresponding clips on the processor package assembly ("b").

5. Once the mounting clips on the processor package assembly are properly aligned with

the corresponding holes on the back of heatsink, securely attach the heatsink to the

processor package assembly by snapping the mounting clips at the proper places on the

heatsink to create the processor heatsink module (PHM).

Preparing the CPU Socket for Installation

This motherboard comes with the CPU socket pre-assembled in the factory. The CPU

socket contains 1) a dust cover, 2) a socket bracket, 3) the CPU (P0) socket, and 4) a

back plate. These components are pre-installed on the motherboard before shipping.

CPU Socket w/Dust Cover On

Removing the Dust Cover from the CPU Socket

Remove the dust cover from the CPU socket, exposing the SKX socket and socket pins

as shown on the illustration below.

Note: Do not touch the socket pins to avoid damaging them, causing the CPU to

malfunction.

Installing the Processor Heatsink Module (PHM)

Once you have assembled the processor heatsink module (PHM) by following the

instructions listed on page 29 or page 30, you are ready to install the processor

heatsink module (PHM) into the CPU socket on the motherboard. To install the PHM

into the CPU socket, follow the instructions below.

1. Locate the triangle (pin 1) on the CPU socket, and locate the triangle (pin 1) at the

corner of the PHM that is closest to "1." (If you have difficulty locating pin 1 of the

PHM, turn the PHM upside down. With the LGA-lands side facing up, you will note the

hollow triangle located next to a screw at the corner. Turn the PHM right side up, and

you will see a triangle marked on the processor clip at the same corner of hollow

triangle.)

2. Carefully align pin 1 (the triangle) on the PHM against pin 1 (the triangle) on the

CPU socket.

3. Once they are properly aligned, insert the two diagonal oval holes on the heatsink

into the guiding posts.

4. Using a T30 Torx-bit screwdriver, install four screws into the mounting holes on the

socket to securely attach the PHM onto the motherboard starting with the screw

marked "1" (in the sequence of 1, 2, 3, and 4).

Do not use excessive force when tightening the screws to avoid damaging the

LGA-lands and the processor.

Removing the Processor Heatsink Module (PHM) from the Motherboard

Before removing the processor heatsink module (PHM), unplug power cord from the

power outlet.

1. Using a T30 Torx-bit screwdriver, turn the screws on the PHM counterclockwise to

loosen them from the socket, starting with screw marked #4 (in the sequence of 4, 3, 2,

1).

2. After all four screws are removed, wiggle the PHM gently and pull it up to remove it

from the socket.

Note: To properly remove the processor heatsink module, be sure to loosen and remove

the screws on the PHM in the sequence of 4, 3, 2, 1 as shown below.

DDR4 Memory Support for Two Slots per Channel

Type Ranks DIMM Capacity (GB) Speed (MT/s)

Per DIMM Two Slots per Channel

and Data One DIMM per Channel Two DIMMs per Channel

Width 4 Gb 8 Gb 1.2 Volts 1.2 Volts

RDIMM SRx4 8 GB 16 GB 2666 2666

SRx8 4 GB 8 GB 2666 2666

DRx8 8 GB 16 GB 2666 2666

DRx4 16 GB 32 GB 2666 2666

RDIMM 3Ds QRX4 N/A 2H-64GB 2666 2666

8RX4 N/A 4H-128GB 2666 2666

LRDIMM QRx4 32 GB 64 GB 2666 2666

LRDIMM 3Ds QRX4 N/A 2H-64GB 2666 2666

8Rx4 N/A 4H-128 GB 2666 2666

SBI-8149P-C4N/T8N Module Layout

Item Description

1 CPUs installed (four total)

2 Front housing for 2.5" SATA3/SSD/NVMe hard drive bays (four (C4N) or eight (T8N) total)

3 DIMM slots (48 total)

4 Power and Logic connectors to backplane

5 InfiniBand, Omni-path or NVMe/SATA Mezzanine Card

6 NVMe/SATA Mezzanine Card

7 Universal Serial Bus (3.0 USB) Ports

8 SATA DOM Port

9 9-pin TPM Connector

10 Broadcom 3108 Mezzanine Card

Key Parameters for DIMM Configurations

Parameters Possible Values

Number of Channels 1, 2, 3, 4, 5 or 6

Number of DIMMs per Channel 1DPC (1 DIMM Per Channel) or 2DPC (2 DIMMs Per Channel)

DIMM Type RDIMM (w/ECC), 3DS RDIMM, LRDIMM or 3DS-LRDIMM

DIMM Construction Non-3DS RDIMM Raw Cards: A/B (2RX4), C (1RX4), D (1RX8) or E (2RX8)

3DS RDIMM Raw Cards: A/B (4RX4)

Non-3DS LRDIMM Raw Cards: D/E (4RX4)

3DS LRDIMM Raw Cards: A/B (8RX4)

Mixing of DIMM Types within a Channel

DIMM Types RDIMM LRDIMM 3DS LRDIMM

RDIMM Allowed Not Allowed Not Allowed

LRDIMM Not Allowed Allowed Not Allowed

3DS LRDIMM Not Allowed Not Allowed Allowed

Control Panel

CPU and Heat Sink Installation

Caution

SAFETY INFORMATION

IMPORTANT: See installation instructions and safety warning before

connecting system to power supply.

http://www.supermicro.com/about/policies/safety_information.cfm

WARNING:

To reduce risk of electric shock/damage to equipment, disconnect power

from server by disconnecting all power cords from electrical outlets.

If any CPU socket empty, install protective plastic CPU cap

WARNING:

Always be sure all power supplies for this system have the same power

output. If mixed power supplies are installed, the system will not operate.

For more information go to: http://www.supermicro.com/support



Installing the Processor

Enclosure Requirements

The SBI-8149P-C4N/T8N blade module requires one of the following enclosures to run in:

SBE-820C-822 SBE-820C-622 SBE-820C-422

SBE-820J-822 SBE-820J-622 SBE-820J-422

See the Supermicro webstite for details on enclosures at:

https://www.supermicro.com/en/products/superblade/enclosure

Note: The SBI-8149P-C4N/T8N blade module also requires one or more power supplies in the

enclosure to run the blade module. Available SuperBlade power supplies can be found on

the Supermicro website at https://www.supermicro.com/products/SuperBlade/powersupply/.

Blade Control Panel

Item Function State Description

1 Power Button N/A

2 Power LED Green Indicates power status “On”

Solid Orange

Flashing Orange Flashing Orange: Indicates node is not ready or not enough power to turn on

3 KVM/UID LED Blue Indicates KVM being utilized on blade unit

Flashing Blue Indicates UID activated on blade module

4 Network/IB LED Flashing Green Indicates network activity over LAN

Flashing Orange Indicates network activity

System Fault LED

KVM Connector

Red

N/A

Indicates a memory error, overheat, VGA error or any error

that prevents booting

Connector for SUV/KVM cable

Indicates power status “Off” (with power cables plugged in)

Turns blade module on and off

2345

3 3

33 3 3

1 1
