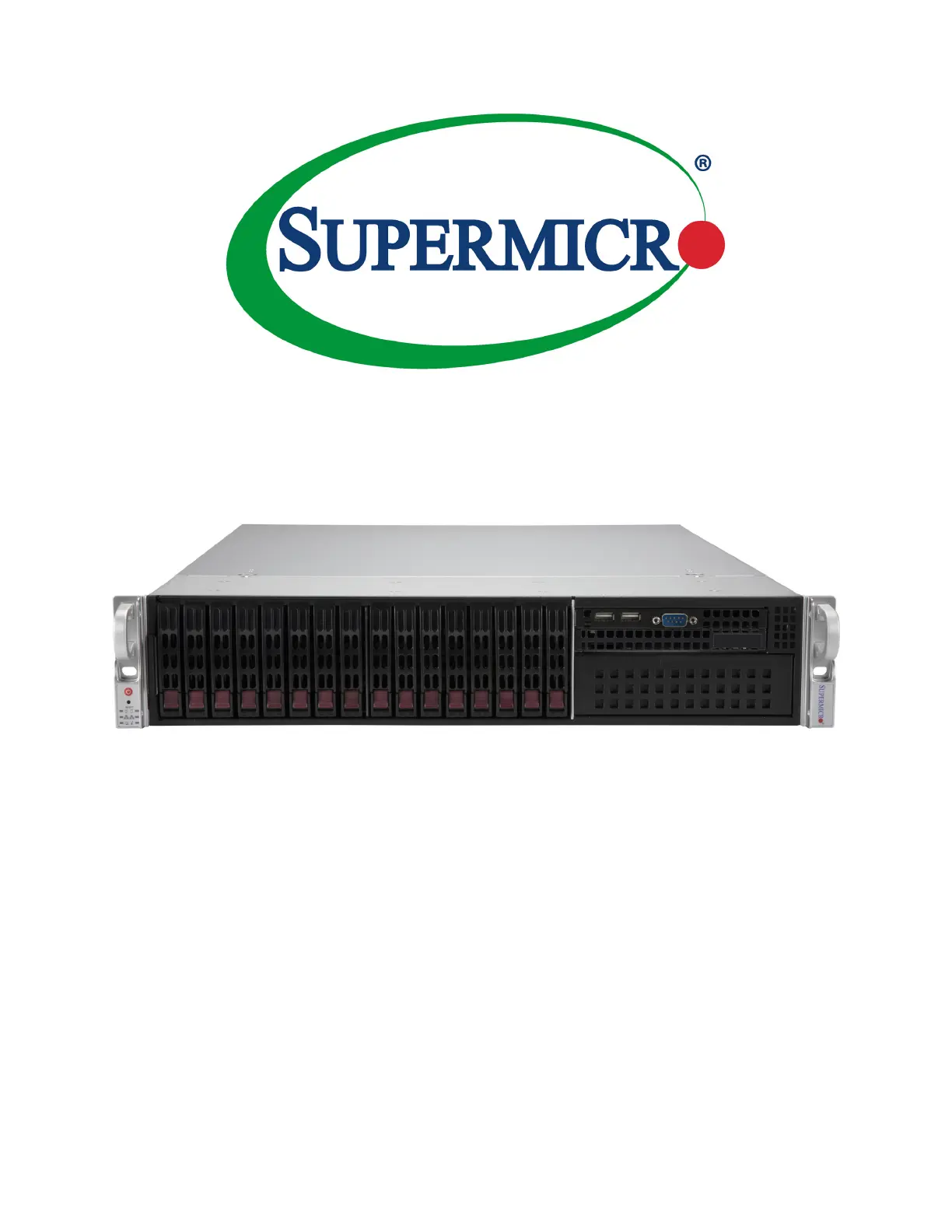

USER’S MANUAL
Revision 1.0
SuperServer®
220P-C9R(T)

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes
no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update
or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note:
For the most up-to-date version of this manual, please see our website at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual
at any time and without notice. This product, including software and documentation, is the property of Supermicro and/
or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except
as expressly permitted by the terms of said license.
IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT
OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER
MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED
OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the
State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution
of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class A or Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in industrial environment for Class A device or in residential
environment for Class B device. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case you will be required to correct the interference at your own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only
to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment,
nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical
systems whose failure to perform be reasonably expected to result in signicant injury or loss of life or catastrophic
property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products
for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully
indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and
proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
Manual Revision 1.0
Release Date: April 21, 2021 mk
Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this
document. Information in this document is subject to change without notice. Other products and companies referred
to herein are trademarks or registered trademarks of their respective companies or mark holders.
Copyright © 2021 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America

3
Preface
3
Preface
Preface
About this Manual
This manual is written for professional system integrators and PC technicians. It provides
information for the installation and use of the server. Installation and maintenance should be
performed by experienced technicians only.
Please refer to the 220P-C9R(T) server specications page on our website for updates on
supported memory, processors and operating systems (www.supermicro.com).
Notes
For your system to work properly, please follow the links below to download all necessary
drivers/utilities and the user’s manual for your server.
• Supermicro product manuals: http://www.supermicro.com/support/manuals/
• Product drivers and utilities: https://www.supermicro.com/wftp
• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm
If you have any questions, please contact our support team at:
support@supermicro.com
This manual may be periodically updated without notice. Please check the Supermicro website
for possible updates to the manual revision level.
Secure Data Deletion
A secure data deletion tool designed to fully erase all data from storage devices can be found
on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/
Lot9_Secure_Data_Deletion_Utility/
Warnings
Special attention should be given to the following symbols used in this manual.
Warning! Indicates high voltage may be encountered when performing a procedure.
Warning! Indicates important information given to prevent equipment/property damage
or personal injury.

4
Contents
Contents
Chapter 1 Introduction
1.1 Overview ...............................................................................................................................9
Network Connection Options ..............................................................................................9
1.2 System Features ................................................................................................................10
Front View .........................................................................................................................10
Drive Carrier Indicators ..................................................................................................10
Control Panel .................................................................................................................11
Rear View ..........................................................................................................................12
Power Supply Indicator ..................................................................................................13
LAN Speed Indicators ....................................................................................................13
Top View ............................................................................................................................14
1.3 System Architecture ...........................................................................................................15
Main Components .............................................................................................................15
1.4 Motherboard Layout ...........................................................................................................16
Quick Reference ...............................................................................................................17
Chipset Block Diagram......................................................................................................19
Chapter 2 Server Installation
2.1 Overview .............................................................................................................................20
2.2 Unpacking the System .......................................................................................................20
2.3 Preparing for Setup ............................................................................................................20
Choosing a Setup Location ...............................................................................................20
Rack Precautions ..............................................................................................................21
Server Precautions ............................................................................................................21
Rack Mounting Considerations .........................................................................................21
2.4 Installing the Rails ..............................................................................................................23
Overview of the Rack Rails ...............................................................................................23
Releasing the Inner Rail....................................................................................................24
Installing the Inner Rails ...................................................................................................25
Installing the Outer Rails onto the Rack ...........................................................................26
2.5 Installing the Server into a Rack ........................................................................................27
Removing the Chassis from the Rack ..............................................................................28

6
Contents
Chapter 4 Motherboard Connections
4.1 Power Connections ............................................................................................................58
4.2 Headers and Connectors ...................................................................................................59
Control Panel .................................................................................................................62
4.3 Input/Output Ports ..............................................................................................................65
4.4 Jumpers ..............................................................................................................................66
4.5 LED Indicators ....................................................................................................................67
4.6 SATAConnectors ................................................................................................................68
Chapter 5 Software
5.1 Microsoft Windows OS Installation .....................................................................................69
5.2 Driver Installation ................................................................................................................71
5.3 SuperDoctor® 5 ...................................................................................................................72
5.4 BMC ....................................................................................................................................73
BMC ADMIN User Password ............................................................................................73
Chapter 6 Optional Components
6.1 Front Storage Drive Options ...............................................................................................74
Sixteen SAS drive support ................................................................................................74
Four NVMe drive support ..................................................................................................74
6.2 Rear Drives ........................................................................................................................74
6.3 Options for the Front 5.25" Bay .........................................................................................75
Slim DVD Drive (USB connection) ....................................................................................75
Slim DVD Drive (SATA connection) ..................................................................................75
5.25" DVD Drive (SATA connection): ................................................................................75
Two front xed 2.5" drives ................................................................................................75
6.4 SuperCap ...........................................................................................................................76
6.5 TPM Security Module .........................................................................................................76
6.6 Intel Virtual RAID on CPU (VROC) ...................................................................................77
Requirements and Restrictions .........................................................................................77
Supported SSDs and Operating Sytems ..........................................................................77
Additional Information .......................................................................................................78
Hardware Key ...................................................................................................................78
Conguring NVMe RAID Manually ....................................................................................79
Status Indications ..............................................................................................................84
Hot Swap Drives ...............................................................................................................84

8
Contacting Supermicro
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: +1 (408) 503-8000
Fax: +1 (408) 503-8008
Email: marketing@supermicro.com (General Information)
support@supermicro.com (Technical Support)
Website: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: +31 (0) 73-6400390
Fax: +31 (0) 73-6416525
Email: sales@supermicro.nl (General Information)
support@supermicro.nl (Technical Support)
rma@supermicro.nl (Customer Support)
Website: www.supermicro.nl
Asia-Pacic
Address: Super Micro Computer, Inc.
3F, No. 150, Jian 1st Rd.
Zhonghe Dist., New Taipei City 235
Taiwan (R.O.C)
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3992
Email: support@supermicro.com.tw
Website: www.supermicro.com.tw

9
Chapter 1: Introduction
Chapter 1
Introduction
1.1 Overview
This chapter provides an outline of the functions and features of the SuperServer 220P-C9R(T).
The following provides an overview of the specications and capabilities.
System Overview
Motherboard X12DPI-N(T)6
Chassis CSE-213BTS-R1K23LPBP3-1
Processor Dual 3rd Gen Intel Xeon Scalable in P+ (LGA-4189) socket
Memory
16 DIMM slots for up to 4TB of 3DS LRDIMM/LRDIMM/3DS RDIMM/RDIMM DDR4
ECC memory,
plus 2 slots for up to 4TB Intel Optane PMem 200 Series with speeds of 3200MHz.
Note: PMem 200 Series are supported on 3rd gen Intel Xeon Scalable Platinum,
Gold and selected Silver processors.
Storage
16 hot-swap drive bays including 8 SAS, and 8 SATA, optionally 4 SATA bays can
be converted to NVMe which leaves 4 SATA bays.
One M.2 NVMe SSDs
Two SuperDOM
Expansion Slots Five PCIe 4.0 low prole slots, (4x16, 1x8)
I/O Ports
Two network ports
Six USB ports (4 rear USB 3.0, 2 front USB 2.0)
Two VGA ports (front and rear)
One serial port (rear)
System Cooling Three 8-cm mid-chassis fans with Optimal Fan Speed Control
Two air shrouds
Power Two redundant 1200W modules, 80Plus level Titanium
Form Factor 2U rackmount; (WxHxD) 17.6 x 3.5 x 28.8 in. (447 x 88 x 730 mm)
A Quick Reference Guide can be found on the of the Supermicro website.product page
The following safety models associated with the 220P-C9R(T) have been certied as compliant
with UL or CSA: 213-R12X12, 213-12.
Network Connection Options
• 220P-C9R using motherboard X12DPI-N6 provides two 1GbE ports.
• 220P-C9RT using motherboard X12DPI-NT6 provides two 10GbE ports.

11
Chapter 1: Introduction
Control Panel Features
Feature Description
Power button Applies or removes primary power from the power supply to the server but maintains standby
power
Reset button Resets the system
Power LED
Steady on – Power on
Blinking at 4Hz – Checking BIOS/BMC integrity
Blinking at 4Hz and Information LED is blue – BIOS rmware updating
Two blinks at 4Hz, one pause 2Hz, and Information LED is blue – BMC rmware updating
Blinking at 1Hz and Information LED is red – Fault detected
Drives Indicates activity on the storage drives when ashing
NIC LEDs Indicates network activity on LANs when ashing
Power Fail LED Indicates one of the power supply modules has failed
Information LED Alerts operator to several states, as noted in the table below
Information LED
Color, Status Description
Red, solid An overheat condition has occurred.
Red, blinking at 1Hz Fan failure, check for an inoperative fan.
Red, blinking at 0.25Hz Power failure, check for a non-operational power
supply.
Red, solid, with Power LED blinking
green Fault detected
Blue and red, blinking at 10 Hz Recovery mode
Control Panel
Figure 1-2. Control Panel
Power
Power LED
Information LED
Reset Button
Drives
NIC LED
NIC LED
Power Fail LED

12
Chapter 1: Introduction
Information LED
Blue, solid UID has been activated locally to locate the
server in a rack environment.
Blue, blinking at 1Hz UID has been activated using the BMC to locate
the server in a rack environment.
Blue, blinking at 2Hz BMC is resetting
Blue, blinking at 4Hz BMC is setting factory defaults
Blue, blinking at 10Hz with Power LED
blinking green BMC/BIOS rmware is updating

13
Chapter 1: Introduction
Rear View
Figure 1-3. System: Rear View
Add-on Card Slots
Item Description
1Not available; this PCIe slot is used by a RAID controller card (AOC-S3908L-H8IR-16DD) (CPU1)
2, 3PCIe 4.0 Low-prole x16 (CPU1)
4, 5PCIe 4.0 Low-prole x16 (CPU2)
6PCIe 4.0 Low-prole x8 (CPU2)
System Features: Rear
Feature Description
Power Supplies Two redundant power supply modules, PWS1 on the top, PWS2 underneath
BMC LAN Port BMC LAN port; for indicator details, see BMC LAN LEDs
COM Port Serial port
USB Ports Four USB 3.0 ports
LAN Ports 220P-C9R—Two 1GbE network ports
220P-C9RT—Two 10GbE network ports
VGA Port Video
UID LED/
BMC Reset
Turns on or o the blue light UID function of the Information LED and a blue LED on the rear
of the chassis. Press briey.
Pressing for six seconds resets the BMC. (see Reset the BMC)
Drive Bays Bay for two 2.5" SATA drives (see (Optional kit) Rear Drives)
(optional) Drive Bays
235 4
Power Supplies
BMC LAN Port
LAN Ports
VGA Port
UID LED/BMC ResetCOM Port
USB 3.0 Ports
USB 3.0 Ports
6 1

19
Chapter 1: Introduction
LED Description State: Status
LE3 Power LED LED On: Onboard Power On
LE4 M.2 LED Blinking Green: Device Working
LE6 Unit Identier (UID) LED Solid Blue: Unit Identied
LEDM1 BMC Heartbeat LED Blinking Green: BMC Normal
Solid Green: BMC resetting or cold reboot
Produktspecifikationer
Varumärke: | Supermicro |
Kategori: | Server |
Modell: | SuperServer SYS-220P-C9R |
Behöver du hjälp?
Om du behöver hjälp med Supermicro SuperServer SYS-220P-C9R ställ en fråga nedan och andra användare kommer att svara dig
Server Supermicro Manualer

31 Januari 2025

9 Januari 2025

29 December 2024

29 December 2024

29 December 2024

29 December 2024

29 December 2024

29 December 2024

29 December 2024

29 December 2024
Server Manualer
- Server Sony
- Server HP
- Server Toshiba
- Server Abus
- Server Acer
- Server Allnet
- Server Apc
- Server Acti
- Server Hikvision
- Server Asus
- Server SilverStone
- Server Megasat
- Server Maxdata
- Server Lenovo
- Server Black Box
- Server Tripp Lite
- Server Axis
- Server Gigabyte
- Server Nec
- Server Technics
- Server Cisco
- Server AVerMedia
- Server Matrox
- Server Flir
- Server Fujitsu
- Server Digitus
- Server Kathrein
- Server Asrock
- Server Buffalo
- Server GeoVision
- Server Netgear
- Server QNAP
- Server LaCie
- Server Dell
- Server Valcom
- Server Asustor
- Server Planet
- Server ZyXEL
- Server Western Digital
- Server Intel
- Server Fantec
- Server MSI
- Server D-Link
- Server Freecom
- Server Eaton
- Server Seagate
- Server Iomega
- Server Synology
- Server Elac
- Server Blackmagic Design
- Server ATen
- Server Veritas
- Server Digi
- Server Revox
- Server Conceptronic
- Server Gefen
- Server Luxman
- Server Quantum
- Server Areca
- Server SEH
- Server Ibm
- Server Provision ISR
- Server Sonnet
- Server Monacor
- Server TAIDEN
- Server Moxa
- Server Smart-AVI
- Server StarTech.com
- Server SIIG
- Server Advantech
- Server Extron
- Server KanexPro
- Server Avocent
- Server Intellinet
- Server Vimar
- Server Silex
- Server Kramer
- Server Hanwha
- Server In Win
- Server Lindy
- Server Ernitec
- Server Sun
- Server Atlona
- Server MvixUSA
- Server Dual Bay
- Server Raidsonic
- Server EMC
- Server AMX
- Server Rocstor
- Server Infortrend
- Server Opengear
- Server G-Technology
- Server EXSYS
- Server Raritan
- Server Chenbro Micom
- Server Middle Atlantic
- Server Mr. Signal
- Server Atlantis Land
- Server C2G
- Server Lantronix
- Server Promise Technology
- Server HGST
- Server IStarUSA
- Server NETSCOUT
- Server Mobotix
- Server Origin Storage
Nyaste Server Manualer

10 Mars 2025

10 Mars 2025

10 Mars 2025

10 Mars 2025

10 Mars 2025

10 Mars 2025

10 Mars 2025

10 Mars 2025

10 Mars 2025

20 Februari 2025
