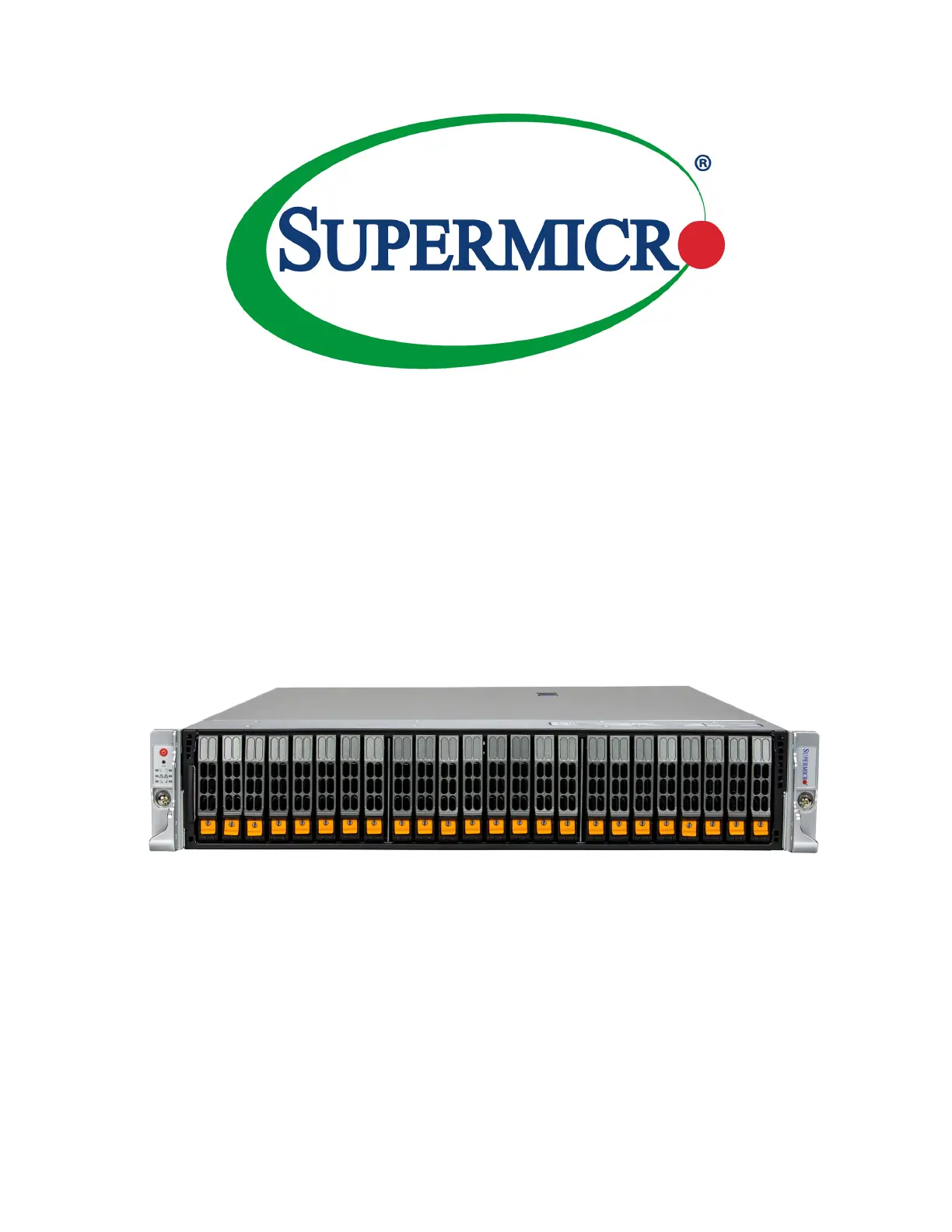

SuperServer SYS-221H-TNR
Läs nedan 📖 manual på svenska för Supermicro SuperServer SYS-221H-TNR (14 sidor) i kategorin Server. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/14
Information for Lot 9 of ErP (Ecodesign)
This addendum addresses European Union (EU) Ecodesign requirements for servers and storage
products. All data and ratings within this addendum are in reference only to the Supermicro product(s) in
th toe manual. The below information conforms requirements laid down in Annex II of the Commission
Regulation 2019/424.
3(1)(a): See Section 1.1 of the system manual for the product type.
3(1)(b): See the title page and preface of the system manual for the trademark and
manufacturer’s address.
3(1)(c): See the title page of the system manual for product model number(s).
3(1)(d): See the serial number the physical system to determine the year of manufacture. on
3(1)(e-j): PSU Efficiency and Power Factor Value able) (From 80 Plus report) (T
PSU Model #: PWS- A-1K63 1R
Watts: 16 00
PSU Efficiency
Power Fact or
% of Rated Load
10 %
20 %
50 %
100 %
50 %
Single Output ( - )AC DC
91. % 88
94 4 % .2
96.33 %
93.93 %
0.99
System (EUT) Efficiency in Power (Table) Idle State
Representative
Configurations
Measured Idle State
Power (W)
Calculated Idle Power
Allowance (W)
High-End Performance
Configuration
520.3
926.32
Typical Configuration
N/A
N/A
Low-End Performance
Configuration
241.1
259.80
System (EUT) Efficiency in Power (Table) Active State
Representative
Configurations
Active State
Efficiency Score
(Effserver)
Minimum Active State
Efficiency for 2-Socket
Server
High-End Performance
Configuration
46.1
Typical Configuration
N/A
9.5
Low-End Performance
Configuration
22.2
3(1)(k): The operating condition class . is A2
Dry bulb temp C°
Humidity range, non-condensing
Operating
condition
class
Allowable
range
Recom
mended
range
Allowable range
Recommended range
Max dew
point (°C)
Maximum
rate of
change
(°
C/hr)
A1
15 32-
18 27-
–
12 C Dew Point (DP) and°
8 % relative humidity (RH) to
17 80 C DP and ° % RH
–
9 C °DP to
15 C and °DP
60 % RH
17
5/20
A2
10 35-
18 27-
–
12 C and 8 % °DP RH to
21 80 C and °DP % RH
Same as A1
21
5/20
A3
5-40
18 27-
–
12 C and 8 % °DP RH to
24 85 C and °DP % RH
Same as A1
24
5/20
A4
5-45
18 27-
–
12 C and 8 % °DP RH to
24 90 C and °DP % RH
Same as A1
24
5/20
3(1)(l): The idle state power at the higher boundary temperature of the operating conditions
class is 520.3 W.
3(1)(m): The active state efficiency and performance 46.1. is
3(1)(n): There are two methods by which a user can securely delete data from this system. The
user performing secure data deletion should be an IT professional.
The first is with a Unified Extensible Firmware Interface (UEFI) shell utility. This utility
works on X10/X11/H11/H12/M11 motherboard series with onboard SATA/NVMe devices.
Any user may access and download this utility through following link:
https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wftp/utility/Lot9_Secure
_Data_Deletion_Utility/
Download the shell utility package and extract it to a USB flash drive, then plug the drive
into the server for which secure data deletion is necessary. Then turn the system on.
Navigate to the BIOS setup menu, then place the server system into the UEFI shell
environment. Follow the instructions in the README file to invoke the utility and
complete the deletion.
The second method is through the secure data deletion tool provided by the original
manufacturer of the hard drive. This should be used in a scenario where the shell utility
is not applicable. Each manufacturer should have the tool available on their website. If
needed, please look on the hard drive label for the name of the manufacturer and model
information.
3(1)(o): List of recommended combinations of blade servers with chassis: N/A.
3(1)(p): List of all current SKUs within this product family: SYS-221H- R, SYS-221H- TN TN24R.
3(3)(a): There is no use of cobalt in batteries in this product.
The indicative weight range of neodymium in the HDD is 0.0 if manufactured by Western
Digital, and is between 5-25 grams if manufactured by Seagate.
3(3)(b): Please see the disassembly instructions on the next page.
