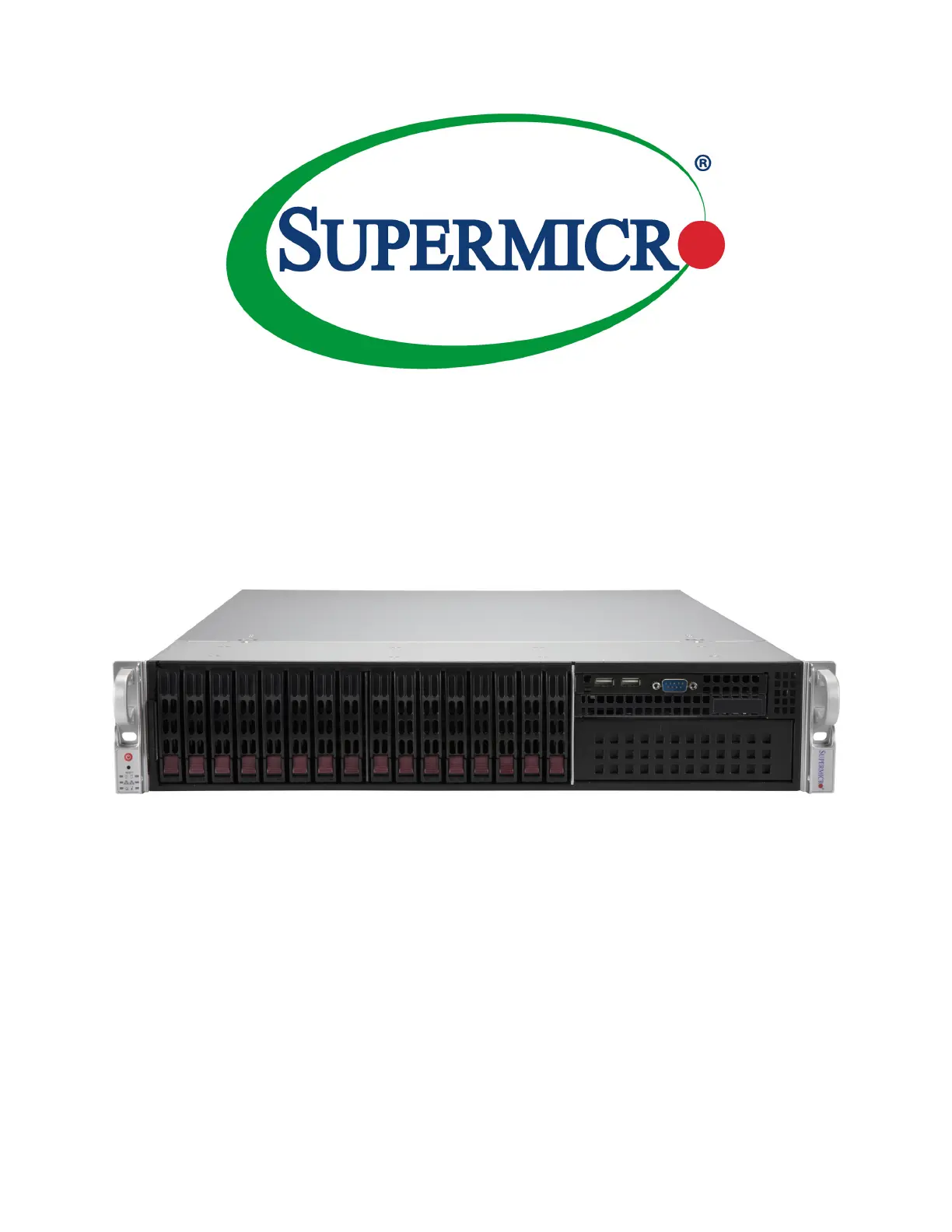

SuperServer SYS-221P-C9RT
Läs nedan 📖 manual på svenska för Supermicro SuperServer SYS-221P-C9RT (1 sidor) i kategorin Server. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/1
http://www.supermicro.com MNL-2566-QRG
SuperServer 221P-C9R(T) Quick Reference Guide
CPU/Heatsink Installation
Caution
SAFETY INFORMATION
IMPORTANT: See installation instructions and safety warning
before connecting system to power supply.
http://www.supermicro.com/about/policies/safety_information.cfm
WARNING
To reduce risk of electric shock/damage to equipment,
disconnect power from server by disconnecting all power
cords from electrical outlets.
If any CPU socket empty, install protective plastic CPU cap
CAUTION
Always be sure all power supplies for this system have
the same power output. If mixed power supplies are
installed, the system will not operate.
For more information go to : http://www.supermicro.com/support
!
!
!
Rev. 1.0
12
3
Note: 1DPC applies to 1 SPC (Sockets Per Channel) or 2 SPC implementation.
SP XCC and SP MCC Carrier View
Heatsin SNK-P0088Pk
(f CP P )or U1 and C U2
Note:
Thermal grease is pre-applied on new heatsinks. No additional thermal grease is needed.
CPU carrier is optional, Please select CPU carrier by CPU model. (E1A for XCC, E1B for MC)
DDR5 Mem ry rt 4t erat te ca cess o Suppo for the h Gen ion In l Xe Son la e Probl ors
Type
Ranks Per DIMM
& Data Width
(Stack)
DIMM Capacity (GB)
Speed (MT/s); Voltage (V);
DIMM Per Channel (DPC)
1DPC (Note) 2DPC
16GB 1.1V
RDIMM
SRx8 (RC D) 16GB
4800 4400
SRx4 (RC C) 32GB
SRx4 (RC F) 9x4 32GB
DRx8 (RC E) 32GB
DRx4 (RC A) 64GB
DRx4 (RC B) 9x4 64GB
RDIMM 3DS (4R/8R) p1-x4 (RC A) 2H-128GB
4H-256GB
LRDIMM/LRDIMM-3DS N/A N/A Not Supported Not Supported
Parameters Possible Values
Number of Channels per Socket 1, 2, 4, 6, 8
Number of DIMMs per Channel 1DPC (1 DIMM Per Channel) or 2DPC (2 DIMMs Per Channel)
DIMM Type RDIMM and 3DS RDIMM
DIMM Construction non-3DS RDIMM Raw Cards: A (2Rx4), C (1Rx4), D (1Rx8), E (2Rx8)
3DS RDIMM Raw Cards: A (4Rx4, 8Rx4)
9x4 RDIMM Raw Cards: B (2Rx4), F (1Rx4)
Compatible and Incompatible Type in a Channel and a System
DIMM Type RDIMM RDIMM 3DS 9x4 RDIMM
RDIMM Compatible Incompatible Incompatible
RDIMM 3DS Incompatible Compatible Incompatible
9x4 RDIMM Incompatible Incompatible Compatible
Key Parameters for DIMM Configurations
DIMM Population Guidelines for Optimal Performance
4TB memory capacity with 16 DIMMs of 256GB 3DS RDIMM/RDIMM DDR5 ECC memory.
For optimal memory performance, follow the instructions listed in the tables below when populating memory
modules.
Note: Memory speed and capacity support depends on the processors used in the system.
DDR5 Memory Population Table for X13 DP Motherboards (with 16 DIMMs installed)
1 CPU Memory Population Sequence
1 CPU & 1 DIMM P1-DIMMA1 or P1-DIMME1 or P1-DIMMB1 or P1-DIMMF1
1 CPU & 2 DIMMs P1-DIMMA1 / P1-DIMMG1 or P1-DIMMC1 / P1-DIMME1
1 CPU & 4 DIMMs P1-DIMMA1 / P1-DIMMC1 / P1-DIMME1 / P1-DIMMG1
1 CPU & 6 DIMM
P1-DIMMA1 / P1-DIMMC1 / P1-DIMMD1 / P1-DIMME1 / P1-DIMMF1 / P1-DIMMG1
or P1-DIMMA1 / P1-DIMMB1 / P1-DIMMC1 / P1-DIMME1 / P1-DIMMG1 / P1-DIMMH1
or P1-DIMMB1 / P1-DIMMC1 / P1-DIMMD1 / P1-DIMME1 / P1-DIMMF1 / P1-DIMMH1
or P1-DIMMA1 / P1-DIMMB1 / P1-DIMMD1 / P1-DIMMF1 / P1-DIMMG1 / P1-DIMMH1
1 CPU & 8 DIMMs P1-DIMMA1 / P1-DIMMB1 / P1-DIMMC1 / P1-DIMMD1 / P1-DIMME1 / P1-DIMMF1 / P1-DIMMG1 / P1-DIMMH1
2 CPUs (Recommended) Memory Population Sequence
2 CPUs & 2 DIMMs
2 CPUs & 4 DIMMs
CPU1: P1-DIMMA1, CPU2: P2-DIMMA1
or CPU1: P1-DIMME1, CPU2: P2-DIMME1
or CPU1: P1-DIMMB1, CPU2: P2-DIMMB1
or CPU1: P1-DIMMF1, CPU2: P2-DIMMF1
2 CPUs & 8 DIMMs
CPU1: P1-DIMMA1 / P1-DIMMG1, CPU2: P2-DIMMA1 / P2-DIMMG1
or CPU1: P1-DIMMC1 / P1-DIMME1, CPU2: P2-DIMMC1 / P2-DIMME1
CPU1: P1-DIMMA1 / P1-DIMMC1 / P1-DIMME1 / P1-DIMMG1
CPU2: P2-DIMMA1 / P2-DIMMC1 / P2-DIMME1 / P2-DIMMG1
2 CPUs & 12 DIMMs
2 CPUs & 16 DIMMs
CPU1: P1-DIMMA1/P1-DIMMC1/P1-DIMMD1/P1-DIMME1/P1-DIMMF1/P1-DIMMG1
CPU2: P2-DIMMA1/P2-DIMMC1/P2-DIMMD1/P2-DIMME1/P2-DIMMF1/P2-DIMMG1
CPU1: P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMME1/P1-DIMMG1/P1-DIMMH1
CPU2: P2-DIMMA1/P2-DIMMB1/P2-DIMMC1/P2-DIMME1/P2-DIMMG1/P2-DIMMH1
CPU1: P1-DIMMB1/P1-DIMMC1/P1-DIMMD1/P1-DIMME1/P1-DIMMF1/P1-DIMMH1
CPU2: P2-DIMMB1/P2-DIMMC1/P2-DIMMD1/P2-DIMME1/P2-DIMMF1/P2-DIMMH1
CPU1: P1-DIMMA1/P1-DIMMB1/P1-DIMMD1/P1-DIMMF1/P1-DIMMG1/P1-DIMMH1
CPU2: P2-DIMMA1/P2-DIMMB1/P2-DIMMD1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1
CPU1: P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1/P1-DIMME1/P1-DIMMF1/P1-DIMMG1/P1-DIMMH1
CPU2: P2-DIMMA1/P2-DIMMB1/P2-DIMMC1/P2-DIMMD1/P2-DIMME1/P2-DIMMF1/P2-DIMMG1/P2-DIMMH1
Note: This memory configuration is recommended by Supermicro for optimal memory performance.
Please use this configuration to maximize your memory performance.
S/N: S 123 456 XXX0123
BMC: XXXXXXXXXXXX
PWD: AMBWODMRGT
Front View & Interface
Rear View
System Information
HDD 8-15 5.25" BayHDD 0-7
DescriptionNo.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
SAS3 RAID with AOC-S3908L-H8IR-16DD
PCI-E 5.0 p1-x16 Slot, Low Profile From CPU 1
PCI-E 5.0 p1-x16 Slot, Low Profile From CPU 1
PCI-E 5.0 p1-x16 Slot, Low Profile From CPU 2
PCI-E 5.0 p1-x16 Slot, Low Profile From CPU 2
PCI-E 5.0 p1-x8 Slot, Low Protile From CPU 2
UID Button (Unit Identifier Button)
VGA Port
2x LAN Ports
USB 0/1/2/3 Ports
Dedicated LAN for IPMI
COM Port
Optional 2x 2.5” drives Support
Redundant Power Supply Modules
Each system comes with a
unique default password for
the ADMIN user.
This can be found on a sticker
on the motherboard and a
sticker on the left side of the
service tag on chassis.
If necessary, the password
can be reset by the Supermicro
IPMICFG tool.
For more information, please visit
https://www.supermicro.com/en/
solutions/management-software/
bmc-resources
Pull-out tag with BMC unique password
and Serial Number Label on the left side
of service tag.
S/N: S123456XXX0123
BMC: XXXXXXXXXXXX
PWD: AMB WODMRGT
S/N Label
PULL
Power Button
UID Button/Reset Button
Power LED
LAN2 LED
Power Failure LED
1
2
3
4
5
No. Description
Universal Information LED
USB 2.0 Port
USB 2.0 Port
HDD Activity LED
COM Port LAN1 LED
Service/Asset Tag with
System Serial Number and
BMC Unique Password
Drive Device Activity LED
6
7
8
9
10
11
12
13
14
No. Description
12
UID
4
9
5
6
7
8 11
10
12
14
Slot Description
0-7 2.5" hot-swap SAS3 drive bays
8-15 2.5" hot-swap SATA drive bays*
* 0~3 for optional 4x hotswap PCI-E 5.0 NVMe drives support
2 31
13
Device Status LED
814 7910 2 135 4613 12 11
Jumper
Quick Reference Table
JBT1
JPL1
Default Setting
Open (Normal)
Pins 1-2 (Enabled)
Connector Description
BT1 Onboard CMOS Battery
BMC_LAN Dedicated BMC LAN Port
COM1 Rear I/O COM Port
FAN1 - FAN6, FANA, FANB
I-SATA0, I-SATA1
JBP_I2C1
Intel PCH Powered I-SATA 3.0 Ports with support of SuperDOM
devices *DOM: Disk on Module
JCOM2
JF1
JFP2
JIPMB1
4-pin BMC External I²C Header
Front Accessible COM Port Header
Front Control Panel Header
Front Accessible VGA Connection Header
JL1
JNCSI1
JNVI2C1
JPCIE1 (SLOT1),
JPCIE6 (SLOT6) PCIe 5.0 p1-x8 Slots (SLOT1: supported by CPU1, SLOT6: supported
by CPU2)
4-pin BMC External I²C Header (for Inlet Temperature Sensor)
Chassis Intrusion Header
NC-SI (Network Controller Sideband Interface) Connector
NVMe SMBus I²C Header with hot-plug support
JPCIE2/3 (SLOT2/3),
JPCIE4/5 (SLOT4/5)
JPI2C1
JPWR1, JPWR2, JPWR4
PCIe 5.0 p1-x16 Slots (SLOT2/3: supported by CPU1, SLOT4/5:
supported by CPU2)
Power System Management Bus (SMBus) I²C Header
8-pin Power Connectors
JPWR3 24-pin ATX Power Connector
JS1 (SATA 0 - SATA7)
JSD1, JSD2
SlimSAS p1-x8 Connector with support of eight Intel PCH SATA 3.0
connections (RAID 0, 1, 5, and 10 supported)
JSTBY1
SATA DOM Power Connectors
5V Standby Power Header
Description
CMOS Clear
LAN1, LAN2
Enable/Disable
LED
LED4, LED7
LED6
LEDBMC
LEDPWR
StatusDescription
BMC Heartbeat LED
Power LED
Unit Identifier (UID) LED
M.2 LEDs (for M.2-C1, M.2-C2)
Blinking Green: BMC Normal (Active),
Solid Green: (During BMC Reset or
during a Cold Reboot)
LED On: Onboard Power On
Solid Blue: Unit Identified
Blinking Green: Device Working
CPU/System Fan Headers
Ethernet LAN (RJ45) Port 1 and Port 2 (1G LAN support on
X13DEI and 10G LAN support on X13DEI-T)
SATA DOM Power Connectors
5V Standby Power Header
Trusted Platform Module/Port 80 Header
PCIe 4.0 p1-x2 NVMe M.2 Slots supported by CPU1 (with
support of M-Key 2280 and 22110)
MCIO p1-x8 Connectors supported by CPU1 with four PCIe 5.0
x4 NVMe connections
MCIO p1-x8 Connector supported by CPU2 with two PCIe 5.0 p1-x4
NVMe connections
Serial General Purpose I/O Header (for I-SATA0/1 SuperDOM
support)
USB 2.0 Header with support of two USB connections
JSD1, JSD2
JSTBY1
JTPM1
JUIDB1
LAN1, LAN2
M.2-C1, M.2-C2
P1_NVME0/1 (JNVME1)
P1_NVME2/3 (JNVME2)
P2_NVME4/5 (JNVME3)
S-SGPIO1
USB0/1
USB2
USB3/4 (3.0)
USB5/6 (3.0)
USB7/8 (3.0)
VGA
Internal USB 2.0 Vertical Type-A Connector
Back Panel USB 3.0 Ports (5Gbps, Type-A)
Back Panel USB 3.0 Ports (5Gbps, Type-A)
USB 3.0 Header with support of two USB connections
Rear I/O VGA Port
Unit Identifier (UID) Switch / BMC Reset Button
Pin 1
SP CMC
Carrier E1B
Pin 1
Pin 1
Pin 1
SP XCC
Carrier E1A
Latch
Latch
Processor (Reverse Side Up)
CPU Key
Carrier (Top Side Up)
CPU Key
Latch
Latch
Pro or y cess Carrier Assembl
Pin1
A
B
C
D
a
b
c
d
A, B, C, D: Peek Nut
1, 2, 3, 4: Rotating Wire
a, b, c, d: Threaded Fastener
Peek Nut
(Unlatched) (latched)
Rotating Wire
3
1
d
a
b
c
Rotating Wire
B
C
D
Rotating Wire
APeek Nut
2
Rotating Wire 4
Threaded Fastener
Heatsink
CPU tSocke
T30 Torx Driver
Use a torque
of 12 lbf
SAN MAC
IPMI CODE BAR CODE
MAC CODE
BIOS LICENSE
LAN
CTRL
BMC
JSTBY1
JUIDB1
S-SGPIO1JFP2
BT1 JPI2C1
JNCSI1
JSD1
JSD2
JBT1
LEDBMC
LED4
JF1
JPWR3JPWR1JPWR2 JPWR4
JNVI2C1 JIPMB1 JPL1
JL1JTPM1
FAN6
FAN5
FANB
FANA
FAN1
FAN2
FAN4 FAN3
USB2
LED7
M.2-C2
NVME ONLY)
JCOM2
USB5/6 (3.0)
M.2-C1 (NVME ONLY)
USB0/1
USB7/8 (3.0)
USB3/4 (3.0)
BMC_LAN
LAN2
P2_NVME4/5
P1_NVME2/3
JNVME1
P1_NVME0/1 JBP_I2C1
JNVME2
JNVME3
COM1
LAN1
JS1(S A0~7 )ATI-SATA1
I-SATA0
CPU1
SLOT1
PCIe
5.0
X8
CPU1
SLOT2
PCIe
5.0
X16
CPU1
SLOT3
PCIe
5.0
X16
CPU2
SLOT4
PCIe
5.0
X16
CPU2
SLOT5
PCIe
5.0
X16
P1-DIMMH1
P1-DIMMG1
P1-DIMMF1
P1-DIMME1
P1-DIMMA1
P1-DIMMB1
P1-DIMMC1
CPU2
SLOT6
PCIe
5.0
X8
P1-DIMMD1
P2-DIMMB1
P2-DIMMD1
P2-DIMMC1
P2-DIMMA1
PWR
LED
VGA
LED6
(UID-LED)
X13DEI(-T)
DESIGNED IN USA
PCH
REV: 1.01
CPU2
CPU1
P2-DIMMG1
P2-DIMME1
P2-DIMMF1
P2-DIMMH1
JPCIE1 JPCIE6
JPCIE2 JPCIE3 JPCIE4 JPCIE5
J 1IPMB
COM1
LED6
F 6AN
US / .0)B3 4(3
BMC_LAN
L 2AN
L 1AN
VGA
F 5AN
JU DBI 1
LEDBMC
JPC 1IE
JPC 2IE
JPC 4IE
JPC 5IE
JPC 3IE JPC 6IE
US / .0)B7 8(3
USB2
I-S A1AT
I-S A0AT
JSD1
JSD2
US /1B0
S 7ATA0-
S- 1SGPIO
JL1
J M1TP
P VME4/52_N
J R2PW
J R1PW
J R3PW
J 1PI2C
JF1
LE PWD R
J R4PW
J 1PL
JBT1
JRK1
M. 12-C
LED4
JNVI2C1
JNCSI1
J 2FP
JCOM2
F BAN
F 4AN
F AAN
JB 2CP_I 1
F 3AN
F 2AN
F 1AN
P VME2/31_N
P VME0/11_N
M. 22-C
BT1
J BY1ST
LED7
US / .0)B5 6(3
Produktspecifikationer
| Varumärke: | Supermicro |
| Kategori: | Server |
| Modell: | SuperServer SYS-221P-C9RT |
Behöver du hjälp?
Om du behöver hjälp med Supermicro SuperServer SYS-221P-C9RT ställ en fråga nedan och andra användare kommer att svara dig
Server Supermicro Manualer
27 Oktober 2024
27 Oktober 2024
26 Oktober 2024
26 September 2024
26 September 2024
26 September 2024
25 September 2024
24 September 2024
24 September 2024
24 September 2024
Server Manualer
- Server Sony
- Server HP
- Server Toshiba
- Server Abus
- Server Acer
- Server Allnet
- Server Apc
- Server Acti
- Server Hikvision
- Server Asus
- Server SilverStone
- Server Megasat
- Server Maxdata
- Server Lenovo
- Server Black Box
- Server Tripp Lite
- Server Axis
- Server Gigabyte
- Server Nec
- Server Technics
- Server Cisco
- Server Matrox
- Server Flir
- Server Fujitsu
- Server Digitus
- Server Kathrein
- Server Buffalo
- Server GeoVision
- Server Netgear
- Server QNAP
- Server LaCie
- Server Dell
- Server Valcom
- Server Asustor
- Server Planet
- Server ZyXEL
- Server Western Digital
- Server Intel
- Server Fantec
- Server D-Link
- Server Seagate
- Server Iomega
- Server Synology
- Server Elac
- Server Blackmagic Design
- Server ATen
- Server Conceptronic
- Server Quantum
- Server Areca
- Server SEH
- Server Ibm
- Server Provision ISR
- Server Sonnet
- Server TAIDEN
- Server Moxa
- Server Smart-AVI
- Server StarTech.com
- Server SIIG
- Server Advantech
- Server Extron
- Server KanexPro
- Server Avocent
- Server Intellinet
- Server Vimar
- Server Hanwha
- Server Ernitec
- Server Sun
- Server Atlona
- Server MvixUSA
- Server Dual Bay
- Server Raidsonic
- Server EMC
- Server AMX
- Server Rocstor
- Server Infortrend
- Server Opengear
- Server G-Technology
- Server EXSYS
- Server Raritan
- Server Chenbro Micom
- Server Mr. Signal
- Server Atlantis Land
- Server C2G
- Server Lantronix
- Server Promise Technology
- Server HGST
- Server IStarUSA
- Server NETSCOUT
- Server Mobotix
- Server Origin Storage
Nyaste Server Manualer
26 Oktober 2024
26 Oktober 2024
24 Oktober 2024
24 Oktober 2024
21 Oktober 2024
18 Oktober 2024
18 Oktober 2024
17 Oktober 2024
17 Oktober 2024
16 Oktober 2024
