Sida 1/4

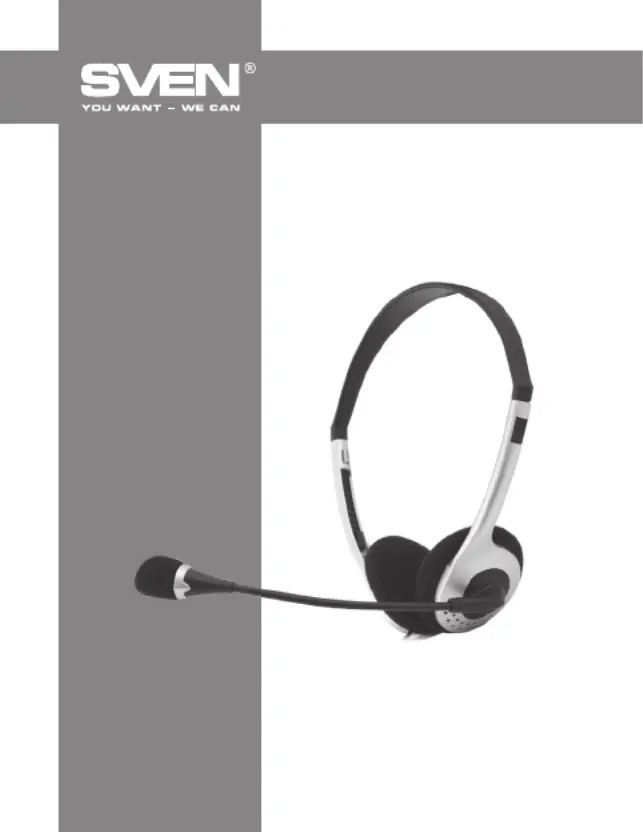

USER’S MANUAL

Stereo Headphones

with Microphone

www.sven.ﬁ

AP-010MV

ENG

User’s Manual

Congratulations on your purchase of the SVEN headphones!

APPLICATION

Sven AP-010MV stereo headphones with a microphone are designed for

operation with PC sound cards and other compatible systems. They can be

also used in VoIP telephony, video conferencing, multimedia applications,

interactive games, for speech recognition and learning foreign languages.

SAFETY PRECAUTIONS

• Don’t use the stereo headphones while driving.

• Don’t use the stereo headphones at high volume for a long time (more

than 15 minutes), as this may cause hearing impairment.

SPECIAL FEATURES

• 2*3.5 mm (3 pin) connector for PC

• Adjustable headband

• Rotary microphone arm

• Volume control on cable

CONNECTION AND OPERATION

• Connect the headphones connector to the audio output jack of your audio

source (PC, laptop, MP3 player), as shown in Fig. 1.

• Insert the microphone connector into the microphone input jack of your

audio source.

• Adjust the headphones volume level as desired with the volume control wheel

on the cable.

AP-010MV

Parameter, measurement unit

Sensitivity, dB

Frequency range, Hz

Membrane, mm

Connection type

Cable length, m

Weight, g

Value

headphones: 105 ± 4

microphone: -58 ± 3

headphones: 20 – 20,000

microphone: 30 – 16,000

Ø 27

Ø 2*3.5 mm (3 pin) stereo mini-jack

2.0

Fig. 1. Connection diagram

Volume control

wheel

Headphones

connector

Microphone

connector

Microphone

Sound card

Phone out

Mic in

ENG

TECHNICAL SPECIFICATIONS

Notes:

• Technical speciﬁcations given in this table are supplemental information

and cannot give occasion to claims.

• Technical speci cations are subject to change without notice due to the ﬁ

improvement of SVEN production.

Technical support is on www.sven.ﬁ

Stereo Headphones with

Microphone
