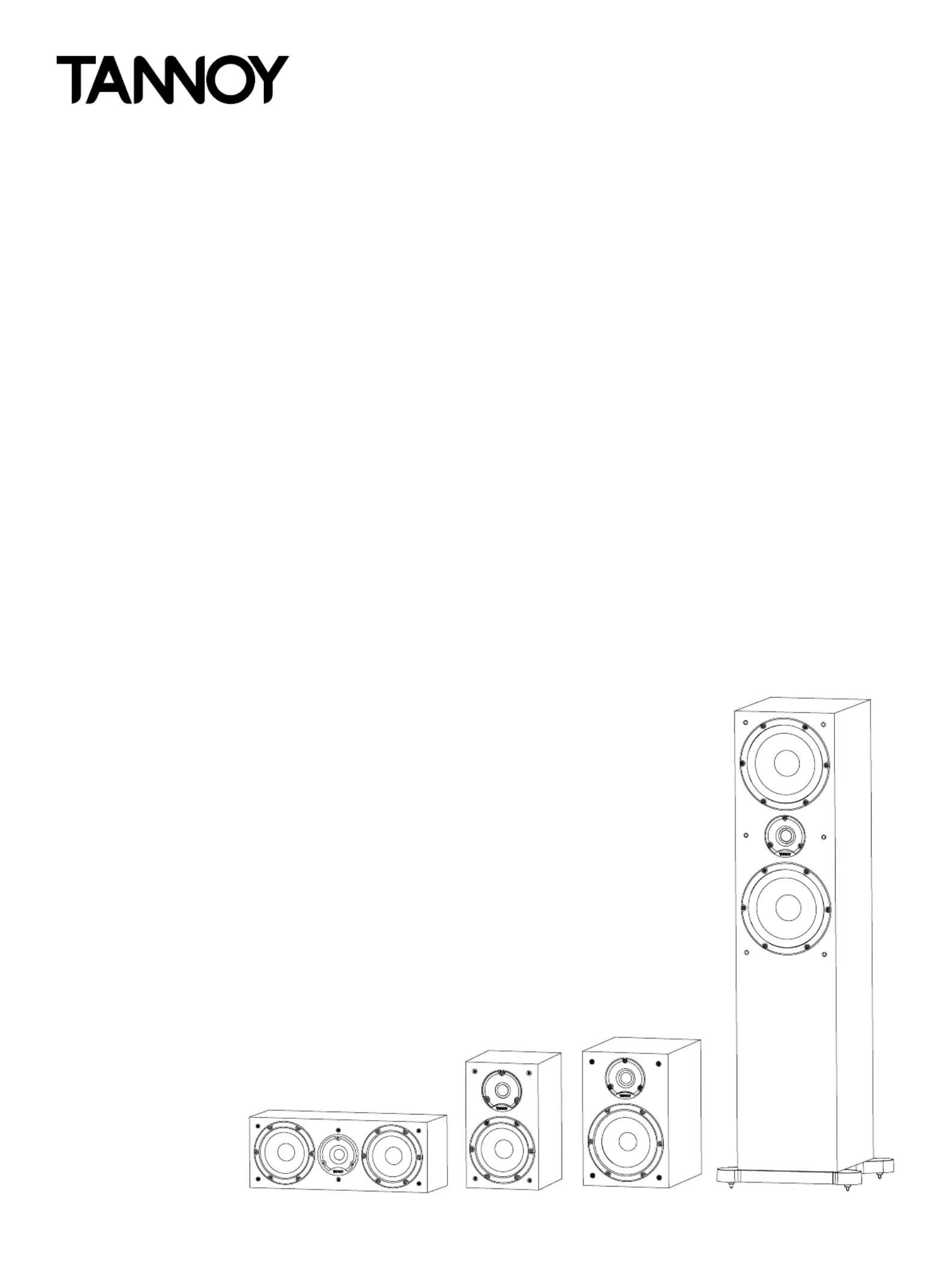

O W NER’ S M A N U A L
Mercury 7
02_MERCURY 7 MANUAL
CONTENTS
WARRANTY 02 POSITIONING AND FINE-TUNING 06
INTRODUCTION 03 HOME THEATRE 5.1 - GENERAL INFORMATION 06
AMPLIFIER CHOICE 03 THE SYSTEM 06
CABLE CHOICE 03 WARNING, STRONG MAGNETIC FIELDS 07
UNPACKING 03 FRONT SPEAKERS 07
FITTING OF ACCESSORIES 04 CENTRE CHANNEL SPEAKER 07
7.1, 7.2 & 7C SELF ADHESIVE FEET 04 REAR EFFECTS SPEAKERS 07
7.1, 7.2 & 7.4 FOAM PORT BUNG FITMENT 04 SUBWOOFER 07
7.4 FLOOR STANDING MODELS 04 GRILLES 07
STAND MOUNTING MODELS 04 CARE OF CABINET 07
INSTALLATION 04 TECHNICAL SPECIFICATION 08-09
CONNECTION 7.1, 7.2 & 7C 05 SET UP DIAGRAMS 010-012
CONNECTION 7.4 05 NOTES 013-014
WARRANTY
No maintenance of the Mercury 7 loudspeaker is necessary.
As part of the MUSIC Group, Tannoy is committed to providing the highest quality products, service and user
experience for our customers. One element of this commitment is our after sales support which now incorporates
our extended Limited Warranty. In the event of any concern that is not addressed by this extended Limited
Warranty we would ask you to contact us at care@music-group.com
For full warranty details including the extended Limited Warranty, please visit http://www.music-group.com/
warranty.aspx and register your purchase online at www.music-group.com or www.tannoy.com
Mercury 7
MERCURY 7 MANUAL_03
Mercury 7
INTRODUCTION
Thank you for selecting Tannoy loudspeakers developed in the UK by our dedicated team of design engineers.
They are the choice of discriminating music lovers the world over. Musical excellence is designed into our
loudspeakers from the start. Careful selection of the very best components combined with strict quality control
procedures in the production process ensures this level of excellence is maintained.
To gain maximum performance from your loudspeakers, please take time to read this owner’s manual in full
before installation.
Loudspeakers are electromechanical devices that ‘run-in’ through use; performance will therefore improve
after an initial period of 24hrs use. Once they have been further run-in over a longer period, there will be clear
enhancement of the stereo imaging, mid-band quality and bass performance characteristics.
We are condent that you will continue to enjoy your new Tannoy Mercury 7 loudspeakers for many years to come.
AMPLIFIER CHOICE
Consult the product specication as this clearly shows the acceptable power range for amplier matching to your
speakers. The high peak power handling of Tannoy loudspeakers permits responsible use with more powerful
ampliers - please read the Warranty.
As with all loudspeaker systems, the power handling is a function of voice coil thermal capacity. Care should be
taken to avoid overdriving any amplier, as this will cause output overload resulting in ‘clipping’ or distortion within
the output signal. This, if done for any extended period, will cause damage to the speakers.
Generally an amplier of higher power that is running hard, but free of distortion, will do less damage to the
loudspeaker than a lower power amplier continually clipping. Remember also that a high powered amplier
running at less than 90% of output power generally sounds a great deal better than a lower powered example
struggling to achieve 100%. An amplier with insufcient drive capability will not allow the full performance of the
loudspeakers to be realised.
CABLE CHOICE
Always use the best quality of cable available within your budget. High quality audio signals passing from the
amplier to the loudspeaker are unusual in their demands on the cable. Wide dynamic range and frequency
bandwidth information has to coexist with the ability to transmit peak currents of at least 10 amps, without
incurring any loss or signal impairment. This explains why the sound quality of the information reproduced by the
loudspeakers is so dependent on the physical properties of the cables connecting them to the amplier.
We would recommend that you always keep the cable runs as short as possible and the same length for each
speaker. Remember that cable construction can affect the sound quality so be prepared to experiment to nd a
cable that suits your ear and audio system.
UNPACKING
To unpack the loudspeakers from their boxes remove tape from the top then fold the aps right back before
inverting the carton and contents. Lift the carton clear of the contents then remove all inner packaging.
It is strongly recommended that you store all the packaging to allow protected transportation in future.
