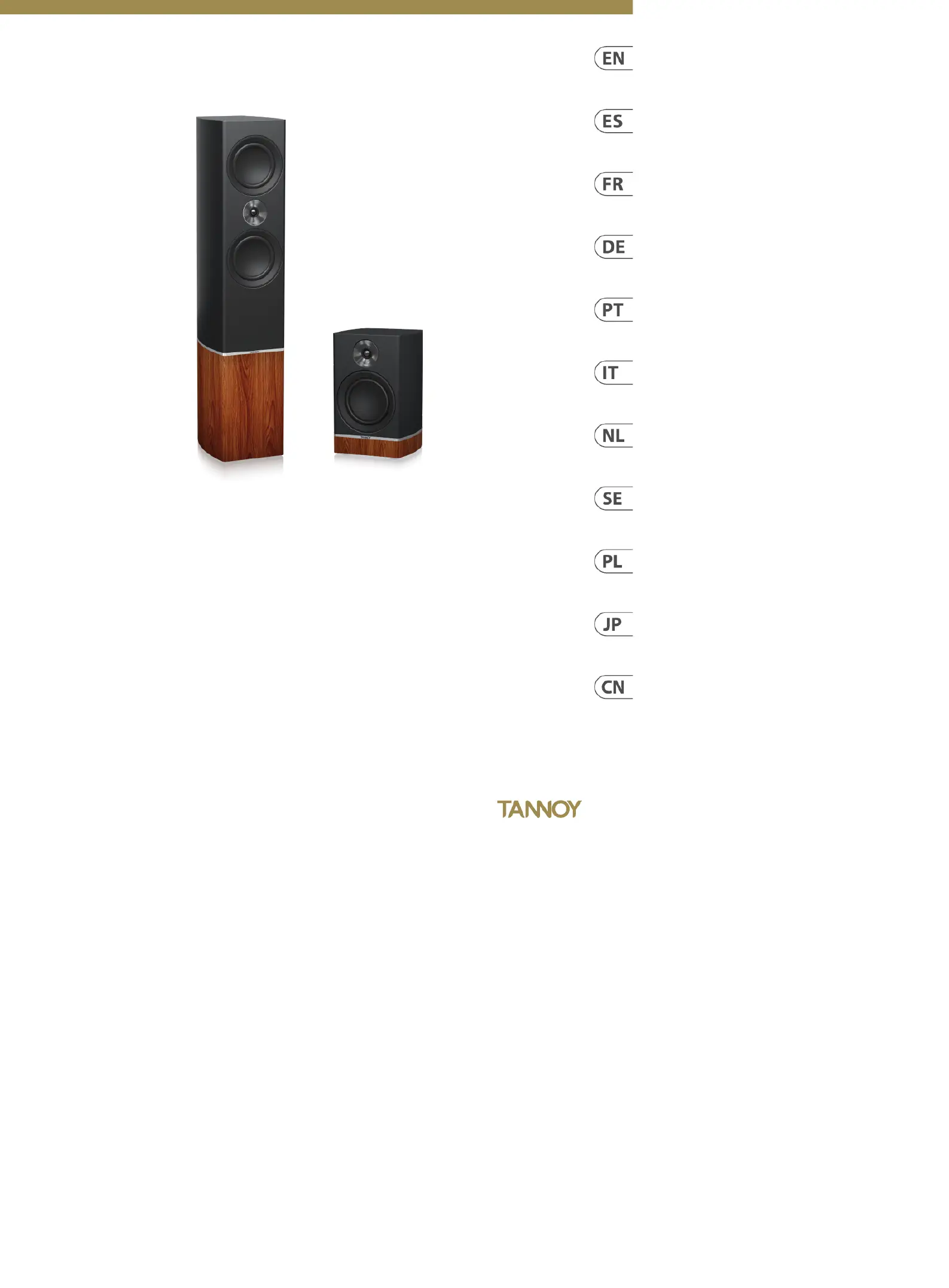

SELECT

PLATINUM F6/B6

2-Way Bookshelf and 3-Way Floorstanding

6.5" HiFi Loudspeakers

Introduction

Thank you for selecting Tannoy loudspeakers,

developed in the UK by our dedicated team

of design engineers. These speakers are the

choice of discriminating music lovers the world

over. Musical excellence is designed into our

loudspeakers from the start. Careful selection of the

very best components combined with strict quality

control procedures in the production process

ensures this level of excellence is maintained.

To gain maximum performance from your

loudspeakers, please take time to read this

document in full before installation.

Loudspeakers are electromechanical devices that

‘run-in’ through use; performance will therefore

improve after an initial period of 24 hours use.

Once they have been further run-in over a longer

period, there will be clear enhancement of the

stereo imaging, mid-band quality and bass

performance characteristics.

We are condent that you will continue to enjoy

your new Tannoy loudspeakers for many years

to come.

Amplier Choice

Consult the product specication page as this

clearly shows the acceptable power range for

amplier matching to your speakers. The high peak

power handling of Tannoy loudspeakers permits

responsible use with more powerful ampliers.

As with all loudspeaker systems, the power

handling is a function of voice coil thermal

capacity. Care should be taken to avoid overdriving

any amplier, as this will cause output overload

resulting in ‘clipping’ or distortion within the

output signal. This will cause damage to the

speakers if done for any extended period.

Generally, an amplier of higher power that is

running hard, but free of distortion, will do less

damage to the loudspeaker than a lower power

amplier continually clipping. Remember also that

a high-powered amplier running at less than

90% of output power generally sounds a great deal

better than a lower powered example struggling to

achieve 100%. An amplier with insucient drive

capability will not allow the full performance of the

loudspeakers to be realised.

Unpacking

To unpack the loudspeakers from their boxes

remove tape from the top then fold the aps right

back before inverting the carton and contents.

Lift the carton clear of the contents then remove

all inner packaging. It is strongly recommended

that you store all the packaging to allow protected

transportation in future.

Installation

The F6 oorstanding model comes with rubber

feet to minimize resonance and coloration.

Ensure that the speaker is placed on level ground

to prevent tipping.

The B6 bookshelf speakers should be located

securely on stands or a shelf in an appropriate

position to place the high frequency unit roughly

at ear height when seated in the chosen listening

position. Positioning recommendations for

stand-mounted speakers can be found under the

section entitled Positioning and Fine Tuning.

Connection

The positive (plus) terminal on the amplier

left channel (marked + or coloured red) must

be connected to the positive HF terminal on

the left speaker. The left speaker is the one on

the left as you look at the stereo pair from your

listening position.

The negative (minus) terminal on the amplier

left channel (marked - or coloured black) must

be connected to the negative HF terminal on the

left speaker.

Repeat this connection process for the right

speaker. Remember that the positive (+ or red)

on the amplier must be connected to the positive

(+ or red) on the speaker and the negative

(- or black) to negative.

Select a signal source, such as a CD player; switch on

the amplier and slowly turn up the volume control

to check that both loudspeakers are reproducing

bass and treble information.

POWER AMPLIFIER

--+

SPEAKER

TO RIGHT

Positioning and Fine Tuning

To get best results from your new Tannoy

loudspeakers, it is worthwhile spending a little

time nding the optimum setup conguration.

Begin by angling the speakers towards your chosen

listening position, usually this is on the centre line

of the room, so that when seated you can just see

the inner side panel of each speaker. The front

of the loudspeaker should not be obstructed in

any way.

The loudspeakers should be located between 1.5 to

4.5 metres (5 ft to 15 ft) apart - with the listening

position set slightly further away than the speakers

are apart. Avoid positioning the loudspeakers in

corners of the room, as this will have a negative

eect on performance. For optimum performance,

we would recommend ideally maintaining a

distance of at least 0.5 metres (20 inches) from

the rear wall, and 1 metre (39 inches) from the

side. However, there is no absolute right or wrong

as it is much down to personal preference and

the diering sizes and acoustic properties of the

listening environment. The speakers may be

located close to the rear wall, in which case bass

will be increased at the expense of denition,

and stereo soundstaging will be compromised.

B6/F6 Single Wire Mode

LEGAL DISCLAIMER

Music Tribe accepts no liability for any loss which may be suered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical

specications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake,

Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Auratone and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please see complete details online at musictribe.com/warranty.

Specications

F6-BU/WH/BL B6-BU/WH/BL

System

Frequency response 40 Hz – 20 kHz (-6 dB) 50 Hz – 20 kHz (-6 dB)

Recommended amplier power 20 – 150 W 20 – 80 W

Power handling (IEC) 75 W continuous, 300 W peak 40 W continuous, 160 W peak

Sensitivity 87 dB (1 W @ 1 m) 86 dB (1 W @ 1 m)

Impedance 8 Ω

Components

Transducers

1 x 6.5" (165 mm) LF driver, paper cone

1 x 6.5" (165 mm) MF driver, paper cone
