Product Description
The VQ 64MH (60x40), is a very high output Mid/High loudspeaker system designed for
applications requiring high impact sound reinforcement over large distances with class
leading pattern control.
The modular design approach allows the sound system designer to create seamless
andpredictable arrays, or they can be used singly as part of large distributed systems.
VQ 64MH addresses the requirement for compact dimensions without compromising
performance in any way.
VQ DF (Down Firing) elements which are available in various patterns will integrate
seamlessly with the VQ MH enclosures to facilitate tight pack arrays, no more unsightly
spaces between separate cabinets in order to splay.
VQ MB or VS 15DR elements can be added to extend bandwidth and pattern control to
lower frequencies.
The VQ 64MH can be congured for use in Single-Amp or Bi-Amp mode, in conjunction
with asuitable digital signal processor (DSP).
Horn design involves balancing compromise…..until now.
Our unique approach in keeping what is effectively a Dual Concentric behind a single
horn gives us many performance advantages. Performance of the VQ 64MH in terms
of accuracy & sound quality is second to none. The VQ horn design principles provide
denitive andmeasurable advantages over multiple-horn and co-axial designs.
Each VQ 64MH incorporates a unique driver technology to radiate a coherent single
point source for superior dispersion control when coupled to a PSW™ (Point Source
Waveguide). This advanced design aligns the acoustical centres of the transducers
providing a single coherent wavefront emanating from the throat. The PSW™
waveguide achieves an optimum balance of extremely well controlled coverage, smooth
frequency response, and natural sound character.
For outdoor applications, weather resistant enclosures which incorporate stainless steel
hardware are available.
Features
Applications
• PSW™ Waveguide” - Point source design
(Patent applied for).
• Excellent Phase Coherence
• Perfect time alignment without the associated problems
of multi source interference
• Compact Dimensions
• Class leading directivity characteristics
• Extremely high sensitivity, therefore high SPL’s can be
achieved with a very modest amount of amplier power
• Exceptional transient response
• High output long throw applications
• Large Houses of Worship
• Large Corporate AV applications
• Stadiums & Arenas
• Dance Clubs
• Live sound – concert halls, theatres, open-air venue

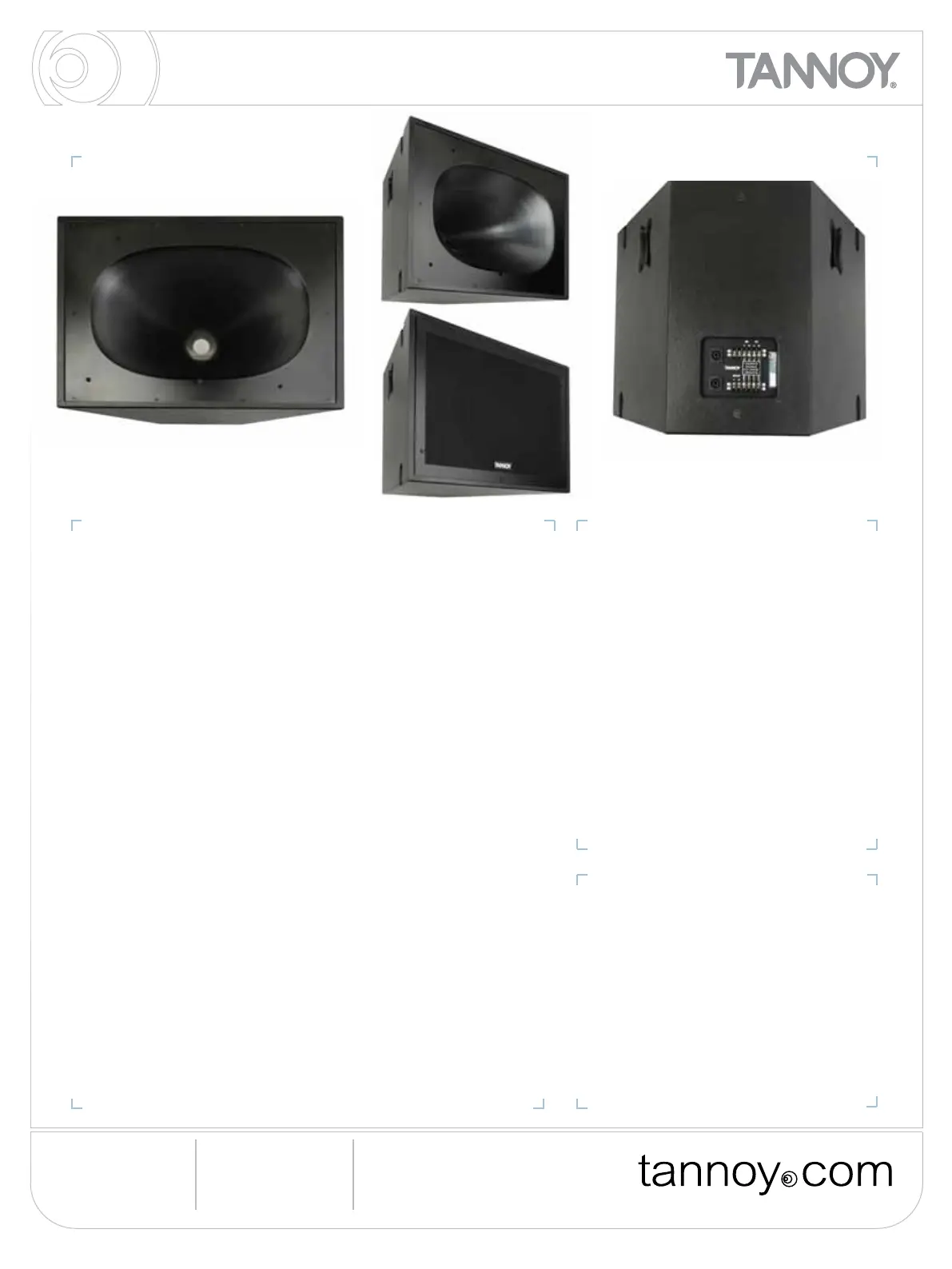

VQ 64MH
VQ 64MH // issue 1.01 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
TCGI (ROW sales) T: 00 45 8742 7000 E: info@tcgroup-international.com
TCGA (Americas sales) T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com
Tannoy Middle East T: 00 971 (04) 4401208 E: enquiries@tannoy.com
TECHNICAL SPECIFICATIONS
Construction
System VQ 64MH
System Type 2-Way Mid/High - Point Source
Frequency Response (-3dB) (1) 400Hz - 23kHz
Frequency Range (-10dB) (1) 350Hz - 27kHz
Operating Modes Single Amplied
Bi-Amp (MF,HF)
User Congurable
System Sensitivity & Operating
Freq. (1W @1m) (2)
Single Amplied
Passive MF/HF (450Hz - 23kHz) 115dB (2.83V @ 8 Ohms)
Bi-Amp
MF (450Hz - 7kHz) 115dB (2.83V @ 8 Ohms)
HF (7kHz - 23kHz) 114dB (2.83V @ 8 Ohms)
Dispersion (-6dB) 60 x 40 degrees
Driver Complement
MF/HF Dual Concentric™
Compression driver loaded into
a single PSW™ Waveguide
Crossover Single Amplied - 7kHz (passive)
Bi-amp 7kHz (active)
Recommended HighPass
Filter @ 400Hz
Directivity Factor (Q) 21.3 averaged 1kHz to 10kHz
Directivity Index (DI) 13.3 averaged 1kHz to 10kHz
Rated Maximum SPL (2) Average Peak
MF 138dB 144dB
HF 134dB 140dB
Passive MF/HF 138dB 144dB
Power Handling (3) Average Programme
MF @ 8 Ohms 200W (40V) 400W
HF @ 8 Ohms 90W (27V) 180W
Passive MF/HF @ 8 Ohms 200W (40V) 400W
Recommended Amplier Power
MF 400W into 8 Ohms
HF 200W into 8 Ohms
Passive MF/HF 400W into 8 Ohms
Nominal Impedance
MF 8 Ohms (7.0 Ohms Minimum)
HF 8 Ohms (8.7 Ohms Minimum)
Distortion
110dBSPL 2nd Harmonic 3rd Harmonic
500Hz 1.674 0.271
2kHz 0.812 0.035
5kHz 0.955 0.049
115dBSPL
500Hz 3.015 0.396
2kHz 1.430 0.056
5kHz 1.544 0.184
120dBSPL
500Hz 5.637 0.865
2kHz 2.505 0.144
5kHz 2.187 0.342
125dBSPL
500Hz 11.135 3.278
2kHz 4.302 0.394
5kHz 1.160 0.598
Enclosure 18mm (0.71”) birch plywood.
Internally braced.
Grille Powder coated perforated steel
grille. Stainless steel on
weatherproof version.
Finish Textured black or white paint
(custom colours on request)
Connectors Barrier Strip and Speakon
connector
Fittings 2 x Recessed carrying handles
12 x M10 ying inserts
Dimensions 510mm x 694mm x 515mm
(20.08” x 27.32” x 20.28”)
Net Weight 45.5kg (100.1 lbs)
Notes:
(1) Average over stated bandwidth. Measured at 3 metres on axis, then referred to 1 metre
(2) Unweighted pink noise input, measured at 3 metres in an anechoic chamber, then
referred to 1 metre
(3) Accelerated Life Test (EIA RS426-B)
A full range of measurements, performance data, CLF and Ease™ Data can be
downloaded from www.tannoy.com
Full independent verication of published specications carried out by NWAA Labs,
California can also be obtained from the downloads section of www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction
of new materials or manufacturing methods will always equal or exceed the
published specications, which Tannoy reserves the right to alter without prior
notice. Please verify the latest specications when dealing with critical applications.
Ordering Information
PART NUMBER MODEL NAME COLOUR PACKED QUANTITY
8001 5600 VQ 64MH BLACK 1
8001 5601 VQ 64MH WHITE 1
VQ 64MH
VQ 64MH // issue 1.01 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
TCGI (ROW sales) T: 00 45 8742 7000 E: info@tcgroup-international.com
TCGA (Americas sales) T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com
Tannoy Middle East T: 00 971 (04) 4401208 E: enquiries@tannoy.com
PERFORMANCE MEASUREMENTS
ANECHOIC FREQUENCY
RESPONSE (SINGLE AMP MODE)
ELECTRICAL TRANSFER FUNCTION
FOR OPTIMAL OPERATION
(SINGLE AMP MODE)
ANECHOIC FREQUENCY
RESPONSE (BI-AMP MODE)
Frequency (Hz)
Frequency (Hz)
Frequency (Hz)
Level, (dB)Level, (dB)Level, (dB)
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Processed
MF/HF
Frequency Response: Processed
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
MF/HF
Frequency Response: Digital Signal Processor
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
MF
HF
Complete
Frequency Response: Processed Bi-amplied
