VQNET 40DF
VQNET 40DF // issue 1.01 // 22.11.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy United Kingdom T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
Tannoy Deutschland T: 00 49 (180) 1111 881 E: enquiries@tannoy.com
Tannoy Middle East T: 00 971 (04) 4401208 E: enquiries@tannoy.com
TC|Group International T: 00 45 8742 7000 E: info@tcgroup-international.com
TC|Group Americas T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com

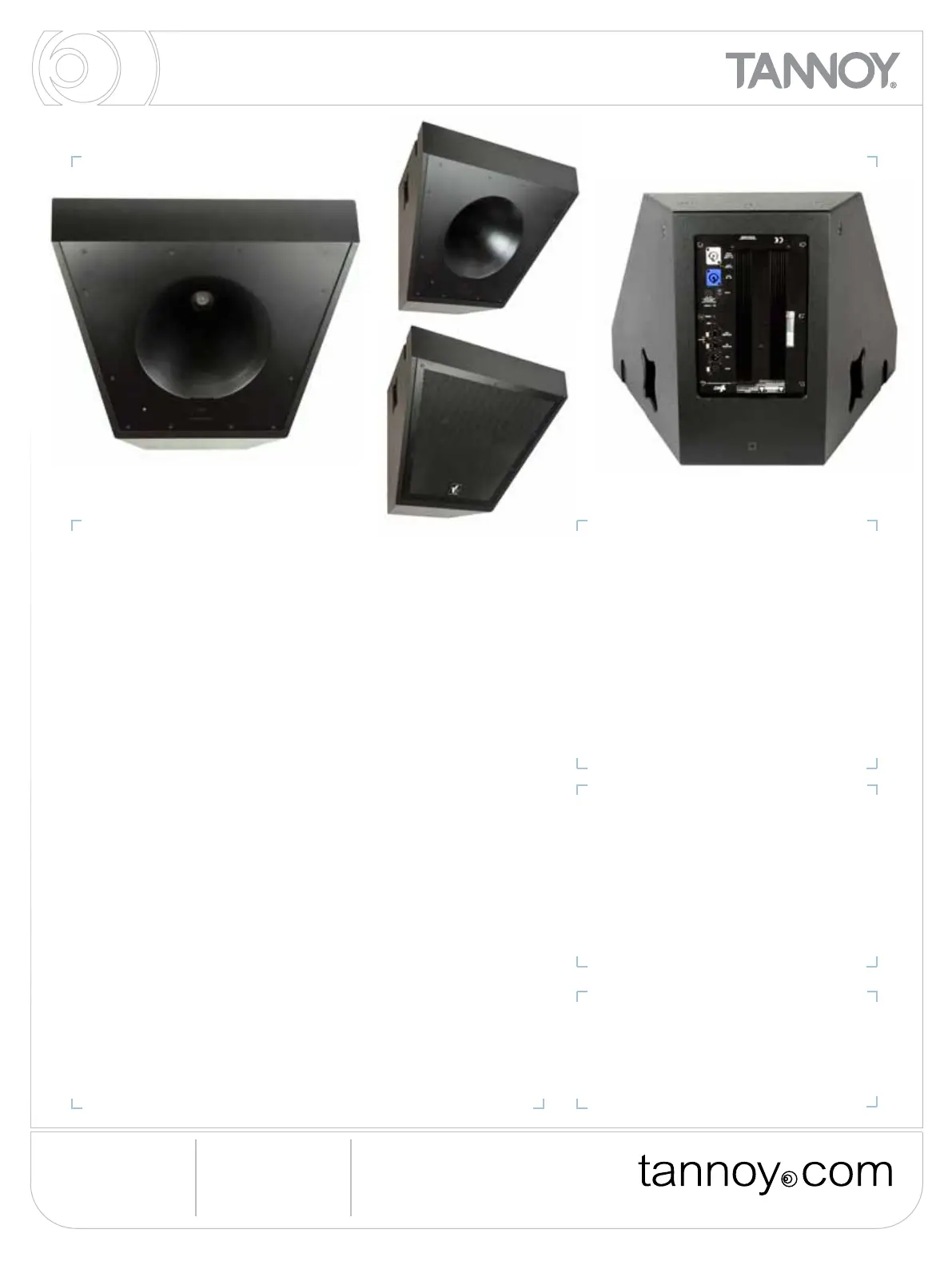

Product Description
Integrated with cutting edge digital signal processing, network control and dual channel
Class D amplication, the VQNET 40DF (40x40), is a very high output down ring Mid/
High loudspeaker system designed for applications requiring high impact sound
reinforcement with class leading pattern control. The modular design approach allows
the sound system designer to create seamless and predictable arrays, or they can be
used singly as part of large distributed systems. VQNET 40DF addresses the
requirement for compact dimensions without compromising performance in any way.
VQNET MH elements which are available in various patterns will integrate seamlessly
with the VQNET DF enclosures to facilitate tight pack arrays; the compound angles on
the enclosure avoid unsightly spaces between separate cabinets when arrayed
horizontally VQNET MB or VS 15DR elements can be added to extend bandwidth and
pattern control to lower frequencies.
Horn design involves balancing compromise…..until now.
Our unique approach in keeping what is effectively a Dual Concentric behind a single
horn gives us many performance advantages. Performance of the VQNET 40DF in
terms of accuracy & sound quality is second to none. The VQ horn design principles
provide denitive and measurable advantages over multiple-horn and co-axial designs.
Each VQNET 40DF incorporates a unique driver technology to radiate a coherent single
point source for superior dispersion control when coupled to a PSW™ (Point Source
Waveguide). This advanced design aligns the acoustical centres of the transducers
providing a single coherent wavefront emanating from the throat. The PSW™
waveguide achieves an optimum balance of extremely well controlled coverage,
smooth frequency response, and natural sound character.
The modular approach of ampliers, processing, monitoring and drivers designed into
each loudspeaker enables acoustic optimization for the speaker to perform as a unied
whole.The intuitive setup software, integrated processing, tuning control, performance
diagnostics and protection produces an easy to install and exceptionally high perform-
ance networkable loudspeaker.
For outdoor applications, weather resistant enclosures which incorporate stainless steel
hardware are available.
VNET™ Network
Applications
Each VQNET DF enclosure is fully VNET™ compliant.
VNET™ supports free network topology so that the
loudspeakers can be arranged in a daisy chain, linked in a
star conguration or in any combination of both.
Implementation of the network between nodes is via high
quality rugged Neutrik Ethercon connectors, which are
compatible with standard RJ45 plugs, and CAT5 cable.
Each speaker has a unique address for auto-location on
the network. System commissioning and ongoing network
control, incorporating real time diagnostics of electronics
and drive unit, are all managed by the exclusive VNET™
software package. Supplied with each unit, this intuitive
Windows tool controls all critical install, commissioning
and performance monitoring functions.
• Large Houses of Worship
• Large Corporate AV applications
• Stadiums & other Sports facilities
• Dance Clubs
• Live sound – concert halls, theatres,
open-air venues
Features
• “PSW™ Waveguide” - Point source design
(Patent applied for).
• Excellent Phase Coherence
• Perfect time alignment without the associated problems
of multi source interference
• Compact Dimensions
• Class leading directivity characteristics
• Extremely high sensitivity, therefore high SPL’s can be
achieved with a very modest amount of amplier power
• Exceptional transient response
VQNET 40DF
VQNET 40DF // issue 1.01 // 22.11.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy United Kingdom T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
Tannoy Deutschland T: 00 49 (180) 1111 881 E: enquiries@tannoy.com
Tannoy Middle East T: 00 971 (04) 4401208 E: enquiries@tannoy.com
TC|Group International T: 00 45 8742 7000 E: info@tcgroup-international.com
TC|Group Americas T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com
PSU Specications
Input Connector Locking Neutrik Powercon
Voltage Selection Automatic (115 / 230V, 45 - 65Hz)
Type High current, high frequency switch mode
Efciency >90% typical
Input voltage 100V / 115V / 230V nominal +/-10%
Mains fuse External
Fuse type T10AT
Other features Automatic soft start
Current Draw 115V 230V
Startup (inrush) 3.5A 1.9A
idle 1.0A 0.56A
Max 3.5A 1.7A
Construction
Enclosure 18mm (0.71”) birch plywood.
Internally braced.
Grille Powder coated perforated steel grille
Finish Textured black or white paint
(custom colours on request)
Connectors 1 x female XLR (input)
1 x male XLR (link)
1 x RJ45 (network in)
1x RJ45 (network link)
1 x Neutrik Powercon
1 x Neutrik Powercon (outlet)
Controls & Indicators LED on front of cabinet behind grill.
(wink indicator for locating & assigning)
Power LED (Blue)
Signal LED (Green)
Limit LED (Red)
User DSP - defeat switch
Power Switch
Fittings 2 x Recessed carrying handles
11 x M10 ying inserts
Dimensions 500 mm x 694mm x 515mm
(19.69” x 27.32” x 20. ”)
Net Weight 32kg (70.4lbs)
Notes:
(1) Average over stated bandwidth. Measured at 3 metres on axis, then referred to 1 metre
(2) Unweighted pink noise input, measured at 3 metres in an anechoic chamber, then
referred to 1 metre
A full range of measurements, performance data, CLF and Ease™ Data can be
downloaded from www.tannoy.com
Full independent verication of published specications carried out by NWAA Labs,
California can also be obtained from the downloads section of www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction
of new materials or manufacturing methods will always equal or exceed the
published specications, which Tannoy reserves the right to alter without prior
notice. Please verify the latest specications when dealing with critical applications.
TECHNICAL SPECIFICATIONS
System VQNET 40DF
System Type 2-Way Mid/High - Point Source
Frequency Response (-3dB) (1) 400Hz - 23kHz
Frequency Range (-10dB) (1) 350Hz - 27kHz
Dispersion (-6dB) 40 degrees conical
Driver Complement Dual Concentric™
Compression driver loaded into
a single PSW™ Waveguide
Crossover 7kHz (DSP generated)
Recommended HighPass Filter
@ 450Hz (DSP generated)
Directivity Factor (Q) 28.2 averaged 1kHz to 10kHz
Directivity Index (DI) 14.5 averaged 1kHz to 10kHz
Rated Maximum SPL (2) 139dB (average) 145dB (peak)
Distortion
110dBSPL 2nd Harmonic 3rd Harmonic
500Hz 0.423 0.423
2kHz 0.821 0.021
5kHz 1.344 0.067
115dBSPL
500Hz 2.468 0.710
2kHz 1.458 0.041
5kHz 2.379 0.171
120dBSPL
500Hz 4.893 1.109
2kHz 2.534 0.094
5kHz 4.216 0.616
125dBSPL
500Hz 8.998 3.067
2kHz 4.208 0.350
5kHz 8.206 2.182
Electronics
Efciency >85% typically
Damping Factor 120 ref 8 Ohms
Distortion <0.05% @ 1kHz -3dB output
(22kHz bandwidth)
Input Impedance 5.6 kOhms unbalanced,
11.2 kOhms balanced
Output Power (Programme) 400W MF, 200W HF (limited to)
Input Sensitivity 1.4V (+5.5dBu)
System Type Dual channel Class D
DSP System
Comms Facilities Firmware updatable and selected
parameters editable
Communications Serial - RS485 Proprietary
message format
Dynamic Range 112dB(A) typical
DSP 3rd generation SHARC
Sampling Frequency 96kHz 24 bit A/D-D/A word length
Format 1 IN - 2 OUT
Ordering Information
PART NUMBER MODEL NAME COLOUR PACKED QUANTITY
8001 5800 VQNET 40DF BLACK 1
8001 5801 VQNET 40DF WHITE 1
28
VQNET 40DF
VQNET 40DF // issue 1.01 // 22.11.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy United Kingdom T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
Tannoy Deutschland T: 00 49 (180) 1111 881 E: enquiries@tannoy.com
Tannoy Middle East T: 00 971 (04) 4401208 E: enquiries@tannoy.com
TC|Group International T: 00 45 8742 7000 E: info@tcgroup-international.com
TC|Group Americas T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com

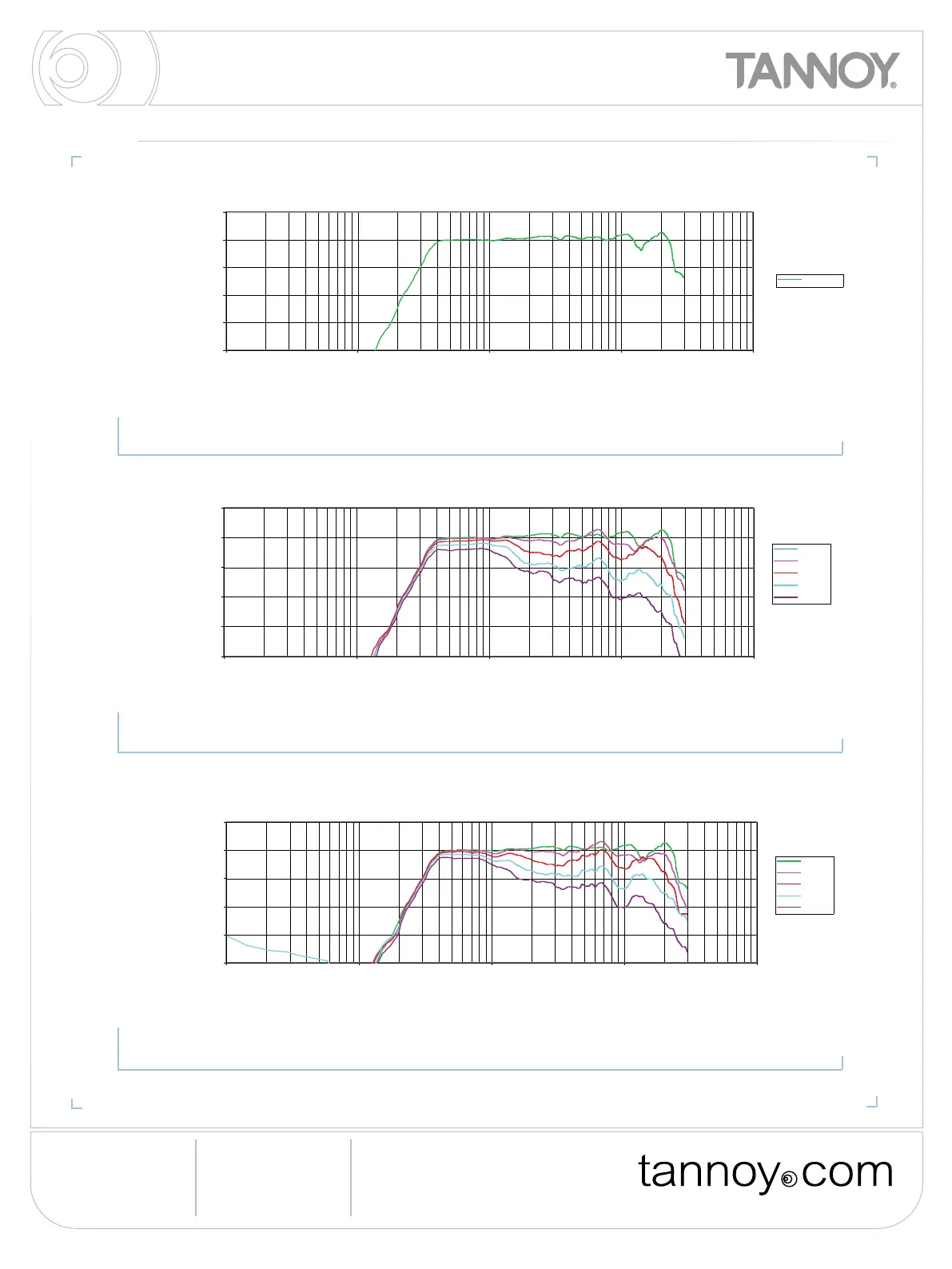

PERFORMANCE MEASUREMENTS
ANECHOIC
FREQUENCY
RESPONSE
HORIzONTAL
OFF AxIS
RESPONSE
UPPER VERTICAL
OFF AxIS
RESPONSE
Frequency (Hz)
Frequency (Hz)
Frequency (Hz)
Level, (dB)Level, (dB)Level, (dB)
Frequency Response
Frequency Response Horizontal Off-axis
Frequency Response Upper Vertical Off-axis
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Complete
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
0 deg
10 deg
20 deg
30 deg
40 deg
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
0 deg
10 deg
20 deg
30 deg
40 deg
