VS 15DR data file // issue 1.02 // 13.08.10
Tannoy adopts a policy of continuous improvement and product specification is subject to change

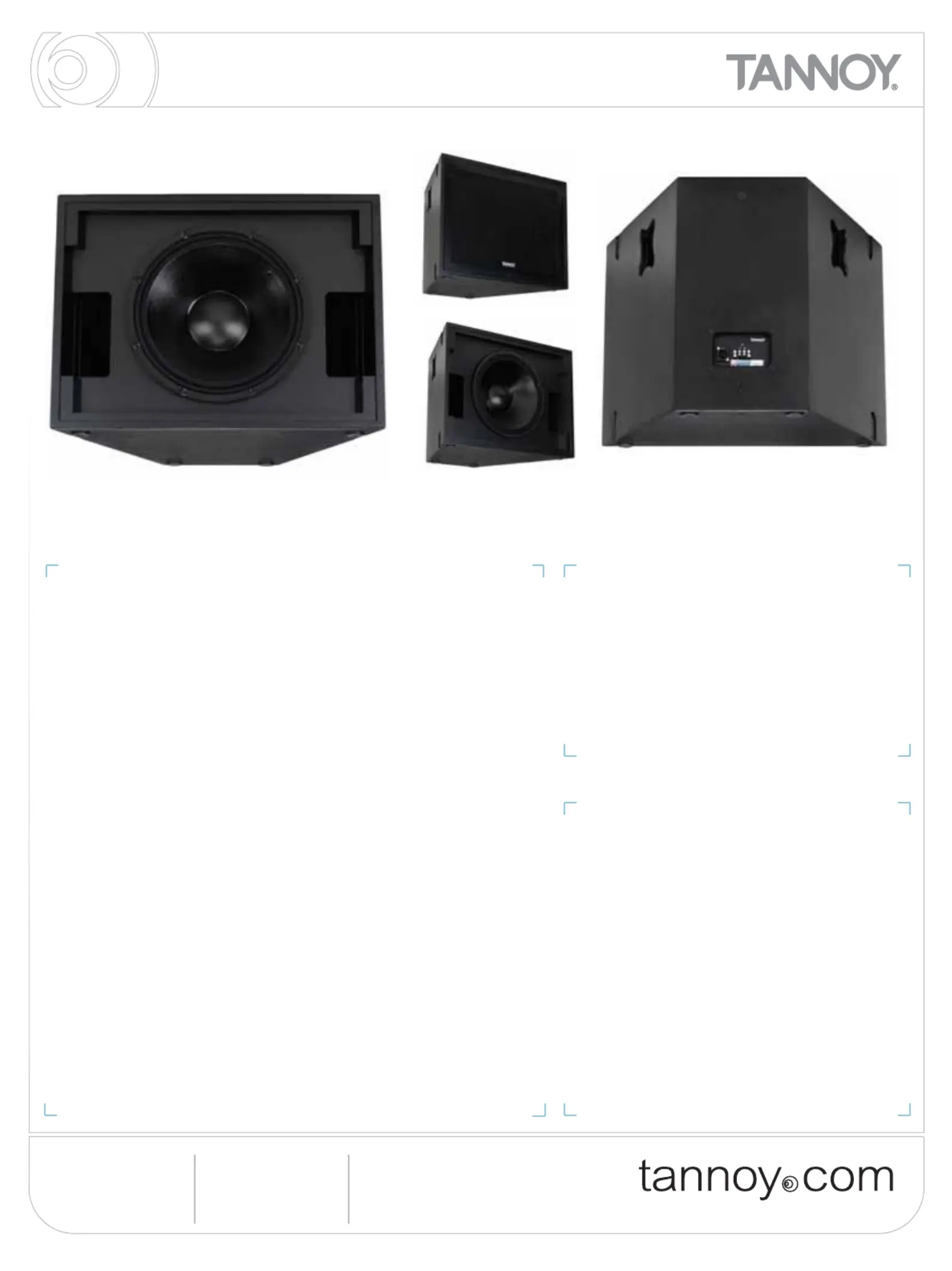

The VS 15DR satisfies a specific requirement for applications where an installed VQ Series
system needs to deliver more low-frequency response than is possible with simply the
2 x 12” LF element of a full range VQ Series enclosure on its own, or by using VQ MB
devices within a modular system. Examples of such applications would be nightclub
dancefloors, corporate AV applications, performance art theatres or auditoria where the
clarity and headroom of a VQ system may be desired without needing to be driven to such
an extent that large scale subwoofers would be required.
A single direct radiating 15” low frequency transducer offers high power handling capability
and extended low frequency response (down to 50Hz) from this given form factor. With high
efficiency (100dB 1W@1m) and with a sustained output of 130dB, the VS 15DR shares the
same modular enclosure format as the other VQ Series modules including the VQ MH,
allowing the systems designer to create tightly packed arrays or clusters including the use
of multiple bass devices for improved vertical pattern control at low frequencies.
An appropriately configured external processor, such as the SC1 can extend LF response
and safeguard against cone excursion damage while integrating the subwoofer with
VQ systems
The VS 15DR is part of an expanding line up of VQ Series products, addressing the
requirement for compact dimensions without compromising performance in any way.
Product Description
• Designed to extend the low frequency response of VQ
full range systems
• Alleviates the need for large format ground-stacked
subwoofer enclosures in many instances
• Modular enclosure for integration with other VQ Series
devices to form compact full-range systems or larger
scale flown arrays
• High sensitivity, therefore high SPL’s can be achieved
with a modest amount of amplifier power
• Theatres
• Auditoria
• School Assembly Halls
• Sports Arenas / Stadia
• Large Corporate AV
Applications
Features
Tannoy United Kingdom T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
Tannoy Deutschland T: 00 49 (180) 1111 881 E: enquiries@tannoy.com
Tannoy Middle East T: 00 971 (04) 4401208 E: enquiries@tannoy.com
TC|Group International T: 00 45 8742 7000 E: info@tcgroup-international.com
TC|Group Americas T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com
VS 15DR
VS 15DR data file // issue 1.02 // 13.08.10
Tannoy adopts a policy of continuous improvement and product specification is subject to change
TECHNICAL SPECIFICATIONS
Frequency Response (-3dB) (1) 50Hz - 3500Hz
Frequency Range (-10dB) (1) 38Hz - 4500Hz
System Sensitivity (1W @1m)(2) 100dB (1W = 2.83V for 8 Ohms)
Power Handling
Average 1000W
Programme 2000W
Peak 4000W
Rec Amplifier Power 1200 - 2000 Watt / 8 Ohms
Rated Maximum SPL (2) 130dB (average) 136dB (peak)
Nominal Impedance 8 Ohms
Driver Complement 380mm (15”) Bass driver
Recommended Crossover 90Hz - 500Hz, 24dB/octave)
Recommended High-pass filter
35Hz, 24dB/octave
Nominal Impedance 8 Ohms
Distortion
10% Full Power (28.3V) 2nd Harmonic 3rd Harmonic
40Hz 1.42% 1.83%
100Hz 0.40% 0.33%
1% Full Power (8.94V) 2nd Harmonic 3rd Harmonic
40Hz 0.68% 2.20%
100Hz 0.09% 0.32%
Notes:
(1) Average over stated bandwidth. Measured at 1 metre on axis.
(2) Unweighted pink noise input, measured at 1 metre in half space
A full range of measurements, performance data, and Ease™ Data can be
downloaded from www.tannoy.com
Tannoy operates a policy of continuous research and development. The
introduction of new materials or manufacturing methods will always equal or
exceed the published specifications, which Tannoy reserves the right to alter
without prior notification
System Bass loudspeaker - Direct radiator
PART NUMBER MODEL NAME COLOUR PACKED QUANTITY
8001 5650 VS 15DR BLACK 1
8001 5651 VS 15DR WHITE 1
Ordering Information
Construction
Enclosure 89.9 litres, 18mm (5/8”) birch
plywood internally braced.
Finish Textured black or white paint
(custom colours on request).
Connectors Speakon NL4MPR IN/OUT and
Barrier strip terminals
Fittings 2 x Recessed carrying handles
12 x M10 flying inserts.
4 x Rubber feet
Dimensions (HxWxD) 510mm x 694mm x 515mm
20.08“ x 27.32” x 20.28”
Weight 36kg (79.2 lbs) net
40kg (88.1 lbs) shipping
Tannoy United Kingdom T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
Tannoy Deutschland T: 00 49 (180) 1111 881 E: enquiries@tannoy.com
Tannoy Middle East T: 00 971 (04) 4401208 E: enquiries@tannoy.com
TC|Group International T: 00 45 8742 7000 E: info@tcgroup-international.com
TC|Group Americas T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com
VS 15DR
Tannoy adopts a policy of continuous improvement and product specification is subject to change VS 15DR data file // issue 1.02 // 13.08.10
Tannoy United Kingdom T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
Tannoy Deutschland T: 00 49 (180) 1111 881 E: enquiries@tannoy.com
Tannoy Middle East T: 00 971 (04) 4401208 E: enquiries@tannoy.com
TC|Group International T: 00 45 8742 7000 E: info@tcgroup-international.com
TC|Group Americas T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com
VS 15DR

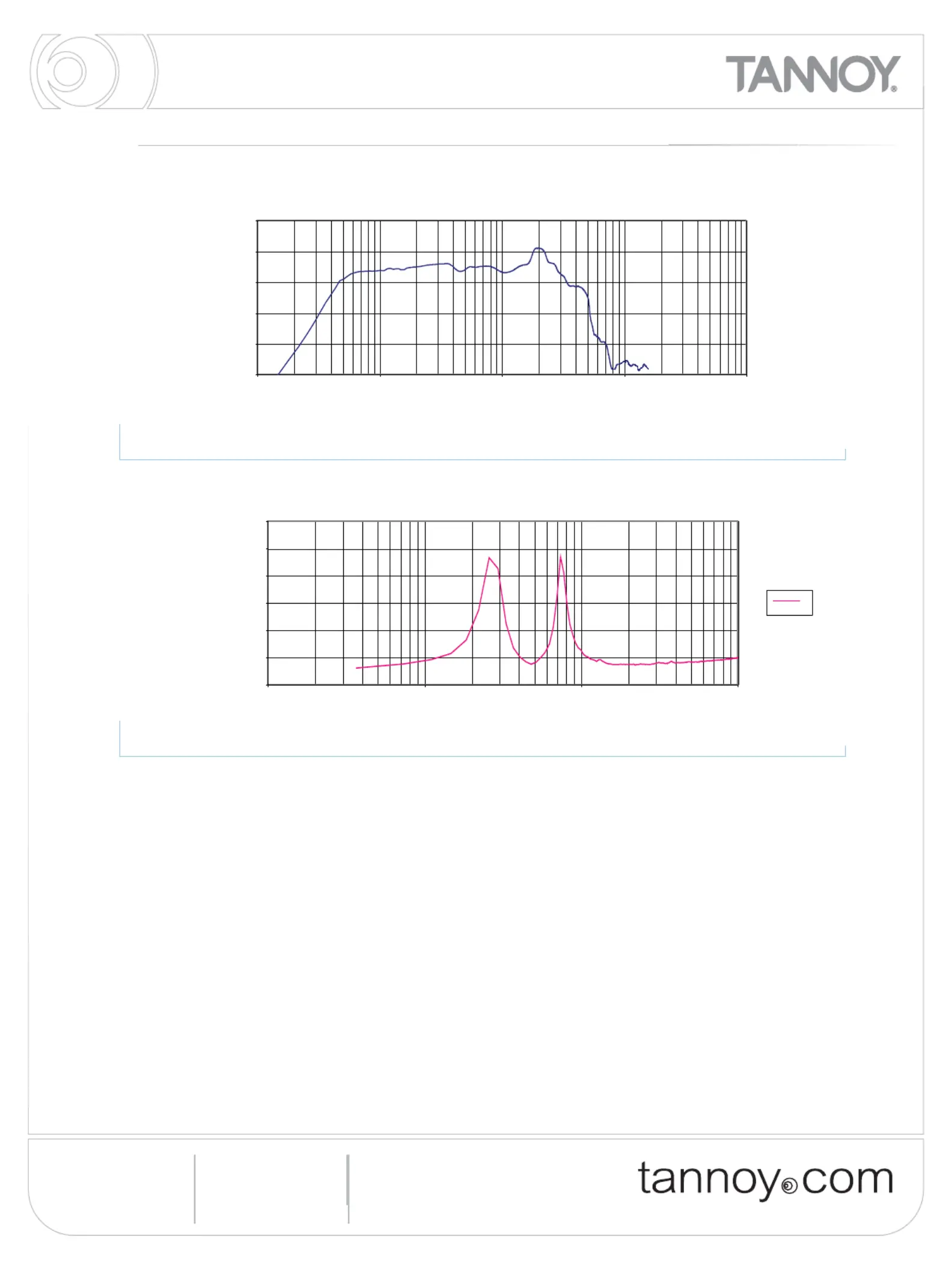

60
Z
ANECHOIC
FREQUENCY
RESPONSE
HORIZONTAL
OFF AXIS
RESPONSE
Frequency Response
frequency (Hz)
Frequency Response - Horizontal Off-axis
Level, (dB)
110
100
90
80
70
60
10 100 1000 10000 100000
Level, (dB)
60
50
40
30
20
10
0
1 10 100 1000
frequency (Hz)
PERFORMANCE MEASUREMENTS
