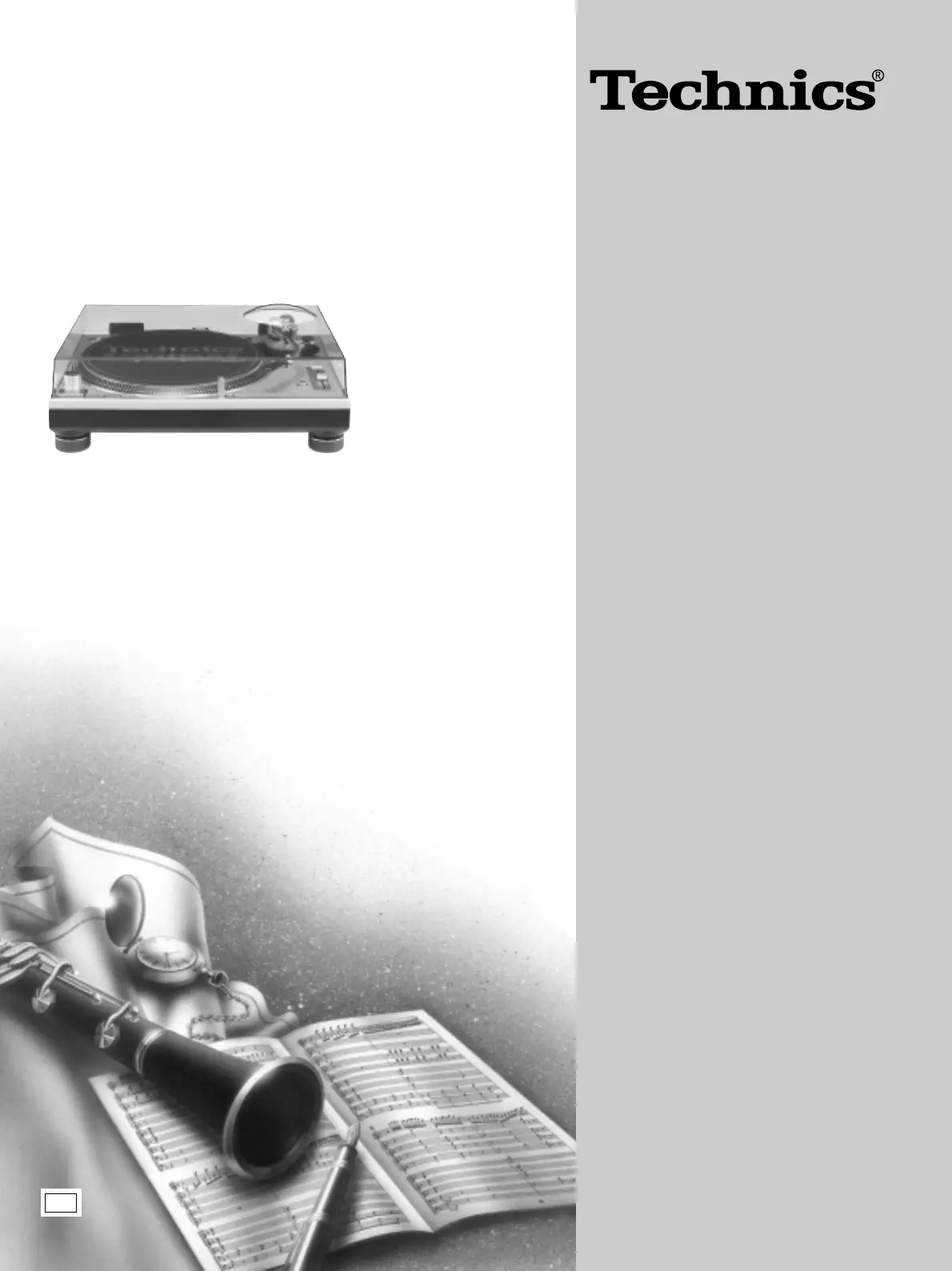

Operating Instructions

Model No.

SL-1200MK5

SL-1210MK5

RQT7018-1Y

Turntable System

Before connecting, operating or adjusting this prod-

uct, please read these instructions completely.

Please keep this manual for future reference.

SL-1200MK5

RQT7018

Dear customer

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions

carefully.

SL-1200MK5 : Silver model

SL-1210MK5 : Black model

Table of contents

Supplied accessories ................................................................... 2

IMPORTANT SAFETY INSTRUCTIONS ....................................... 3

Features ......................................................................................... 4

Preparation of the cartridge ........................................................ 4

Controls ......................................................................................... 4

Putting the player together ......................................................... 5

Connections and installation ...................................................... 5

Connecting to an amplifier and AC power supply cord ............. 5

Connecting to an Audio Mixer (not included) ............................ 6

Installation .................................................................................. 6

Preparatory adjustments ............................................................. 6

Horizontal balance and stylus pressure .................................... 6

Anti-skating ................................................................................ 7

Armlift height .............................................................................. 7

Tone arm height ......................................................................... 7

Fit the dust cover ....................................................................... 7

Playing records ............................................................................. 8

Adjustments while using the unit ............................................... 9

Pitch control ............................................................................... 9

Adjusting the turntable brake speed .......................................... 9

Maintenance ................................................................................ 10

Product service ........................................................................... 10

Troubleshooting guide ................................................................ 11

Specifications ..............................................................................11

Supplied accessories

Please check and identify the supplied ac-

cessories.

Use numbers indicated in parentheses when

asking for replacements parts.

(Only for U.S.A.)

To order accessories contact 1-800-332-5368

or the website (http://www.panasonic.com).

Turntable 1pc..................

(SFTE172-01Z1)

Turntable mat .......... 1pc.

(RGS0008)

Disc slip sheet set

(RGS0005Z-1) ................ 1

•Disc slip sheet

•Transparent sheet

Dust cover ............... 1pc.

(RYF0370B-X)

Head shell

(SFPCC31001K) ...... 1pc.

A cartridge is not included.

Balance weight ....... 1pc.

(SFPWG17201K)

Auxiliary weight ...... 1pc.

(SFPWG17202)

EP record adaptor

(SFWE010) ............... 1pc.

Shell weight ............ 1pc.

(SFPZB3501)

Overhang gauge ..... 1pc.

(SFK0135-01)

Screw set for cartridge

........................................ 1

•Nuts(RHN26003)

•

Screws-short(SFCZV8801-1)

•

Screws-long(SFPEV9801-1)

•Washers(SFPEW9601)

Sticker ...................... 1pc.

(RQLC0142-1)

The model number and serial number of this product can be found

on either the back or the bottom of the unit.

Please note them in the space provided below and keep for future

reference.

MODEL NUMBER SL-1200MK5 / SL-1210MK5

SERIAL NUMBER

CAUTION:

TO PREVENT ELECTRIC SHOCK MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PRODUCT DAMAGE, DO NOT

EXPOSE THIS APPARATUS TO RAIN,

MOISTURE, DRIPPING OR SPLASHING AND

THAT NO OBJECTS FILLED WITH LIQUIDS,

SUCH AS VASES, SHALL BE PLACED ON THE

APPARATUS.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A

BOOKCASE, BUILT-IN CABINET OR IN

ANOTHER CONFINED SPACE. ENSURE THE

UNIT IS WELL VENTILATED. TO PREVENT

RISK OF ELECTRIC SHOCK OR FIRE HAZARD

DUE TO OVERHEATING, ENSURE THAT

CURTAINS AND ANY OTHER MATERIALS DO

NOT OBSTRUCT THE VENTILATION VENTS.

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user

to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of suffi-

cient magnitude to constitute a risk of electric shock

to persons.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS.

NO USER-SERVICEABLE PARTS

INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

appliance.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

The following mark and symbols are located on the bottom of the unit.

RQT7018

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions

listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with

the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat reg-

isters, stoves, or other apparatus (including amplifiers) that pro-

duce heat.

9) Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than

the other. A grounding-type plug has two blades and a third

grounding prong. The wide blade or the third prong are provided

for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particu-

larly at plugs, convenience receptacles, and the point where

they exit from the apparatus.

11) Only use attachments/accessories specified by the manufac-

turer.

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused

for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normal-

ly, or has been dropped.

IMPORTANT SAFETY INSTRUCTIONS

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

CAUTION:

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules.

These limits are designed to provide reasonable protection

against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more

of the following measures:

¡Reorient or relocate the receiving antenna.

¡Increase the separation between the equipment and re-

ceiver.

¡Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

¡Consult the dealer or an experienced radio/TV technician

for help.

Any unauthorized changes or modifications to this

equipment would void the user’s authority to operate this

device.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.
