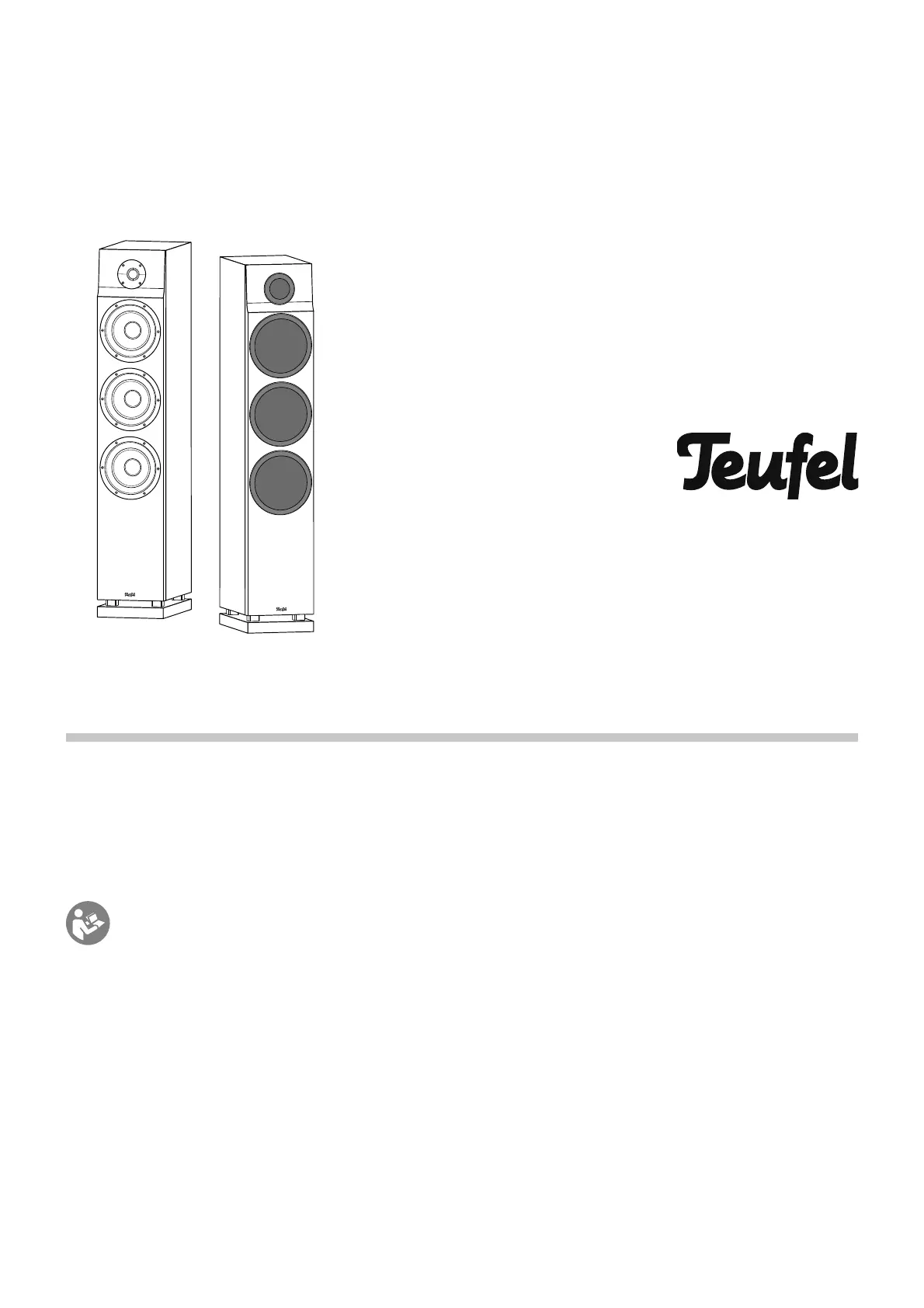

Floor Speakers
with Bi-Wiring / Bi-Amping
T 500 Mk 2
T 400 Mk 2
Technical description and
operating instructions
Proper use
Only use the speakers as described in these operating instruc-
tions. Any other use will be deemed as not in accordance with
the instructions and may lead to damage of property or even
persons. The manufacturer accepts no liability for damage
caused by use not in accordance with the
instructions. The
speakers are intended for private use.
Before operating the speakers, please read the safety
notes and operating instructions carefully. This is the
only way to use all functions safely and reliably. Keep
the operating instructions safe and pass them on to anyone
who may own the unit after you.
Notice
The information in this document may change without prior
notice and in no way constitutes any liability on the part of
Lautsprecher Teufel GmbH. No part of these instructions may
be reproduced in any form or be broadcasted in any way elec-
tronically, mechanically, by photocopy or recording without the
written permission of Lautsprecher Teufel GmbH.
Original packaging
If you wish to exercise your eight-week right of return, we ask
that you be absolutely sure to hold onto the packaging. We can
only accept the return of a device WITH THE ORIGINAL PACKAG-
ING. Empty boxes are not available!
Complaints
In case of a complaint we implicitly need your invoice number
and the serial or lot number for processing. The serial number
can be found on the back side of the device.
Many thanks for your support!
Contact
For questions, suggestions or criticism please contact our
customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen
Buelowstrasse 66
10783 Berlin (Germany)
Phone 00800 - 200 300 40 (free of charge)
Fax: +49 (0)30 / 300 930 930
E-mail: servcie@teufelaudio.com
www.teufelaudio.com
General notes and information
Product contents 1 Floor Speaker T 500 Mk 2 1 Floor Speaker T 400 Mk 2
Dimensions incl base plate und grille (HxWxD) 1048 mm x 195 mm x 320 mm 948 mm x 163 mm x 295 mm
Net weight 23 kg 18.6 kg
Impedance 4 – 8 Ohm 4 – 8 Ohm
Technical changes reserved!
You can fi nd further technical data on our website.
Product Contents and Technical Data
This product conforms with Council of the European
Union guidelines 2004/108/EC and 2006/95/EC.
Check that all items have been delivered and that
nothing is damaged. If you fi nd damage, do not operate
the device; instead contact our service department.
Caution icons
You will fi nd the following caution icons in these instructions:
High risk ! Failure to observe the warning may result
in severe personal injury or death.
=
Danger
Moderate risk ! Failure to observe the warning may
result in property damage.
=
Attention
Minor risk! Points which should be observed when
handling the unit.
=
Attention Fire hazard!
Improper use may lead to damage or fi re.
• Do not place open fl ames such as burning candles or
similar on the unit.
• Ensure suffi cient ventilation.
• Do not place the unit in direct sunlight.
• Only use the unit in indoor areas.
• Do not use the unit in damp areas and protect it from
drops of water and splash water. Also take care not to
stand vases or other containers fi lled with liquid on or
near the speaker in order to avoid liquid getting into the
case.
Danger Danger of injury/damage!
Incorrect location may result in damage.
• Never use the speakers unmounted in vehicles, in unsta-
ble locations, on wobbly tripods or furniture, on insuffi -
ciently dimensioned brackets etc. The speakers could tip
or fall down and cause injury to persons or be damaged.
• Only place the speakers on the fl oor.
• Arrange the speakers so that they cannot be knocked over
accidentally and make sure that the cables do not pose a
trip hazard.
• Exactly adhere to the assembly instructions.
• Only use the enclosed base plate.
• Do not place the speakers near sources of heat (e.g.
heaters, ovens, other heat generating equipment such as
amplifi ers etc.).
Danger Danger to children!
Children can become trapped in the packing fi lm
when playing and suffocate.
• Do not allow children to play with the unit or the packing
fi lm. Danger of suffocation.
• Ensure that children do not remove small parts from the
unit or take them off of the unit (e.g. control knobs or plug
adapters). They could swallow the parts and choke. Never
allow children to operate electrical devices unsupervised.
Danger to hearing!
Loud noise may lead to hearing loss.
Very high noise pressure may suddenly be emit-
ted, especially if a device is activated and set to full volume.
This may have psychological consequences and also cause
physical injury. Children and pets are particularly at risk.
• Set the volume control of your signal source to a low set-
ting.
• When the volume is set high, always keep a certain dis-
tance from the unit and never place your ear directly on
the speaker.
• To avoid damage to health, avoid extended listening at
high volume.
Safety notes
Unpacking, Setup and Connection
Unpacking
• Carefully open the boxes, remove the speakers together
with the EPE foam parts and remove the foam parts without
touching the diaphragms.
Setup
Note
Our website contains comprehensive notes for correct setup.
• Select a stable, level base.
• Make sure that the environment is clean and free from dust.
• Avoid placing the unit close to sources of heat or in direct
sunlight.
• Arrange the connector cables so that they do not pose a trip
hazard.
• Do not place any heavy objects on the cables or the speak-
ers.
• Make sure that the speaker has a stable position to prevent
vibrations.
Removing the protective grids
The protective grids are secured by magnets on the front of
the speaker and can be easily removed. When the protective
grids are removed, high frequency output becomes clearer in
particular.
To remove the protective grids, reach behind them and slowly
pull them off to the front.
Attention Risk of damage!
Make sure that you do not touch the highly sensi-
tive diaphragms.
Connection
Connection variations
In addition to a standard connection, where every speaker col-
umn is connected to the amplifi er/AV receiver with a cable, you
can also choose the variants “Bi-Wiring” or “Bi-Amping”.
Standard connection
With this connection, the speakers are connected like conven-
tional speakers with one double-strand speaker cable each.
The contact bridges between the connector terminators may
not be removed in the process. You can connect the speaker
cables accordingly to the top or bottom terminals.
Bi-Wiring
With Bi-wiring, the speaker is connected to the fi nal amplifi er/
AV receiver via two separate speaker cables for the low and
medium-range branch. Decoupling speaker systems this way
can improve the sound.
Bi-Amping
Here, the low and medium-range branch is supplied by the am-
plifi er’s/AV receiver’s own power amplifi er. Connect a speaker
cable with two strands to each power amplifi er and connect this
cable with the upper or lower connector terminals of the speak-
ers. Advantage: Improved performance and sound quality.
Connecting the cables
Gefahr Danger of injury/damage!
Arrange the cables so that they do not pose a trip
hazard.
1. Turn off your amplifi er/AV receiver.
2. Lay the speaker cables from your amplifi er/AV receiver to
each speaker. These cables should be high-quality double-
wire speaker cable with marked strands.
3. A connector terminal with four terminal
clips is located on the back side of the
speakers. Here you can connect the
speaker cables directly or using pin
plugs. We only describe the direct con-
nection in these instructions.
The terminals are each marked in red
(+) and black (-).
Make sure the polarity is correct!
Connect the same-colour terminals of your speak-
ers and amplifi er/AV receiver with each other.
Otherwise the sound quality will suffer. The individual single
wires of the speaker cables are marked with different colours
or shapes to facilitate the process.
4. You only have to remove the contact
bridges when using Bi-Wiring or
Bi-Amping:
To do so, turn the connector termi-
nals counterclockwise until loose
and then pull the contact bridges
out.
The top terminals lead to the high
range and midrange speakers, the
bottom terminals lead to the low
range speakers.
5. Split the single wire
down to approximately
30 mm on both ends
and strip off ap-
proximately 10 mm of
insulation on each end.
Twist the single wire
together so that no
strands are protruding.
6. Turn the connector terminal coun-
terclockwise until loose. Run the
stripped cable end into the now vis-
ible hole. Close the terminal by turn-
ing it counterclockwise. The cable is
now securely clamped in place.
7. Connect the other end of the
speaker cables to your amplifi er/
AV receiver. The operating instruc-
tions of the appliance should contain
notes on this.
