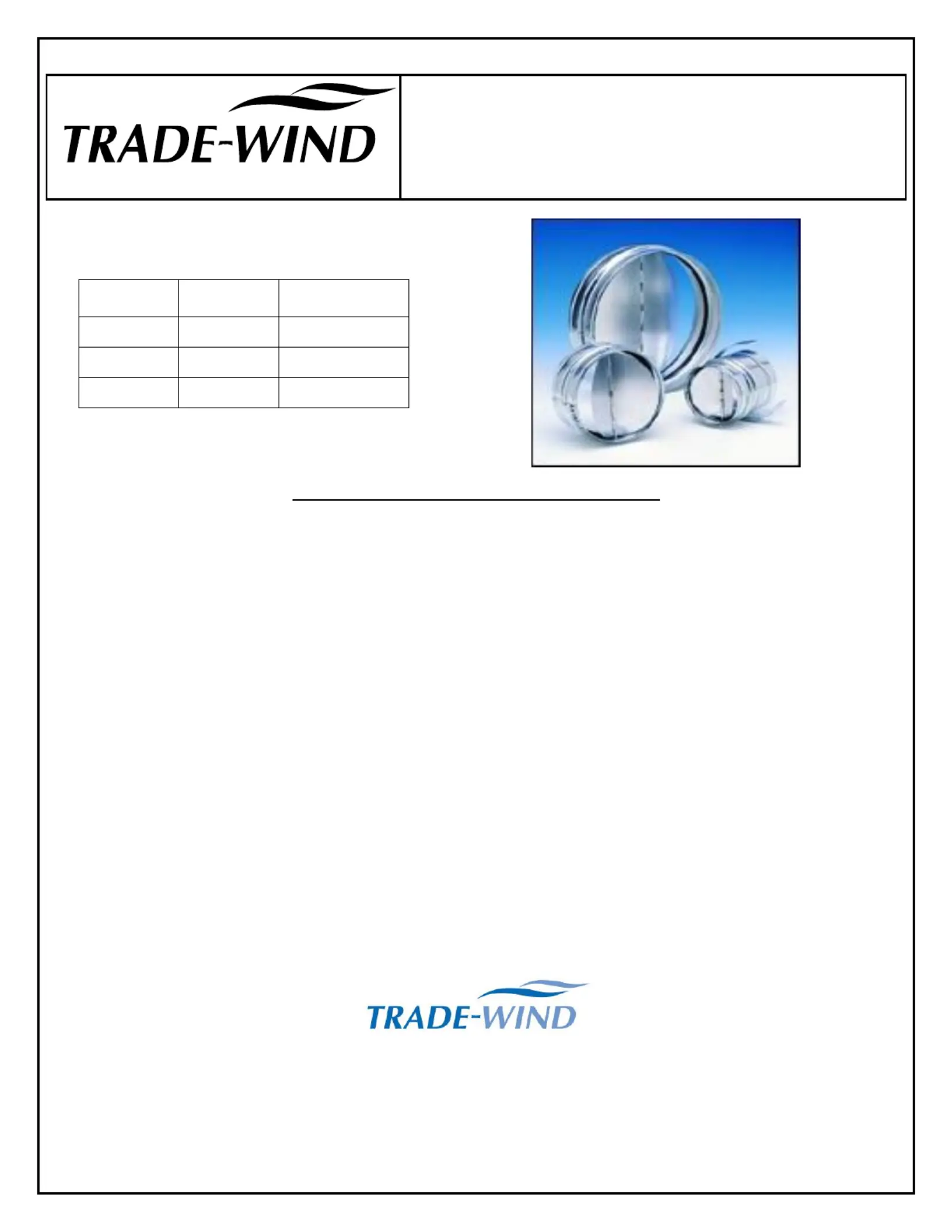

Revised 6/11/18 Copyright © 2018 Trade-Wind Manufacturing, LLC Proverbs 22:29 Page 1
INSTALLATION INSTRUCTIONS &
PRODUCT SPECIFICATIONS
Trade-Wind® Damper Accessory
Professional Series Models
Model
Width
Height
DPR006
6”
6 ”
DPR008
8”
7 ¼ ”
DPR010
10”
7 ¼ ”
READ AND SAVE THESE INSTRUCTIONS
Before beginning installation, please thoroughly read and become familiar with these instructions. Installation and
service must be completed by a qualied installer. Failure to properly install this product may void the warranty.
Always observe local building codes.
Description
Trade-Wind® backdraft dampers are designed with a galvanized steel collar and lightweight aluminum damper
blades that are spring loaded for positive closure to a neoprene seal.
Installation Deta ils
Select a mounting location. We recommend that the damper be installed just above the perimeter of the heated
space (the ceiling). This reduces the amount of cold or hot air traveling down the duct into the kitchen. For
horizontal duct installations, the damper must be installed so that the axis of the damper blade is vertical. For
vertical duct installations, the damper can be installed with the damper blade axis pointing in either direction. In
slanted or angled installations, the damper axis must point to the high side and low side of the duct. Because of
gravity, mounting the damper in an inverted or incorrect axis position will prevent the blades from closing. The
preferred installation is in a section of vertical duct.
Important: Dampers must always be installed so that the air ow direction will open the buttery blades. If
the damper is installed between the range hood and an in-line blower, the blades should open toward the fan. If
the damper is installed between the fan and a roof or wall cap, the blades will open away from the fan. Insert the
damper into the ducting at the selected location. Always install with duct tape or Fast Clamps*. Screws may
block the damper blades.
* Fast Clamps are available from Trade-Wind® (Trade-Wind Manufacturing, LLC) through your Trade-Wind®
supplier. Ask for model numbers FC6 (6”), FC8 (8”) or FC10 (10”), 2 per box.
For more information, please contact your Trade-Wind® Representative
800 West Grant Street, Phoenix, AZ 85007
1- -955-5737 800
602-900-8500
t-wusa.com
