Sida 1/56
1
SmartRack® Enclosures
(Series Numbers: AG-039A, AGAC7006, AGAC7761,
AG-0324, AG-00BE, AG-0325, AGAC7454, AG-0534, AG-0535, AG-0536)
Owner’s Manual
Important Safety Instructions 2
Overview 2
Feature Identification 3
Enclosure Installation 4
Preparation 4
Unpacking 4
Placement 5
Leveling 6
Ground Connection 6
Enclosure Configuration 7
Adding or Removing Front and Rear Doors 7
Reversing Front Door 7
Adding or Removing Roof Panel 9
Adding or Removing Side Panels 9
Adjusting Mounting Rails and Cable Management Rails 10
Combining (Baying) Enclosures 11
Equipment Installation 11
Installing or Removing Cage Nuts 12
Specifications 12
Storage and Service 14
Warranty and Product Registration 14
Español 15
Français 29
Русский
43
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2022 Tripp Lite. All rights reserved.
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
2
Important Safety Instructions
Overview
SAVE THESE INSTRUCTIONS
All sections of this manual contain instructions and warnings that should be followed during the installation and use of the SmartRack Enclosures
described in this manual. Read all instructions and warnings thoroughly before attempting to move, install or use the SmartRack Enclosures described
in this manual. Failure to comply will create a risk of personal injury and property damage and may invalidate the warranty.
• Keep the enclosure in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive
contaminants, dust and direct sunlight.
• Leave adequate space at the front and rear of the enclosure for proper ventilation. Do not block, cover or insert objects into the external ventilation
openings of the enclosure.
• The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it unassisted. Use a mechanical
device such as a forklift or pallet jack to move the enclosure in the shipping container.
• Do not place any object on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures.
• Inspect the shipping container and the enclosure for shipping damage. Do not use the enclosure if it is damaged.
• Leave the enclosure in the shipping container until it has been moved as close to the final installation location as possible. The casters are designed for
minor position adjustments within the final installation area only. The casters are not designed for moving the enclosure over longer distances.
• The casters are not designed to provide long-term support for the enclosure after final installation. Use the levelers to provide long-term support.
• Install the enclosure in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all equipment that will be installed in
the enclosure and any other enclosures and/or equipment that will be installed nearby.
• Install the cabinet securely to the building structure, using the shipping brackets as illustrated in the section of this manual.Enclosure Installation
• Do not push the enclosure from the side panels to move it. Pushing from the side panels will cause a tipping hazard.
• When rolling the enclosure on its casters, always push it from behind, never pull it toward you.
• A rolling enclosure can cause personal injury and property damage if not properly supervised. If rolling the enclosure down a ramp is required, use
extreme caution. Do not attempt to use ramps that have a slope steeper than 1:12.
• Use caution when cutting packing materials. The enclosure could be scratched, causing damage not covered by the warranty.
• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage that will
void the warranty.
• Do not re-ship the enclosure with additional equipment unless the enclosure was shipped with a special shock pallet (“SP1” models only). The combined weight of
the enclosure and installed equipment must not exceed the load capacity of the pallet. Tripp Lite is not responsible for any damage that occurs during re-shipment.
• DANGER: STABILITY HAZARD, RACKS ARE TO BE INSTALLED BY QUALIFIED SERVICE PERSONNEL ONLY.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support
equipment or to significantly affect its safety or effectiveness is not recommended.
SmartRack Enclosures accommodate all standard 19-inch rackmount equipment, regardless of vendor, and ship fully assembled for quick and easy
deployment. They feature adaptable, heavy-duty cabinets in 24U, 42U, 45U, 47U and 48U heights, with or without side panels. Several models are
available with an integrated shock pallet that allows resellers, integrators and enterprise customers to pre-configure equipment and re-ship the enclosures
to the final installation site.
SmartRack Enclosures have variable mounting depths, ideal for servers. Integrated baying hardware enables cost-effective, orderly and efficient expansion.
The cabinets include quick-release doors and side panels for convenient maintenance and split rear doors for improved access and reduced clearance
requirements. Front access doors are reversible for installation flexibility. Front and rear doors and side panels are lockable.
Available SmartRack Enclosures
Model # Rack Height Side Panels Shock Pallet
SR24UB 24U NoYes
SR24UBEXP 24U No No
SR24UBEXPSP1 24U No Yes
SR24UBSP1 24U Yes Yes
SR25UB 25U Yes Yes
SR42UB 42U NoYes
SRX42UB* 42U NoYes
SR42UBCL 42U NoYes
SR42UBDP 42U NoYes
SRX42UBDP* 42U NoYes
SRX42UBDPEXP* 42U No No
SR42UBDPWD 42U NoYes
SRX42UBDPWD* 42U NoYes
SRX42UBDPWDEXP* 42U No No
SR42UBEXP 42U No No
SRX42UBEXP* 42U No No
SR42UBEXPND 42U No No
SR42UBEXPSP1 42U No Yes
SR42UBSP1 42U Yes Yes
SR42UBWD 42U NoYes
See the section for more information. Specifications
*SRX-Series SmartRack Enclosure
Model # Rack Height Side Panels Shock Pallet
SRX42UBWD* 42U NoYes
SRX42UBWDEXP* 42U No No
SR42UBWDCL 42U NoYes
SR45UB 45U NoYes
SRX47UB* 47U NoYes
SRX47UBEXP* 47U No No
SRX47UBDP* 47U NoYes
SRX47UBDPEXP* 47U No No
SRX47UBWD* 47U NoYes
SRX47UBWDEXP* 47U No No
SRX47UBDPWD* 47U NoYes
SRX47UBDPWDEXP* 47U No No
SR48UB 48U NoYes
SR48UBCL 48U NoYes
SR48UBDP 48U NoYes
SR48UBDPWD 48U NoYes
SR48UBEXP 48U No No
SR48UBEXPSP1 48U No Yes
SR48UBSP1 48U Yes Yes
SR50UB 50U NoYes
SR52UB 52U NoYes
SR52UBDP 52U NoYes
SR55UB 55U NoYes
3

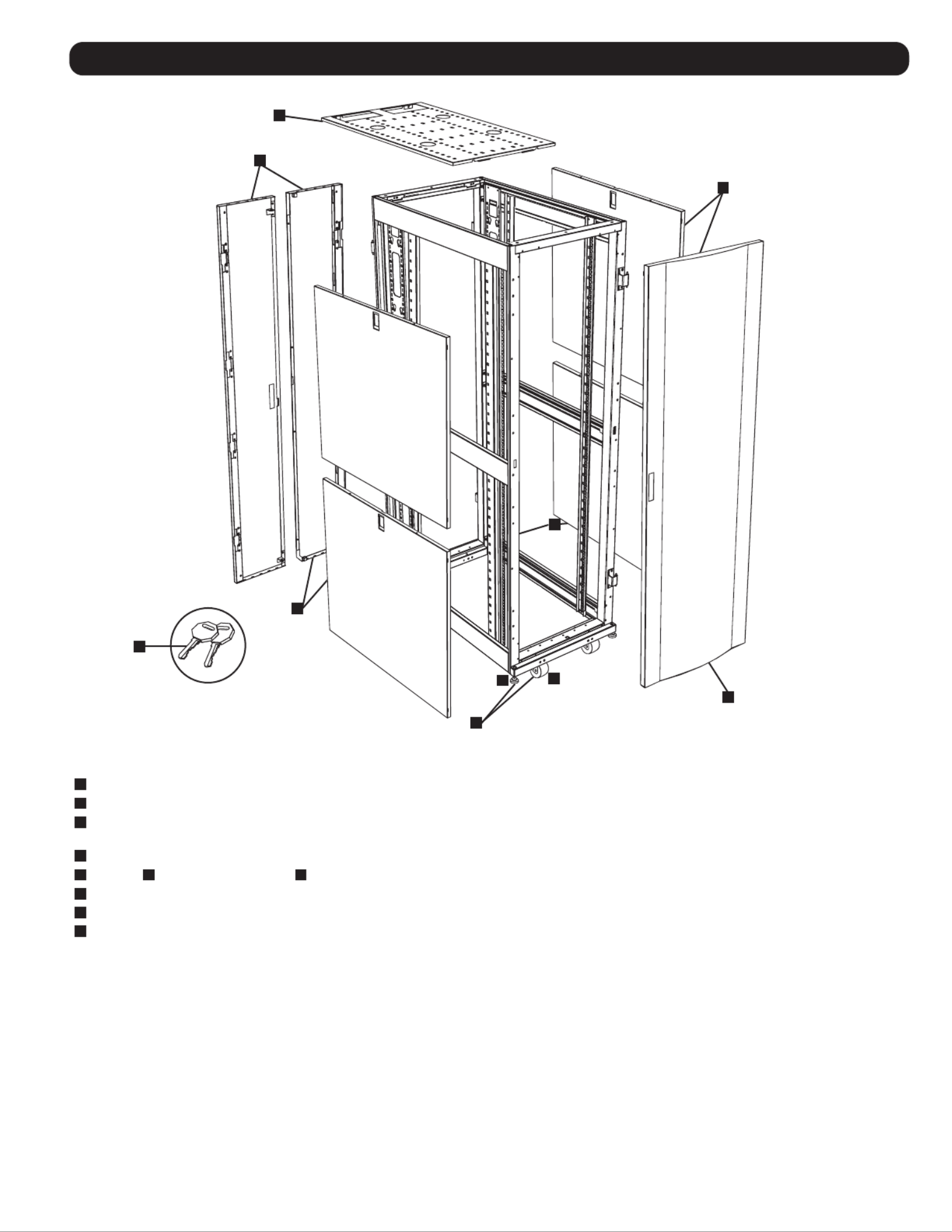

Feature Identification
Model SR42UB is shown. The other models have similar features, with the differences noted.
1 Roof Panel
2 Locking Split Rear Doors
3 Locking Side Panels (24U enclosures use 2 side panels instead of 4. Side panels are not included with “EXP” models.)
4 Cable Management Rails
5 Casters A and Levelers B
6 Mounting Rails (Provide horizontal and vertical mounting points for equipment.)
7 Keys (One for the doors and one for the side panels.)
8 Locking Reversible Front Door
Not Shown: Mounting hardware, documentation, shipping brackets and other shipping materials.
1
2
3
6
8
5
7
A
B
3
