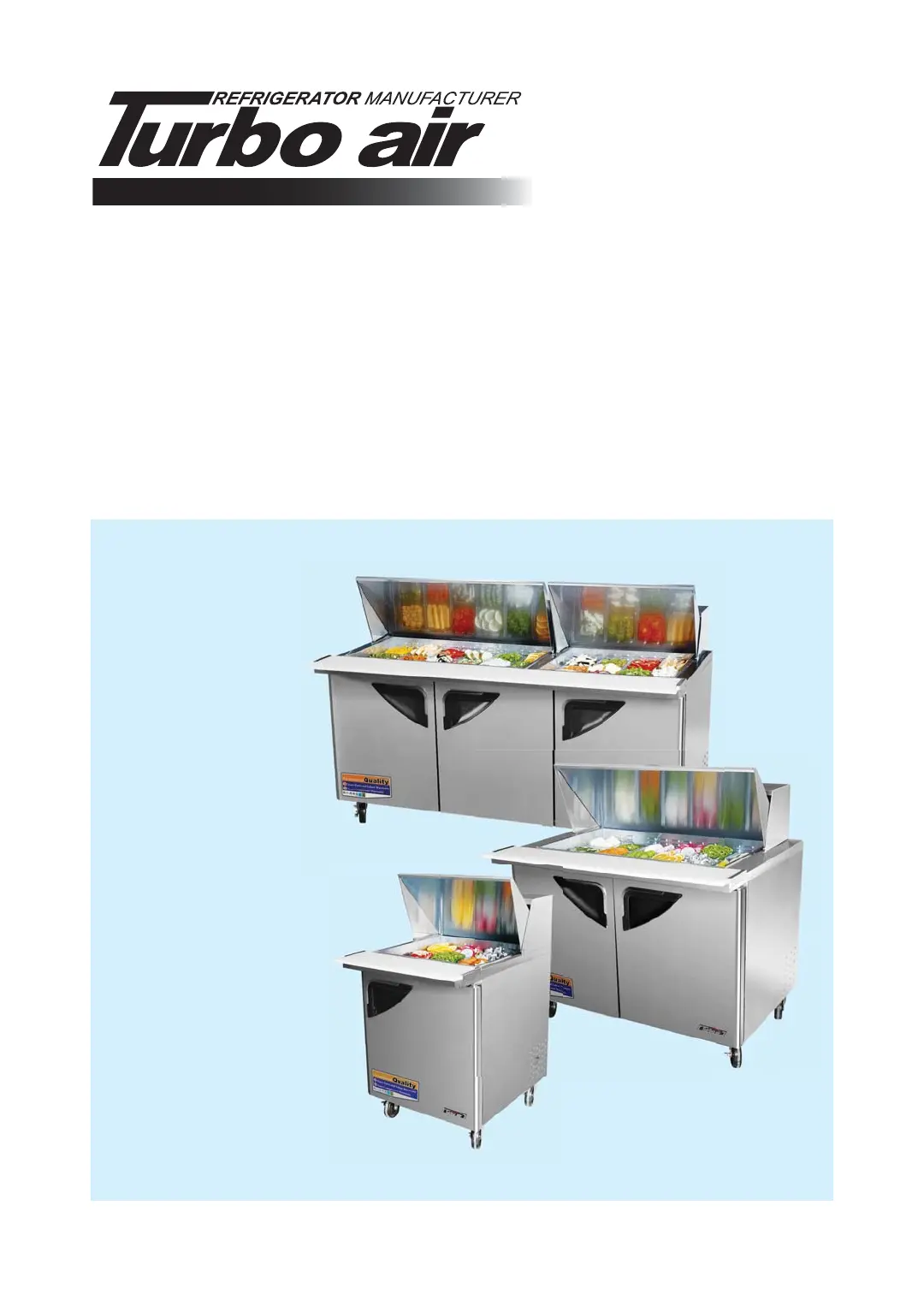

Sida 1/14

Turbo Air Speeds up the Pace of Innovation

Food Prep Tables

Mega Top Sandwich/Salad Units

Installation and Operation Manual

Please read this manual completely before attempting to install or operate this equipment

TST-28SD-12

TST-36SD-15

TST-48SD-18

TST-60SD-24

TST-72SD-30

www.turboairinc.com

Full Stainless Steel Visible Exterior

CONTENTS

SPECIFICATIONS

SERIAL NUMBER

SANDWICH / SALAD UNITS

PAGE

MODEL COMP H.P. V/Hz REFRIGERANT AMPS WEIGHT

TST-36SD-15 1/3 115V/60Hz R-134A 6.6A 242lbs

TST-48SD-18 1/3 115V/60Hz R-134A 6.5A 264lbs

TST-28SD-12 1/4 115V/60Hz R-134A 6.6A 220lbs

TST-72SD-30 1/2 115V/60Hz R-134A 9.9A 396lbs

TST-60SD-24 1/2 115V/60Hz R-134A 8.9A 352lbs

The serial number is located on the rating label which is on the left interior wall.

Please retain the unitʼs serial number for service purpose.

SPECIFICATIONS 2

SERIAL NUMBER 2

INSTALLATION OF CASTERS 3

INSTALLATION OF DRAIN PAN 4

HOW TO CLEAN THE PAN SUPPORTER 5

INSTALLATION 6

CLEANING & CAUTION 7

BASIC OPERATION 8

TROUBLESHOOTING 9

WARRANTY 12-14

STAINLESS STEEL EQUIPMENT CARE AND CLEANING 10-11

INSTALLATION OF CASTERS

1) Screw the caster (in rear side) and the caster brakes (in front side) by using

caster wrench.

2) Use the caster shims to level the cabinet, if necessary, by inserting them to

stems of the casters.

ROTATION CASTER (2EA)

CASTER (WITH BRAKE) (2EA)
