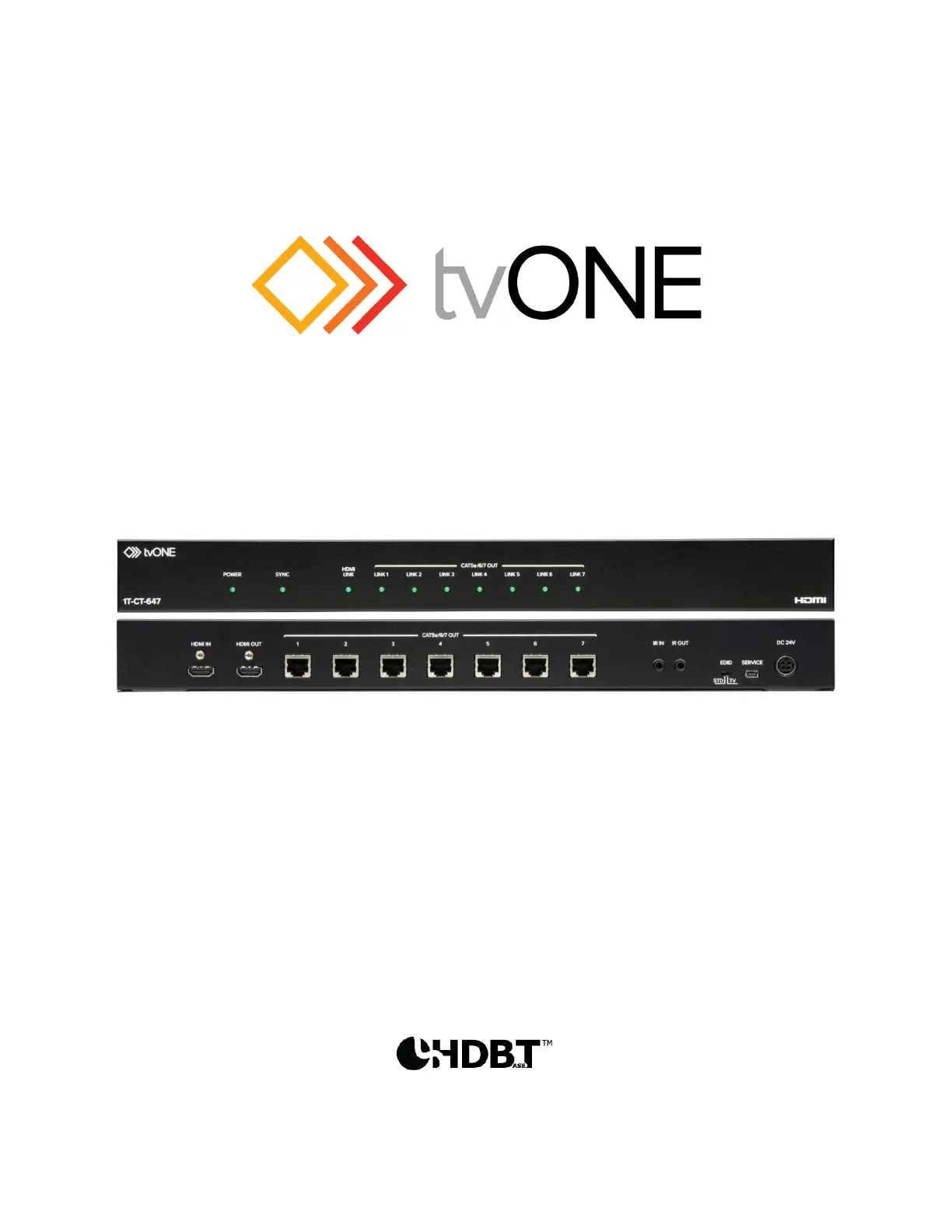

Instruction Manual

1T- -647 CT

7 Port HDBaseT-Lite Transmitter

Table of Contents

1.0

Introduction

2.0

Checking Package Contents

3.0

Specications

4.0

Connecting The Hardware

5.0

Operating The Unit

6.0

Troubleshooting

7.0

Limited Warranty

8.0

Regulatory Compliance

9.0

Contact Information

1.0 INTRODUCTION

Thank you for purchasing th HDMI over single Cat.6 product from tvONE e product is . Th

group consists a of 1T 1T- -647 Transmitter (which is normally coupled with a CT - -64CT 2

Receiver that employs HDMI v1.4 capability and the HDBaseT-Lite technology to allow

transmission of uncompressed, 1080p high denition television signals over a single

Cat.5 or Cat.6 cable - a type of cable typically employed for Ethernet computer e

networks.) HDMI v1.4 signals - including 3D and UHD formats - are supported and the 4k

system will also allow DVI signal transmission with appropriate DVI to HDMI cable

adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-

HD Master Audio capability is standard. The - -647 can achieve signal distribution 1T CT

distances up to meters (197 feet) for uncompressed HDMI signals without signal of 60

degradation .

1.1 Liability Statement

Every eort has been made to ensure that this product is free of errors. tvONE cannot be

held liable for the use of this hardware or any direct or indirect consequential damages

arising from its use. It is the responsibility of the user of the hardware to check that it is

parts of this manual may be reproduced or transmitted by any form or means electronic or

mechanical, including photocopying, recording or by any information storage or retrieval

system without the written consent of the publisher.

tvONE reserves the right to revise any of its hardware and software following its policy to

modify and/or improve its products where necessary or desirable. This statement does not

aect the legal rights of the user in any way.

All third party trademarks and copyrights are recognised. The tvONE logo, Magenta logo,

CORIO word and the CORIO logo are registered trademarks of tvONE. All other

trademarks are the property of their respective holders.
