GMR3055-2CK

GMR3055-2CKHS

GMR3055-3VP

Congratulations on your purchase of a Uniden GMRS/FRS

radio. This lightweight, palm-sized radio is a state-of-the-art

device, equipped with many valuable features. Use it at

sporting events, to stay in contact with family and friends,

hiking, skiing, outdoors, or in a neighborhood watch for vital

communication.

• 15 GMRS/7 FRS

Channels

• Battery Charging Cradle

(GMR3055-2CK and

GMR3055-2CKHS)

• •121 Privacy Codes NOAA Emergency/Weather

Channels

• Up to 30-Mile

Range*

• Weather alert

• •Channel Scan microUSB charging jack

• •VOX Headset Jack 10 Selectable Call Tone

Alerts

• Roger Beep

* Range may vary depending on environmental and/or

topographical conditions.

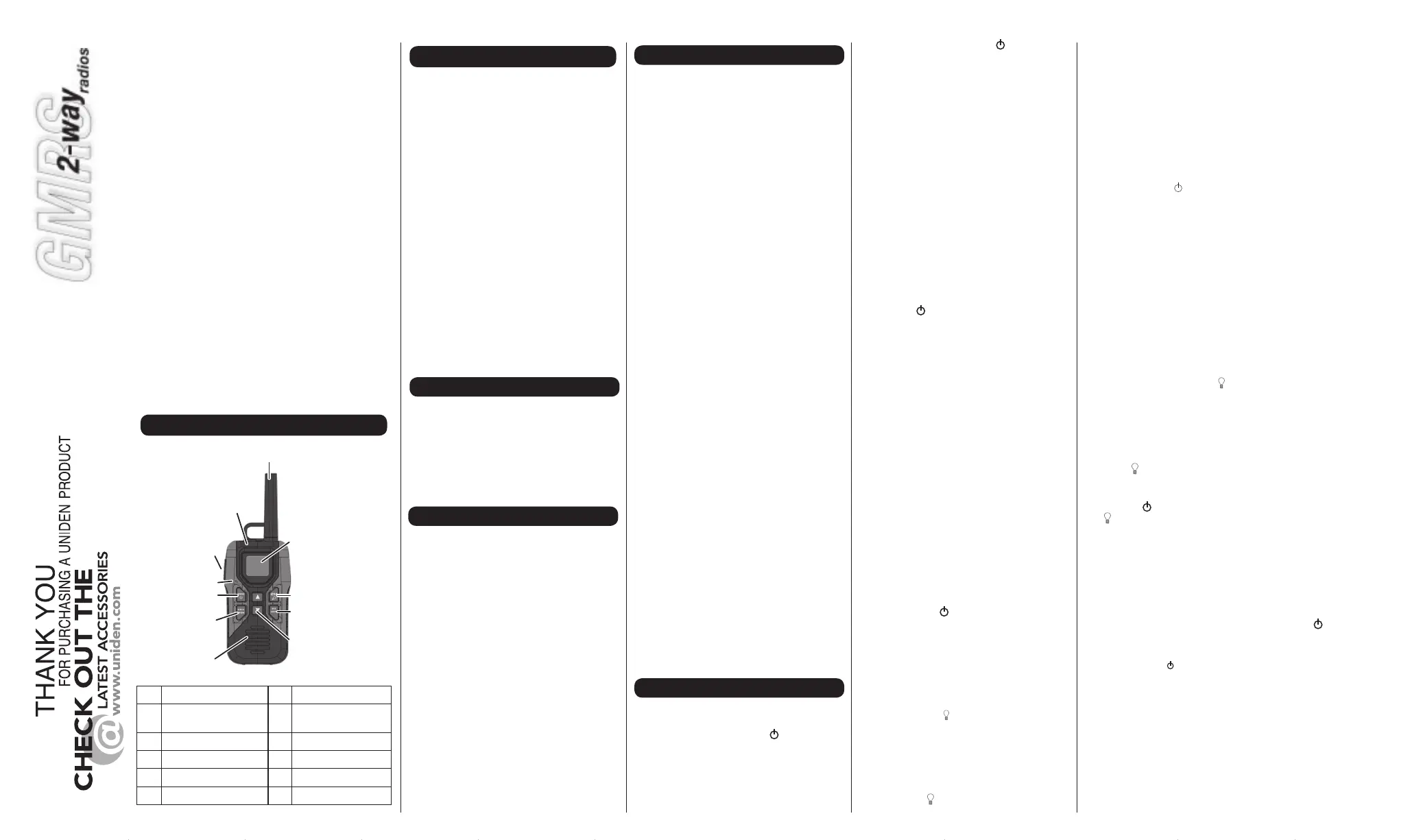

GMR3055 HARDWARE

1 Antenna 7 Speaker

2 USB Charge Port/

Headphone Jack

8 Channel and

Volume

3 Push to Talk 9 WX/LOCK

4 Microphone 10 CH/Backlight

5 MENU/Power Screen11

6 CALL/MON

WHAT'S IN THE BOX

All models come with:

• 2 radios (3 radios for GMR3055-3VP)

• 6 AA rechargeable NiMH batteries (9 NiMH

batteries for GMR3055-3VP)

• 2 belt clips (3 belt clips for GMR3055-3VP)

• This reference guide

GMR3055-2CK also has:

• 1 battery charging cradle

• 1 AC adapter/single microUSB cable

GMR3055-2CKHS also has

• 1 battery recharging cradle

• 1 AC adapter/single microUSB cable

• 2 earbud-style headphones (GMR3055-

2CKHS

GMR3055-3VP also has:

• 1 AC adapter/Y-Split microUSB charge cable

(GMR3055-3VP)

Visit our web site at www.uniden.com to order

accessories.

Use only Uniden accessories.

The radio operates on the General Mobile Radio

Service (GMRS) frequencies which require a

Federal Communications Commission license to

operate. For licensing information and

application forms, visit the FCC on-line at: www.

fcc.gov/wtb/uls or call the FCC hotline at 1-800-

418-3676. If you have any questions you can

contact the FCC direct at 1-888-225-5322.

Each radio uses 3 AA rechargeable NiMH

batteries (included).

To install the batteries:

1. If installed, remove the belt clip.

2. Remove the battery compartment door by

pressing on the latch and releasing the

cover. Remove it.

3. Install the supplied 3 NiMH batteries into

the battery compartment. Be certain to

follow the + and – symbols in the

compartment. Installing the batteries

incorrectly will prevent the unit from

operating.

4. Replace the battery compartment door.

5. Replace the belt clip if necessary.

6. Repeat for each radio.

Note: You may also use 3 AA non-rechargeable

alkaline batteries in each radio. However,

do not mix NiMH and alkaline batteries

in the same radio.

FCC GMRS LICENSE

INSTALL THE BATTERIES

CHARGING THE RADIO

Review the following tips before charging your

radios:

CAUTION: Do not attempt to recharge

alkaline batteries. Doing so can create

a safety hazard or damage the radio.

• Install the batteries before connecting the AC

adapter to the radio and power source.

• The battery icon flashes while the radio

charges, whether the radio is turned on or not.

The charge stops after 14 hours of continuous

charging. If there is a power interruption, the

charging timer resets to 14 hours. If the radio

is off and charging stops, the battery icon

stops flashing.

• Charge time may vary depending on the

battery life remaining. For fastest charging,

turn off the radio before charging.

• If battery power is low, you cannot operate the

radio even using external power. If you try to

transmit while power is low, the radio will

automatically turn off. Recharge the batteries.

GMR3055-2CK, GMR3055-2CKHS

These models use a charging cradle (included)

to charge their NiMH batteries.

1. Plug the charging cradle into an AC adapter

and then plug the AC adapter into a power

source (wall outlet). .

2. Install the NiMH batteries in the radios.

3. Place the radios in the charging cradle. The

radios begin charging and the red LEDs

turn on.

4. The radio is fully charged when

the red POWER LEDs go off.

GMR3055-3VP

This model charges through a microUSB

Y-branch cable (included) with an AC adapter

that plugs into an AC power source.

1. Plug one branch of the microUSB Y-Cable

into each radio's microUSB charge port.

2. Insert the AC adapter into an AC power

source (wall plug).

3. The radios are charged after 14 hours

when the battery icon on the screen stops

flashing.

Note: You will have to charge 2 of the 3 radios

and then charge the last one.

USING THE RADIO

Turning the Radio On and Adjusting the

Volume

1. Press and hold the MENU/ key to turn

the radio ON.

2. To change the volume level, press the

▲ ▼ or key to increase or decrease the

volume level. There are 8 volume levels (L1

- )L8) plus volume off (L0

3. Press and hold the MENU/ key to turn

the radio OFF.

Using Headphones

The GMR3055-2CKHS radio comes with earbud

headphones for each radio. You can purchase

optional earbuds or headsets for other radios if

desired. See www.uniden.com to purchase

authentic Uniden products.

Using the earbuds lets you have more private

communications. To use the earbuds, lift the

rubber cover from the headset jack, then plug in

the earbuds. The microphone is on the earbud

cable.

Important: Your radio is not weather resistant

when using a headset jack. When you remove

the earbuds, be sure to fully press the cover into

place to restore its weather resistant capability.

Using the Menu

Press MENU/ to access the three menu

options:

• Privacy Code (121 codes). The privacy codes

display underneath the channel number on

the screen.

• Call Tone (10 call tone options plus Off)

• VOX (5 levels plus Off)

Each menu option is discussed later in the

manual with the feature that uses it.

Choosing a Channel

Your radio has 22 channels you can use to talk

to others. In order to speak to someone, each of

you must be set to the same channel and

privacy code.

Each of the channels 1-22 may have any one of

the privacy codes, 0 (OFF), or 1-121 selected.

Code oF (OFF) indicates no privacy code

selected and your radio can receive a signal

regardless of the code settings of the

transmitting radio.

To choose a privacy code:

1. Press MENU/ until the privacy code

number flashes below the channel number.

2. Press ▲ or ▼ to cycle through the privacy

codes.

3. The radio returns to its normal state after

about 10 seconds.

To choose a channel:

1. Press the CH/ key to access the channel

function; the channel number flashes.

2. Press▲or▼tomanuallycyclethrough

the channels.

You can only manually cycle through channels

when the channel numbers are flashing.

3. Press CH/ to set the channel.

VOX Feature

CAUTION: Insert headphones into the radio

BEFORE turning on the radio.

Your radio is equipped with a user selectable Voice

Operated Transmitter (VOX) that can be used for

automatic voice transmissions. The VOX feature is

designed to be used with or without a headset with a

microphone. Transmission is initiated by speaking into

the microphone instead of pressing PTT.

To select a VOX level:

1. Press MENU/ repeatedly until the vox icon and

the VOX sensitivity level (OFF, 1-5) blink.

2. Press or▲ ▼ to change the VOX sensitivity

levels. Use level 5 for increased sensitivity to

voice in normally quiet environments, and use a

lower level to reduce undesired activation in very

noisy environments.

3. The radio returns to its normal state after about

10 seconds.

Channel Scan Feature

Your radio has a channel scan feature that allows you to

easily scan all 22 channels. When an active channel is

detected, the unit pauses on that channel until the

channel is clear. Then, after a 2 second delay, the radio

continues scanning. Press to resume scanning CH/

while the radio is stopped on an active channel.

When the unit stops on an active channel, you can

press the button to transmit on that channel.PTT

Using channel scan

Press CH/ thenhold▼or▲for3seconds.The

radio will repeatedly cycle through all 22 channels. To

reverse scan direction, press the other directional icon.

Press Press MENU/ or CALL/MON to stop scanning.

CH/ to resume scanning in the same direction it was

scanning previously.

Silent Mode

Silent mode turns off all key beeps when it is turned on.

It does NOT mute call or voice signals received.

Change Silent mode status (OFF or ON) by first turning

OFF the radio.

• To turn Silent mode off, press and hold the MENU/

key to turn the radio ON. Silent mode is off and

key beeps sound. (Default)

• To turn Silent mode on, press and hold the CALL/

MON MENU/ and keys to turn the radio back ON.

Silent mode turns on and no key beeps sound.

Talking on Your Radio

When the radio stops on a channel that is transmitting,

you can talk to others on that channel.

Transmitting

1. Press and hold the PTT button and speak in a

clear, normal voice about 2-3 inches away from

the microphone on the radio. (The icon displays tx

while you are transmitting. Pause slightly after

pressing the button before you start talking to PTT

prevent cutting off your transmission.)

2. When you are finished speaking, release the PTT

button. You can now receive incoming calls. While

receiving, the icon displays.rx

Transmitting a Call Alert Tone

Your radio is equipped with a call tone that transmits

when the key is pressed. You can select from CALL/MON

10 call tones.

1. Press until MENU/ call displays on the screen

and the call tone number displays.

2. Press ▲ or ▼ to cycle through the call tones. A

sample of the tone sounds as you move through

them

3. The radio returns to its normal state after about 5

seconds.

To transmit the call tone, press the CALL/MON key.

Auto Squelch Feature

The radio is equipped with an automatic squelch

system which shuts off weak transmissions and

unwanted noise due to terrain conditions or range

limitations.

Monitor Mode Feature

Your radio allows you to listen for weak signals on the

current channel at the press of a key.

To turn ON monitor mode:

Press and hold for 2 seconds. On a CALL/MON

channel that does not have activity, you will hear only

an open-squelch hissing noise and displays.rx

To turn OFF monitor mode:

Press the key for 2 seconds again. does CALL/MON rx

not display.

Weather Channels

Your radio can access 7 NOAA weather channels and

you can select one of these channels to be monitored

while you are listening to GMR transmissions. When

weather alerts are broadcast on that channel, the radio

tunes to that channel so you can hear them.

While you are listening to weather channels, the radio

does not receive GMRS communications.

1. To access the weather channels, press WX/LOCK.

The weather channel number and the icon

display.

2. Press CH/ . The weather channel number

flashes.

3. Press▲or▼tomanuallycyclethroughthe

weather channels.

4. If there is a weather channel you want to

designate as the weather alert channel, press CH/

again. The channel numbers stop flashing.

Dry the battery compartment with a soft cloth to

minimize potential water damage. Leave the battery

compartment cover off overnight to ensure complete

drying. Do not use the radio until the unit is completely

dry.

Channels 15 GMRS/7 FRS

Weather

Channels

Operating

Frequency

UHF 462.5500 - 467.7125 MHz

Power

Source

3 AA NiMH Batteries per radio.

FCC INFORMATION

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

Unauthorized changes or modifications to this

equipment may void compliance with the FCC Rules.

Any change or modification must be approved in

writing by Uniden. Changes or modifications not

approved by Uniden could void the user’s authority to

operate the equipment.

To be safe and sure:

• Never open your radio’s case.

• Never change or replace anything in your radio

except the batteries.

Your radio might cause TV or radio interference even

when it is operating properly. To determine whether

your radio is causing the interference, turn it off. If the

interference goes away, your radio is causing it. Try to

eliminate the interference by moving your radio away

from the receiver. If you cannot eliminate the

interference, the FCC requires that you stop using the

radio.

Hazardous Environments: Do not operate the radio in

hazardous environments. Explosion or fire may result.

Do not operate the radio near unshielded electrical

blasting caps.

Under certain conditions, radios can interfere with

blasting operations and may cause an explosion. Turn

your radio OFF to prevent accidental transmission

when in a blasting area or in areas posted: "Turn off

two-way radio." Construction crews often use remote

control RF devices to set off explosives.

SPECIFICATIONS

IC INFORMATION

This device complies with Industry Canada licence-exempt RSS

standard(s). Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.

Unauthorized changes or modifications to this equipment may

void compliance with I.C. Rules. Any change or modification must

be approved in writing by Uniden. Changes or modifications not

approved by Uniden could void the user’s authority to operate the

equipment.

L’appareil est conforme aux normes d’Industrie Canada. Son

fonctionnement est soumis aux deux conditions suivantes : (1)

Ce dispositif ne doit pas causer d’interférences et (2), il doit

pouvoir accepter les interférences, incluant celles pouvant nuire à

son fonctionnement normal.

Tous les changements apportés à cet appareil, s’ils ne sont pas

expressément approuvés par Uniden ou toute utilisation de celui-

ci d’une autre manière que celle décrite dans ce guide peut

annuler votre autorisation de le faire fonctionner.

FCC RF EXPOSURE INFORMATION

WARNING! Read this information before using the radio.

In August 1996 the Federal Communications Commission (FCC)

of the United States with its action in Report and Order FCC

96-326 adopted an updated safety standard for human exposure

to radio frequency electromagnetic energy emitted by FCC

regulated transmitters. Those guidelines are consistent with the

safety standard previously set by both U.S. and international

standards bodies. The design of the radio complies with the FCC

guidelines and these international standards. Never allow children

to operate the radio without adult supervision and the knowledge

of the following guidelines.

WARNING! It is up to the user to properly operate this radio

transmitter to insure safe operation. Please adhere to the

following: Use only the supplied or an approved antenna.

Unauthorized antennas, modifications, or attachments could

impair call quality, damage the radio, or result in violation of FCC

regulations.

Do not use the radio with a damaged antenna. If a damaged

antenna comes into contact with the skin, a minor burn may

result. Please contact your local dealer for a replacement

antenna.

Body-Worn Operation

This device was tested for typical body-worn operations using the

supplied belt-clip. To maintain compliance with FCC RF exposure

requirements, Body-worn operations are restricted to the supplied

belt-clip. For hand-held operation, the radio should be held 1 inch

from the user's face. The use of accessories that do not satisfy

these requirements may not comply with FCC RF exposure

requirements and should be avoided. For more information about

RF exposure, please visit the FCC web site at: www.fcc.gov.

5. Press WX/LOCK again. The radio returns to

normal mode and the icon and alt display,

indicating there is a weather channel set to alert

mode.

You can only manually cycle through channels when

the channel numbers are flashing

Key Lock

1. ; The Press and hold WX/LOCK displays.

following functions are not affected by Key Lock:

• Volume adjust

• Enter monitor mode

• PTT transmission

• Backlight

• Power off

2. Press and hold WX/LOCK again; disappears.

Backlight

Press and hold to turn on the LCD backlight. CH/

The screen stays illuminated for 10 seconds before

the backlight turns off.

FREQUENCY CHART

CH Freq.[MHz] -

Cross Ref.

CH Freq.[MHz] -

Cross Ref.

1 462.5625 - FRS &

GMRS 1

12 467.6625 - FRS 12

2 462.5875 - FRS &

GMRS 2

13 467.6875 - FRS 13

3 462.6125 - FRS &

GMRS 3

14 467.7125 - FRS 14

4 462.6375 - FRS &

GMRS 4

15 462.5500 - GMRS 11

5 462.6625 - FRS &

GMRS 5

16 462.5750 - GMRS 8

6 462.6875- FRS &

GMRS 6

17 462.6000 - GMRS 12

7 462.7125 - FRS &

GMRS 7

18 462.6250 - GMRS 9

8 467.5625 - FRS 8 19 462.6500 - GMRS 13

9 467.5875 - FRS 9 20 462.6750 - GMRS 10

10 467.6125 - FRS 10 21 462.7000 - GMRS 14

11 467.6375 - FRS 11 22 462.7250 - GMRS 15

CARE AND SAFETY

To clean the radio, use a soft cloth dampened with

water. Do not use cleaners or solvents because they

can harm the body of the unit and leak inside, causing

permanent damage. Use a dry, lint-free cloth to clean

the battery contacts. Do not submerge the unit in

water. If the unit gets wet, turn it off and remove the

For body worn operation, this device has been tested and meets

the Industry Canada RF exposure guidelines when used with

Uniden accessories supplied or designated for this product. Use

of other accessories may not ensure compliance with Industry

Canada RF exposure guidelines.

Fonctionnement de l’appareil, lorsque porté sur le corps. Cet

appareil a été testé et s’est avéré conforme aux normes

d’Industrie Canada et approuvé pour le port sur le corps à l’aide

des accessoires Uniden inclus et conçus pour cet appareil.

L’utilisation d'accessoires ne respectant pas les exigences

d'exposition RF d’Industrie Canada doit être évitée.

ONE YEAR LIMITED WARRANTY

Important: SAVE YOUR RECEIPT! Evidence of original purchase

is required for warranty service.

WARRANTOR: UNIDEN AMERICA CORPORATION ("Uniden")

ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail

owner, this Uniden Product to be free from defects in materials and craftsmanship

with only the limitations or exclusions set out below.

WARRANTY DURATION: This warranty to the original user shall terminate and be

of no further effect 12 months after the date of original retail sale. The warranty is

invalid if the Product is: (A) damaged or not maintained as reasonable or

necessary, (B) modified, altered, or used as part of any conversion kits, sub-

assemblies, or any configurations not sold by Uniden, (C) improperly installed, (D)

serviced or repaired by someone other than an authorized Uniden service center for

a defect or malfunction covered by this warranty, (E) used in any conjunction with

equipment or parts or as part of any system not manufactured by Uniden, or (F)

installed or programmed by anyone other than as detailed by the owner’s manual for

this product.

STATEMENT OF REMEDY: In the event that the product does not conform to this

warranty at any time while this warranty is in effect, warrantor will either, at its

option, repair or replace the defective unit and return it to you without charge for

parts, service, or any other cost (except shipping and handling) incurred by

warrantor or its representatives in connection with the performance of this warranty.

Warrantor, at its option, may replace the unit with a new or refurbished unit.

THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE

WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND

EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER,

WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW,

INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.THIS

WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT

OVERPAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states

do not allow this exclusion or limitation of incidental or consequential damages so

the above limitation or exclusion may not apply to you.

LEGAL REMEDIES: This warranty gives you specific legal rights, and you may also

have other rights which vary from state to state. This warranty is void outside the

United States of America and Canada.

PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after

following the instructions in the owner’s manual you are certain that the Product is

defective, pack the Product carefully (preferably in its original packaging). The

Product should include all parts and accessories originally packaged with the

Product. Include evidence of original purchase and a note describing the defect that

has caused you to return it.The Product should be shipped freight prepaid, by

traceable means, to warrantor:

Uniden America Corporation

C/O Saddle Creek

743 Henrietta Creek Road, Suite 100

Roanoke, TX 76262

(800) 297-1023, 8 a.m. to 4:30 p.m., Central, Monday through

Friday

Produktspecifikationer

Varumärke:	Uniden
Kategori:	Radio
Modell:	GMR3055-2CKHS
Vikt:	440 g
Bredd:	61.5 mm
Djup:	181 mm
Höjd:	35 mm
Internationell säkerhetskod (IP):	IP20
Hållbarhetscertifikat:	RoHS
Uteffekt:	60 W
Spännande:	36 V
AC-ingångsspänning:	90 - 295 V
