Sida 1/27

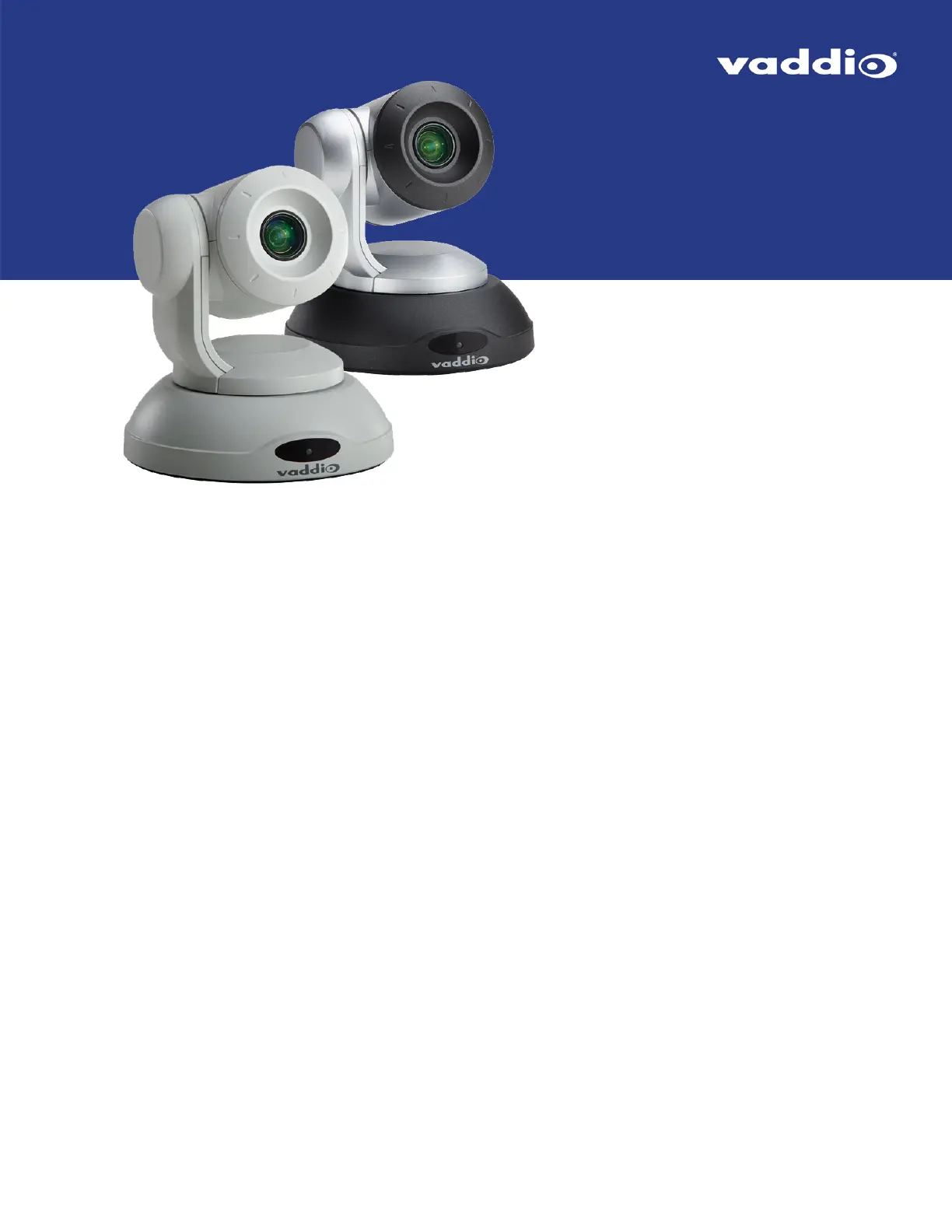

Installation Guide for
ConferenceSHOT 10
Enterprise-Class PTZ Conferencing Camera
Document 411-0002-31 Rev D
October 2019
ii
Contents
Overview 1
What's in this Guide 1
Features 1
Unpacking the Camera 2
A Quick Look at the Camera 3
Front of the Camera 3
Back of the Camera 4
Installation 5
Don’t Void Your Warranty! 5
Before You Install the Camera 5
Installing the Wall Mount 6
About Ceiling-Mounted Cameras 6
Camera Behavior Settings 7
RS-232 Serial Communication Settings 7
RS-232 Connector Pin-Out 8
Cabling Notes 8
Connecting the Camera 9
Installing the Camera 10
Powering Up the Camera 11
Status Indicator Light 11
Next Steps 12
Operation, Storage, and Care 12
Glossary 13
Compliance and Conformity Statements 16
FCC Part 15 Compliance 16
ICES-003 Compliance 16
European Compliance 17
Warranty and Return Policy 18
Photo Credits 22
Index 23
1
Overview
This guide covers the ConferenceSHOT™ 10 enterprise-class PTZ conferencing camera:
nNorth America – 999-9990-000 (silver/black), 999-9990-000W (white)
nEurope and UK – 999-9990-001 (silver/black), 999-9990-001W (white)
nAustralia and New Zealand – 999-9990-009 (silver/black), 999-9990-
009W (white)
What's in this Guide
This guide covers:
nUnpacking the camera
nTips for a successful installation
nInstructions for installing the camera mount
nInformation on connecting and mounting the camera
nCamera power-on
Complete product information is available in the Complete Manual for the ConferenceSHOT 10
Enterprise-Class PTZ Conferencing Camera.
Note
If you are responsible for configuring the equipment after installing it, please use the Complete
Manual instead of this guide. The product's Complete Manual includes all the information in this guide,
plus information on system administration, operation, and troubleshooting.
Features
n2.14 Megapixel effective, native 1080p/60 full HD image sensor
n10x optical zoom, horizontal field of view of 74° in super-wide mode
nSimultaneous uncompressed USB 3.0 and IP (H.264) streaming outputs at resolutions up to 1080p/60
nSelectable IP stream resolution; USB stream resolution auto-negotiated with conferencing client
nPrecise pan and tilt movements at up to 90° per second
nUniversal Video Class (UVC) drivers supported in Windows®, macOS®, and Linux operating systems,
compatible with most UC conferencing applications
nIntegration-ready Telnet and serial RS-232 control
nFull administrative control via web interface; manage the camera remotely while monitoring the stream
separately
nPresenter-friendly IR remote control
