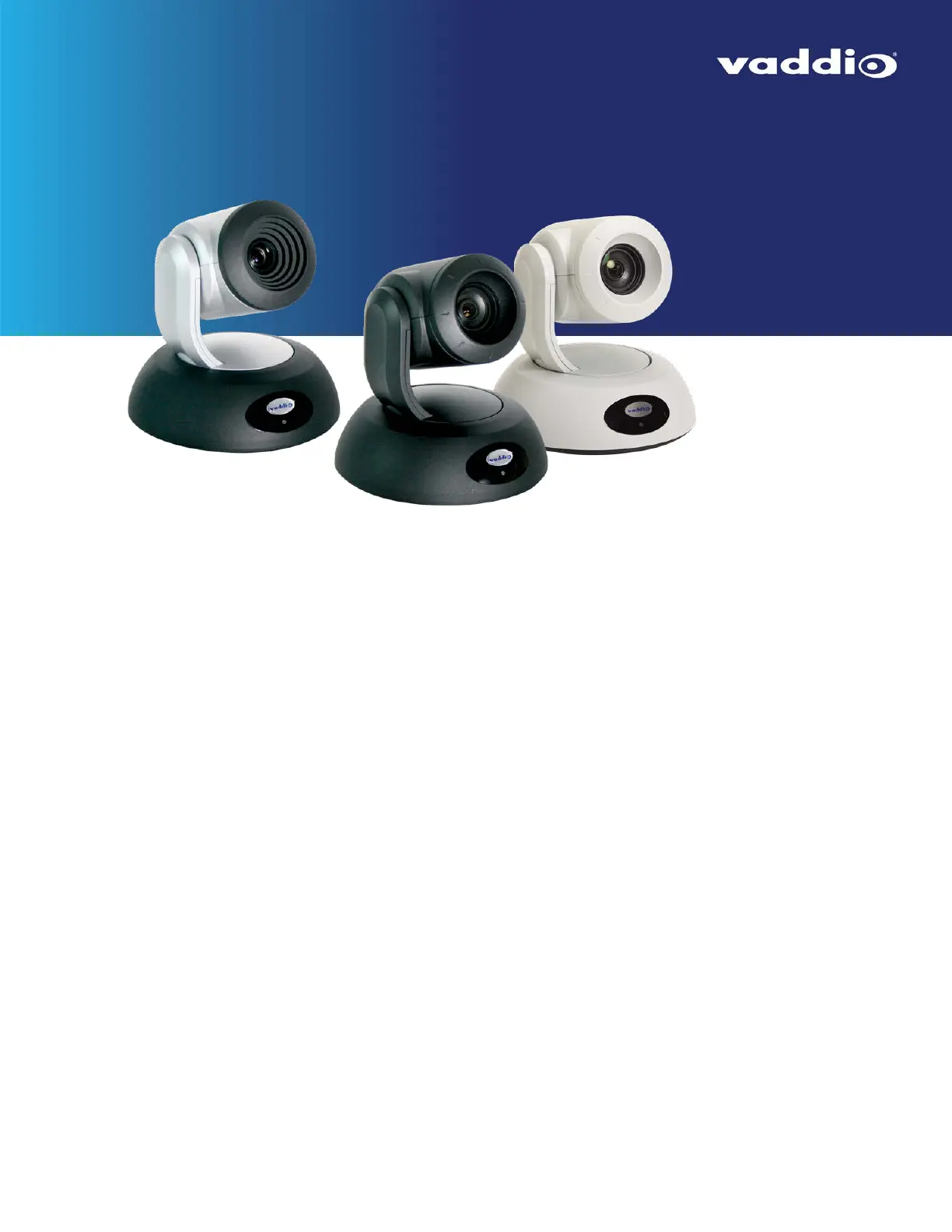

Installation Guide for
RoboSHOT 12 HDBT and
RoboSHOT 30 HDBT
High-Performance PTZ Cameras
Document 411-0003-31 Rev B
February 2017
ii
Contents
Overview 1
What's in this Guide 1
Camera Features 1
Unpacking the Camera 2
A Quick Look at the Camera 5
Front of the Camera 5
Back of the Camera 6
Switch Settings 6
Video Resolution 6
Camera Settings 7
Installation 8
Before You Install the Camera 8
Don’t Void Your Warranty! 8
Operation, Storage, and Care 8
Cabling Notes 9
Installing the Wall Mount 10
About Ceiling-Mounted Cameras 10
Basic Connection Diagram 11
Options for Power and Other Connections 11
Installing the Camera 12
Powering Up the Camera 13
Next Steps 13
Compliance Statements and Declarations of Conformity 14
FCC Part 15 Compliance 14
ICES-003 Compliance 14
European Compliance 15
Warranty Information 16
Index 17
1
Overview
This guide covers the RoboSHOT™ 12 and 30 HDBT PTZ cameras:
nRoboSHOT 12 HDBT (silver), North America – 999-9960-000
nRoboSHOT 12 HDBT (silver), Europe and UK – 999-9960-001
nRoboSHOT 12 HDBT (silver), Australia and New Zealand – 999-
9960-009
nRoboSHOT 30 HDBT (black), North America – 999-9963-000
nRoboSHOT 30 HDBT (black), Europe and UK – 999-9963-001
nRoboSHOT 30 HDBT (black), Australia and New Zealand – 999-9963-009
nRoboSHOT 30 HDBT (white), North America – 999-9963-000W
nRoboSHOT 30 HDBT (white), Europe and UK – 999-9963-001W
nRoboSHOT 30 HDBT (white), Australia and New Zealand – 999-9963-009W
What's in this Guide
This guide covers:
nUnpacking the camera
nTips for a successful installation
nInstructions for installing the camera mount
nInformation on connecting and mounting the camera
nCamera power-on
Complete product information is available in the Integrator's Complete Guide to RoboSHOT HDBT
High-Performance PTZ Cameras.
Download manuals, dimensional drawings, and other information from www.vaddio.com/support.
Camera Features
nRoboSHOT 12 HDBT: Exmor® 1/2.8 type, high-speed, low-noise image sensor; 12X optical zoom; 73°
horizontal field of view in wide mode – perfect for small to medium rooms
nRoboSHOT 30 HDBT: Exmor R™ back-lit 1/2.8 type, high-speed, low-noise image sensor; 30X optical
zoom; 65° horizontal field of view for medium to large venues – houses of worship, lecture theaters,
IMAG systems
n2.38 megapixels total, full HD (native 1080p/60)
nIP H.264 streaming – view real-time video from the camera using any standards-based media viewer
nTri-Synchronous Motion™ simultaneous 3-axis pan/tilt/zoom movement between presets
nSmooth, silent direct-drive motors – ultra-accurate positioning, from 120° per second down to 0.35° per
second
nDesigned for use with the Vaddio OneLINK™ HDMI extension module for HDBaseT Cameras
nWeb interface for remote administration and operation, integration-ready Telnet or RS-232 control,
presenter-friendly IR remote control
Produktspecifikationer
| Varumärke: | Vaddio |
| Kategori: | Videokonferenssystem |
| Modell: | RoboSHOT 12 OneLINK HDBT |
