UR 14 UNIVERSAL CONTROLLER
Vivanco GmbH, D-22926 Ahrensburg, E-Mail
: hotline@vivanco.de
, Helpline: +49 (0) 4102 231135
1
(GB) Instructions 2
(D) Bedienungsanleitung 4
(F) Notice d’emploi 7
(E) Instrucciones para el uso 10
(I) Istruzioni per l’uso 13
(NL) Gebruiksaanwijzing 16
(PL) Instrukcja obsługi 19
(CZ) Návod k obsluze 22
(P) Manual de instruções 25
(DK) Betjeningsvejledning 28
(S) Bruksanvisning 30
(RUS)
33
(GR) 36
(SK) Návod na obsluhu 40

UR 14 UNIVERSAL CONTROLLER
Vivanco GmbH, D-22926 Ahrensburg, E-Mail
: hotline@vivanco.de
, Helpline: +49 (0) 4102 231135
2
(GB) Instructions
VIVANCO UR 14 remote control for almost
all TV, audio, video and other infrared-
controllable appliances
Inserting the batteries

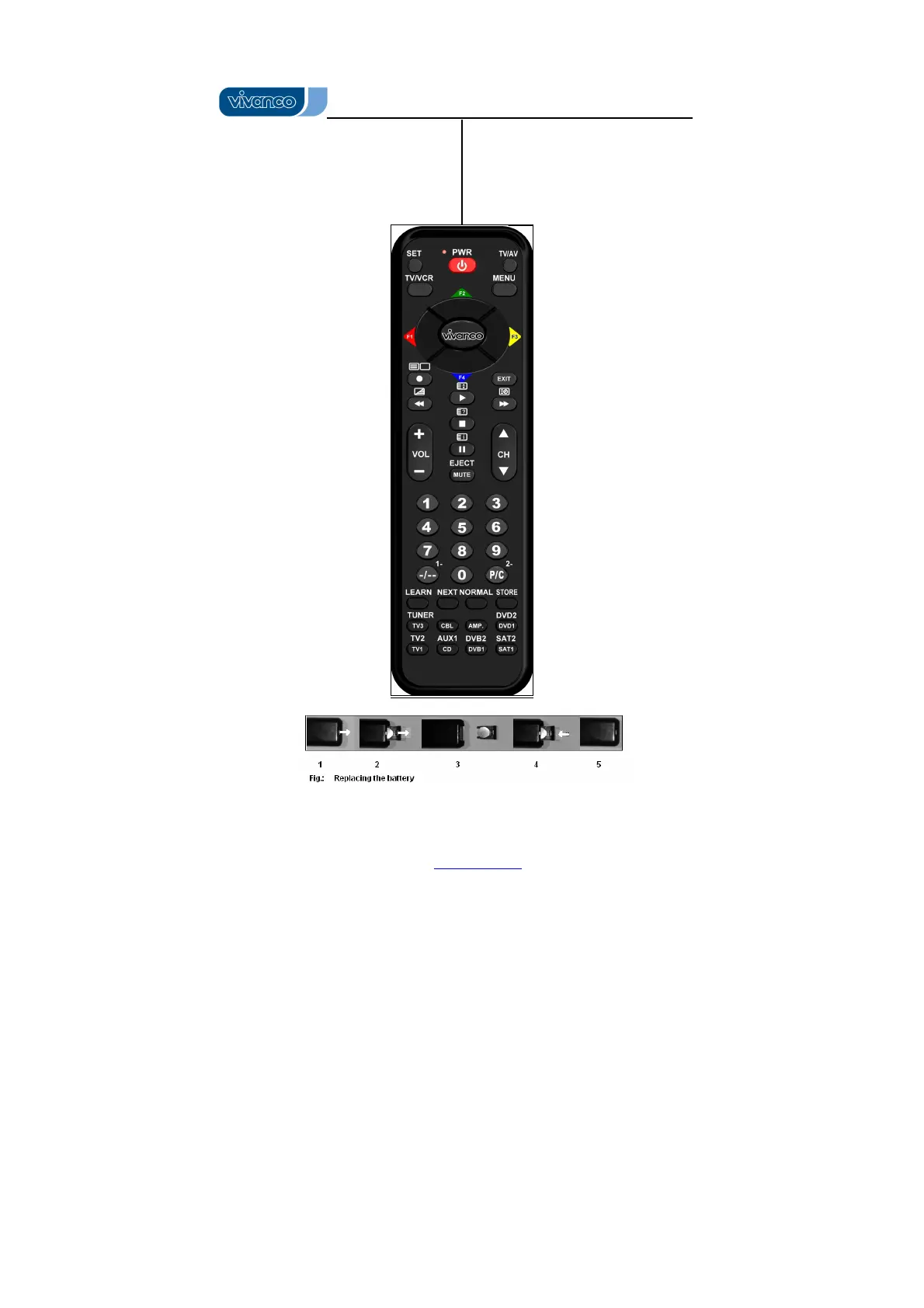

Open the battery compartment on the
underside of the UR, see Fig.. Then insert 1
new CR 2032 lithium battery. Make sure that
the polarity is correct: the "+" and "-" markings
on the batteries and in the compartment must
match. To check functionality, press the PWR
button. If everything is correct the red lamp
flickers when the button is pressed.
Lithium Battery:
Caution: Danger of explosion if battery is
incorrectly replaced. Replace only with the
same or equivalent type recommended by the
manufacturer. Dispose of used batteries
according to the manufacturer’s instructions.
Adapting to appliances
In order to control your appliances you must
adapt or set the remote control to them. There
are three ways of doing so: direct control code
entry, code search or learn.
Direct control code entry using the
enclosed list
Example: setting to control a Panasonic
television set:
1. The attached list gives, for
example, the Panasonic Code 176.
Please make sure you have selected the
correct list for television sets (TV).
2. To prepare code entry, press the
SET button, keep it pressed and then press the
required appliance button, e.g. TV1*),
additionally until the lamp (LED) lights
constantly.
3. Then press the number buttons
(e.g. 1 7 6) in sequence.
4. Once the numbers have been
entered the lamp goes out and the remote
control is ready to control your appliance.
5. Finally, test the control code setting
by trying to control (in this example) your
television set. If it does not work at all or not
correctly try a different code from the list or the
code search (see below).
6.
To set the remote control for other
appliances, proceed in the same way. Instead
of the TV appliance button, press another
button e.g. VCR, DVB (SAT, DECODER),
DVD).
The letters on the device buttons TV1/TV2*),
CD/AUX1*), DVB1/DVB2*) SAT1/SAT2*),
TV3/TUNER*), CBL, AMP, DVD1/DVD2*) are
for your orientation only. You can set each type
of device under any of the buttons.
*): All *) marked device keys can be assigned
twice so that 14 different devices can be
controlled altogether. If you press a key once
according to these instructions, you can enter a
device code for the first assignment or control
the first device. If you press a device key twice
within 0,5 seconds you can set the key for a
second device, or control a second device by
the key.
You can terminate the mode by pressing any
device button.
Code search
If the brand of your appliance is not in the list
or none of the codes given fits, we recommend
a code search.
Manual code search
1. Switch on the appliance to be
controlled. Program is running.
2. To prepare code search, press the
SET button, keep it pressed and then press the
required appliance button, e.g. TV1*),
additionally until the lamp (LED) lights
constantly.
3. Then point the remote control at the
appliance to be controlled.
4. Briefly press the SET button once.
The lamp (LED) blinks. – Except when
searching for a TV code you can also briefly
press the (Play) button and use the Play
function to help search and press ON/OFF
for testing the next code. Make sure that a
tape, a DVD or a CD is inserted in the tape
deck, player or recorder.
5. Press the ON/OFF (appliance
on/off) button repeatedly for testing the next
code, approx. every 1,5 seconds, until the
appliance, e.g. your TV reacts by power off or
your DVD player, reacts by Play > button. - If
your appliance has switched itself off you must
switch it back on again, e.g. on the appliance
or with the original remote control, to continue
searching. - When your appliance reacts you
can also try out other buttons without
interrupting the search. If some buttons do not
work properly, simply continue searching with
ON/OFF or Play.
6. When your appliance reacts
correctly, press the appliance button, e.g.
TV1*), and end the search. The lamp (LED)
goes out.
- The UR 14 continues with the search at the
point where you interrupted it. . The code last

UR 14 UNIVERSAL CONTROLLER
Vivanco GmbH, D-22926 Ahrensburg, E-Mail
: hotline@vivanco.de
, Helpline: +49 (0) 4102 231135
3
entered remains stored. The search stops after
approx. 30 seconds of inactivity.
Automatic code search
Your remote control finds the correct settings
almost automatically in seconds:
1. Switch on the appliance to be
controlled. A channel number, for example,
appears in the display of your satellite receiver.
2. To start the code search, press the
required appliance button, e.g. *) briefly. TV1
3. Then press for about 5 SET
seconds until the lamp (LED) starts to blink.
4. Then point the remote control at the
appliance to be controlled while the remote
control emits a different ON/OFF signal every
second.
5. When your appliance reacts, press
SET within 1-2 seconds, to end the search. – If
you ended the search too late, continue to
search using the Manual Code Search (see
above).
6. Finally, test the control code setting
by trying to control, for example, your DVD
appliance. If it does not work correctly, please
try the code search again. The code search
then begins with the next code in the
sequence. - Remember to switch your
appliance, e.g. DVD, back on again if you wish
to continue searching.
Code identification
You can read off the 3-digit codes you have set
at any time:
1. Press the appliance button of the
appliance which code you want to read off, e.g.
TV1.
2. Press the button and 1,2,3, SET
depending on the part of the code you want to
read off. For example, if you press + after SET 1
TV and the code 176 (in this example) has
been set, the lamp blinks once after SET+1 is
released to show that the hundred figure is 1.
All you have to do is count. The ten figure is
indicated after + is released, e.g. it blinks SET 2
7 times for the 7 in 176. The one figure is
indicated after + is released, e.g. it blinks SET 3
6 times for the 6 in 176.
Learning, Programming, of Missing Control
Functions
The LEARN function is used to supplement the
preprogrammed codes. The standard code
may provide most of functions needed, but you
may miss some key functions. Or you didn´t
find any functioning preprogrammed code for a
device. You can capture upto 65 key function
codes, max 40 per device. The last captured
function will overwrite the previous. learnt.
1 For learning of key codes you must use a
functioning orginal remote controller. Please
use fresh batteries for both remote controls.
2 Please point the original´s remote control
transmitter LED towards the receiver LED of
UR 14 (placed on top, same as transmitter
LED). Distance of LEDs between both remotes
shall be approximately 10mm and must be in
straight line of sight. – Sometimes you have to
move the remotes a bit too and fro while
learning, in order to find right positions.
3 Press the LEARN key for about 3
seconds until the LED (lamp) turns on.
4 Within 10 seconds press a device key
(e.g. **) briefly. The LED is flashing one DVD1)
time .
5 Press and release the target key on the
UR 14, that you want to learn (to reprogram)
(e.g. POWER), the LED starts flashing.
6 Press and hold the source key on the
original remote control (e.g. POWER) until the
LED on your UR 14 remote control stops
flashing and changes to on again. That
indicates that a new function code, e.g.
POWER, has been learnt.
7 Repeat steps 4 to 6 to for capturing more
key functions. - If there is a learning(capturing)
problem, the LED blinks 2 times, lights up for
10 seconds. Then repeat steps 4 to 6 for
capturing more keys functions.
8 Press and release key for exit of LEARN
learning mode. – The controller will exit the
learning mode automatically after about 30
seconds of inactivity.
**) Learning is possible for items, which can be
controlled by using device buttons TV1, TV3,
CD, CBL only!
Memory full indication: if the memory is full,
the LED blinks 2 times and then a programmed
key can be overitten or the controller will exit
learnning mode after 10 seconds of idleness.
Reset/deletion of a captured key function
1 Press the key for about 3 LEARN
seconds until the LED (lamp) turns on.
2 Press and hold the device button, e.g.
DVD1, which belongs to the to be deleted key
function. The LED will flash once.
3 Press the key of which the captured
function shall be deleted, e.g. , additionally 3
briefly. The LED will flash once and the learnt
code is deleted.
4 Press and release key for exit of LEARN
deletion mode.
Reset/deletion of all captured key functions
for a device:
1 Press the key for about 3 LEARN
seconds until the LED (lamp) turns on.
Produktspecifikationer
Varumärke: | Vivanco |
Kategori: | Fjärrkontroll |
Modell: | UR 14 |
Behöver du hjälp?
Om du behöver hjälp med Vivanco UR 14 ställ en fråga nedan och andra användare kommer att svara dig
Fjärrkontroll Vivanco Manualer

14 September 2024

14 September 2024

14 September 2024

6 September 2024

5 September 2024

4 September 2024

4 September 2024

3 September 2024

3 September 2024

2 September 2024
Fjärrkontroll Manualer
- Fjärrkontroll Sony
- Fjärrkontroll Xiaomi
- Fjärrkontroll IKEA
- Fjärrkontroll Philips
- Fjärrkontroll Panasonic
- Fjärrkontroll Garmin
- Fjärrkontroll Honeywell
- Fjärrkontroll JVC
- Fjärrkontroll Kenwood
- Fjärrkontroll Motorola
- Fjärrkontroll Medion
- Fjärrkontroll Nikon
- Fjärrkontroll Pioneer
- Fjärrkontroll Toshiba
- Fjärrkontroll Canon
- Fjärrkontroll Abus
- Fjärrkontroll A.C.Ryan
- Fjärrkontroll Alpine
- Fjärrkontroll Ansmann
- Fjärrkontroll Amazon
- Fjärrkontroll Arcam
- Fjärrkontroll Strong
- Fjärrkontroll Absima
- Fjärrkontroll Hikvision
- Fjärrkontroll Loewe
- Fjärrkontroll Omega
- Fjärrkontroll Telefunken
- Fjärrkontroll Silvercrest
- Fjärrkontroll Spektrum
- Fjärrkontroll Nedis
- Fjärrkontroll Thomson
- Fjärrkontroll Yale
- Fjärrkontroll Tevion
- Fjärrkontroll Eminent
- Fjärrkontroll SilverStone
- Fjärrkontroll RCA
- Fjärrkontroll Targus
- Fjärrkontroll Sitecom
- Fjärrkontroll Meliconi
- Fjärrkontroll Logitech
- Fjärrkontroll Exibel
- Fjärrkontroll Energy Sistem
- Fjärrkontroll Audio-Technica
- Fjärrkontroll Trust
- Fjärrkontroll Milwaukee
- Fjärrkontroll Doro
- Fjärrkontroll Hähnel
- Fjärrkontroll KlikaanKlikuit
- Fjärrkontroll Ei Electronics
- Fjärrkontroll Tripp Lite
- Fjärrkontroll Vision
- Fjärrkontroll Toa
- Fjärrkontroll DataVideo
- Fjärrkontroll Optex
- Fjärrkontroll Axis
- Fjärrkontroll Benning
- Fjärrkontroll Hama
- Fjärrkontroll Sonos
- Fjärrkontroll Kensington
- Fjärrkontroll Bang And Olufsen
- Fjärrkontroll Chamberlain
- Fjärrkontroll Mitsubishi
- Fjärrkontroll Velleman
- Fjärrkontroll Rockford Fosgate
- Fjärrkontroll Technics
- Fjärrkontroll American DJ
- Fjärrkontroll Steren
- Fjärrkontroll Iiyama
- Fjärrkontroll Kicker
- Fjärrkontroll Bose
- Fjärrkontroll KPN
- Fjärrkontroll Steinel
- Fjärrkontroll Clarion
- Fjärrkontroll Amewi
- Fjärrkontroll Grohe
- Fjärrkontroll Marantz
- Fjärrkontroll Bigben Interactive
- Fjärrkontroll ESYLUX
- Fjärrkontroll Pro-Ject
- Fjärrkontroll Genius
- Fjärrkontroll Adj
- Fjärrkontroll Kathrein
- Fjärrkontroll Malmbergs
- Fjärrkontroll AV:link
- Fjärrkontroll Olympia
- Fjärrkontroll Devolo
- Fjärrkontroll Neumann
- Fjärrkontroll DJI
- Fjärrkontroll Continental Edison
- Fjärrkontroll Vello
- Fjärrkontroll Audiovox
- Fjärrkontroll Cotech
- Fjärrkontroll Insignia
- Fjärrkontroll Vogels
- Fjärrkontroll Dual
- Fjärrkontroll Unitron
- Fjärrkontroll Danfoss
- Fjärrkontroll MB Quart
- Fjärrkontroll Magnus
- Fjärrkontroll FireAngel
- Fjärrkontroll Tascam
- Fjärrkontroll Wacom
- Fjärrkontroll Asustor
- Fjärrkontroll Tado
- Fjärrkontroll Hunter
- Fjärrkontroll Clas Ohlson
- Fjärrkontroll TomTom
- Fjärrkontroll Viper
- Fjärrkontroll Technika
- Fjärrkontroll Futaba
- Fjärrkontroll Konig
- Fjärrkontroll Delta
- Fjärrkontroll Rotel
- Fjärrkontroll Sweex
- Fjärrkontroll Vizio
- Fjärrkontroll Conrad
- Fjärrkontroll Rademacher
- Fjärrkontroll Vakoss
- Fjärrkontroll JL Audio
- Fjärrkontroll Metronic
- Fjärrkontroll Technaxx
- Fjärrkontroll Waeco
- Fjärrkontroll Natec
- Fjärrkontroll Chauvet
- Fjärrkontroll One For All
- Fjärrkontroll T'nB
- Fjärrkontroll Hannspree
- Fjärrkontroll Xavax
- Fjärrkontroll Marmitek
- Fjärrkontroll Delta Dore
- Fjärrkontroll Schaudt
- Fjärrkontroll Niko
- Fjärrkontroll Jensen
- Fjärrkontroll Humax
- Fjärrkontroll Vaddio
- Fjärrkontroll Jung
- Fjärrkontroll Lifetec
- Fjärrkontroll Apart
- Fjärrkontroll Projecta
- Fjärrkontroll Genaray
- Fjärrkontroll DSC
- Fjärrkontroll HQ
- Fjärrkontroll Autel
- Fjärrkontroll Msonic
- Fjärrkontroll Nanlite
- Fjärrkontroll Profoto
- Fjärrkontroll Verizon
- Fjärrkontroll Metra
- Fjärrkontroll Fibaro
- Fjärrkontroll Tihao
- Fjärrkontroll Revox
- Fjärrkontroll Zapman
- Fjärrkontroll Emtec
- Fjärrkontroll CME
- Fjärrkontroll Ruwido
- Fjärrkontroll Russound
- Fjärrkontroll Conceptronic
- Fjärrkontroll Watson
- Fjärrkontroll Fusion
- Fjärrkontroll Geemarc
- Fjärrkontroll Hegel
- Fjärrkontroll RGBlink
- Fjärrkontroll Gefen
- Fjärrkontroll Nexa
- Fjärrkontroll Scosche
- Fjärrkontroll Bazooka
- Fjärrkontroll Wentronic
- Fjärrkontroll Walkera
- Fjärrkontroll Infinity
- Fjärrkontroll Smart
- Fjärrkontroll EQ3
- Fjärrkontroll Homematic IP
- Fjärrkontroll Satechi
- Fjärrkontroll REV
- Fjärrkontroll Revo
- Fjärrkontroll Edision
- Fjärrkontroll Neets
- Fjärrkontroll Chief
- Fjärrkontroll Arctic Cooling
- Fjärrkontroll Crestron
- Fjärrkontroll ORNO
- Fjärrkontroll ETiger
- Fjärrkontroll VDO Dayton
- Fjärrkontroll Manfrotto
- Fjärrkontroll Aeon Labs
- Fjärrkontroll Provision ISR
- Fjärrkontroll Monacor
- Fjärrkontroll Aputure
- Fjärrkontroll Logilink
- Fjärrkontroll Entone
- Fjärrkontroll Fortin
- Fjärrkontroll Samlex
- Fjärrkontroll Zalman
- Fjärrkontroll Simplify
- Fjärrkontroll Interphone
- Fjärrkontroll SIIG
- Fjärrkontroll IOGEAR
- Fjärrkontroll Ferguson
- Fjärrkontroll Wet Sounds
- Fjärrkontroll Swiss Sense
- Fjärrkontroll Extron
- Fjärrkontroll SVS
- Fjärrkontroll Antec
- Fjärrkontroll Ebode
- Fjärrkontroll Reely
- Fjärrkontroll RadioShack
- Fjärrkontroll Exxter
- Fjärrkontroll Skymaster
- Fjärrkontroll Match
- Fjärrkontroll Hartig Helling
- Fjärrkontroll Multibox
- Fjärrkontroll Online
- Fjärrkontroll Libec
- Fjärrkontroll Furman
- Fjärrkontroll AT-T
- Fjärrkontroll Logic3
- Fjärrkontroll Medion MD6461
- Fjärrkontroll Vimar
- Fjärrkontroll TCM
- Fjärrkontroll Pixel
- Fjärrkontroll Morel
- Fjärrkontroll Uni-T
- Fjärrkontroll Antelope Audio
- Fjärrkontroll H-Tronic
- Fjärrkontroll PDP
- Fjärrkontroll Savio
- Fjärrkontroll Intertechno
- Fjärrkontroll Schwaiger
- Fjärrkontroll Ecler
- Fjärrkontroll EQ-3
- Fjärrkontroll Naim
- Fjärrkontroll Q-Sonic
- Fjärrkontroll PeakTech
- Fjärrkontroll Elite Screens
- Fjärrkontroll Roswell
- Fjärrkontroll SpeakerCraft
- Fjärrkontroll Heitech
- Fjärrkontroll Sunwave
- Fjärrkontroll AudioControl
- Fjärrkontroll Tevion (Medion)
- Fjärrkontroll Syrp
- Fjärrkontroll Bravo
- Fjärrkontroll Neewer
- Fjärrkontroll Maximex
- Fjärrkontroll Pentatech
- Fjärrkontroll PowerBass
- Fjärrkontroll Lindy
- Fjärrkontroll Glashart Media
- Fjärrkontroll Bang Olufsen
- Fjärrkontroll TV Vlaanderen
- Fjärrkontroll Innr
- Fjärrkontroll Universal Electronics
- Fjärrkontroll TELE System
- Fjärrkontroll Voxx
- Fjärrkontroll Multibrackets
- Fjärrkontroll Beoplay
- Fjärrkontroll Majestic
- Fjärrkontroll Prolectrix
- Fjärrkontroll Remotec
- Fjärrkontroll Audiofrog
- Fjärrkontroll Memphis Audio
- Fjärrkontroll AMX
- Fjärrkontroll Nanoleaf
- Fjärrkontroll Tiq
- Fjärrkontroll Elbe
- Fjärrkontroll GBS Elettronica
- Fjärrkontroll Sonoff
- Fjärrkontroll Gewiss
- Fjärrkontroll Insteon
- Fjärrkontroll Mosconi
- Fjärrkontroll Lutron
- Fjärrkontroll CGV
- Fjärrkontroll C2G
- Fjärrkontroll Universal Remote Control
- Fjärrkontroll Control4
- Fjärrkontroll MIOPS
- Fjärrkontroll CSL
- Fjärrkontroll Compustar
- Fjärrkontroll Aplic
- Fjärrkontroll Ridem
- Fjärrkontroll SMK-Link
- Fjärrkontroll Canal Digitaal
- Fjärrkontroll AXIL
Nyaste Fjärrkontroll Manualer

22 Mars 2025

14 Mars 2025

11 Mars 2025

10 Mars 2025

10 Mars 2025

10 Mars 2025

9 Mars 2025

26 Februari 2025

19 Februari 2025

8 Februari 2025
