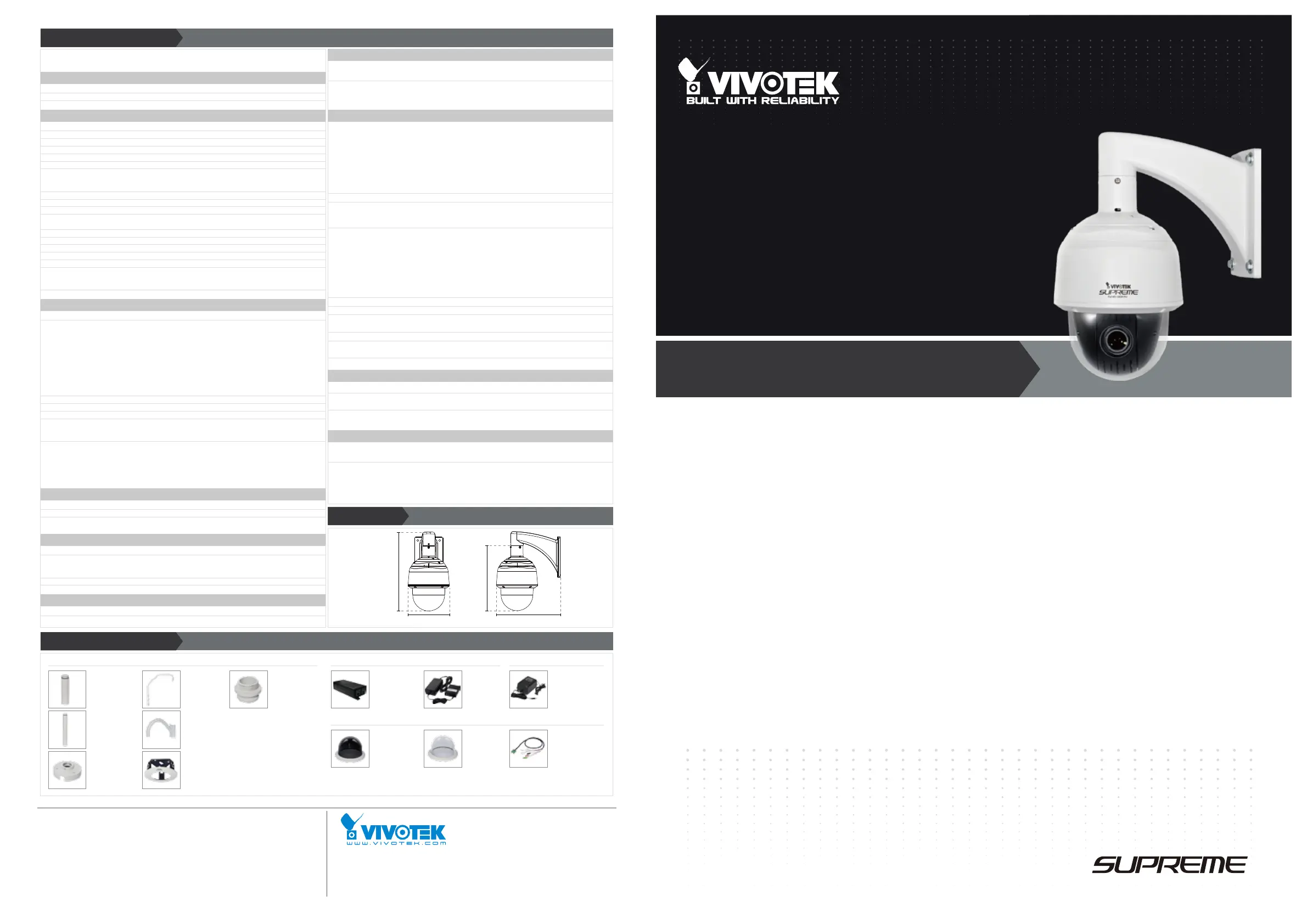

Speed Dome Network Camera

SD8363E/63E-M

VIVOTEK SD8363E is part of the SUPREME series product line offering 1080p Full HD resolution with superb image quality. Adopting

a 20x optical zoom lens, the SD8363E is able to capture details at top-notch quality. The IP66- and NEMA 4X-rated housing protects

the camera body against rain, dust, and corrosion within a wide temperature range of between -40°C to 55°C. This feature ensures

operation under extreme weather conditions and hazardous environments. It is especially suitable for monitoring wide open

indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required.

The SD8363E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with

resolution up to 30 fps @ 1080p. Boasting WDR Pro technology, the SD8363E can also cope with challenging lighting conditions and

generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast,

precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse

or a joystick to track the object of interest and set up to 256 preset positions for patrolling. With the built-in auto tracking feature, the

SD8363E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity.

As with all VIVOTEK true day/night cameras, the SD8363E features a removable IR-cut filter, maintaining clear images 24 hours a

day. With audio detection, by recognizing increases or decreases in sound volume, an additional layer of intrusion detection is

ensured. Zoom enhancement provides 60x optical zoom at 640x360 resolution by which VGA-level bandwidth is used to obtain image

details as high as 1080p resolution. With other advanced features such as SD/SDHC/SDXC card slot, 802.3at compliant PoE Plus

and 60 fps high quality video, the SD8363E is the best choice for the most demanding outdoor surveillance applications.

1080p Full HD • 20x Zoom • NEMA 4X •

IP66 • Extreme Weatherproof • PoE Plus

Ver 1.0

Distributed by:

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

| | |T: +886-2-82455282 F: +886-2-82455532 E: sales@vivotek.com

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

| | |T: 408-773-8686 F: 408-773-8298 E: salesusa@vivotek.com

Technical Specifications

Mounting Kits PoE Kits

Others

Power Adapter

Alarm Triggers

Alarm Events

Connectors

LED Indicator

Power Input

Power Consumption

Dimensions

Weight

Casing

Safety Certifications

Operating Temperature

Warranty

Operating System

Web Browser

Other Players

Others

Alarm and Event

General

System Requirements

Included Accessories

Video motion detection, manual trigger, periodical trigger, system

boot, recording notification, audio detection

Event notification using digital output, HTTP, SMTP, FTP and

NAS server

File upload via HTTP, SMTP, FTP and NAS server

RJ-45 cable connector for Network/PoE connection

Audio input

Audio output

AC 24V power input

DC 12V power input

Digital input*4

Digital output*2

RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)

System power and status indicator

PoE plus (IEEE 802.3at compliant)

High Power PoE

AC 24V

PoE plus:

Max. 19W

AC 24V:

Max. 48W (heater on)

Max. 19W (heater off)

High Power PoE:

Max. 48W (heater on)

Max. 19W (heater off)

Ø: 205 mm x 321 mm

Net: 3,660 g

Weather-proof IP66- and NEMA 4X-rated metal housing

Built-in electrical dehumidifier device (SD8363E-M)

CE, FCC Class A, VCCI, C-Tick, NEMA 4X

-5°C ~ 55°C (PoE Plus)

-40°C ~ 55°C (AC 24V / High Power PoE)

36 months

Microsoft Windows 7/Vista/XP/2000

Mozilla Firefox 7~10 (Streaming only)

Internet Explorer 7.x or 8.x

VLC: 1.1.11 or above

Quicktime: 7 or above

User's manual, quick installation guide, Installation Wizard 2,

ST7501 32-channel recording software

Wall mount bracket, screws, waterproof connectors, terminal

blocks, RJ45 coupler, ethernet cable, quick installation guide,

warranty card, alignment sticker, T25 stardriver, seal ring,

software CD

Models

CPU

Flash

RAM

Image Sensor

Maximum Resolution

Lens Type

Focal Length

Aperture

Auto-iris

Field of View

Shutter Time

WDR Technology

Day/Night

Minimum Illumination

Pan Speed

Pan Range

Tilt Speed

Tilt Range

Preset Locations

Pan/tilt/zoom

Functionalities

On-board Storage

Compression

Maximum Frame Rate

Maximum Streams

S/N Ratio

Dynamic Range

Video Streaming

Image Settings

Audio Capability

Compression

Interface

Users

Protocols

Interface

ONVIF

Video Motion Detection

Auto-Tracking

System Information

Camera Features

Video

Audio

Network

Intelligent Video

SD8363E

SD8363E-M (electronic dehumidifier)

Multimedia SoC (System-on-Chip)

128 MB

256 MB

1/3" Progressive CMOS

1920x1080

20x optical zoom, auto focus

f = 4.7 ~ 94 mm

F1.6 (wide) ~ F3.5 (tele)

DC-iris

3° ~ 55° (horizontal)

2° ~ 32° (vertical)

3° ~ 64° (diagonal)

1/1 sec. to 1/10,000 sec.

WDR Pro

Removable IR-cut filter for day & night function

0.02 Lux @ F1.6, 50 IRE (Color)

0.001 Lux @ F1.6, 50 IRE (B/W)

0.05° ~ 450° / sec.

360 endless

0.05° ~ 450° / sec.

220° (-110° ~ +110°)

256 preset locations

48x digital zoom (4x on IE plug-in, 12x built-in)

Auto pan mode

Auto patrol mode

SD/SDHC/SDXC card slot

H.264, MJPEG & MPEG-4

H.264:

30 fps @ 1920x1080

60 fps @ 1280x720

MPEG-4:

30 fps @ 1920x1080

60 fps @ 1280x720

MJPEG:

30 fps @ 1920x1080

60 fps @ 1280x720

(Up to 30/15 fps in WDR mode)

4 simultaneous streams

Above 60 dB

108 dB

Adjustable resolution, quality and bitrate

Zoom enhacement for better image quality under limited

bandwidth

Adjustable image size, quality and bit rate

Time stamp, text overlay, flip & mirror

Configurable brightness, contrast, saturation, sharpness, white

balance, exposure control, gain, backlight compensation,

privacy masks (Up to 24)

Scheduled profile settings

Audio input/output (full duplex)

GSM-AMR, AAC, G.711

External microphone input

External line output

Live viewing for up to 10 clients

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP,

IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS,

QoS, SNMP, 802.1X

10Base-T/100 BaseTX Ethernet (RJ-45)

Supported, specification available at www.onvif.org

Triple-window video motion detection

Auto-tracking on moving object

Compatible Accessories

Dimensions

205 mm 316 mm

391 mm 321 mm

AA-341

AC 24V power

adapter

AM-116

20 cm

pendant pipe

AM-117

40 cm

pendant pipe

AM-118

Indoor

pendant head

AM-231

Parapet

mounting kit

AM-519

1.5" PT adapter

AP3001

PoE plus

injector

AC-212

Smoked cover

AC-111

Vandal-proof

transparent

cover

AO-001

Combo cable

AM-221

Goose neck

mounting kit

AM-103

Recessed kit

AP-331

High power

PoE injector

The audio detection feature enables an event trigger when a sudden,

unexpected increase or decrease in sound volume occurs so as to

alert users of a possible emergency situation.

Audio Detection for Instant AlertsAuto Tracking for Moving Objects

Extreme Weatherproof

Unparalleled Visibility in High Contrast Environments

When a camera is used in a high contrast, backlight, glare or light reflective environment, such as a building entrance, ATM or window, an object may appear dark and

unrecognizable. WDR (Wide Dynamic Range) technology compensates for the unbalanced lighting, restoring the details throughout the field of view. With this feature,

the SD8363E is able to maintain image quality even under challenging light conditions.

• Wide Temperature Range

The wide temperature range (-40°C ~ 55°C) enhances the

SD8363E’s performance and reliability under extremely harsh

weather conditions.

• IP66-rated and NEMA 4X Housing

The weather-proof IP66- and NEMA 4X-rated housing protects

t h e S D 8 3 6 3E f r o m r a i n, d u s t , and c or r o s i o n , al l owi n g t he

device to operate outdoors under a multitude of weather condi-

tions.

60 fps Raises Recognition Accuracy

• WDR Pro

WDR Pro works by capturing alternate frames using different exposure times. An image signal processor (ISP) then uses a sophisticated algorithm to

seamlessly combine the optimal portions of these two complementary frames to create a composite frame that retains details in both the dark and bright

areas of the field of view.

The auto tracking feature provides instantaneous reaction to suspi-

cious moving objects over a wide area before an operator may be

aware of activity. Users are able to define the target object size in

order to render auto tracking more effectively.

Advanced Mechanism

SD8363E has a pan range of 36 ° and tilt range of 220 0°. With the

additional 2 ° tilt range, the SD8363E is able to expand the viewing 0

range to the field above the normal horizontal view. Additionally, the

SD8363E is built with QuickPan technology, allowing for 36 ° end0 -

less panning at a speed of 450° per second.

This allows users to quickly direct the camera lens to catch any

object of interest in the field of view surrounding the camera.

Zoom Enhancement

Utilizing a 20x optical zoom lens, the SD8363E provides close-up

images with 1080p detail and effectively extends the user’s viewing

distance. Even under limited bandwidth environments, users can

take advantage of the VIVOTEK Zoom enhancement feature to

obtain image detail as high as 1080p resolution using VGA-level

bandwidth.

100

Alarm Level

Trigger!

Current volume level

Audio

alarm

level

Volume

Audio detection

Enable audio detection

Time

The VIVOTEK SD8363E is able to transmit 60 fps @ 720p resolution with H.264 compression, whereas a conventional megapixel camera can generally only achieve

10 to 15 fps due to hardware limitations. 60 fps provides a significant advantage as it enables viewing and recording footage at an exceptional frame rate. This feature

provides a more complete record of an event and ensures accurate target identification. The more images or frames that can be captured and delivered to a facial
