TM

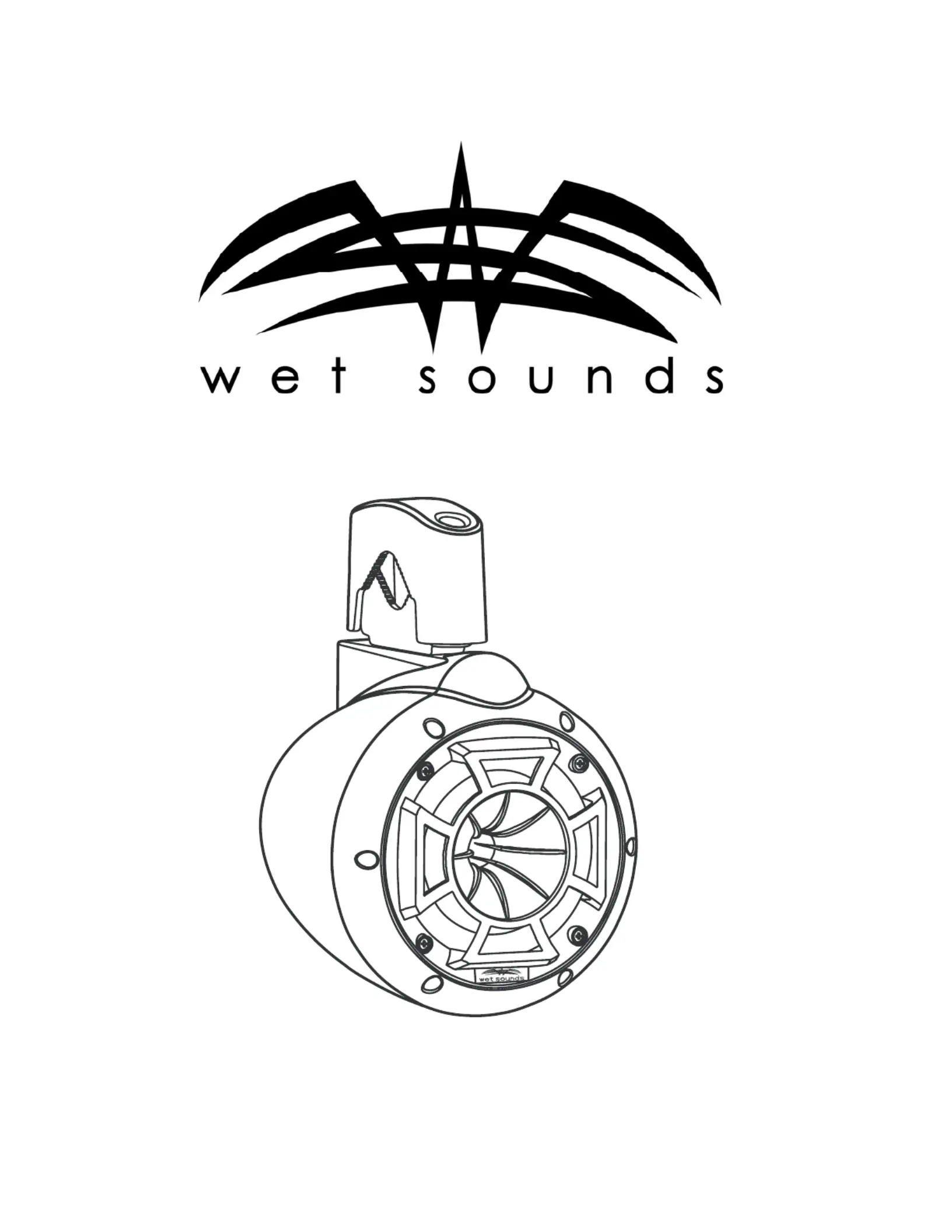

PRO 60
Owner’s Manual & “Limited” Warranty
Technology Specifications:
Thank You for purchasing this Wet Sounds™ product. Wet Sounds™ marine audio products
represent the ultimate in high performance standards. The PRO 60 is specifically engineered
to withstand the rigorous marine environment. Utilizing the state of the art acoustic
engineering and three dimensional computer aided design, the “PRO” series from Wet
Sounds™ represents advanced technologies that are used today in professional concert hall
and stadium applications.
Please take a moment to read the instruction manual before starting your installation. This
manual will explain the benefits of the technologies developed by Wet Sounds™ and will
help you understand the proper installation and use of this product. If you have any questions
or concerns please contact your certified Wet Sounds™ dealer. You may also contact Wet
Sounds™ technical support by dialing 1-877-WET-SPKR (1-877-938-7757)
SPEAKER SPECIFICATIONS
RMS: 150 watts
Continual: 250 watts
Peak: 300 watts
Mid Bass: 6.5 inch EFG cone woofers with polyurethane surround
High Frequency: Pro-Axial™ Driver - Coaxially mounted Titanium Diaphragm High Output
Horn Loaded Compression Driver
Impedance: 4 ohm
Frequency Response: 20Hz to 20 kHz
Sensitivity: 90DB at 1W/1M
The PRO 60 has our proprietary WdET™ (Wide Dispersion Enhanced Throw) technology.
Unlike most conventional designs, by having WdET™ technology, the PRO 60 provides
remarkable volume and amazing sound quality off axis and on axis. Through several test the
PRO 60 was confirmed to project volume at 80 feet without any loss of detail or information.
Not only does the PRO 60 achieve volume and sound quality at a minimum of 80 ft, but with
the WdET™ technology the rider can enjoy quality sound while riding outside the wake and
being almost parallel to boat.
The driver compliment in each PRO 60 combines one 6.5 inch EFG™ driver and one
concentrically mounted HLCD (Horn Loaded Compression Driver). For stellar performance
and higher performance for the marine environment, Wet Sounds™ developed a proprietary
cone material called EFG™, which is an epoxy and fiberglass composite mix. This cone
material incorporates characteristic values that are impermeable to damage from intermittent
Ultra Violet exposure and minimal moisture exposure. Like the EFG™ cone material, the
Polyurethane that is used for the surround will provide protection against Ultra Violet
exposure and moisture. This will prevent deterioration of the surround yielding longer life
and better reliability. We do, however, encourage you to either remove or cover your tower
speakers when they are not in use. Limiting exposure to Ultra Violet Rays and to moisture
will help extend the life of your tower speakers.
1
The high frequency transducer is an HLCD (horn loaded compression driver). This driver
was designed to provide a wide; horizontal trajectory that would not only produce sound in
the directed path but will disperse sound off axis with little to no degradation. The HLCD is
considered to be one of the most efficient transducer designs providing remarkable output
while using less power. This unique design incorporates the HLCD mounted to the rear of the
6.5” EFG™ driver. Through the voice coil former, the compression sound travels out of the
horn flare that is mounted coaxially to the 6.5” EFG™ driver. Using the HLCD transducer in
the PRO 60 will provide phenomenal volume and accurate clarity.
***Caution: Do not spray any of the speakers directly with any liquid base substance.
Warranty will be voided if improper care is discovered during extensive examination of the
product.
Installation:
Wiring Diagram Picture-See Attached
WC Speaker Connector Picture and Directions-See Attached
Bracket Assembly:
The PRO 60 uses one universal bracket per speaker. This bracket is designed to offer fitment
for tower sizes ranging from 1.5 inch to 3 inch tower diameter.
Attach the bottom of the bracket to the speaker housing using the 3 stainless steel bolts
provided. Wet Sounds recommends the use of Lock-Tite for these 3 bolts. Make sure these
bolts are tight using a crisscross pattern.
Hold the speaker up to the location on the tower and slide the top part of the universal clamp
onto the bottom part and attach using the 2 larger allen bolts.
(Warning: It is the owner’s responsibility to ensu curely attached. It is re that all bolts are se
also recommend to re-check all bolts periodically as they will loosen with time)
Now that you have the PRO 60 securely in place, insert the speaker connector to complete
the installation.
You are now ready to enjoy the greatest concert performance on water
2
