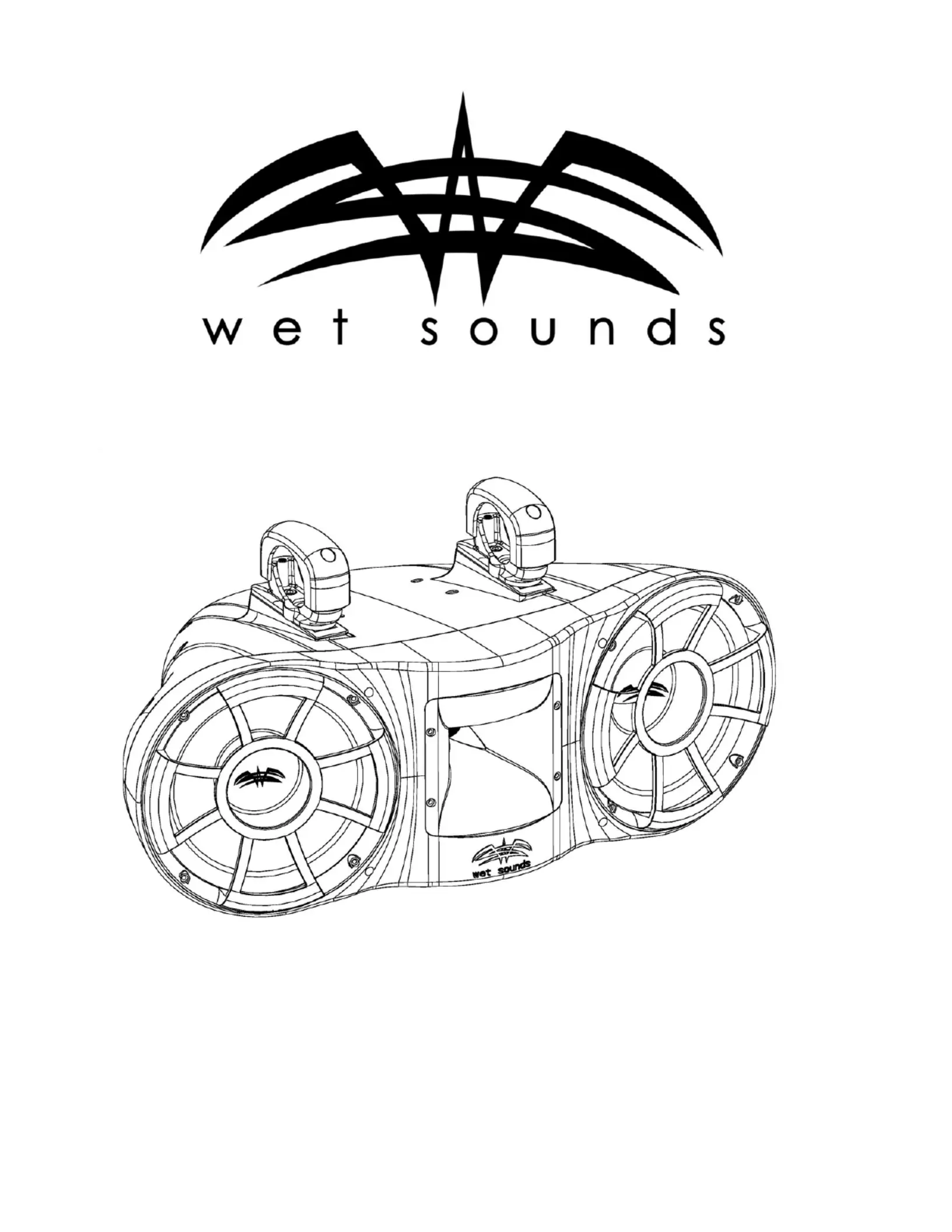

REV 410

Owner’s Manual & “Limited” Warranty

Technology Specifications:

Thank You for purchasing this Wet Sounds product. Wet Sounds marine audio

products represent the ultimate in high performance standards. The Revolution

Series is specifically engineered to withstand the rigorous marine environment.

Utilizing the state of the art acoustic engineering and three dimensional

computer aided design, our “Revolution Technology” represents the most

advanced technologies available for wakeboard tower speaker systems. The

Revolution series also provides multiple fitment options from fixed clamp

mount to our revolutionary (Patent Pending) stainless steel TC3 Quick

Disconnect Swivel clamp.

Please take a moment to read the instruction manual before starting your

installation. This manual will explain the benefits of the technologies developed

by Wet Sounds and will help you understand the correct installation methods

and use of this product. If you have any questions or concerns please contact a

certified Wet Sounds dealer. You may also contact Wet Sounds technical

support by dialing 1-877-WET-SPKR (1-877-938-7757)

SPEAKER SPECIFICATIONS REV 410

RMS: 400 watts

Peak: 800 watts

Mid Bass: Dual 10 inch Kevlar reinforced EFG™ cone woofers with

polyurethane surround

High Frequency: Separate Titanium Diaphragm High Output Horn Loaded

Compression Driver

Impedance: 4 ohm

Frequency Response: 20Hz to 20 kHz

Sensitivity: 92DB at 1W/1M

The Revolution™ series uses our proprietary REV TEC™ technology. Unlike

most conventional designs, REV TEC technology provides remarkable volume

and amazing full range sound quality on axis and off axis at long distances.

Extensive acoustic testing has confirmed these speakers ability to project

volume at 80 feet and beyond without any loss of detail or information. Not

only does the Revolution series achieve volume and sound quality at a

minimum of 80 ft, but with the REV TEC technology the rider can enjoy

quality sound while riding outside the wake and being almost parallel to boat.

Taking high performance wakeboard tower speakers to the next level, Wet

Sounds has consulted with experts who spent countless hours examining the

human auditory system to find out which frequencies affect your ears the most

at loud volumes. The Revolution series has been designed from the ground up

to provide stunning output while eliminating certain frequencies that give that

“ringing” or harsh sound associated with loud volumes. This allows the

Revolution speakers to provide maximum output while still providing world

class sound quality without the listener fatigue usually associated with high

volumes.

The driver compliment in each REV 410 combines Dual 10 inch Kevlar

reinforced EFG™ drivers and one center mounted HLCD (Horn Loaded

Compression Driver) which provide stellar output and a higher performance for

the marine environment, Wet Sounds™ developed a proprietary cone material

called EFG™, which is an epoxy and fiberglass composite mix. Adding a

reinforcement of Kevlar, the mid bass cones become more rigid without any

added weight. This cone material incorporates characteristic values that are

impermeable to damage from intermittent Ultra Violet exposure and minimal

moisture exposure. Like the EFG™ cone material, the Polyurethane that is used

for the surround will provide protection against Ultra Violet exposure and

moisture. This will prevent deterioration of the surround yielding longer life

and better reliability. We do, however, encourage you to either remove or cover

your tower speakers when they are not in use. Limiting exposure to Ultra Violet

Rays and to moisture will help extend the life of your tower speakers.

The high frequency transducer is our proprietary titanium diaphragm Wet

Sounds HLCD (horn loaded compression driver). This driver was designed to

provide a wide; horizontal trajectory that would not only produce sound in the

directed path but will disperse sound off axis with little to no degradation. The

HLCD is considered to be one of the most efficient transducer designs

providing remarkable output while using less power. Our unique design

incorporates the HLCD mounted in the center of dual mid bass drivers that have

a slight angle to further enhance the off axis response.

***Caution: Do not spray any of the speakers directly with any liquid base

substance. Warranty will be voided if improper care is discovered during

extensive examination of the product.
