Sida 1/12

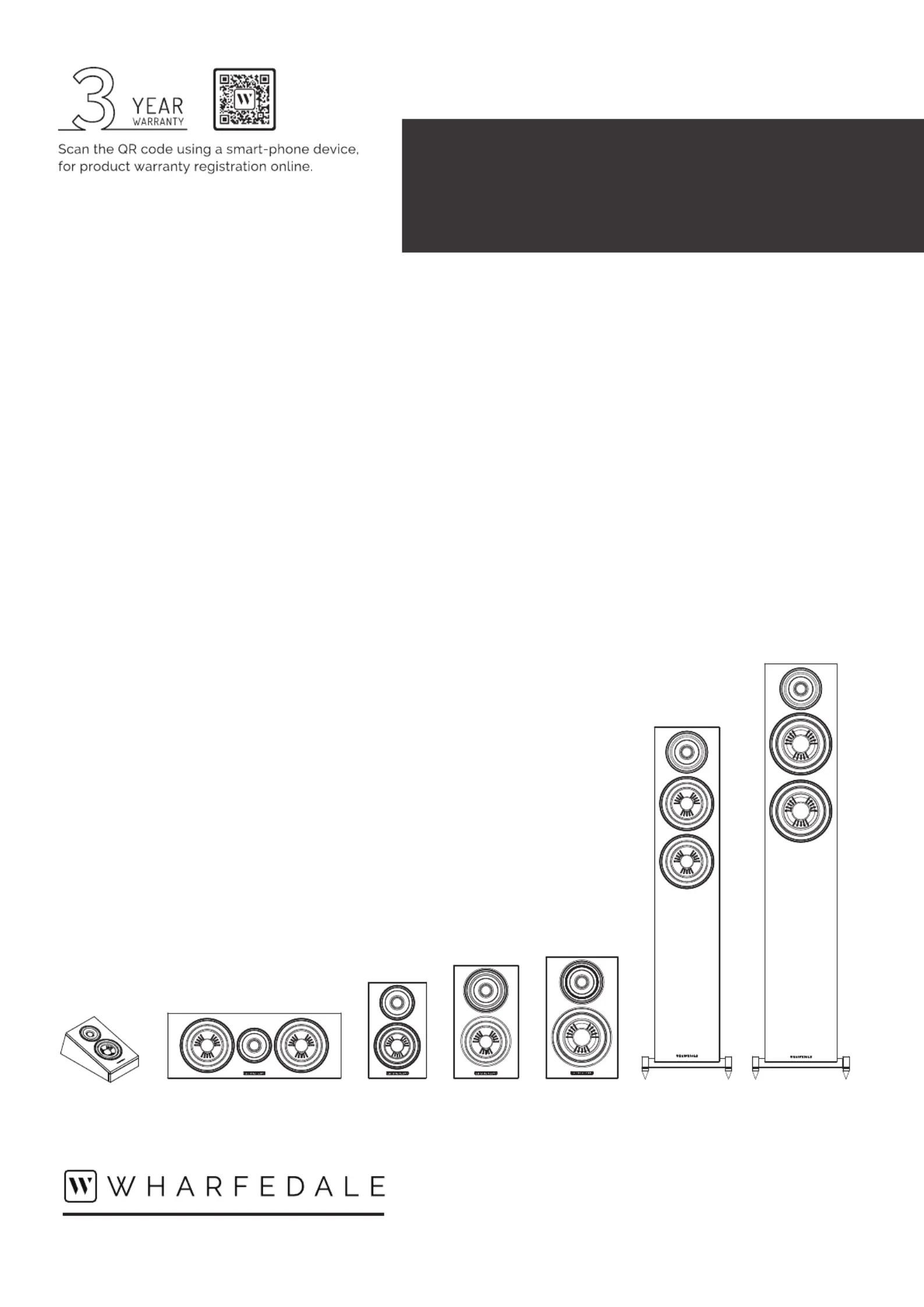

DIAMOND 12.0
DIAMOND 12.1
DIAMOND 12.2
DIAMOND 12.3
DIAMOND 12.4
DIAMOND 12.C
DIAMOND 12 3D SURROUND
DIAMOND 12 Series
User Manual
BRITAIN'S M FAMOUS LOUDS AKERSOST PE
Before installing this product read all these instructions!
Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.
Before making any connections, switch all the units in your system off at the mains.
Set the volume control at minimum when you switch on your system or change sources, and turn the level up gradually.
DO NOT use your amplifier at full volume.
Ensure that all loudspeakers in the system are correctly wired.
DO NOT subject your loudspeakers to excessive cold, heat, humidity or sunlight.
Loudspeakers should not be placed directly facing other hi-fi units, or share the same shelf or cabinet.
DO NOT place heavy objects on top of loudspeakers.
Some manufacturers forbid the placing of objects on top of their TV sets. Check your TV handbook before installing the speaker directly on your
TV set. Consult your TV dealer if you are in any doubt.
DO NOT connect speaker terminals to the mains supply.
DO NOT dismantle the loudspeaker. There are no user serviceable parts inside it and you will void the warranty by doing so.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped.
Caution: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this device.
Unpacking Your Loudspeaker
DIAMOND 12 loudspeakers come in different shapes and sizes. If you are unpacking a floor stander, please remember that these units are heavy.
We suggest that you have someone to assist you.
Lift the loudspeaker carefully out of the packing. DO NOT try and lift the loudspeaker using the protective bag.
Unpack the accessories carefully.
If there is any sign of damage or if the contents are incomplete, report this to your dealer as soon as possible.
Retain the packing for future safe transport of the product. If you dispose of the packing, do so with respect to any recycling provisions in your area.
Attaching the Spikes to Floorstanding Models – D12.3, D12.4
· Make sure you have plenty of unobstructed working space.
Place a soft cloth on the floor to protect the loudspeaker.
·
· Invert the loudspeaker onto the cloth.
· Thread a locknut onto each spike and loosely rub it up the thread.
· Thread the spikes into the spike inserts. Tighten them with finger tight.
· Invert the loudspeaker. Be careful not to damage the floor with the spikes.
Levelling the Loudspeakers
When the speaker is upright: You will probably find that the speaker will wobble with one spike not contacting the floor. Adjust this spike until
With the aid of a spirit level move each spike in and out until the loudspeaker is level and sitting squarely on all four
Screw in rubber feet are provided for use on wood or stone floors etc. and should be attached in the same manner
as the spikes.
all four spikes are in contact to the floor.
spikes without rocking.
Now tighten each locknut securely against the collar in the plinth to secure the spike.
Important Safety Information
This symbol indicates that there are important operating and maintenance instructions in the literature
accompanying this unit.
2
Stands and Brackets
The bookshelf loudspeakers are intended primarily for stand mounting, though they can be mounted on wall brackets or even on sturdy
shelves. The quality of loudspeaker stands greatly influences the performance of your loudspeakers, please do not use flimsy products.
Centre Channel Loudspeakers
Each centre channel loudspeaker is supplied with one set of mounting feet. By using combination of large and small feet the loudspeaker may
be angled to point directly at the listening position. This will be found useful when the centre speaker is positioned under the TV screen.
Specialist audio cable usually offers better performance than general purpose ‘bell’ or ‘zip’ wire.
Preparing the DIAMOND 12 Loudspeakers
Cables and Connectors
Choosing Loudspeaker Cable
Choose a cable of suitable diameter – cable that is too thin will limit the dynamics of the sound and may impair the bass response. Audio cable
is polarised, with two cores of different colours, or often a raised rib or coloured tracer in the case of twin cable. Before you purchase your cable,
give careful thought to the positioning of your loudspeakers.
This is especially the case if you are bi-wiring your loudspeakers.
Cable lengths to loudspeaker pairs should be the same for left and right channels in order to equalise the signal
transmission. Allow some slack in your speaker cables so you can alter their position to best advantage.
Preparing Loudspeaker Cable
Split the twin cores to a depth of about 40mm. Carefully strip the insulation from each end, leaving about 10mm of
bare wire. If the cable is stranded, lightly twist to gather any loose strands.
Connecting Screw Terminals
All loudspeakers use screw terminals.
Unscrew the terminal. Insert the bare end of the cable into the hole in the base of the terminal. Tighten securely.
When connecting terminals make sure you leave no strands of bare wire that can short across to adjacent terminals.
As an alternative to bare wire you can use specialist spade connectors. Your Wharfedale dealer will be
pleased to advise you on this issue.
Crossover Networks
Bi-Wireable Networks
Most speakers in the DIAMOND 12 floorspeaker eaker use a special bi-wireable crossover panel with four
terminal binding posts. Please follow the drawing carefully to see the correct orientation of the
loudspeaker terminals.The upper terminals connect to the treble unit, the lower pair to the bass unit. As
supplied, the treble terminal pairis connected to the bass terminal pair via removable metal straps.These
should be left in place for standard installations.
Why Bi-Wire?
Using separate cables for treble and bass units in a bi-wiring configuration reduces intermodulation effects
and improves headroom and clarity. To bi-wire, you will need to install two lengths of twin core cable
between the amplifier and each loudspeaker.
3
