Sida 1/29
DISHWASHER SAFETY ................................................................................ 2
INSTALLATION REQUIREMENTS ............................................................... 2
Location Requirements .............................................................................. 3
Electrical Requirements.............................................................................. 4
Water Supply Requirements....................................................................... 5
Drain Requirements .................................................................................... 5
INSTALLATION INSTRUCTIONS ................................................................. 5
Prepare Cabinet Opening—Existing Utility Hookups ................................ 5
Prepare Cabinet Opening—No Existing Utility Hookups........................... 7
Install Dishwasher..................................................................................... 10
Make Electrical Connections—Direct Wire Method ................................12
Make Electrical Connections—Power Supply Cord Method...................12
Connect Dishwasher to Water Supply .....................................................13
Connect Dishwasher to Drain...................................................................13
Attach Dishwasher to Cabinet..................................................................14
Complete Installation................................................................................14
SÉCURITÉ DU LAVE-VAISSELLE.............................................................. 16
EXIGENCES D'INSTALLATION.................................................................. 16
Outillage et composants .......................................................................... 16
Exigences d’emplacement....................................................................... 17
Spécifications électriques ........................................................................ 18
Spécifications de l'alimentation en eau ................................................... 19
Évacuation de l'eau de lavage—Critères à respecter ............................. 19
INSTRUCTIONS D’INSTALLATION........................................................... 19
Préparation de l’espace d’installation entre les placards—Utilisation
des modes de raccordement existants pour canalisations et câblage... 21
Préparation de l’emplacement d’installation entre les placards
lorsque les canalisations et câbles n’ont pas été installés...................... 21
Installation du lave-vaisselle..................................................................... 24
Raccordement au réseau électrique—Câblage direct ............................ 26
Raccordement au réseau électrique—Cordon d’alimentation................ 27
Raccordement à la canalisation d’arrivée d’eau...................................... 28
Raccordement à l’évacuation .................................................................. 28
Immobilisation du lave-vaisselle dans la cavité d’encastrement ............ 28
Achever l’installation................................................................................. 29
IMPORTANT:
Save for local electrical inspector’s use.
Installer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
IMPORTANTE:
Guarde para tenerlas a disposición del inspector de electricidad local.
Instalador: Deje las instrucciones de instalación con el propietario.
Propietario: Conserve las instrucciones de instalación para referencia futura.
IMPORTANT :
Conserver pour consultation par l’inspecteur local des installations électriques.
Installateur : Remettre les instructions d’installation au propriétaire.
Propriétaire : Conserver les instructions d’installation pour référence ultérieure.
UNDERCOUNTER DISHWASHER
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D’INSTALLATION DU LAVE-
VAISSELLE ENCASTRÉ
Table of Contents / Table des matières
Models/Modèles WDF550SAAW WDF550SAAB WDF550SAAS
W10518038
2

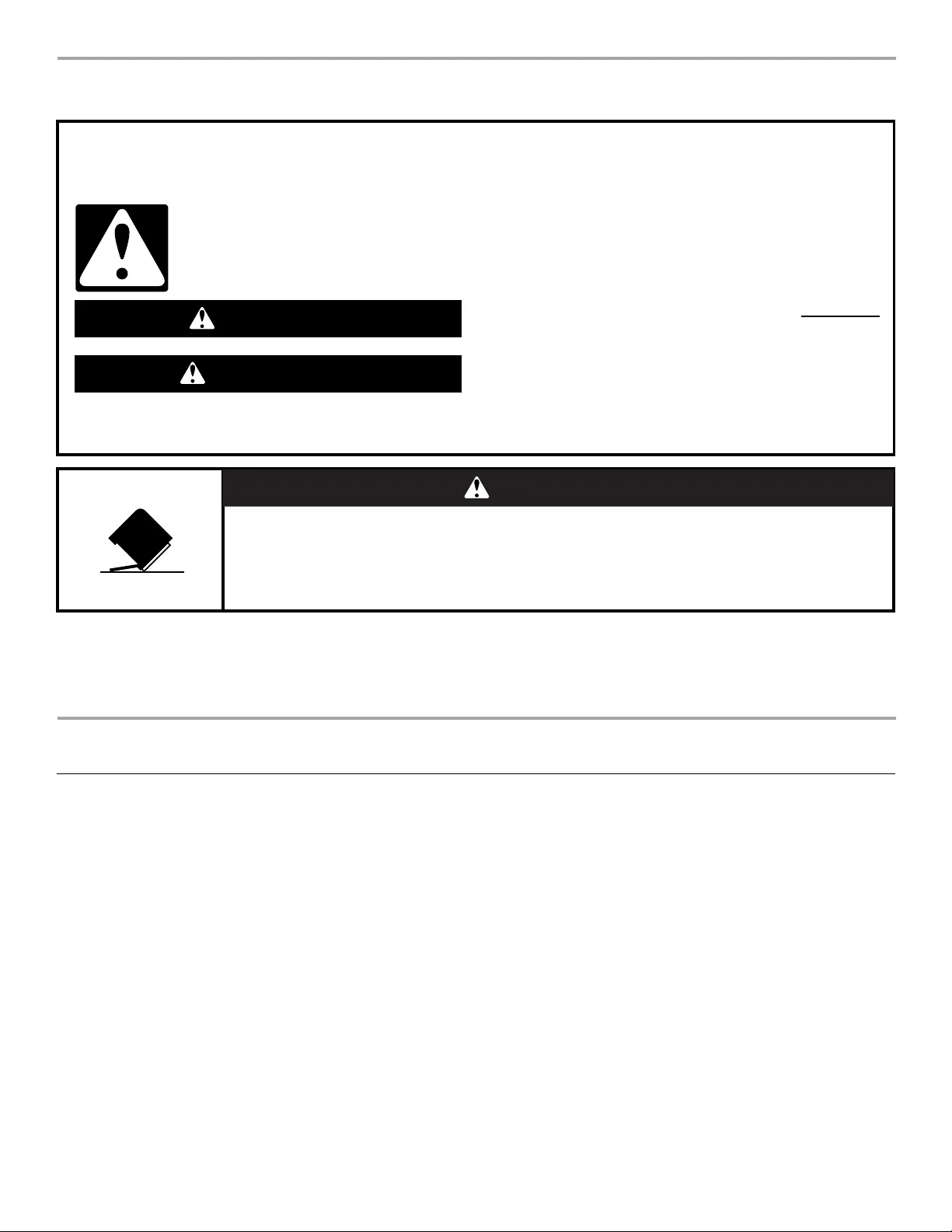

DISHWASHER SAFETY
You need to:
■Slowly open dishwasher door while someone grasps the rear
of the dishwasher. Remove shipping materials. Close
dishwasher door. Latch the dishwasher door shut.
■Observe all governing codes and ordinances.
■Install this dishwasher as specified in these instructions.
■Have everything you need to properly install dishwasher.
■Contact a qualified installer to ensure that dishwasher is
installed to meet all electrical and plumbing national and local
codes and ordinances.
INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools Needed
Parts Needed
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
WARNING
■Phillips screwdriver
■Flat-blade screwdriver
■Measuring tape or ruler
■¹⁄₂ ³⁄₄", " and 1½" (1.3 mm,
1.9 mm and 3.8 cm) hole
saw bits
■Shallow pan
■6" (15.2 cm) adjustable
wrench
■Small tubing cutter
■Level
■Cordless drill
■¹⁄₈" drill bit
■Flashlight
■90º elbow with ³⁄₈" N.P.T.
external threads on one
end
NOTE: The other end
must fit the water supply
line.
■Thread seal tape
■3 UL listed wire nuts
■Copper tubing
(³⁄₈" recommended)
■1¹⁄₂" to 2" (3.8 cm to
5.1 cm) screw-type clamp
■Clamp connector (strain relief)
⁷⁄₈" (22.2 cm) diameter
hole
■1¹⁄₂" to 2" (3.8 cm to
5.1 cm) screw-type clamp
if connecting to waste-tee
to fit
3

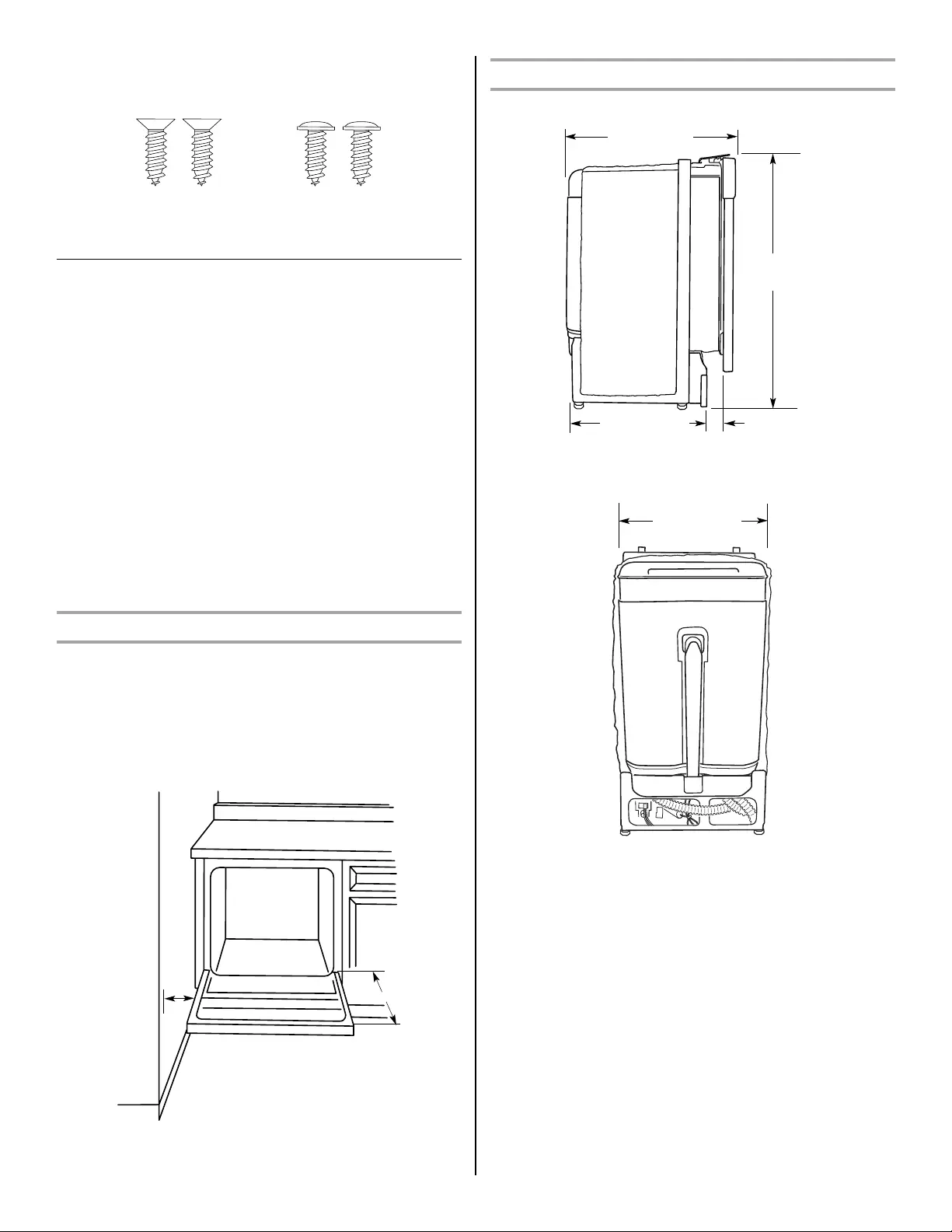

Parts Supplied
Check that all parts are included. See separate parts list for
accessories available for your dishwasher.
Location Requirements
IMPORTANT: Observe all governing codes and ordinances.
Failure to meet codes and ordinances could lead to fire or
electrical shock.
Proper installation is your responsibility.
■Contact a qualified installer to ensure that the dishwasher is
installed to meet all electrical and plumbing national and local
codes and ordinances.
■Install the dishwasher as specified in these instructions.
■Have everything you need to properly install dishwasher.
■Protect dishwasher and water lines leading to dishwasher
against freezing. Damage from freezing is not covered by the
warranty.
■This dishwasher is manufactured for indoor use only.
■Install and level dishwasher on a floor that will hold the weight,
and in an area suitable for its size and use.
■Install dishwasher in a location with easy access to water,
electricity and drain.
Minimum Clearances
NOTES:
■Corner locations require 2" (5.1 cm) minimum clearance
between the side of the dishwasher door and the wall or
cabinet.
■A minimum of 25⁵⁄₈" (65.1 cm) is required in front of the
dishwasher to allow the door to open fully.
■Opening should be square, and the floor should be level.
Product Dimensions
Side View
*
* To front of door frame
Rear View
A. #8 x
⁵⁄₈
" Phillips flat-head wood screws
B. Phillips color-matched toekick screws
A. 2" (5.1 cm) minimum clearance
for door opening
B. Dishwasher
C. Countertop
D. 25
⁵⁄₈
" (65.1 cm) minimum
A B
A
B
C
D
24" (61 cm)*
16 5/8"(42.2 cm)
32¹⁄₂" to 34¹⁄₂"
(82.6 to 87.6 cm)
23 5/9"(59.8cm)
■Fully enclosed on both sides, back, and top.
2¹⁄₂" (6.2 cm)
