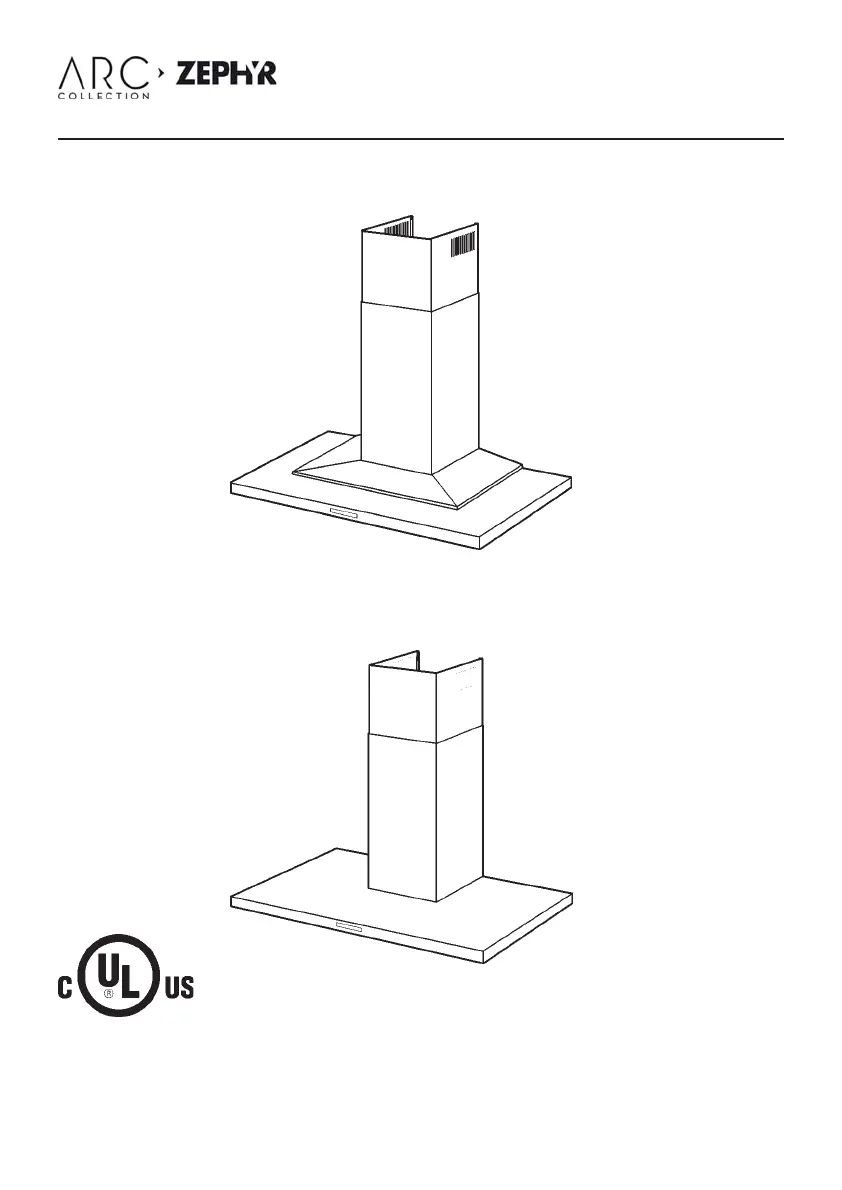

Sida 1/60
www.zephyronline.com
Duo Wall
ADU-M90BSX
Layers Wall
ALA-M90BBX
ALA-M90BWX
ALA-E42BBX
ALA-E42BWX
RANGE HOOD - Installation and use instructions
ENGLISH........................................2
FRANÇAIS...................................30
- 2 -
Table of contents
Safety Instructions.............................................. Page 3 - 4
List of Materials.................................................. Page 5 - 6
Ducting Calculation Sheet.................................... Page 7
Hood Specifications............................................. Page 8 - 9
Wiring Diagram.................................................... Page 10
Cleaning and Maintenance....................................Page 11
Remote Control....................................................Page 12
Hood Controls......................................................Page 13 - 14
Installation
Internal Blower................................................Page 15 - 18
External and In-Line Blower.............................Page 19
Range Hood....................................................Page 22
Duct Covers....................................................Page 23 - 24
Non-Ducted Recirculation Kit............................Page 25 - 26
Mesh Filters....................................................Page 27
List of Parts & Accessories.................................. Page 28
Warranty............................................................. Page 29
- 3 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to
prevent power from being switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all
applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s
guidelines and safety standards such as those published by the National Fire Protection Associa-
tion (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. To reduce the risk of fire, use only steel ductwork.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk
of electrical shock by providing an escape wire for the electric current.
WARNING - Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt
exists as to whether the appliance is properly grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette,
Cherries Jubilee, Peppercorn Beef Flambe’).
3. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for the size of the surface element.
5. Keep fan, filters and grease laden surface clean.
6. Use high range setting on range only when necessary. Heat oil slowly on low to medium setting.
7. Don’t leave range unattended when cooking.
8. Always use cookware and utensils appropriate for the type and amount of food being prepared.
!
INTENDED FOR DOMESTIC COOKING ONLY
!
