Under Cabinet Installation
19
Installation
Tutorial Video
Preparation
► Decide the location of the venting pipe from the hood to the outside.
► Check hood for clearance.
► A straight, short vent run will allow the hood to perform more eciently.
► Try to avoid as many transitions, elbows, and long runs as possible. is may
reduce the performance of the hood.
► For installing under the cabinet with recessed bottom, attach 4-inch wide
wood ller strips (not provided) on each side.
► Puncture the knockout holes (for mounting under the cabinet) on the hood.
1
4
2
3

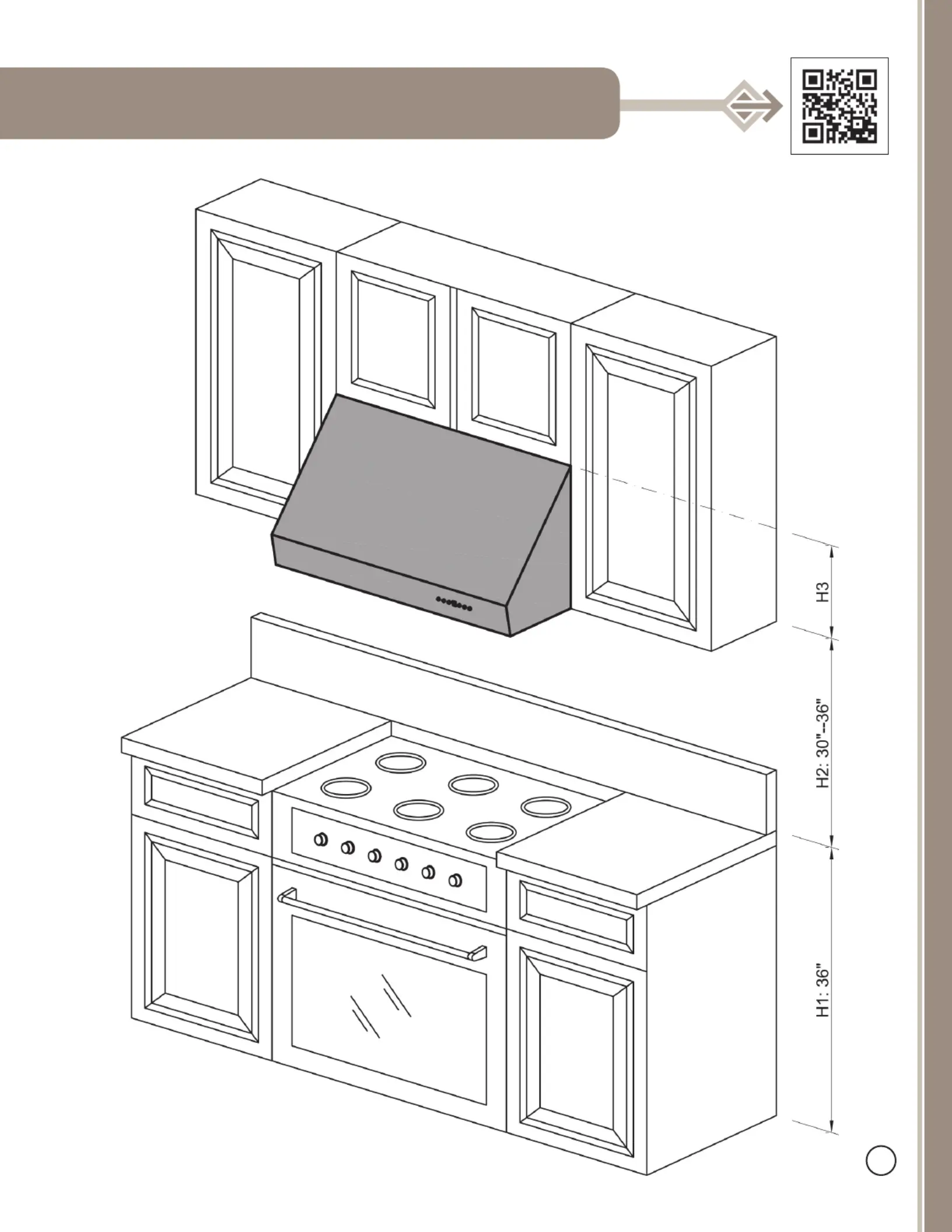

Measure the distance between stove
top and the bottom of the range
hood. A distance of 30 to 36 is rec˝ ˝ -
ommended.
Tighten ducting (provided) with the
hose clamp provided. Use silver or
duct tape wherever needed.

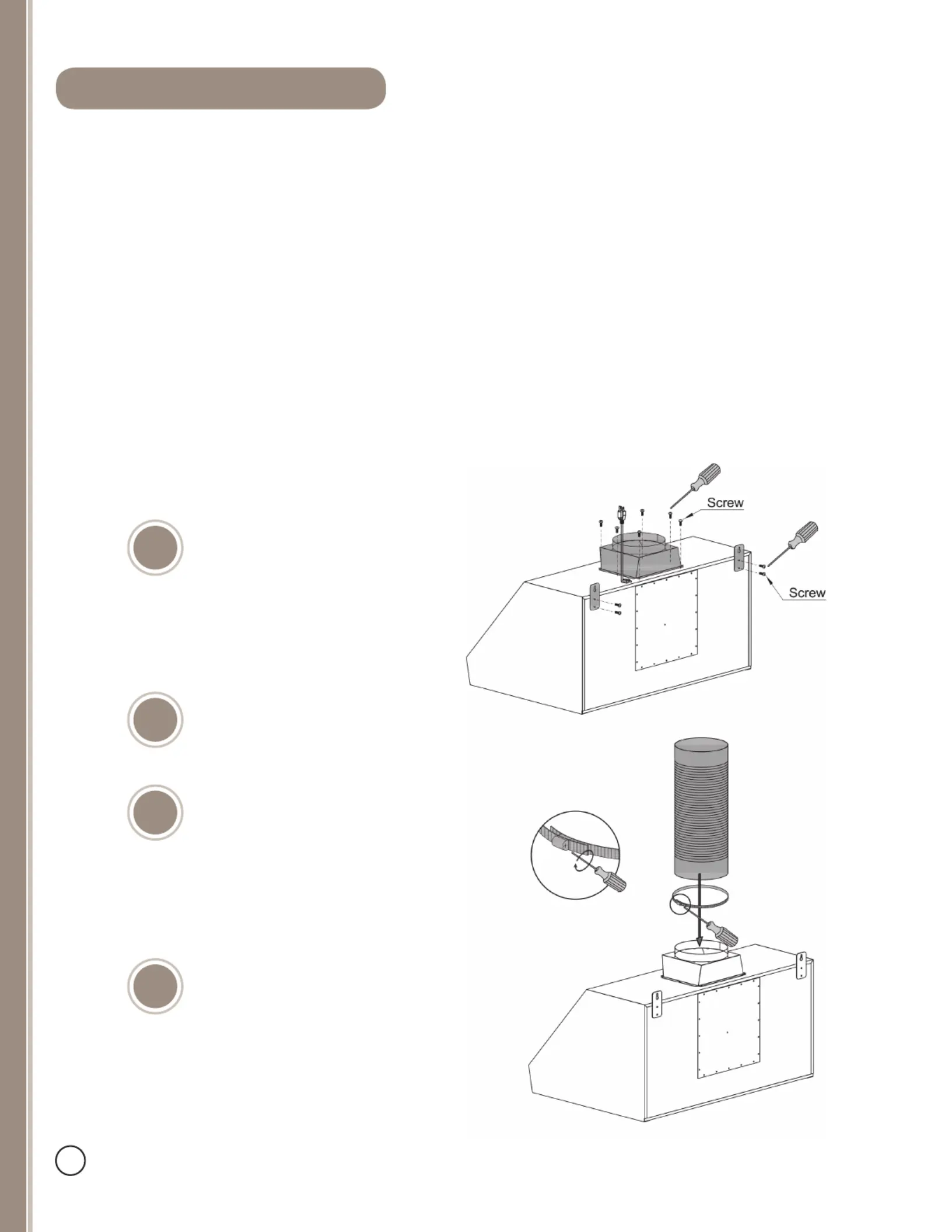

Attach mounting brackets to the back
of the hood.
Mark the leveling point of the hood.
Position two mounting screws on the
wall, leaving space away from the ˝
wall. Make sure that you are mount-
ing the hood to a secure backing to
hold the weight of the hood.
20
Under Cabinet Installation
21
5
6
7
Draw electrical wires through cabinet
access opening, center the hood be-
neath the cabinet.

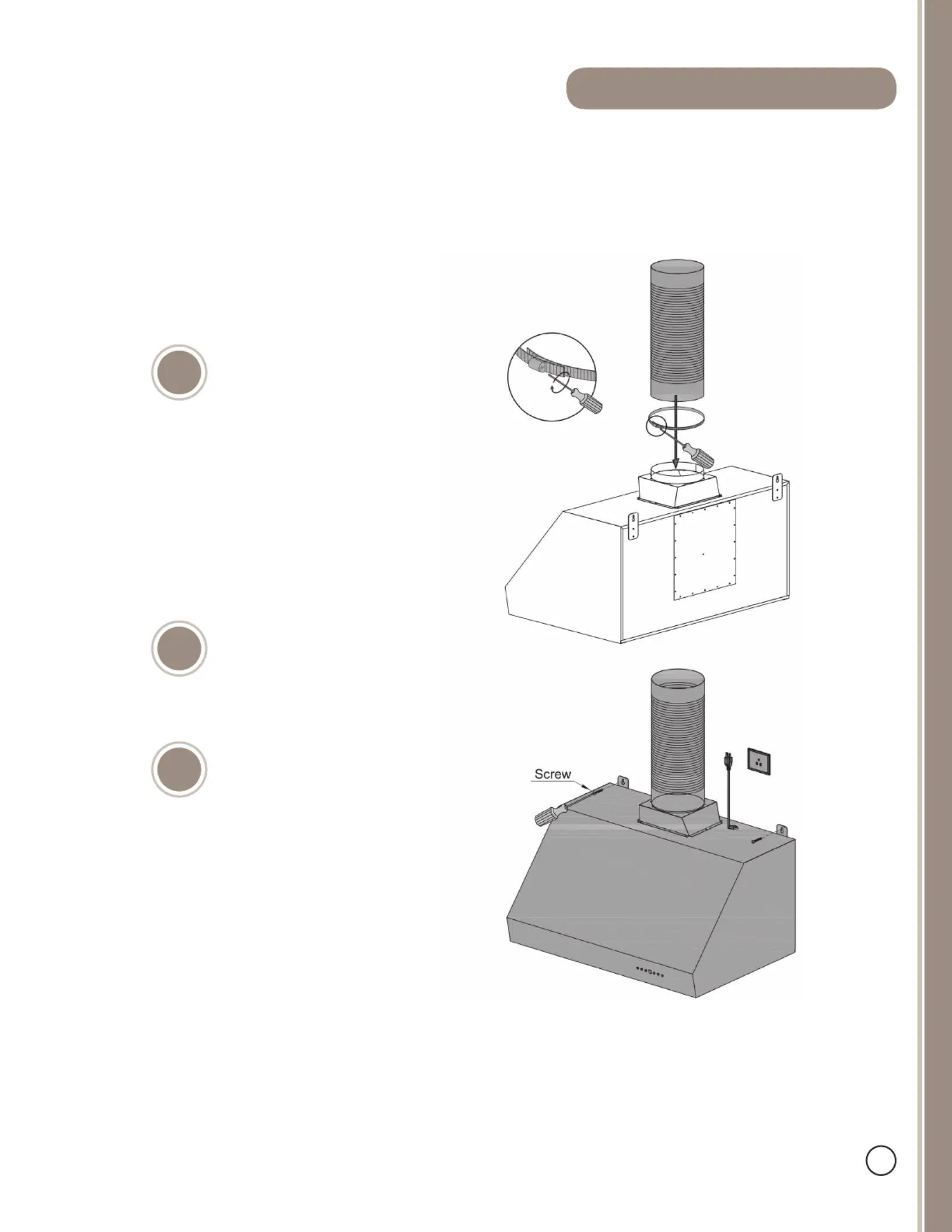

Align hood-mounting brackets to the
screws on the wall and hook hood
into place. Tighten screws to secure
hood to the wall.
Connect ducting.
Under Cabinet Installation
