Sida 1/20

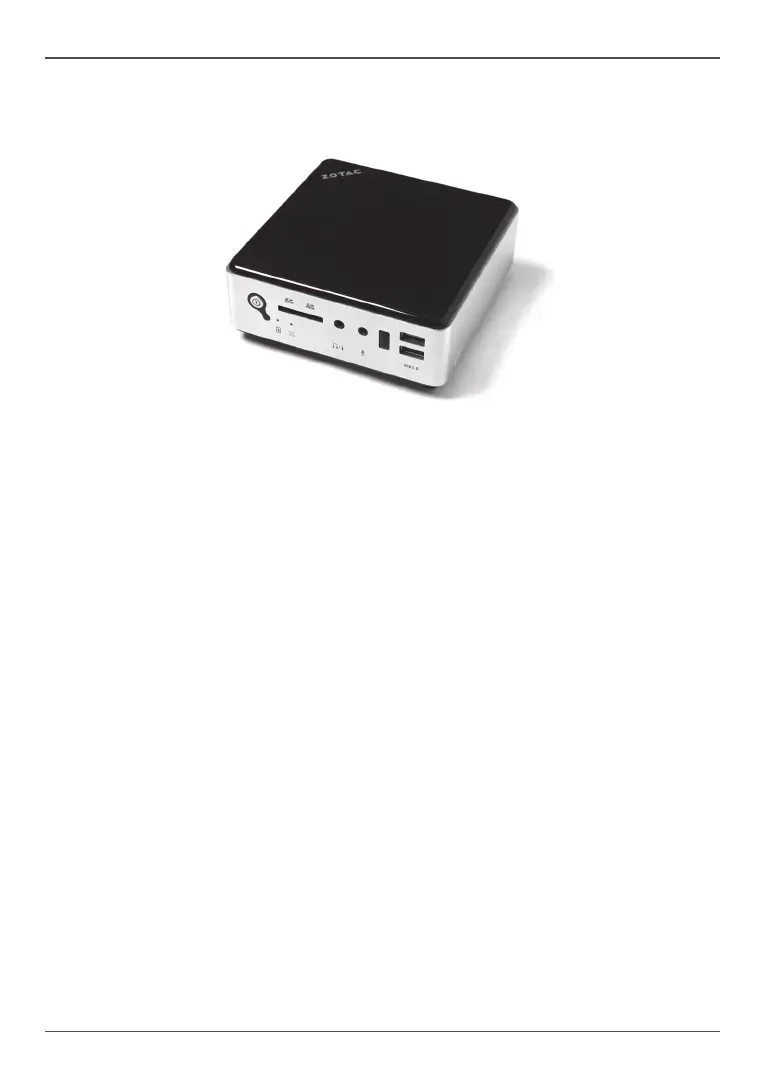

1
ZOTAC ZBOX nano
ZOTAC ZBOX nano
User’s Manual
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ZOTAC.
Products and corporate names mentioned in this manual may not be reg-
istered trademarks or copyrights of their respective companies, and are
used for identication purposes only. All trademarks are the property of their
respective owners.
Every effort has been made to ensure that the contents of this manual are cor-
rect and up to date. However, the manufacturer makes no guarantee regard-
ing the accuracy of its contents, and reserves the right to make changes
without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries
should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
2
ZOTAC ZBOX nano
Table of Contents
Product specications -------------------------------------------------------------------------- 3
Safety information -------------------------------------------------------------------------------- 4
Setting up your system 4 -----------------------------------------------------------------------
Care during use 4 --------------------------------------------------------------------------------
Welcome --------------------------------------------------------------------------------------------- 5
Package contents 5 ------------------------------------------------------------------------------
Getting to know your ZOTAC ZBOX nano ------------------------------------------------ 6
Front view 6 ----------------------------------------------------------------------------------------
Rear view----------------------------------------------------------------------------------------- 7
How to disable the ring LED indicator ----------------------------------------------------- 8
Customizing the ZOTAC ZBOX nano ------------------------------------------------------- 9
Installing a memory module 10 -----------------------------------------------------------------
Installing a hard disk -------------------------------------------------------------------------- 11
Connecting a SPDIF cable 13 ------------------------------------------------------------------
Setting up the ZOTAC ZBOX nano ---------------------------------------------------------- 14
Positioning the ZOTAC ZBOX nano --------------------------------------------------------- 16
Mounting the ZOTAC ZBOX nano to an LCD monitor 16 --------------------------------
Installing drivers and software --------------------------------------------------------------- 18
Installing an operating system 18 --------------------------------------------------------------
Installing system drivers 18 ----------------------------------------------------------------------
Using your ZOTAC ZBOX nano --------------------------------------------------------------- 19
Conguring wireless connection ----------------------------------------------------------- 19
Conguring wired connection --------------------------------------------------------------- 19
Using a static IP 19 ----------------------------------------------------------------------------
Using a dynamic IP (PPPoE connection) 20 --------------------------------------------
Conguring audio output via an HDMI device ------------------------------------------ 20
3
ZOTAC ZBOX nano
Product specications
Processor
• Intel Core i3-5010U Processor (dual core, 2.1 GHz) for ZBOX-MI522NANO
series
• Intel Core i5-5200U Processor (dual core, 2.2 GHz, up to 2.7 GHz) for ZBOX-
MI542NANO series
Onboard graphics
• Intel HD Graphics 5500
• HDMI 1.4a (max resolution: 4096×2160 @24Hz)
• DP 1.2 (max resolution: 3840x2160 @60Hz)
Memory support
• 2 204-pin DDR3L-1600/1333 SO-DIMM slots
• Up to 16 GB of memory
USB ports
• 4 USB 3.0 ports & 1 USB 2.0 port
Storage support
• SATA 6.0 Gb/s transfer rates
• Supports one 2.5-inch SATA HDD/SSD (9.5mm max height)
Network support
• Dual Gigabit (10/100/1000Mbps) LAN
• IEEE 802.3 compatible
WiFi/BT support
• 802.11ac Wi-Fi (dual-band)
• Bluetooth 4.0
Audio
• Digital 8 Channel Audio (LPCM/bitstream via HDMI)
• SPDIF output
Operating System support
• Windows 7 32bit/64bit, Windows 8 32bit/64bit and Windows 8.1 32bit/64bit
Product Dimensions
• 127mm x 127mm x 45mm
