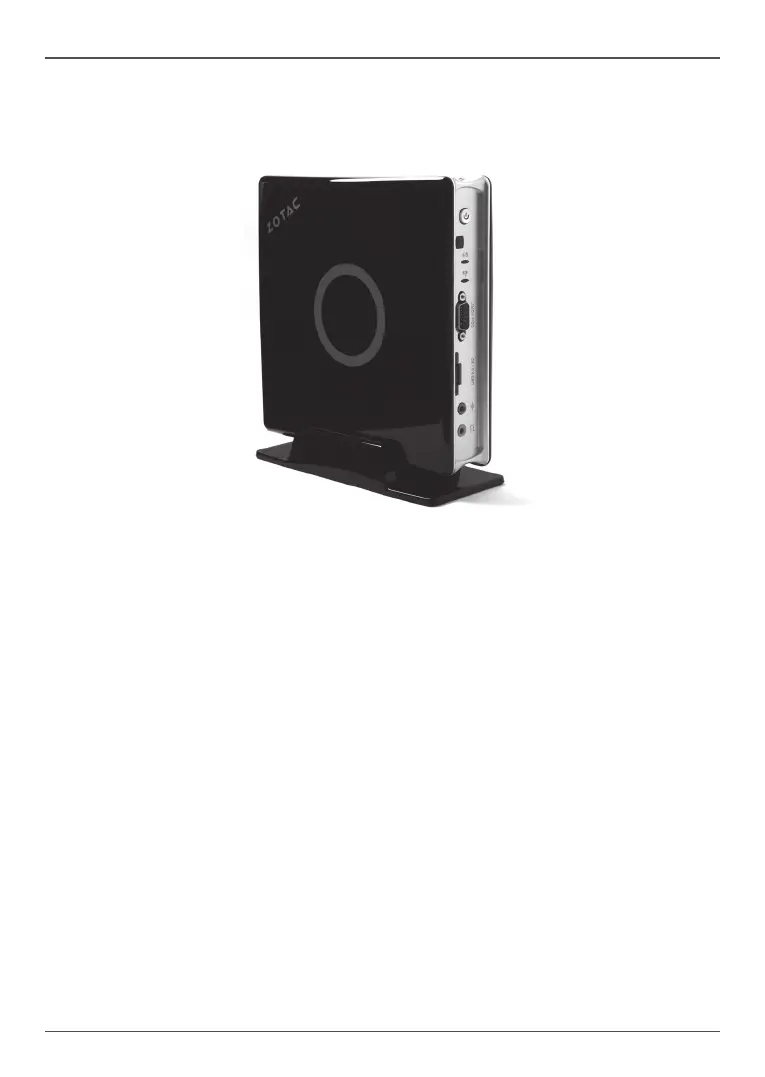

ZOTAC ZBOX
ZOTAC ZBOX
User’s Manual
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form or by any means,except documenta-
tion kept by the purchaser for backup purposes, without the express written
permission of ZOTAC.
Products and corporate names mentioned in this manual may not be reg-
istered trademarks or copyrights of their respective companies, and are
used for identication purposes only. All trademarks are the property of their
respective owners.
Every effort has been made to ensure that the contents of this manual are cor-
rect and up to date. However, the manufacturer makes no guarantee regard-
ing the accuracy of its contents, and reserves the right to make changes
without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries
should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
2
ZOTAC ZBOX
Table of Contents
Product Specications -------------------------------------------------------------------------- 3
Safety information -------------------------------------------------------------------------------- 4
Setting up your system 4 -----------------------------------------------------------------------
Care during use 4 --------------------------------------------------------------------------------
Welcome --------------------------------------------------------------------------------------------- 5
Package contents 5 ------------------------------------------------------------------------------
Getting to know your ZOTAC ZBOX -------------------------------------------------------- 6
Front view 6 ----------------------------------------------------------------------------------------
Rear view----------------------------------------------------------------------------------------- 7
How to disable the ring LED indicator ----------------------------------------------------- 8
Installing Hardware inside ZOTAC ZBOX ------------------------------------------------- 9
Installing a memory module 9 -----------------------------------------------------------------
Removing the memory module 10 -------------------------------------------------------------
Installing a hard disk -------------------------------------------------------------------------- 11
Setting up your ZOTAC ZBOX ---------------------------------------------------------------- 13
Positioning your ZOTAC ZBOX --------------------------------------------------------------- 15
Installing the stand 15 -----------------------------------------------------------------------------
Installing your ZOTAC ZBOX to a monitor 15 -----------------------------------------------
Installing drivers and software --------------------------------------------------------------- 16
Installing an operating system 16 --------------------------------------------------------------
Installing system drivers 16 ----------------------------------------------------------------------
Using your ZOTAC ZBOX ----------------------------------------------------------------------- 17
Conguring wireless connection ----------------------------------------------------------- 17
Conguring wired connection --------------------------------------------------------------- 17
Using a static IP 17 ----------------------------------------------------------------------------
Using a dynamic IP (PPPoE connection) 18 --------------------------------------------
Conguring audio output via an HDMI /DP device ------------------------------------ 18
SATA RAID User Manual ------------------------------------------------------------------------ 19
19Creating a RAID set under UEFI Mode (Default) --------------------------------------
23Deleting a RAID set under UEFI Mode ---------------------------------------------------
Legacy OS Mode ------------------------------------------------------------------------------ 25
Entering the RAID BIOS utility 26 ---------------------------------------------------------
Creating a RAID set 26 -----------------------------------------------------------------------
Deleting a RAID set 27 -----------------------------------------------------------------------
3
ZOTAC ZBOX
Product Specications
q Microprocessor support
Intelv ® Celeron® Processor 2961Y (2M Cache, 1.10 GHz)
q Operating systems:
Windows 7, Windows 8 and Windows 8.1v
32-bit and 64-bit supportv
q System Memory support
v Two 204-pin SO-DIMMs DDR3L-1600/1333
v Up to 16 GB of memory
q USB Ports
v Four USB 3.0 ports (one SD card/ USB 3.0 Combo , two rear panel ports and
one top panel port)
q Onboard Serial ATA
v SATA 6.0 Gb/s transfer rates
v Supports two 2.5-inch SATA HDDs or SSDs (support the device with max
9.5mm height)
v Supports RAID 0, 1
q Legacy port
v One COM port
q Onboard Dual LAN
v Supports 10/100/1000 Mbps operation
v Supports IEEE 802.3
q WiFi/Bluetooth support
v Compliant with IEEE802.11ac standard
High speed wireless connection and enhanced wireless securityv
v Fully qualied Bluetooth v4.0
q Onboard Audio
v Stereo analog audio output and Microphone input
v HDMI 1.4a or DP 1.2 digital output
q Green Function
v Supports ACPI (Advanced Conguration and Power Interface)
q Onboard Graphics support
Integrated Intelv® HD Graphics
v HDMI 1.4a (max resolution: 1920x1200 @60Hz)
v DP 1.2 (max resolution: 2560x1600 @60Hz)
q Product Size
188mm x 188mm x 51mmv
