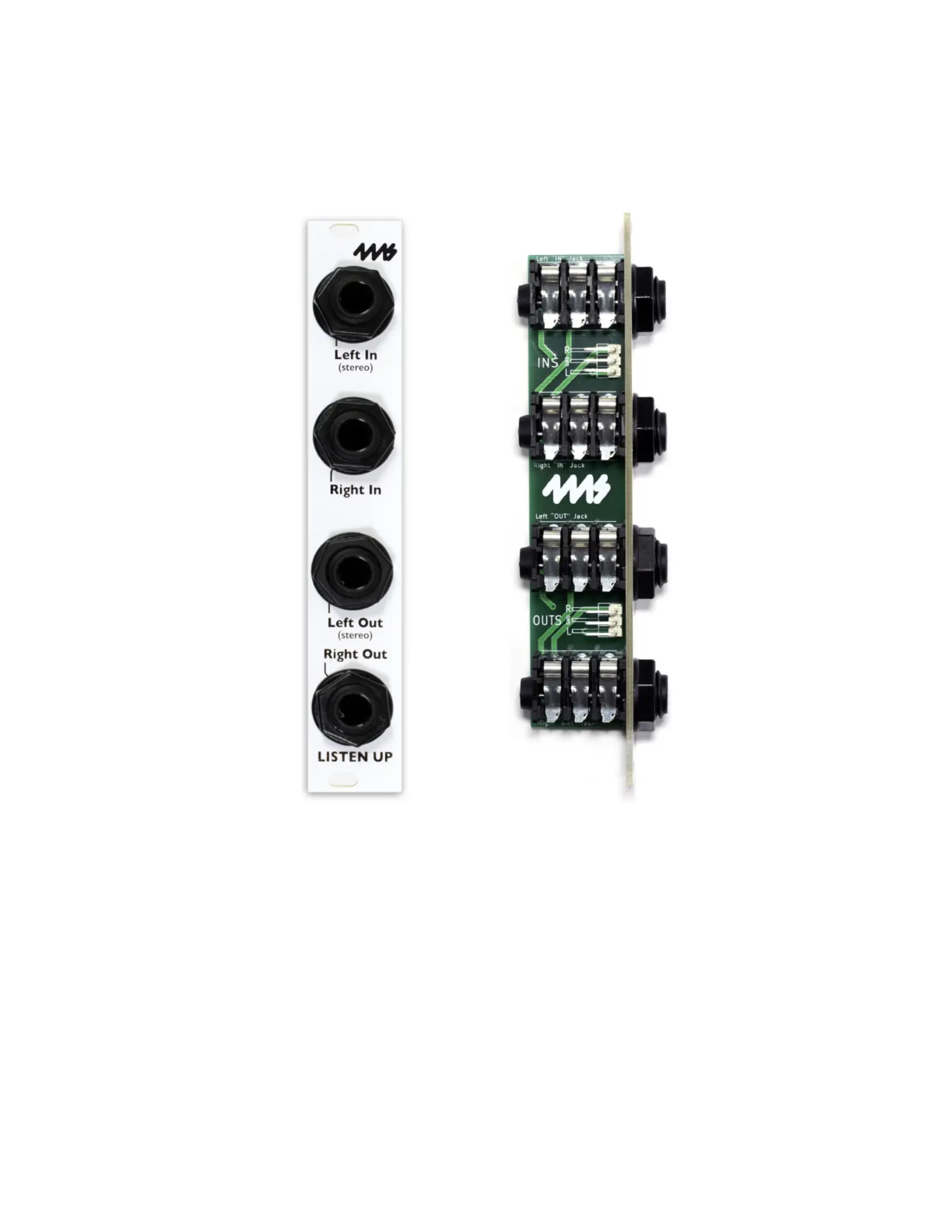

Listen Up
(Expander for Listen Four and Listen IO)
4ms Company
User Manual 1.0 – Sept. 19, 2019
The is a passive expander module which provides stereo 1/4” (6.35mm) jacks for the Listen Up Listen
IO, , and Listen Four WAV Recorder modules. There are two pairs of stereo jacks, each pair connects
to a module using the included 3-pin cables. Both pairs of jacks can be connected to the same
module to provide 1/4’’ (6.35mm) inputs or outputs, or each of the two pairs can be connected to
separate modules. The module requires no power and is available as a kit or built unit. For
convenience, the top pair of jacks is labeled “Left/Right In” and the bottom pair is labeled “Left/Right
Out”, but either pair of jacks can be used as an input or output.!
The features: Listen Up !
• !Four 1/4” (6.35mm) jacks arranged in two stereo pairs.
• !Each stereo pair can be connected to the same module or to separate modules.
•Each stereo pair (left/right) is bi-directional (input or output).!
•Left In and Left Out jacks are TRS stereo if corresponding Right jack is not unpatched. !
•Uses no power.!
• !Connects directly to host module using 3-pin cables.
•Two 3-pin cables included.!
• #4HP
Page of  1 7
Setting up your Listen Up
1. Power off your Eurorack system.!
2. Plug one of the included 3-pin cables to one of
the 3-pin connectors on the back of the Listen
Up.
3. Plug the other end of the cable to a 3-pin
connector on the back of the main module
( , or Listen IO, Listen Four WAV Recorder). Make
sure the same color wire is facing towards the
top at both ends of the cable.!
4. If you want to connect the Listen Up to another
3-pin header (on the same or different module),
use the other included 3-pin cable and repeat the
previous two steps.!
5. Using the included screws, securely attach the
Listen Up to the rails of your case. !
6. Power on your Eurorack system.
FAQ
Which way do I connect the 3-pin cable?
It does not matter which color wire is on top, just be consistent. In the example images, the white wire
is on top. If you reverse one side of the cable (e.g. white wire on top at one end, and black wire on top
at the other end) then the modules will function perfectly, except that the left and right channels will be
swapped.!
My Listen IO or Listen Four module has two (or more) headers, which one do I use?
On the and , there are headers labeled INS and OUTS. You can choose either one Listen IO Listen Four
(or both), depending on whether you want to use the for 1/4” inputs or outputs (or both).Listen Up !
Can I use the Left In and Right In jacks as outputs?
Yes! And you can use the Left Out and Right Out jacks as inputs. Both sets of jacks are bi-directional
and identical. The faceplate is labeled for a common typical use (stereo inputs and stereo outputs) but
you can safely use either pair of jacks for any signal.
Why are the Left In/Out jacks labeled “stereo”?
If you want to use a TRS stereo cable with the , plug it into the left jack and do not plug Listen Up
anything into the right jack. The right signal will appear on the ring of the TRS cable, and the left signal
will appear on the tip. !
If you want to connect a stereo signal using two cables (one for left and one for right), then plug the
cables into the left and right jacks of the . The jacks are compatible with TS (mono) and TRS Listen Up
(stereo) cables, but the TRS stereo feature will only be active if the right jack is not patched.#
Page of  2 7
Using a Listen IO v1.0
Look at the back of your module to see what version you have. Version 1.0 and 1.0RC1 are Listen IO
the same. Version 1.1 and 1.2 are described in the following section. !
The version 1.0 has two headers: INS and OUTS. Both headers correspond to the Listen IO
1/8” (3.5mm) line level jacks. Connecting a allows you to add 1/4” (6.35mm) line-level inputs Listen Up
and outputs to your modular system. Typically, you will connect the top header of the to the Listen Up
top header of the , and the bottom header of the to the bottom header of the Listen IO Listen Up Listen
IO (see photo above on the right). Alternatively, you can choose to connect only one of the headers
and use the second header for a different module.Listen Up !
Connecting a to the INS header will connect the 1/4” (6.35mm) jacks to the Line In on the Listen IO
top half of the .Listen IO !
Connecting a to the OUTS header will connect the 1/4” (6.35mm) jacks to the Line Out of the Listen IO
bottom half of the . Listen IO !
You can always use the ’s jacks at the same time as the ’s 1/4” (6.35mm) jacks. The Listen IO Listen Up
signals will be automatically mixed and/or split.!
Page of  3 7
