Sida 1/52

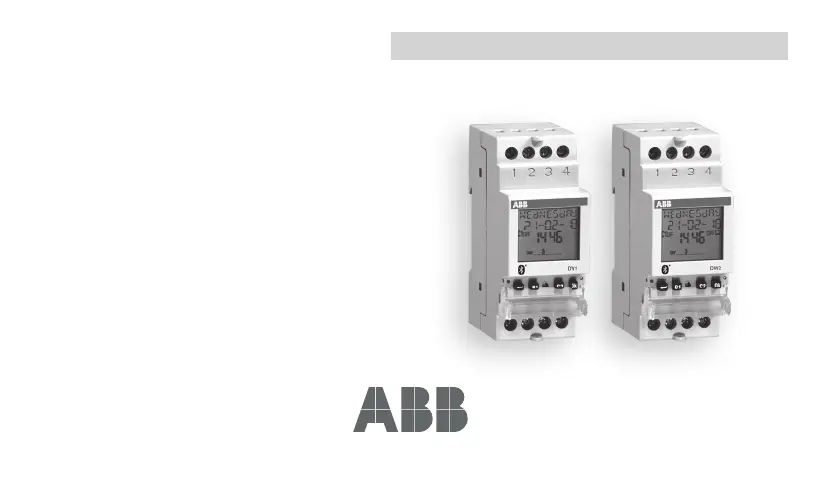

DIGITAL WEEKLY TIME SWITCH User Manual
DW
English
- 1 -
User manual DW
Index
Q Technical features page 3
Q Safety warnings page 4
Q Dimensions page 4
Q Wiring diagrams page 5
Q Display and keyboard description page 6
Q Initial operation page 7
Q Start page (or main) page 8
Q Manual switching page 11
Q Menu description page 12
Settings menu page 14
Language setting menu page 15
Date setting menu page 16
Time setting menu page 17
Daylight saving time (DST)/winter time (CET)
change setting menu page 18
Random switchings setting menu page 20
Cycle switchings setting menu page 21
Protection PIN setting menu page 22
Q Program menu page 23
Program menu: new page 27
Program menu: new daily timed page 28
Program menu: new weekly timed page 29
Program menu: new holiday timed page 30
Program menu: check page 32
Program menu: modify page 34
Program menu: copy page 36
Program menu: delete page 37
Q Bluetooth page 38
Q Hour couter menu page 40
Q Reset menu page 42
Q Firmware menu page 44
Q Error signals page 45
Q Battery management page 46
Q Reference standards page 46
English
- 2 -
User manual DW
USER MANUAL
The digital time switches of DW series are electronic devices for the management of the electrical utilities over time. They allow the time
programming (periodicity: daily or weekly).
DW1 is equipped with a relay (channel 1) while DW2 is equipped with two relays (2 independent channels).
DW time switches have a Bluetooth interface that allows it to be coupled with mobile devices (smartphone or tablet). Thanks to the free app
that can be downloaded from the AppStore and Google Play stores, it is possible to program and make settings directly on your smartphone,
and then transfer all the data to the time switch.
The reverse procedure is also possible, i.e. to copy the programming of a time switch on your mobile device.
The backup battery allows you to keep the settings even in case of black-out and can be replaced through the cover on the back of the time
switch.
DW time switches are devices of electronic type that perform actions of 1B type , intended to operate in environments with III overvoltage
category and pollution degree 2 in accordance with EN 60730-1 standard.
Code Model Description
2CSM222531R1000 DW1 Digital weekly time switch 1 channel with Bluetooth
2CSM222521R1000 DW2 Digital weekly time switch 2 channels with Bluetooth
English
- 7 -
User manual DW
INITIAL OPERATION
• Once out of the package, DW is off: press the key and wait
a moment before activating the display
• The set language is English. To change it, press the key for
at least 3 seconds. Choose among: German, English, Spanish,
French, Italian, Russian and confirm with .
• Make connections following the diagrams on page 5 of this
manual
• Power DW: the backlighting turns on permanently.
• The presence of the backup battery allows the DW to have
updated date and time.
To make the other settings follow the following steps:
Date - format: DD/MM/YY
- 1st
day of the week: Monday
Daylight Saving time (DST)
change: active
- start of daylight saving time (DST):
last Sunday of March at 02:00
o’clock
- end of daylight saving time (DST):
last Sunday of October at 03:00
o’clock
Random switchings: - minimum: 1 minute
- maximum: 5 minutes
Cycle switchings: - ON duration: 1 minute
- OFF duration: 1 minute
PIN protection: disabled (---)
Bluetooth: disabled (Password: 000000)
