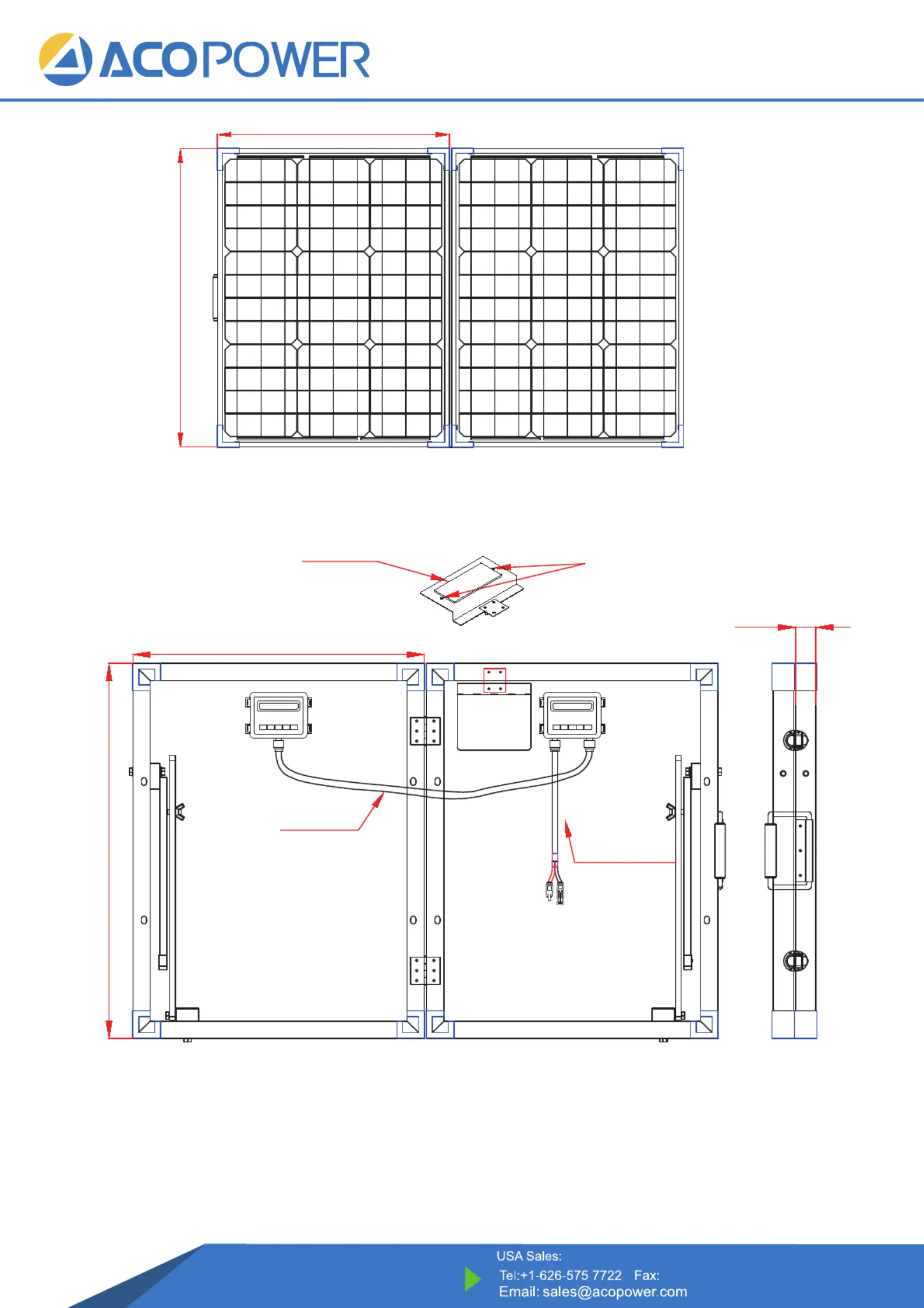

HY-PTK-100Exp
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
650
505mm
+
505
650
30
Twin Core Cable
In Red and Black 1000mm/2*2.5mm²
Twin Core Cable
in Red and Black
with MC4
3M Velco M4*14mm Flat-Heat cross-Screw
(For the Installation of Controller)
-
+
www.ACOPower.com
Power Your Green Life!
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
User’s guide
After receiving the solar panel kit, please check if all accessories are included in the package and prepare to test your kit:
1. Locate a sunlit area clear from hanging branches or obstacles.
2. Unclip the two latches (2, Table 1) on the side of the unit and fold two panels outward. Extend the two support legs (4,
Table 1) to desired length and lock the stands in position. Set solar panel kit in the position facing the sun.
Tip: To obtain the maximum output power of solar modules, it is recommended to adjust the solar modules based on solar
trajectory.
How to test the solar panel
Method 1: Use a multimeter
Set your multi-meter to measure DC voltage and put the red probe on the red positive MC4 cable (14a, Table 1) and the
black probe on the black MC4 cable (14b, Table 1) and make sure the connections are secure. the open-circuit voltage
should be displayed on your multi-meter and it should be around 17.6V-23V. This is your solar panel’s voltage without
going through the charge controller.
If you’re not getting something within that range or close to those numbers, you should check and make sure the solar
panel is in direct sunlight and that the connections between the MC4 cables and the multi-meter is secure.
Specifications
100w solar panel
Type Module Size N.W
Specification
Max-
Power
Max-
Power
Voltage
Max-power
Current
Open-
Circuit
Voltage
Short-
circuit
Current
Module mm Kg W V A V A
2*50w 650*505*30 15 2*50 17.8 2*1.81 22.3 2*3.03
(25.6*19.9*1.2 in) (33.1 lb)
HY-PTK-100Exp
www.ACOPower.com
4120 Valley Blvd Walnut, CA 91789, USA
+1-626-737 1140
How to test if the charge controller is working
Method 2: Use your solar generator
To test if the solar panel is working with a solar generator with a built-in charge controller, connect the MC4 adapters that came
with your solar generator and plug it in to the MC4 cables of the solar panel directly (14a and 14b, Table 1). Turn your solar
generator on and it should start charging from the solar panel.
Choose: GEL Flooded Sealed、 、
When testing the charge controller, please make sure a battery in working condition is used. The charge controller
will not power on with a bad battery. A good thing to do is to test with your 12 V car battery.
Step 1: Clamp the red positive battery clip (9a, Table1) to the positive terminal of 12V battery, black negative battery clip (9b,
Table 1) to the negative terminal and make sure the connection is secure.
Step 2: When all the connections are complete, the Battery status indicator (10, Figure 1) should light up if the battery is
connected to the charge controller. If the solar panel is under direct sunlight, the charging status indicator (10, Figure 1) will
be on as well. (Detailed information under Specifications section)
Tip: The charge controller will not respond unless it is connected to a battery! Always connect the battery first, then
load (if applicable).
For lights explanation, please check the Specifications section.
Power Your Green Life!
HY-PTK-100Exp
