User Instructions

Rev. 1/15

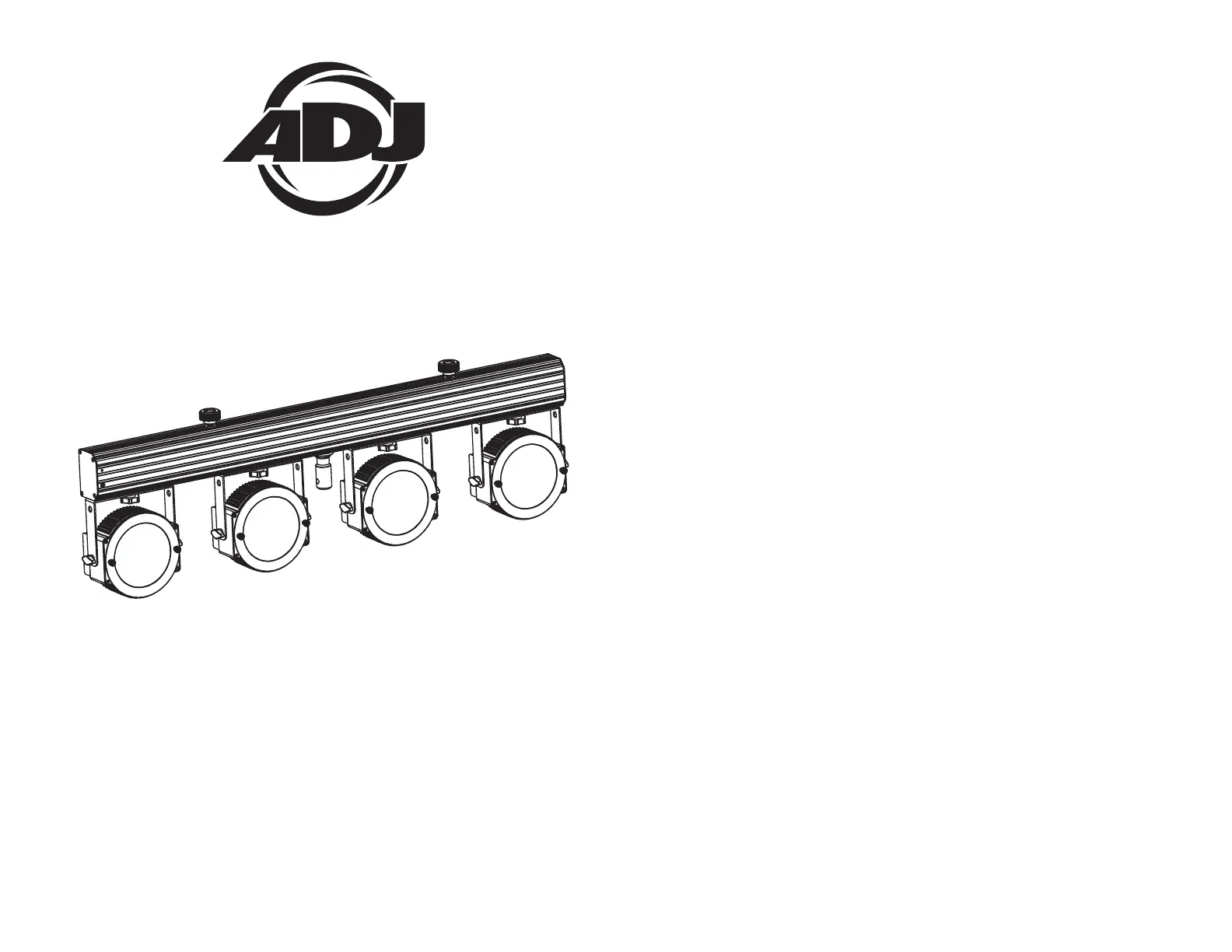

Dotz TPar System

specications, diagrams, images, and instructions herein are

subject to change without notice. ADJ Products, LLC logo and

identifying product names and numbers herein are trademarks

of ADJ Products, LLC. Copyright protection claimed includes all

forms and matters of copyrightable materials and information

now allowed by statutory or judicial law or hereinafter granted.

Product names used in this document may be trademarks or

registered trademarks of their respective companies and are

hereby acknowledged. All non-ADJ Products, LLC brands and

product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby dis-

claim any and all liabilities for property, equipment, building, and

electrical damages, injuries to any persons, and direct or indi-

rect economic loss associated with the use or reliance of any

information contained within this document, and/or as a result

of the improper, unsafe, unsucient and negligent assembly,

installation, rigging, and operation of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

ADJ Products, LLC - www.adj.com - Dotz TPar System User Manual Page 3

• 4 x COB LED Par Wash Fixtures

1 x Foot Controller

1 x Lighting Stand

1 x RF Remote Control

1 x Stand Bag

1 x Soft Case for Lighting System

• RGB Color Mixing

• Strobing

• Electronic Dimming 0-100%

• Built in Microphone

• DMX-512 protocol

• Five DMX Modes: 3 Channel Mode, 5 Channel Mode, 9 Channel

Mode, 12 Channel Mode, & 18 Channel Mode

• 4 Operating Modes - Sound Active, Auto Run, Built-In Programs,

or DMX Control

• Power Cord Daisy Chaining (See Page 22)

Dotz TPar System Warranty Registration

The Dotz TPar System 2 year (730 days) limited warranty. carries a

Please fill out the enclosed warranty card to validate your purchase

and warranty. You may also register your product online at www.

americandj.com. All returned service items whether under warranty or

not, must be freight pre-paid and accompany a return authorization

(R.A.) umber. If the unit is under warranty you must provide an copy

of your proof of purchase invoice. Please contact ADJ Products, LLC

customer support for a R.A. number.

Dotz TPar System Features

To optimize the performance of this product, please read these operat-

ing instructions carefully to familiarize yourself with the basic operations

of this unit. These instructions contain important safety information

regarding the use and maintenance of this unit. Please keep this manual

with the unit, for future reference.

Dotz TPar System General Instructions Dotz TPar System Introduction

ADJ Products, LLC - www.adj.com - Dotz TPar System User Manual Page 2

Unpacking: Thank you for purchasing the Dotz TPar System by ADJ

Products, LLC. Every Dotz TPar System has been thoroughly tested

and has been shipped in perfect operating condition. Carefully check

the shipping carton for damage that may have occurred during ship-

ping. If the carton appears to be damaged, carefully inspect your x-

ture for any damage and be sure all accessories necessary to operate

the unit has arrived intact. In the case damage has been found or parts

are missing, please contact our toll free customer support number for

further instructions. Do not return this unit to your dealer without rst

contacting customer support.

Introduction: The Dotz TPar System is part of ADJ’s continuing pur-

suit for creating high quality affordable intelligent fixtures. The Dotz

TPar System is a high performance, DMX intelligent, moving head LED

fixture. This fixture is a great piece for retail stores, displays, mood,

architectural, interior and exterior decoration, and clubs. This unit can

be used as a stand alone, or in a Master/Slave conguration. The unit

can also be controlled via DMX controller. This fixture is suitable for

theaters, studios, retail stores, and other similar locations.

Customer Support: ADJ Products, LLC provides a toll free cus-

tomer support line, to provide set up help and to answer any question

should you encounter problems during your set up or initial operation.

You may also visit us on the web at www.adj.com for any comments

or suggestions. Service Hours are Monday through Friday 8:00 a.m. to

4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

Power Supply: The ADJ Dotz TPar System contains a automatic volt-

age switch, which will auto sense the voltage when it is plugged into

a power source. With this switch there is no need to worry about the

correct power voltage, this unit can be plugged in anywhere. Always

use the PowerCon cord that came with the unit.

DMX-512: DMX is short for Digital Multiplex. This is a universal pro-

tocol used as a form of communication between intelligent fixtures

and controllers. A DMX controller sends DMX data instructions from

the controller to the fixture. DMX data is sent as serial data that trav-

els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter-

minals located on all DMX fixtures (most controllers only have a DATA

“OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of

dierent manufactures to be linked together and operate from a single

controller, as long as all xtures and the controller are DMX compli-

ant. To ensure proper DMX data transmission, when using several

DMX fixtures try to use the shortest cable path possible. The order

in which fixtures are connected in a DMX line does not influence the

DMX addressing. For example; a fixture assigned a DMX address of 1

may be placed anywhere in a DMX line, at the beginning, at the end,

or anywhere in the middle. When a fixture is assigned a DMX address

of 1, the DMX controller knows to send DATA assigned to address 1

to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation):

The Dotz TPar System can be controlled via DMX-512 protocol. The

Dotz TPar System has 5 DMX Channel Modes. The DMX address is set

on the rear panel of the Dotz TPar System. Your unit and your DMX con-

troller require a approved DMX-512 110 Ohm Data cable for data input

and data output (Figure 1). We recommend Accu-

Cable DMX cables. If you are making your own

cables, be sure to use standard 110-120 Ohm

shielded cable (This cable may be purchased

at almost all professional sound and lighting

stores). Your cables should be made with a male

and female XLR connector on either end of the

cable. Also remember that DMX cable must be

daisy chained and cannot be split.

ADJ Products, LLC - www.adj.com - Dotz TPar System User Manual Page 5

Dotz TPar System Set Up

Figure 1

Dotz TPar System Safety Precautions

ADJ Products, LLC - www.adj.com - Dotz TPar System User Manual Page 4

• To reduce the risk of electrical shock or re, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required volt-

age for your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken. Do not attempt to remove or break o the ground

prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out`

doors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by

t he manufacturer. See page 24 for cleaning details.

• Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances (inclu-

d ing amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a

marked change in performance.
