Sida 1/18

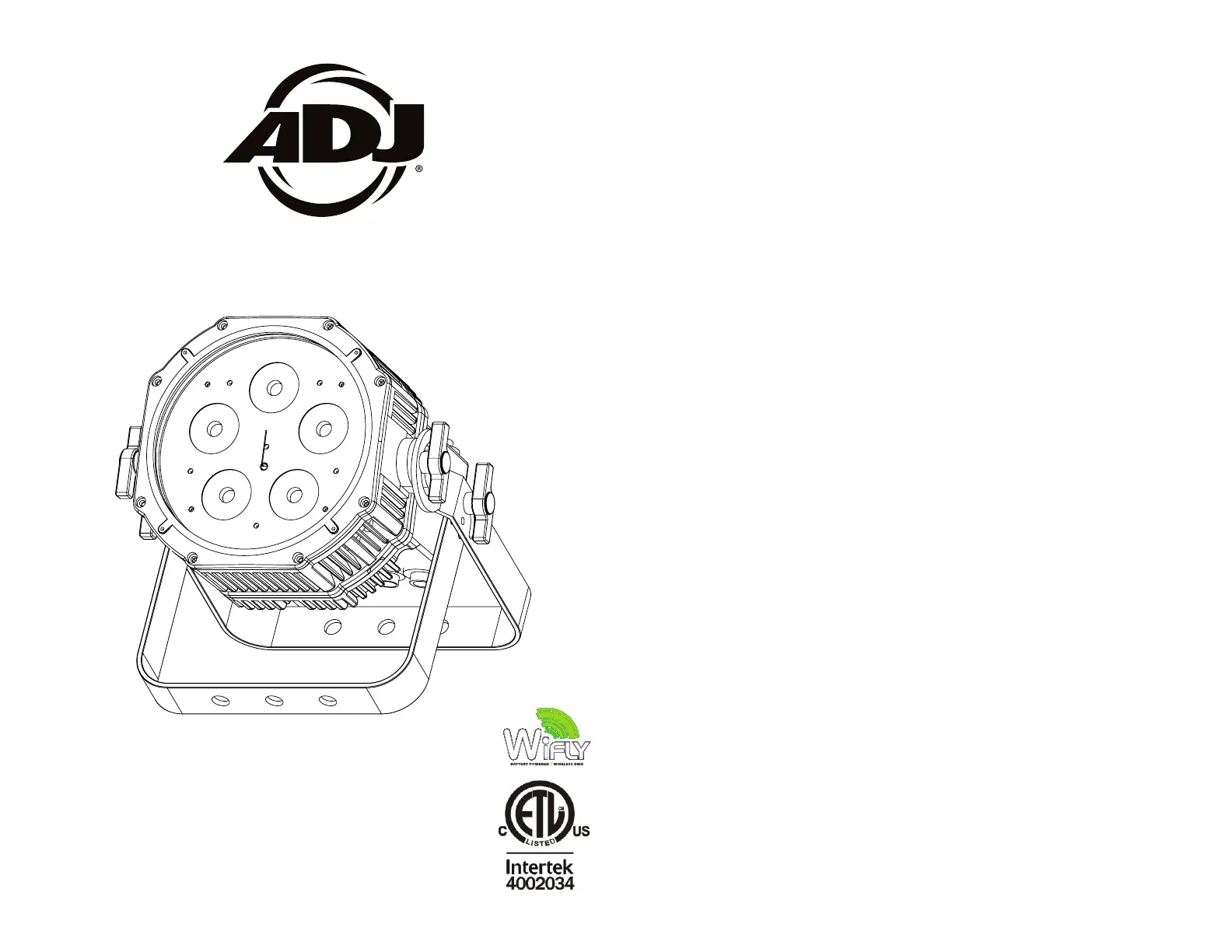

User Instructions
Rev. 8/15
©2015 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building, and
electrical damages, injuries to any persons, and direct or indi-
rect economic loss associated with the use or reliance of any
information contained within this document, and/or as a result
of the improper, unsafe, unsucient and negligent assembly,
installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
WiFLY EXR QA5 IP
ADJ Products, LLC - www.adj.com - WiFly EXR QA5 IP User Manual Page 3
• Rechargeable Lithium Battery
• Multi-Colors
• Six Operating Modes
• Electronic Dimming 0-100%
• Built in Microphone
• DMX-512 protocol
• 3-Pin DMX Connection
• 5 DMX Channel Modes: 4 Channel Mode, 5 Channel Mode, 6
Channel Mode, 10 Channel Mode, & 11 Channel Mode
• Built-In ADJ’s WiFly TransCeiver Wireless DMX
• ADJ RFC compatiable (Not Included)
• Power Cord Daisy Chain (See page 32)
WiFly EXR QA5 IP Warranty Registration
WiFly EXR QA5 IP Features
The WiFly EXR QA5 IP 2 year limited warranty. Please fill out carries a
the enclosed warranty card to validate your purchase. All returned
service items whether under warranty or not, must be freight pre-paid
and accompany a return authorization (R.A.) number. The R.A. number
must be clearly written on the outside of the return package. A brief
description of the problem as well as the R.A. number must also be
written down on a piece of paper included in the shipping carton. If
the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain a R.A. number by contacting our
customer support team on our customer support number. All pack-
ages returned to the service department not displaying a R.A. number
on the outside of the package will be returned to the shipper.
The unit should be mounted using a mounting clamp (not provided),
axing it to the mounting bracket that is provided with the unit.
Always ensure that the unit is rmly xed to avoid vibration and slip-
ping while operating. Always ensure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10
times the unit’s weight. Also, always use a safety cable that can hold
12 times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be
installed in a place where it is out of the reach of people’s grasp.
WiFly EXR QA5 IP Installation
WiFly EXR QA5 IP Introduction
ADJ Products, LLC - www.adj.com - WiFly EXR QA5 IP User Manual Page 2
Unpacking: Thank you for purchasing the WiFly EXR QA5 IP by ADJ
Products, LLC. Every WiFly EXR QA5 IP has been thoroughly tested
and has been shipped in perfect operating condition. Carefully check
the shipping carton for damage that may have occurred during ship-
ping. If the carton appears to be damaged, carefully inspect your x-
ture for any damage and be sure all accessories necessary to operate
the unit has arrived intact. In the case damage has been found or parts
are missing, please contact our toll free customer support number for
further instructions. Do not return this unit to your dealer without rst
contacting customer support.
Introduction: The WiFly EXR QA5 IP is a rechargeable lithium battery
powered, DMX intelligent, LED par fixture with ADJ’s WiFly TransCeiver
with wireless DMX built-in. This unit give you the freedom to set up
your fixture where ever you wish without the restrictions of power or
DMX cabling. The built-in battery will keep charge for up to 6 hours (full
on) from a full, single charge. This xture can be used in a stand alone
mode or connected in a Master/Slave conguration. This wash has six
operating modes: Color Fade mode, Color Change mode, Auto mode,
RGBA Dimmer mode, Static Color mode, and DMX control mode.
Customer Support: ADJ Products, LLC provides a customer support
line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.adj.com for any comments or sugges-
tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@AmericanDJ.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do
not attempt any repairs yourself, doing so will void your manufac-
tures warranty. In the unlikely event your unit may require service
please contact ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.
ADJ Products, LLC - www.adj.com - WiFly EXR QA5 IP User Manual Page 5
WiFly EXR QA5 IP Safety Precautions
ADJ Products, LLC - www.adj.com - WiFly EXR QA5 IP User Manual Page 4
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break o the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 32 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu-
d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
WiFly EXR QA5 IP IP Notice
IP65 RATED
An IP rated lighting fixture is one, which is commonly installed in outdoor
environments and has been designed with an enclosure that effectively
protects the ingress (entry) of external foreign objects such as dust and water.
The International Protection (IP) rating system is commonly expressed as "IP"
(Ingress Protection) followed by two numbers (i.e. IP65) where the numbers
define the degree of protection. The first digit (Foreign Bodies Protection)
indicates the extent of protection against particles entering the fixture and
the second digit (Water Protection) indicates the extent of protection against
water entering the fixture. An IP65 rated lighting fixture is one, which has been
designed and tested to protect against the ingress of dust (6) and high-
pressure water jets from any direction (5).
M A R I N E / C O A S T A L E N V I R O N M E N T I N S T A L L A T I O N S !
Please note although this fixture is IP rated, the fixture is suitable for NOT
marine and/or coastal environment installations. Installing this fixture in a
marine and/or coastal environment may cause corrosion and/or excessive
wear to the interior and/or exterior components of the fixture. Damages
and/or performance issues resulting from installation in a marine and/or
coastal environment will void the manufactures warranty and will NOT be
subject to any warranty claims and/or repairs.
Ensure ALL connections and end caps are properly sealed with a non-
conductive dielectric grease (available at most electrical suppliers) to
prevent water ingress/condensation and/or corrosion.
O P T I O N A L C O R R O S I O N - R E S I S T A N T C O A T I N G
Optional Corrosion-Resistant Coatings may be available for this fixture
