Sida 1/86
User Manual
UNO-148 Industrial PC
Intel® UP3 Processor
Automation Computer, with 3 x
LAN, 4 x COM, 3 x USB 3.2 Gen
2, 1 x USB 2.0, 2 x DP 1.4, 8DI/
8DO, 1 x mPCIe, 1 x M.2 B-Key, 1
x M.2 M-Key, 1 x M.2 E-Key, 1 x
Nano SIM Slot and TPM 2.0
UNO-148 User Manual ii
Copyright
The documentation and the software included with this product are copyrighted 2022
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements to the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated, or transmitted
in any form or by any means without the prior written permission of Advantech Co.,
Ltd. The information provided in this manual is intended to be accurate and reliable.
However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any
infringements of the rights of third parties that may result from its use.
Acknowledgments
IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines Cor-
poration.
Intel®, Core™ and Atom™ are trademarks of Intel® Corporation.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
Support
For more information on this and other Advantech products, please visit our website
at http://www.advantech.com
For technical support services, please visit our support website at http://sup-
port.advantech.com/
This manual applies to the following models. These are abbreviated as UNO-148
products in this article.
*Model name
UNO-148
UNO148B
*Part numbers:
UNO-148-B73BA/UNO-148-B53BA/UNO-148-B33BA
UNO-148-B73BI/UNO-148-B53BI/UNO-148-B33BI
UNO148B73B2101-T UNO148B73B2102-T UNO148B73B2103-T
UNO148B73B2201-T UNO148B73B2202-T UNO148B73B2203-T
UNO148B73B2204-T UNO148B73B2205-T UNO148B73B2206-T
UNO148B73B2207-T UNO148B73B2208-T UNO148B73B2209-T
UNO148B73B2301-T UNO148B73B2302-T UNO148B73B2303-T
UNO148B73B2304-T UNO148B73B2305-T UNO148B73B2306-T
UNO148B73B2307-T UNO148B73B2308-T UNO148B73B2309-T
UNO148B73B2401-T UNO148B73B2402-T UNO148B73B2403-T
UNO148B73B2404-T UNO148B73B2405-T UNO148B73B2406-T
UNO148B73B2501-T UNO148B73B2502-T UNO148B73B2503-T
UNO148B53B2101-T UNO148B53B2102-T UNO148B53B2103-T
UNO148B53B2201-T UNO148B53B2202-T UNO148B53B2203-T
UNO148B53B2204-T UNO148B53B2205-T UNO148B33B2206-T
UNO148B53B2207-T UNO148B53B2208-T UNO148B53B2209-T
iii UNO-148 User Manual
UNO148B53B2301-T UNO148B53B2302-T UNO148B53B2303-T
UNO148B53B2304-T UNO148B33B2305-T UNO148B53B2306-T
UNO148B53B2307-T UNO148B33B2308-T UNO148B53B2309-T
UNO148B53B2401-T UNO148B53B2402-T UNO148B53B2403-T
UNO148B53B2404-T UNO148B53B2405-T UNO148B53B2406-T
UNO148B53B2501-T UNO148B53B2502-T UNO148B53B2503-T
UNO148B33B2101-T UNO148B33B2102-T UNO148B33B2103-T
UNO148B33B2201-T UNO148B33B2202-T UNO148B33B2203-T
UNO148B33B2204-T UNO148B33B2205-T UNO148B53B2206-T
UNO148B33B2207-T UNO148B33B2208-T UNO148B33B2209-T
UNO148B33B2301-T UNO148B33B2302-T UNO148B33B2303-T
UNO148B33B2304-T UNO148B53B2305-T UNO148B33B2306-T
UNO148B33B2307-T UNO148B53B2308-T UNO148B33B2309-T
UNO148B33B2401-T UNO148B33B2402-T UNO148B33B2403-T
UNO148B33B2404-T UNO148B33B2405-T UNO148B33B2406-T
UNO148B33B2501-T UNO148B33B2502-T UNO148B33B2503-T
Product Warranty (2 years)
Advantech warrants the original purchaser that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products that have been repaired or altered by
persons other than repair personnel authorized by Advantech, or products that have
been subject to misuse, abuse, accident, or improper installation. Advantech
assumes no liability under the terms of this warranty as a consequence of such
events.
Because of Advantech’s high quality-control standards and rigorous testing, most
customers never need to use our repair service. If an Advantech product is defective,
it will be repaired or replaced free of charge during the warranty period. For out-of-
warranty repairs, customers will be billed according to the cost of replacement mate-
rials, service time, and freight. Please consult your dealer for more details.
If you believe your product to be defective, follow the steps outlined below.
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any on-screen messages displayed when the prob-
lem occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain a return merchandise authori-
zation (RMA) number from your dealer. This allows us to process your return
more quickly.
4. Carefully pack the defective product, a completed Repair and Replacement
Order Card, and a proof of purchase date (such as a photocopy of your sales
receipt) into a shippable container. Products returned without a proof of pur-
chase date are not eligible for warranty service.
5. Write the RMA number clearly on the outside of the package and ship the pack-
age prepaid to your dealer.
UNO-148 User Manual iv
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications when shielded
cables are used for external wiring. We recommend the use of shielded cables. This
type of cable is available from Advantech. Please contact your local supplier for
ordering information.
Test criteria also include the equipment being operated within an industrial enclosure.
In order to protect the product from damage caused by electrostatic discharge (ESD)
and EMI leakage, we strongly recommend the use of CE-compliant industrial enclo-
sure products.
FCC Class A
This equipment has been tested and found to comply with the limits for a Class A dig-
ital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Opera-
tion of this equipment in a residential area is likely to cause harmful interference. In
this event, users are required to correct the interference at their own expense.
甲類資訊技術設備
甲類資訊技術設備
甲類資訊技術設備
甲類資訊技術設備甲類資訊技術設備
甲類設備為其他符合甲類設備限制值之資訊技術設備，而非符合乙類資訊技術設備的
限制值；雖然不可限制此類設備之行銷，但使用場所必須被限制，不得進行居住的環
境中，且應於其機器本體及使用說明書中含有下列警語:
Technical Support and Assistance
1. Visit the Advantech website at www.advantech.com/support to obtain the latest
product information.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical support if you need additional assistance. Please have the
following information ready before calling:
–Product name and serial number
–Description of your peripheral attachments
–Description of your software (operating system, version, application software,
etc.)
–A complete description of the problem
–The exact wording of any error messages
Part No. 2003014821 Edition 2
Printed in Taiwan May 2023
v UNO-148 User Manual
Safety Precautions - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from
damage.
To avoid electrical shock, always disconnect the power from the PC chassis
before manual handling. Do not touch any components on the CPU card or
other cards while the PC is powered on.
Disconnect the power before making any configuration changes. A sudden rush
of power after connecting a jumper or installing a card may damage sensitive
electronic components.
Safety Instructions
1. Read these safety instructions carefully.
2. Retain this user manual for future reference.
3. Disconnect the equipment from all power outlets before cleaning. Use only a
damp cloth. Do not use liquid or spray detergents.
4. For pluggable equipment, the power outlet socket must be located near the
equipment and be easily accessible.
5. Protect the equipment from humidity.
6. Place the equipment on a reliable surface during installation. Dropping or letting
the equipment fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. Do not cover the openings.
8. Ensure that the voltage of the power source is correct before connecting the
equipment to a power outlet.
9. Position the power cord away from high-traffic areas. Do not place anything over
the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage from transient overvoltage.
12. Never pour liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If any of the following occurs, have the equipment checked by service person-
nel:
–The power cord or plug is damaged.
–Liquid has penetrated the equipment.
–The equipment has been exposed to moisture.
–The equipment is malfunctioning, or does not operate according to the user
manual.
–The equipment has been dropped and damaged.
–The equipment shows obvious signs of breakage.
15. Do not leave the equipment in an environment with a storage temperature of
below -20 °C (-4 °F) or above 60 °C (140 °F) as this may damage the compo-
nents. The equipment should be kept in a controlled environment.
16. CAUTION: Batteries are at risk of exploding if incorrectly replaced. Replace only
with the same or equivalent type as recommended by the manufacturer. Discard
used batteries according to the manufacturer’s instructions.
17. In accordance with IEC 704-1:1982 specifications, the sound pressure level at
the operator’s position should not exceed 70 dB (A).
UNO-148 User Manual vi
18. This product is intended to be supplied by a UL-certified power supply or DC
source with SELV output, rated 10 VDC, 7.7 A, with a minimum TMA of 40 °C. If
you need further assistance, please contact Advantech for further information.
19. Ensure that the voltage of the power source is correct before connecting the
equipment to a power outlet. The power outlet socket should have a grounded
connection.
20. This equipment is for use in indoor, pollution-free environments.
21. This equipment is not suitable for use in locations where children are likely to be
present.
22. If the equipment is used in a manner not specified by Advantech, the protection
provided by the equipment may be impaired.
23. The equipment contains no user-serviceable parts. Do not open. Return to the
manufacturer for servicing.
24. Do not block air ventilation holes.
25. This is open-type equipment and should be installed in a suitable enclosure.
DISCLAIMER: These instructions are provided according to IEC 704-1 standards.
Advantech disclaims all responsibility for the accuracy of any statements contained
herein.
Consignes de sécurité
1. Lire attentivement les instructions de sécurité.
2. Conserver ce manuel pour utilisation ultérieure,
3. Débranchez cet équipement de toute prise secteur avant le nettoyer. Utilisez
seulement un chiffon humide. N'utilisez pas de détergent liquide ou pulvérisé
pour le nettoyage.
4. Gardez cet équipement à l'abri de l'humidité.
5. Placez cet équipement sur une surface fiable pendant l'installation. Le faire ou
bien le laisser tomber peut causer des dégâts.
6. Les ouvertures sur l'enceinte servent à la convection de l'air. Protégez l'équipe-
ment contre surchauffe. NE COUVREZ PAS LES OUVERTURES.
7. Assurez-vous que la tension de la source d'alimentation est correcte avant de
connecter l'équipement à une prise de courant. La prise de courant doit avoir
une connexion à la terre.
8. Placez le câble d'alimentation de manière à ce que personne ne puisse marcher
dessus. Ne placez rien sur le câble d'alimentation.
9. Toutes les mises en garde et tous les avertissements sur l'équipement doivent
être notés.
10. Si l'équipement n'est pas utilisé pendant une longue période, débranchez-le de
la source d'alimentation pour éviter tout endommagement dû à une surtension
transitoire.
11. Ne jamais verser de liquide dans une ouverture. Cela pourrait provoquer un
incendie ou un choc électrique.
12. N'ouvrez jamais l'équipement. Pour des raisons de sécurité, l'équipement doit
être ouvert uniquement par du personnel qualifié.
13. Si l'une des situations suivantes se présente, faites vérifier l'équipement par le
personnel de service:
Un liquide a pénétré dans l'équipment.
L'équipement a été exposé à l'humidité.
L'équipement ne fonctionne pas bien, ou vous ne pouvez pas le faire
fonctionner selon le manuel de l'utilisateur.
vii UNO-148 User Manual
L'équipement est tombé et endommagé.
L'équipement présente des signes évidents de rupture.
14. NE LAISSEZ PAS CET ÉQUIPEMENT DANS UN ENVIRONNEMENT OU LA
TEMPÉRATURE DE STOCKAGE PEUT ÊTRE INFÉRIEURE À -40 °C (-4 °F)
OU BIEN SUPÉRIEURE À 70 °C (158 °F). CECI POURRAIT ENDOMMAGER
L'EQUIPEMENT. L'ÉQUIPEMENT DEVRAIT ÊTRE DANS UN ENVIRONNE-
MENT CONTRÔLÉ.
15. Ce produit est destiné à être alimenté par une source d'alimentation certifiée UL
ou par une source cc convenant à une utilisation à une température minimale
de 40 degrés Celsius, dont la sortie est conforme à la norme SELV et dont la
puissance nominale est de 10 VDC, 7.7 A, en cas de besoin. contactez Advant-
ech pour plus d'informations.
16. Pour une utilisation dans des environnements non polluant et à l'intérieur.
17. C'est appareil ne doit pas être utilisé dans des endroits où se trouvent des
enfants.
18. Si l'équipement est utilisé d'une manière non spécifiée par le fabricant, la pro-
tection fournie par l'équipement peut être altéré.
19. L'équipement ne contient aucune pièce réparable par l'utilisateur. Ne pas ouvrir,
retourner au fabricant pour réparation.
20. Ne bloquez pas les ou es de ventilation.
21. Il s'agit d'un équipement de type ouvert et doit être installé dans un boîtier
approprié.
ATTENTION: Danger d'explosion si la batterie est mal remplace. Remplacer unique-
ment par le meme type ou equivalent recommandé par le fabricant. Jeter les piles
usagées selon les instructions du fabricant.
安全指示
安全指示
安全指示
安全指示安全指示
1. 請仔細閱讀此安全操作說明。
2. 請妥善保存此用戶手冊供日後參考。
3. 用濕抹布清洗設備前，請確認拔除電源線。請勿使用液體或去污噴霧劑清洗設
備。
4. 對於使用電源線的設備，設備周圍必須有容易接觸到的電源插座。
5. 請勿在潮濕環境中試用設備。
6. 請在安裝前確保設備放置在可靠的平面上，意外摔落可能會導致設備損壞。
7. 設備機殼的開孔適用於空氣對，從而防止設備過熱。請勿覆蓋開孔。
8. 當您連接設備到電源插座前，請確認電源插座的電壓符合要求。
9. 請將電源線佈置在人們不易絆倒的位置，請勿在電源線上覆蓋任何雜物。
10. 請注意設備上所有的警告標示。
11. 如果長時間不使用設備，請拔除與電源插座的連結，避免設備被超標的電壓波動
損壞。
12. 請勿讓任何液體流入通風口，以免引起火灾或短路。
13. 請勿自行打開設備。為了確保您的安全，請透過經認證的工程師來打開設備。
14. 如遇下列情况，請由專業人員維修：
電源線或插頭損壞；
設備內部有液體流入；
設備曾暴露在過度潮濕環境中使用；
設備無法正常工作，或您無法透過用戶手冊來正常工作；
設備摔落或損壞；
設備有明顯外觀損；
UNO-148 User Manual viii
15. 請勿將設備放置在超出建議溫度範圍的環境，即不要低於 -40 C （-40 ° °F）或
高於 60 C （140 ° °F），否則可能會造成設備損壞。
16. 注意：若電池更換不正確，將有爆炸危險。因此，只可以使用製造商推薦的同一
種或者同等型號的電池進行替換。請按照製造商的指示處理舊電池。
17. 根據 IEC 704‐1:1982 規定，操作員所在位置音量不可高於 70 分貝。
18. 限制區域：請勿將設備安裝於限制區域使用。
19. 免責聲明：請安全訓示符合 IEC 704‐1 要求。研華公司對其內容之準確性不承
擔任何法律責任。
20. 消费者若使用电源适配器供电，则应购买配套使用获得 CCC 认证并满足标准要
求的电源适配器。
1 UNO-148 User Manual
Contents
Chapter 1 Overview...............................................1
1.1 Introduction ............................................................................................... 2
1.2 Safety Precautions .................................................................................... 2
1.3 Packing List............................................................................................... 2
1.4 Hardware Specifications ........................................................................... 3
1.4.1 General ......................................................................................... 3
1.4.2 System Hardware ......................................................................... 3
1.4.3 I/O Interfaces ................................................................................ 4
1.4.4 Environment.................................................................................. 4
1.4.5 Certification ................................................................................... 4
1.4.6 Extension Kit (Optional) ................................................................ 5
1.5 Dimensions ............................................................................................... 6
Figure 1.1 UNO-148 Dimensions................................................. 6
Figure 1.2 UNO-148 Dimensions (With UNO-148-IS2EA Optional
Extension Kit)) ............................................................ 6
Figure 1.3 UNO-148 Dimensions (With UNO-148-ID1EA Optional
Extension Kit) ............................................................. 7
Figure 1.4 UNO-148 Dimensions (With UNO-148-ID1EA Optional
Extension Kit) ............................................................. 7
Chapter 2 Hardware Functionality.......................9
2.1 Introduction ............................................................................................. 10

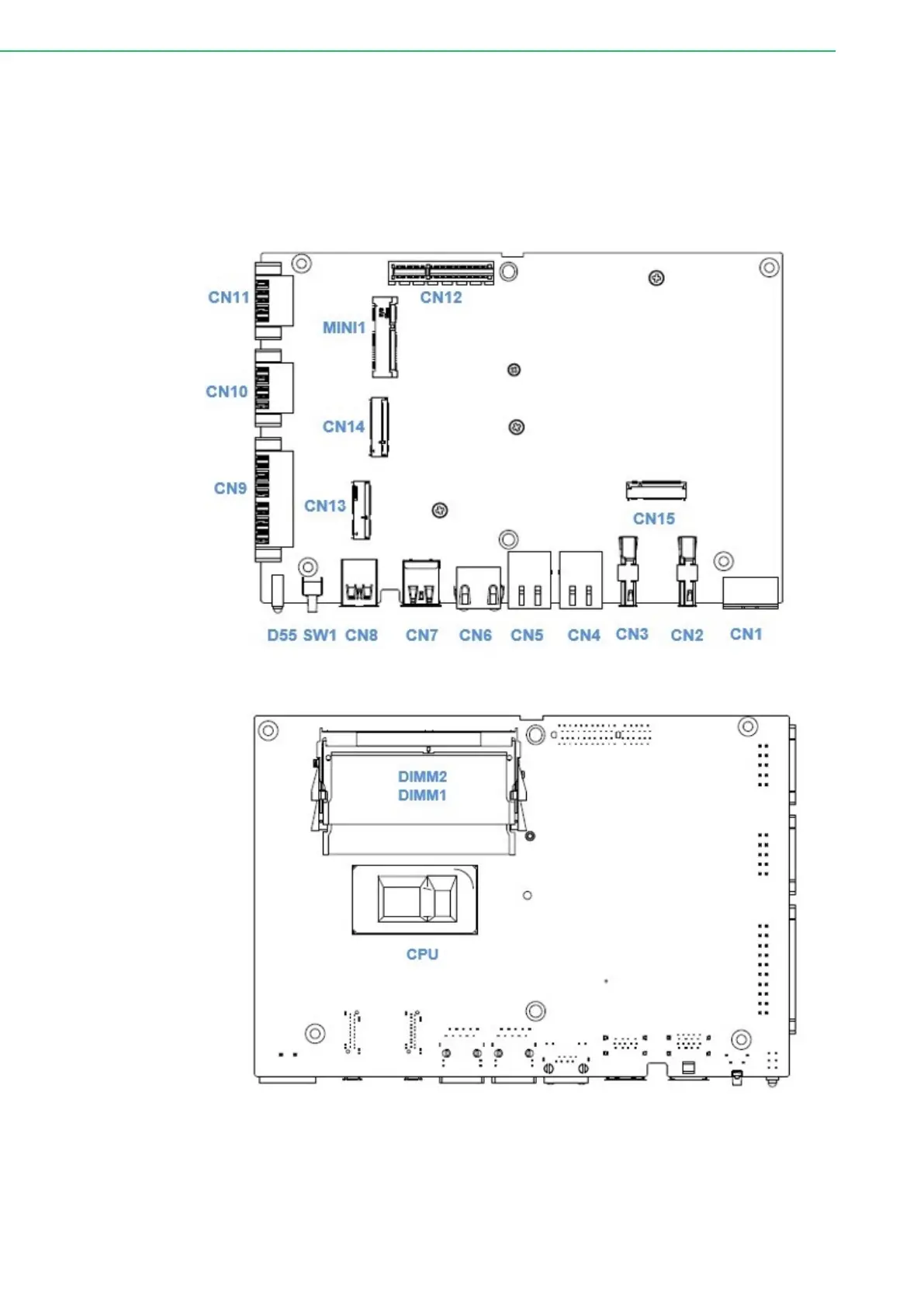

Figure 2.1 Diagram of Connector Locations on UNO-148 (Top
Side) ......................................................................... 10
Figure 2.2 Key Component Locations on UNO-148 (Bottom Side)
10
Table 2.1: Key Components, Connectors Onboard................... 11
2.2 External I/O Connector............................................................................ 12
2.2.1 UNO-148 Base Unit .................................................................... 12

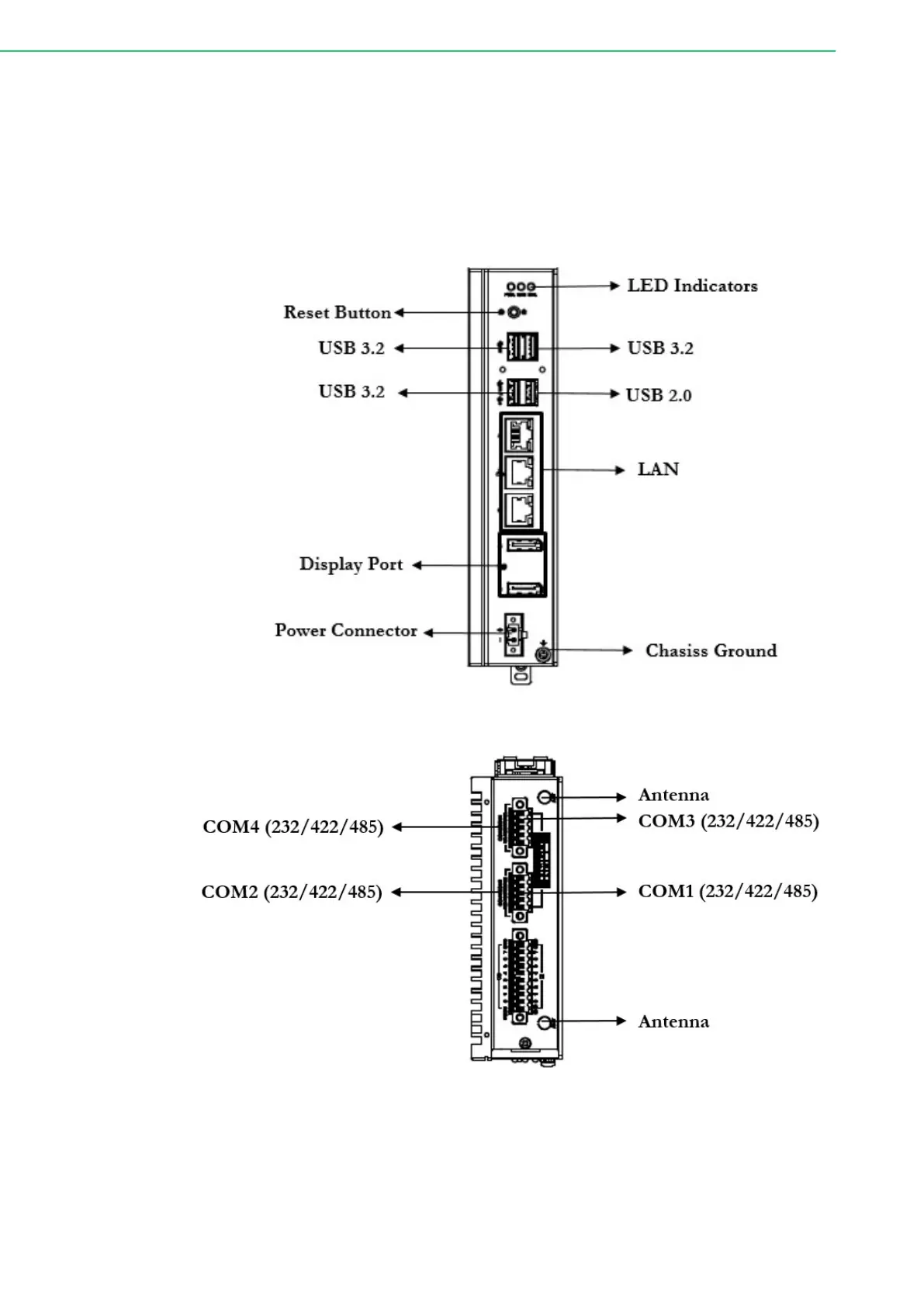

Figure 2.3 Front Panel of UNO-148........................................... 12
Figure 2.4 Top View of UNO-148 .............................................. 12
2.2.2 UNO-148 Base Unit with UNO-148-IS2EA Expansion Unit (1 x
iDoor and 1 x 2.5” SSD/HDD) ..................................................... 13
Figure 2.5 Front Panel of UNO-148........................................... 13
Figure 2.6 Top View of UNO-148 .............................................. 13
2.2.3 UNO-148 Base Unit with UNO-148-ID1EA Expansion Unit (iDoor x
1)................................................................................................. 14

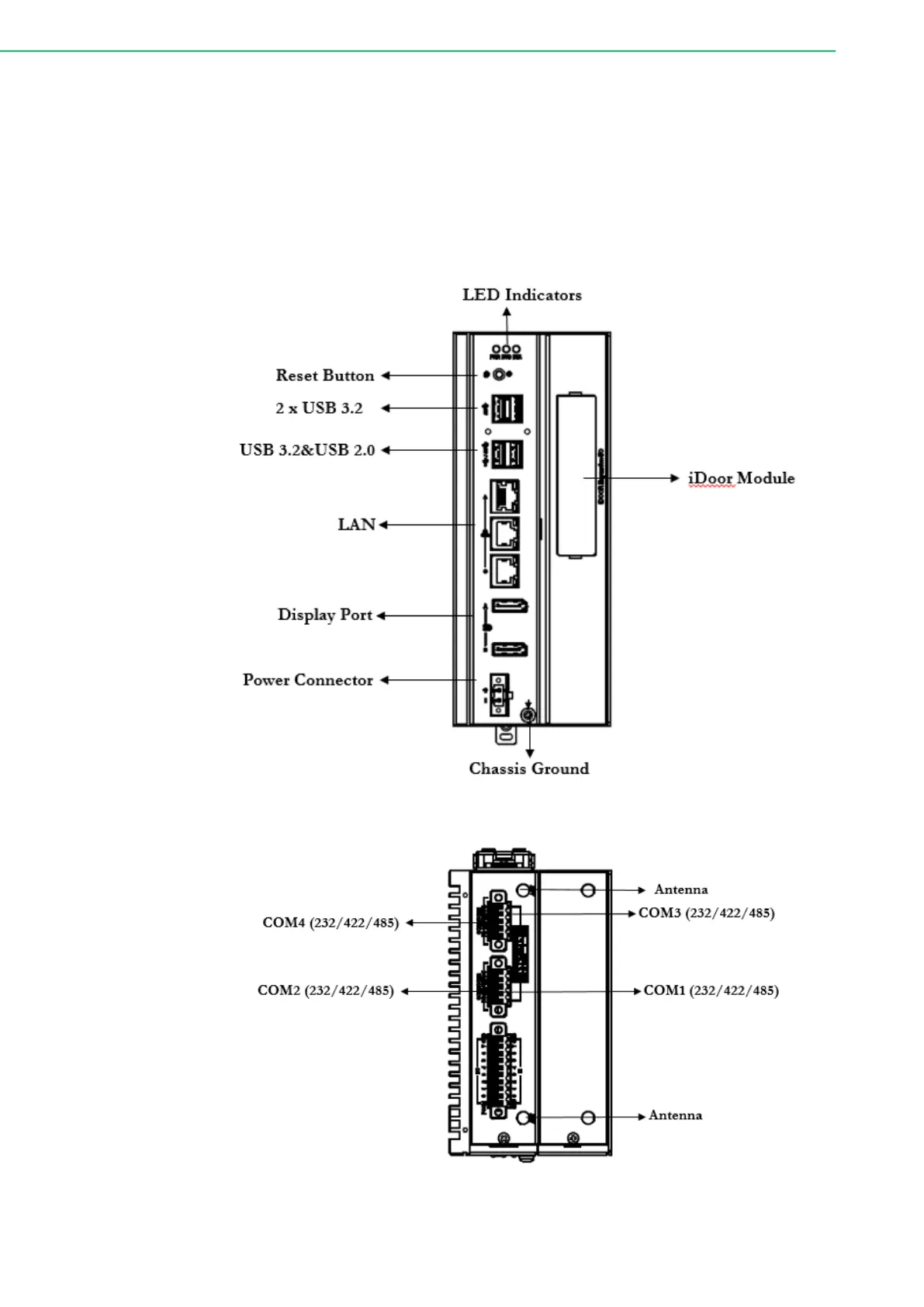

Figure 2.7 Front Panel of UNO-148........................................... 14
Figure 2.8 Top View of UNO-148 .............................................. 14
2.2.4 UNO-148 Base Unit with UNO-148-P11EA Expansion Unit (1 x
PCIe p9-x4 expansion)..................................................................... 15

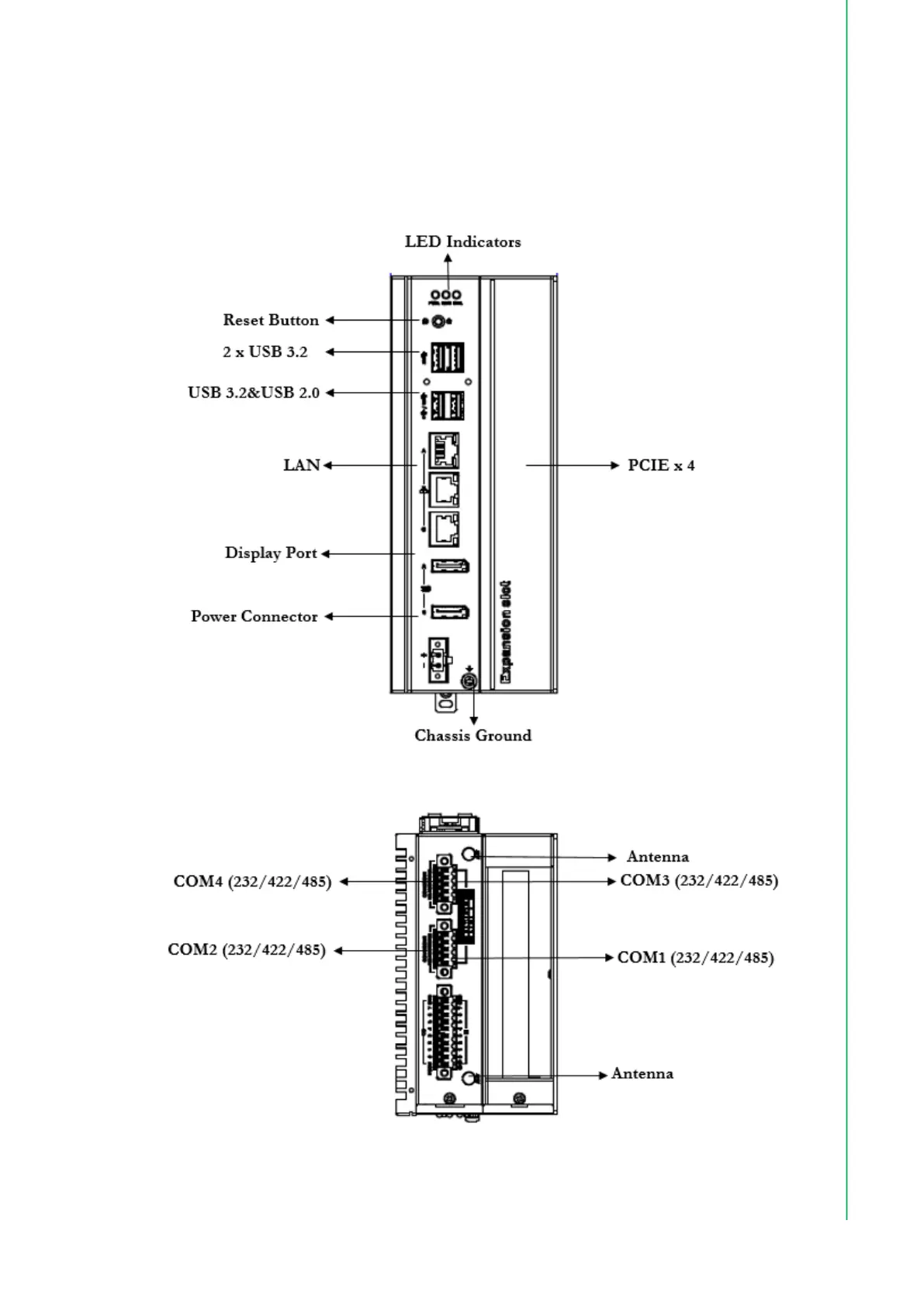

Figure 2.9 Front Panel of UNO-148........................................... 15
Figure 2.10Top View of UNO-148 .............................................. 15
2.2.5 Power Connector ........................................................................ 16
2.2.6 LAN: Ethernet Connectors .......................................................... 16
2.2.7 USB Connectors ......................................................................... 16
2.2.8 Display Connectors..................................................................... 16
2.2.9 COM Connector .......................................................................... 17

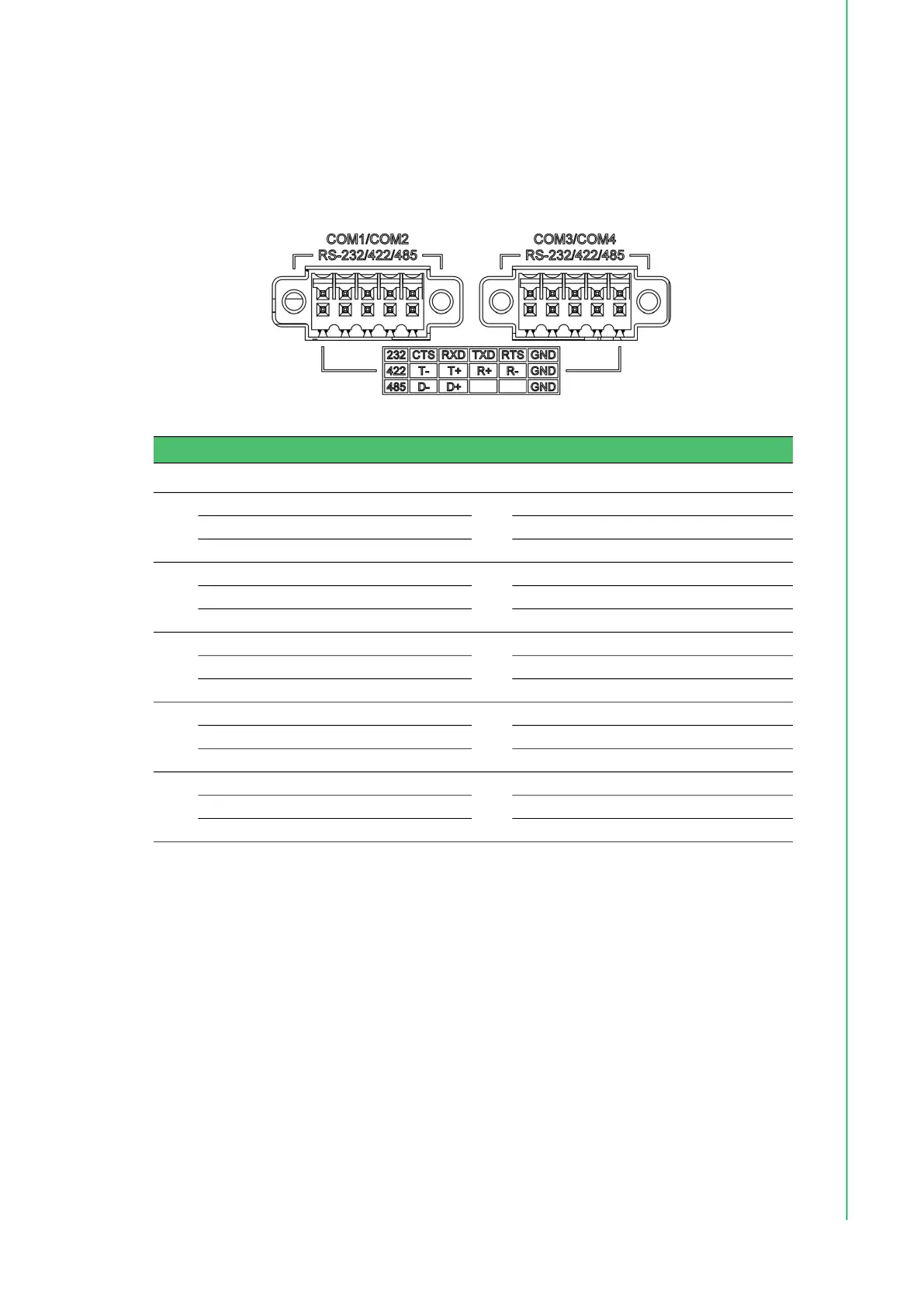

Table 2.2: COM Connector Pin Assignments............................ 17

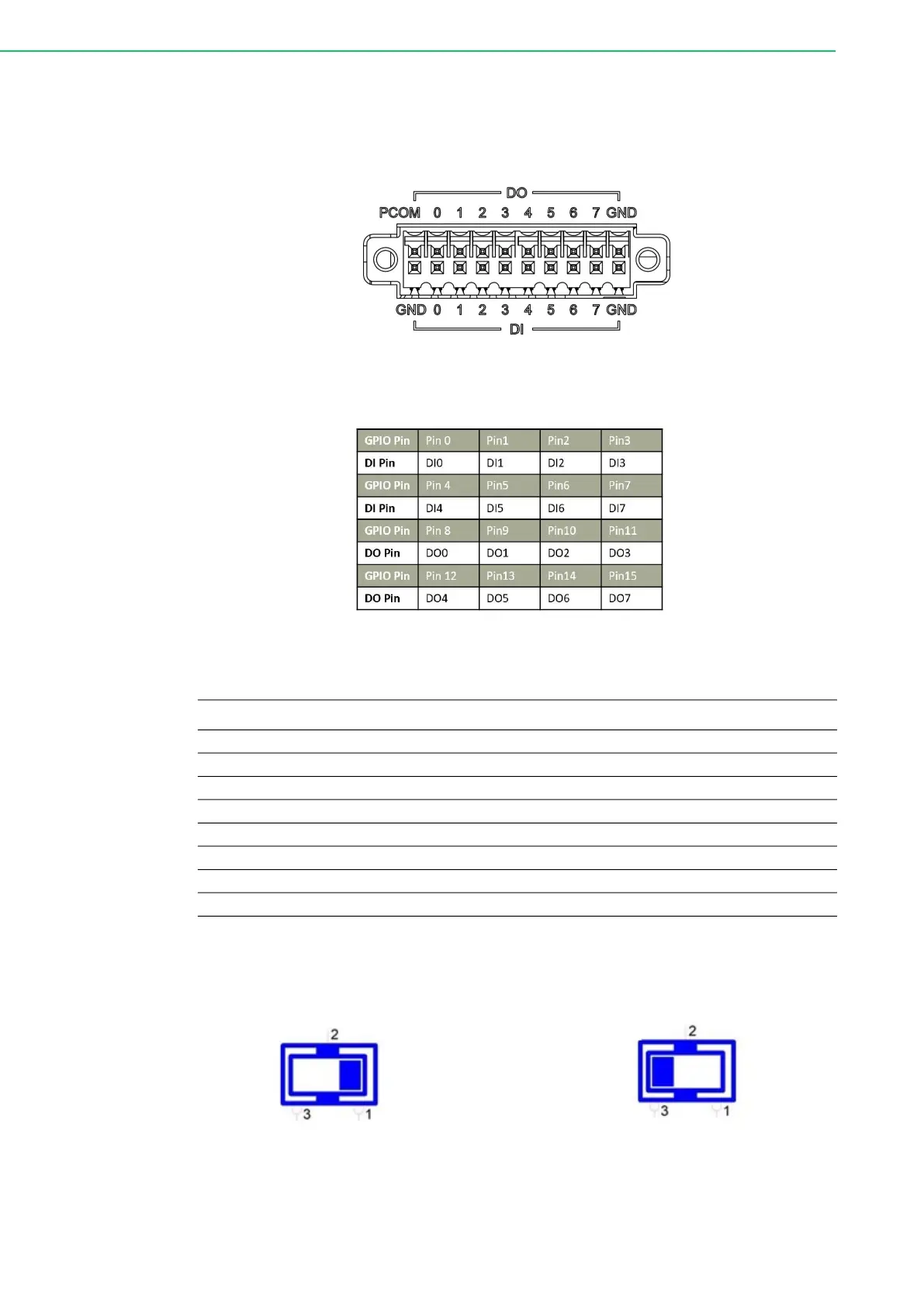

2.2.10 Digital Inputs and Outputs........................................................... 18

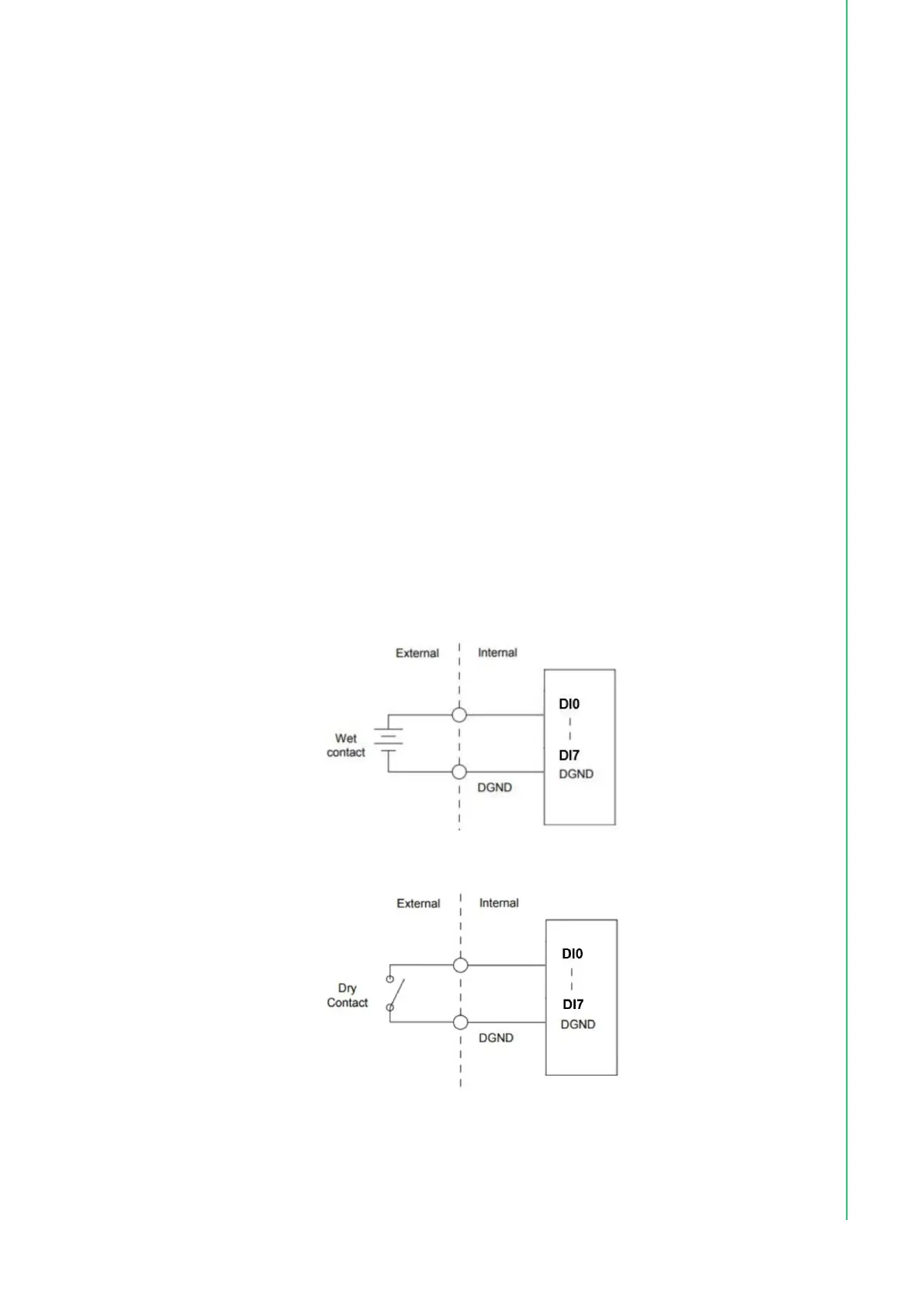

Figure 2.11Isolated DI Wet Connection Diagram ....................... 19
Figure 2.12Isolated DI Dry Connection Diagram ........................ 19

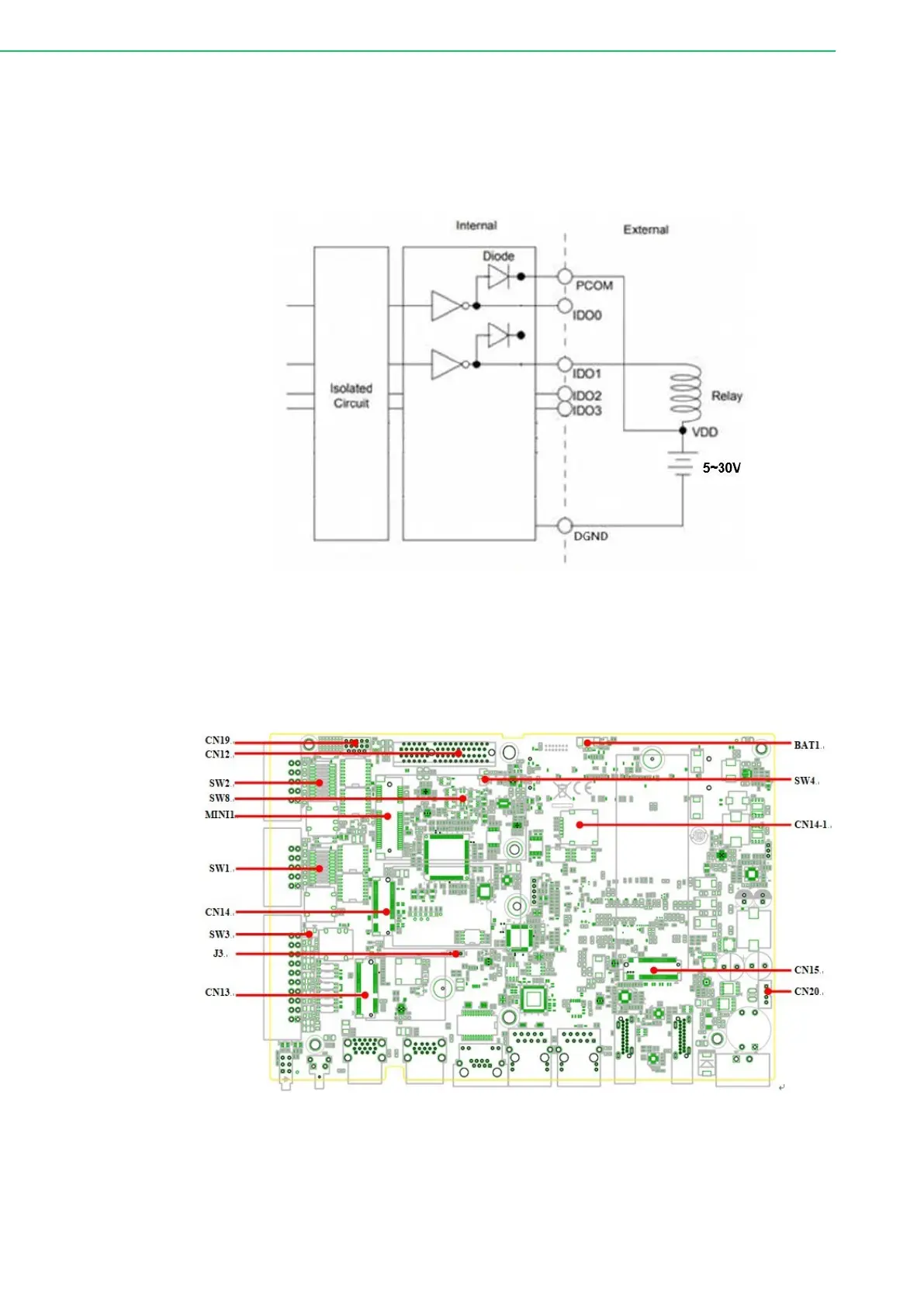

Figure 2.13Isolated DO Connection Diagram............................. 20
UNO-148 User Manual 2
2.3 Internal I/O Connectors and Switches .................................................... 20
Figure 2.14Locations Internal I/O Connectors/Switches for UNO-
148 ........................................................................... 20
Table 2.3: Internal Connectors and Jumper Switches............... 21
2.3.1 M.2 Connector ............................................................................ 22
2.3.2 mPCIe Connector ....................................................................... 22
2.3.3 Nano SIM Slot............................................................................. 22
2.4 Others ..................................................................................................... 22

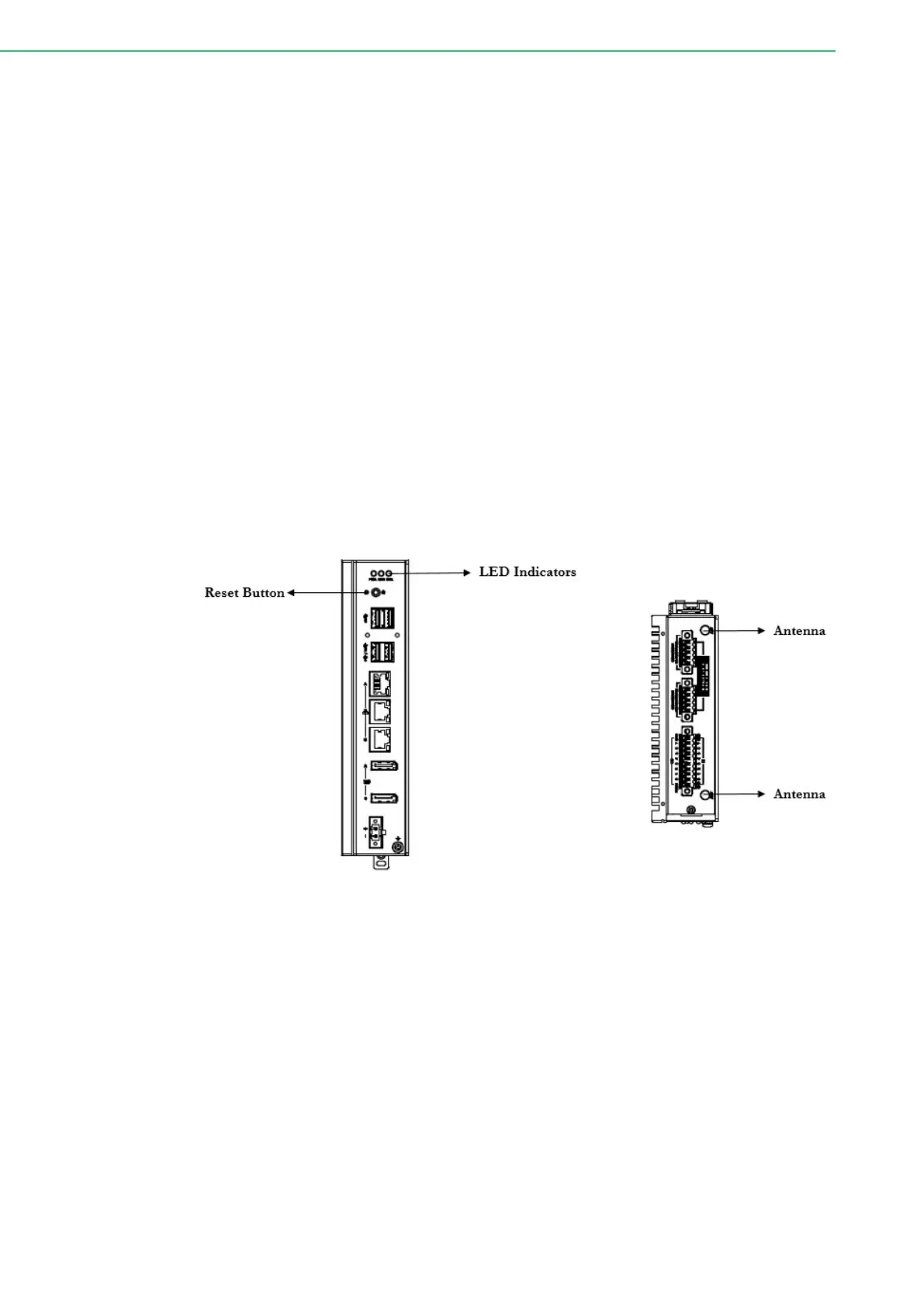

Figure 2.15Indicators, Reset Buttons, and Antenna Holes......... 22
2.4.1 LED Indicators ............................................................................ 22
2.4.2 Reset Buttons ............................................................................. 22
2.4.3 Antenna Hole.............................................................................. 23

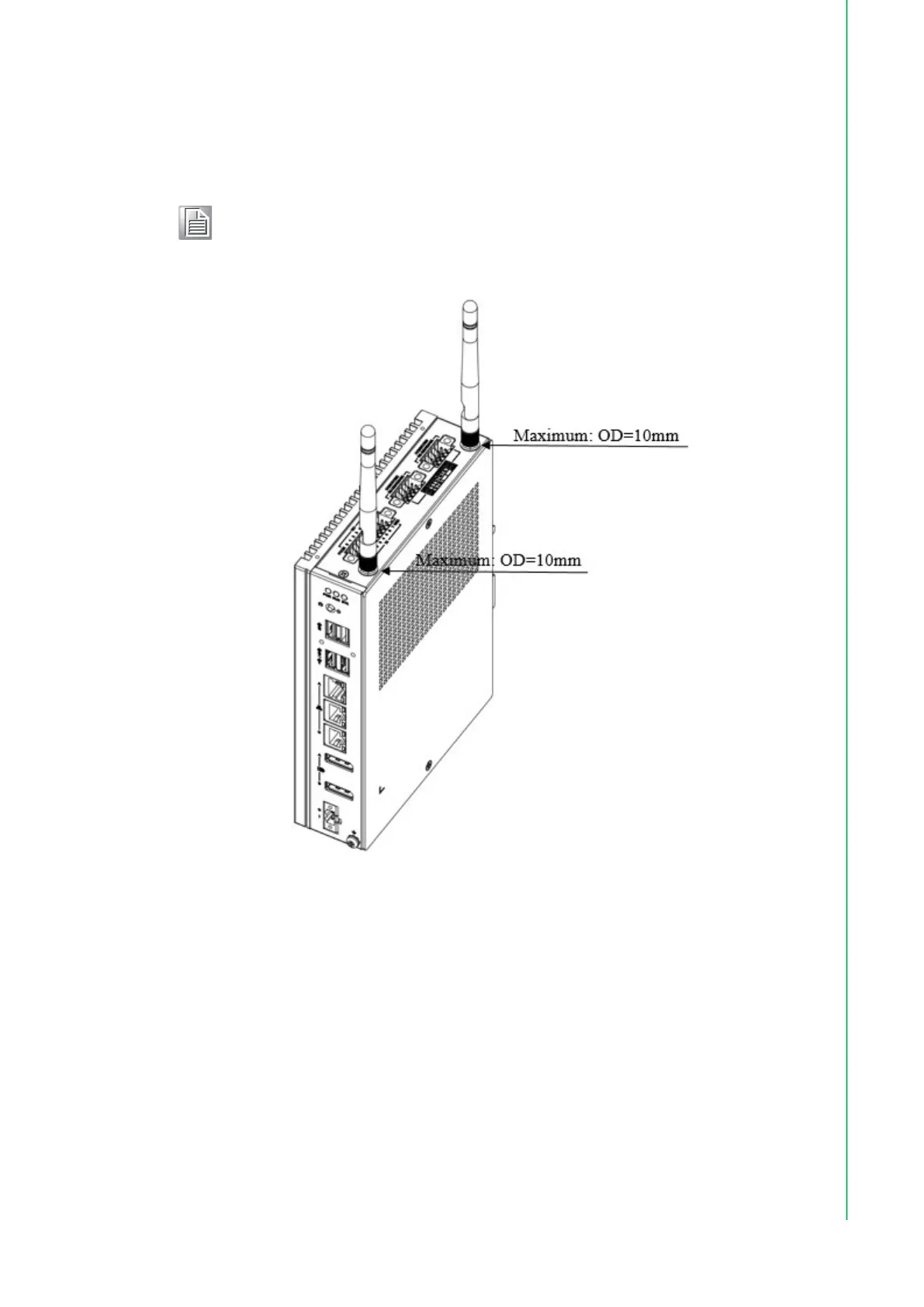

Figure 2.16Diagram of Maximum OD Value for the Antenna Holes
23
Chapter 3 Initial Setup........................................ 25

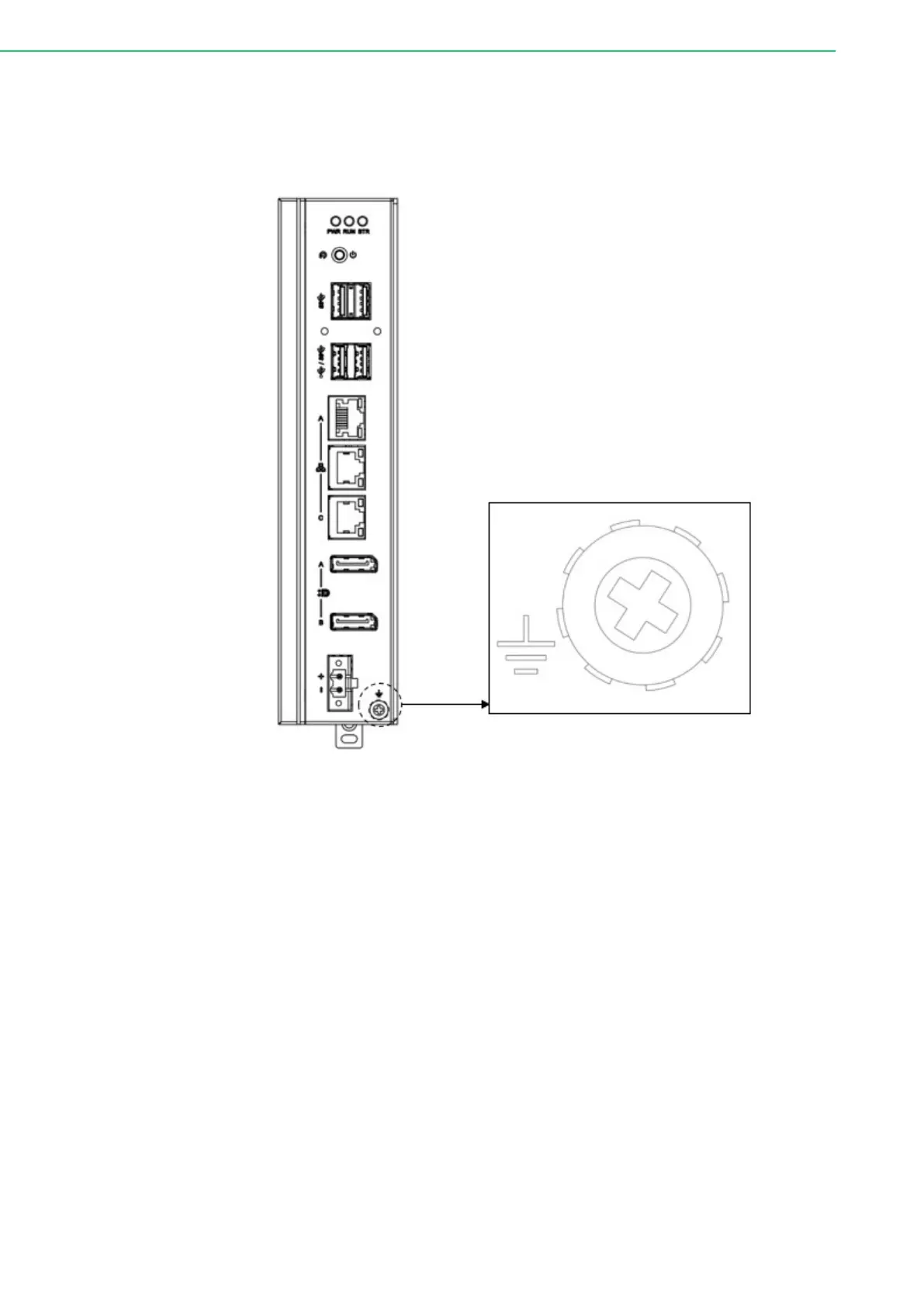

3.1 Chassis Grounding ................................................................................. 26
Figure 3.1 Chassis Grounding Connection................................ 26
3.2 Connecting Power................................................................................... 26

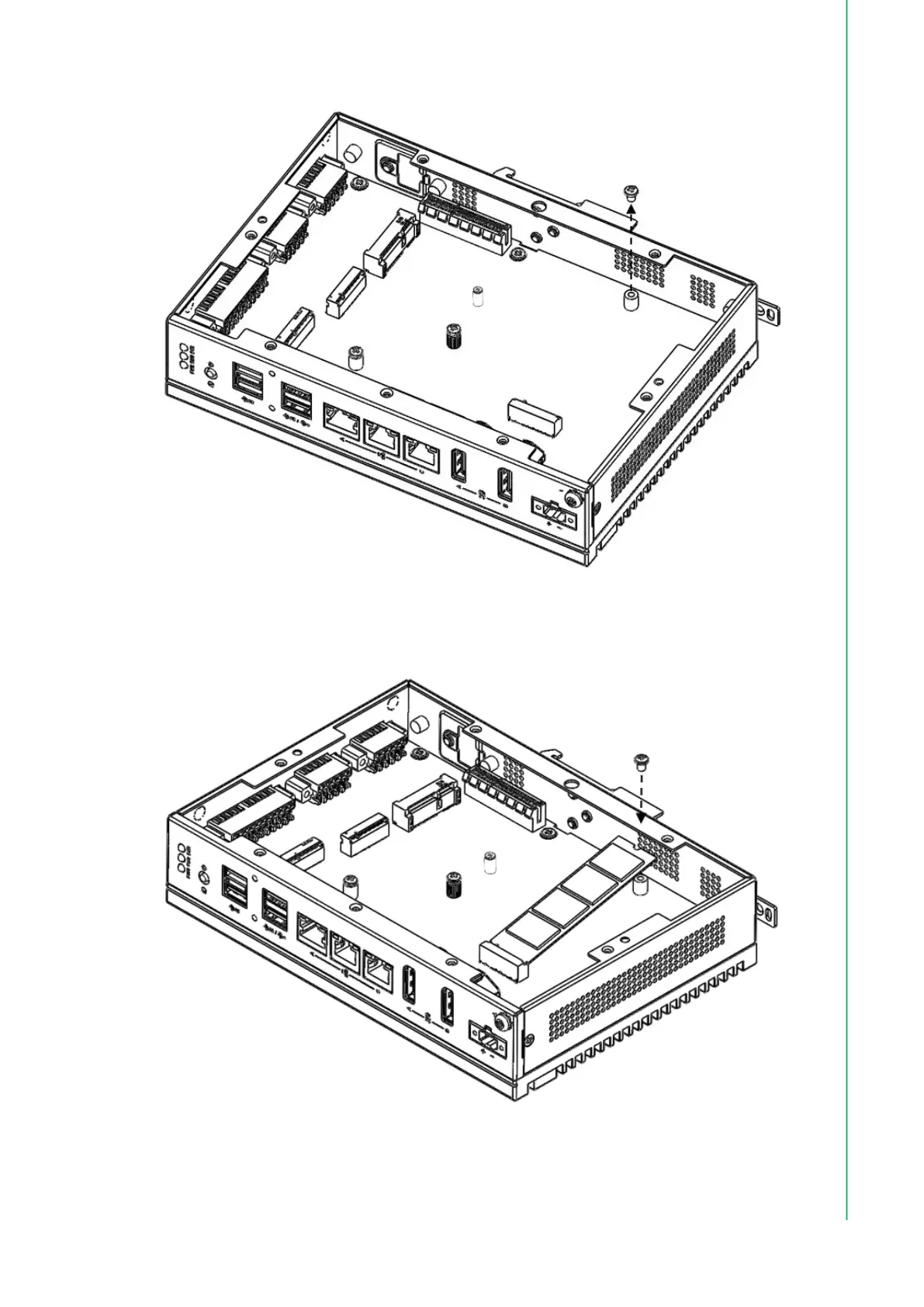

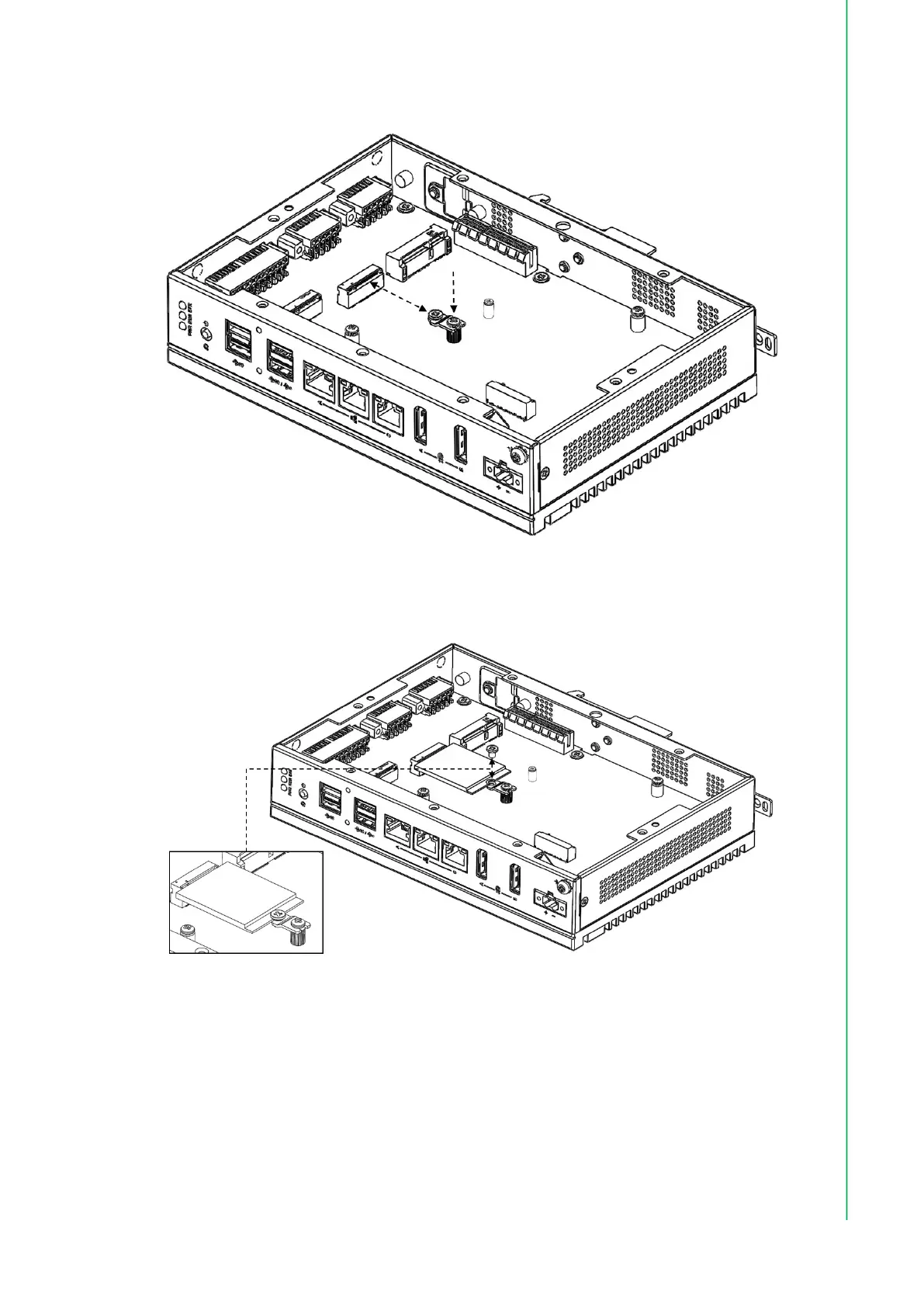

3.3 Storage Installation (Optional) ................................................................ 27

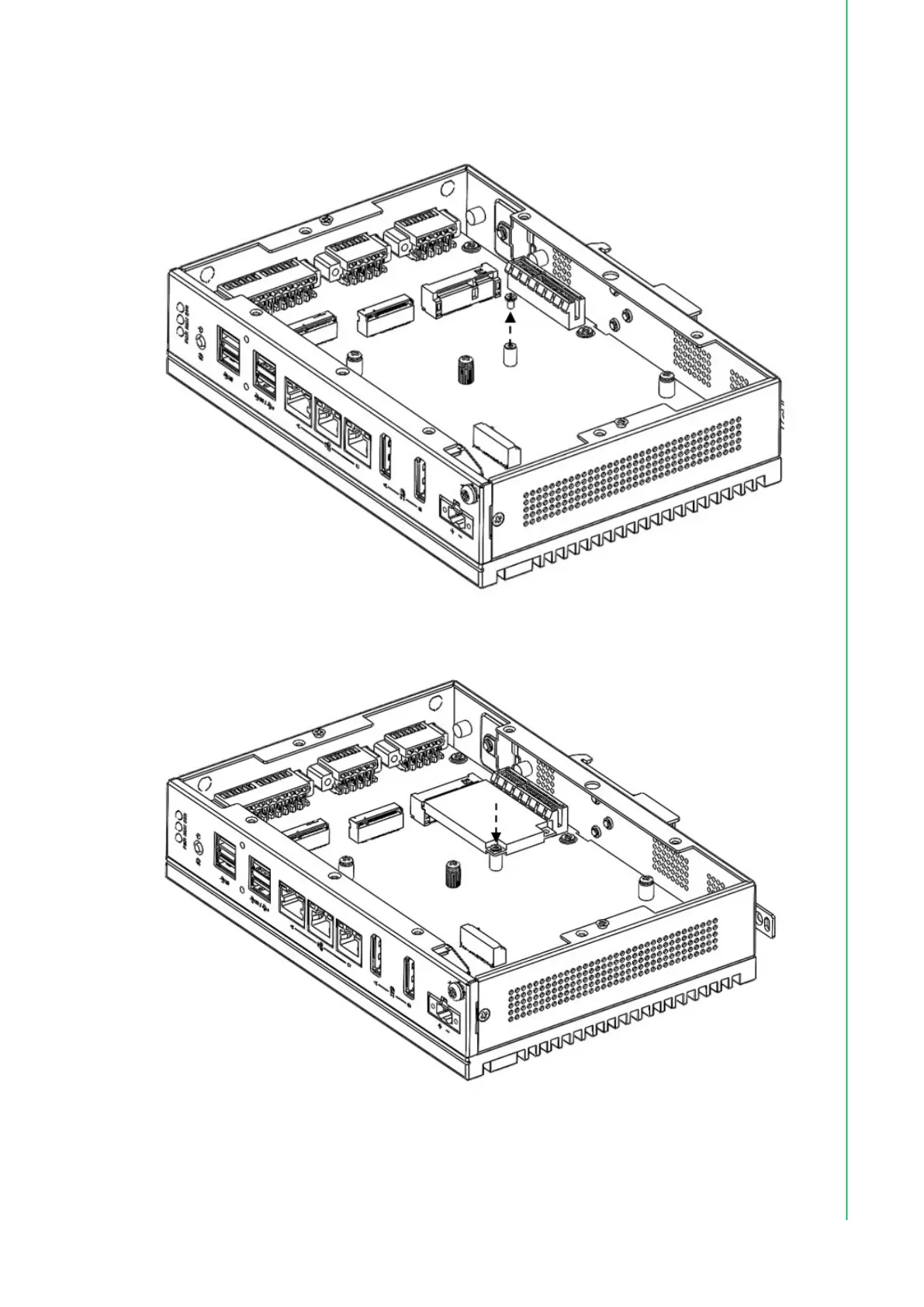

3.3.1 Installing M.2 2280 NVMe........................................................... 28
3.3.2 Installing the M.2 3042 Module................................................... 30
3.3.3 Installing the M.2 3052 Module................................................... 32
3.4 Installing the M.2 2230 Module ............................................................... 33
3.4.1 Installing mPCIe.......................................................................... 35

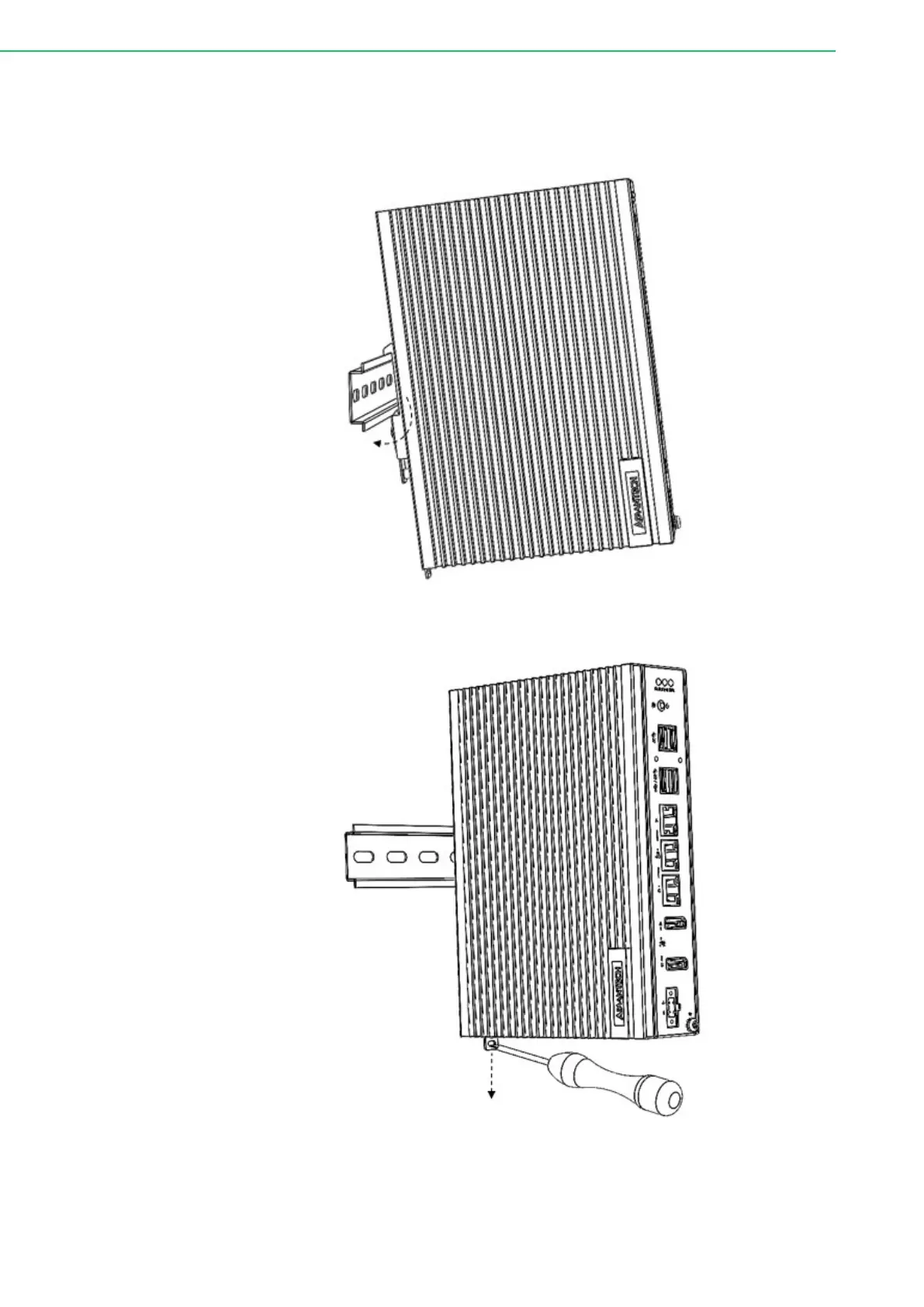

3.5 DIN-Rail Installation ................................................................................ 36
3.6 Wireless Module Installation (Optional) .................................................. 37

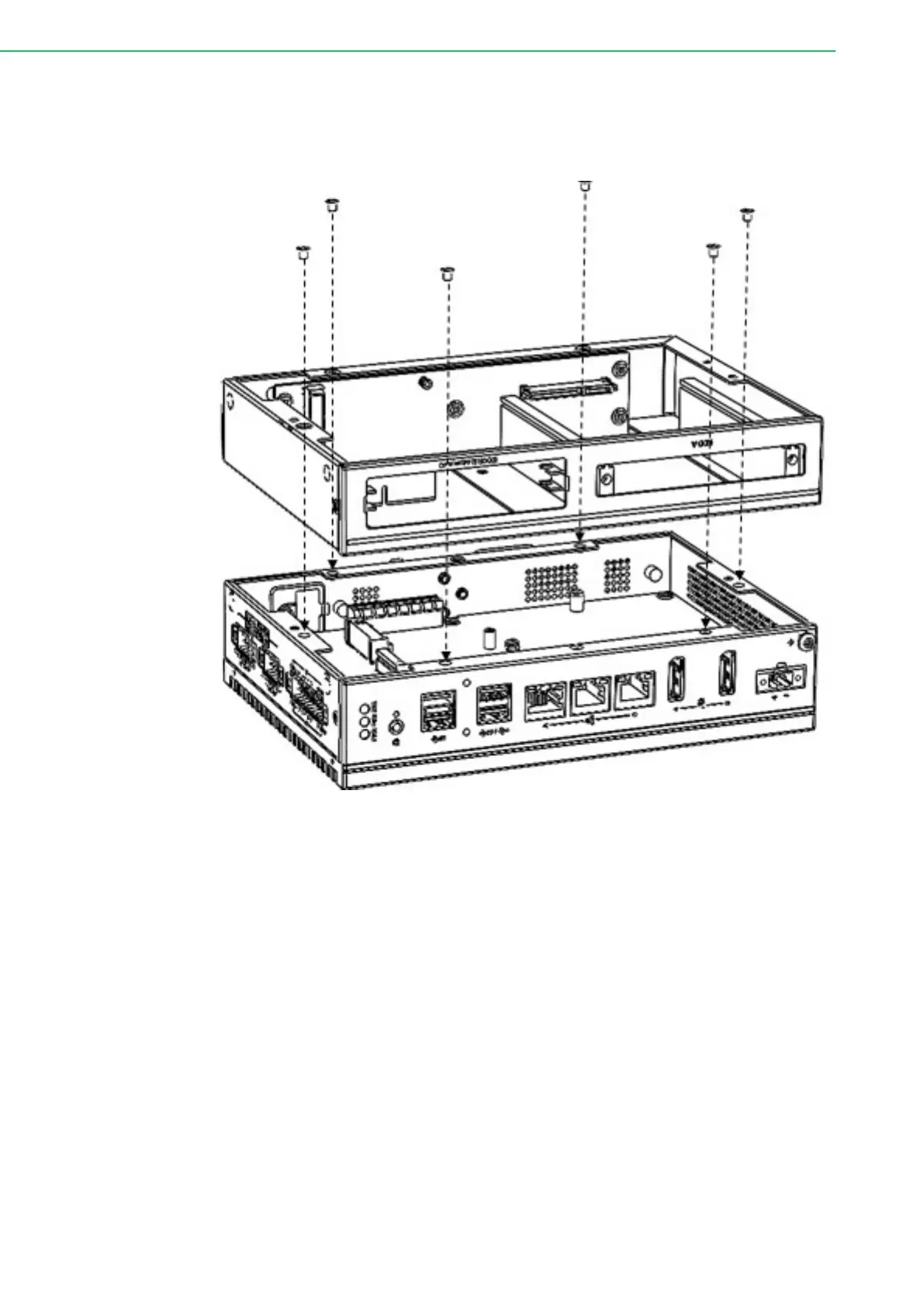

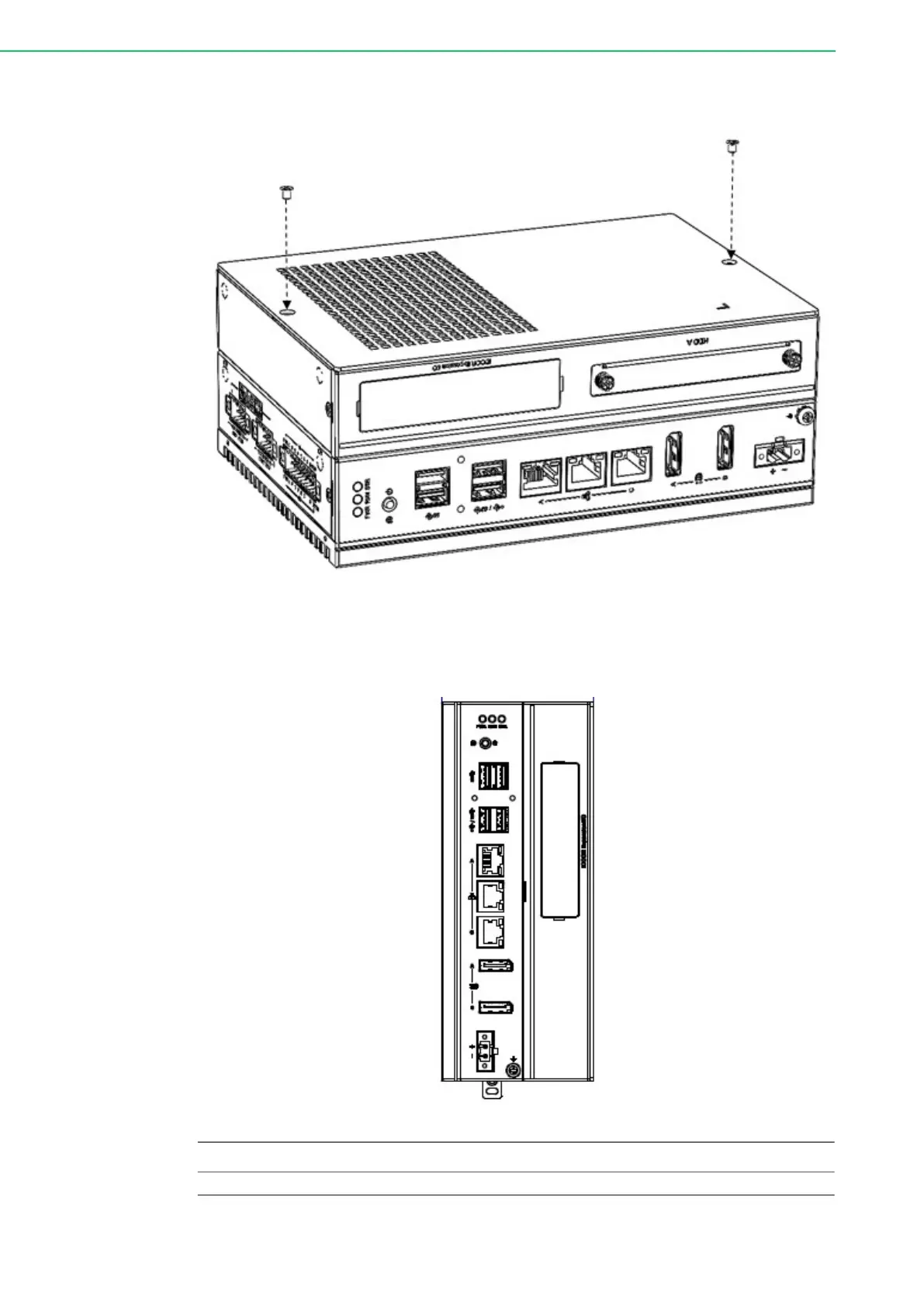

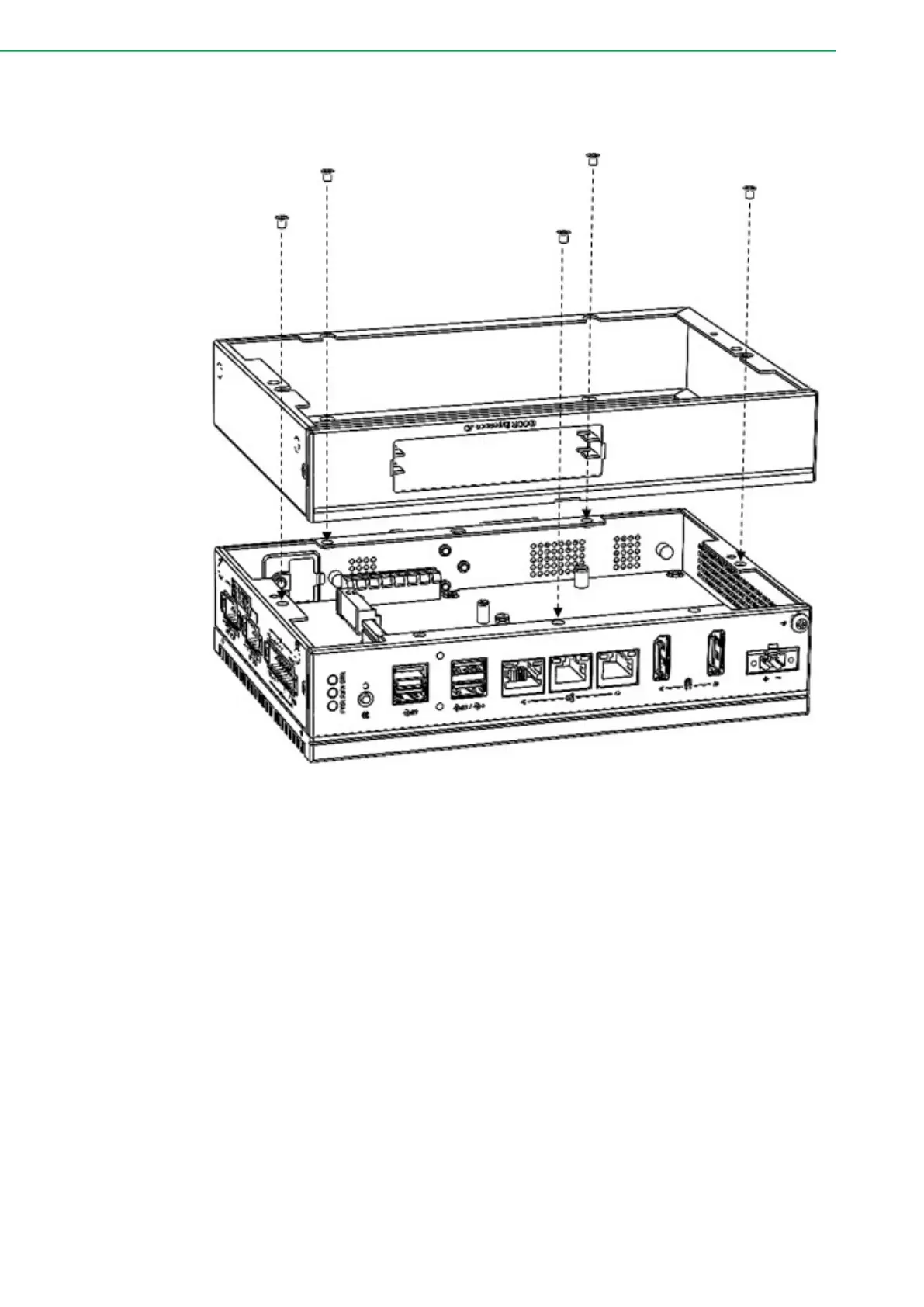

3.7 Extension Kit Installation (Optional) ........................................................ 38

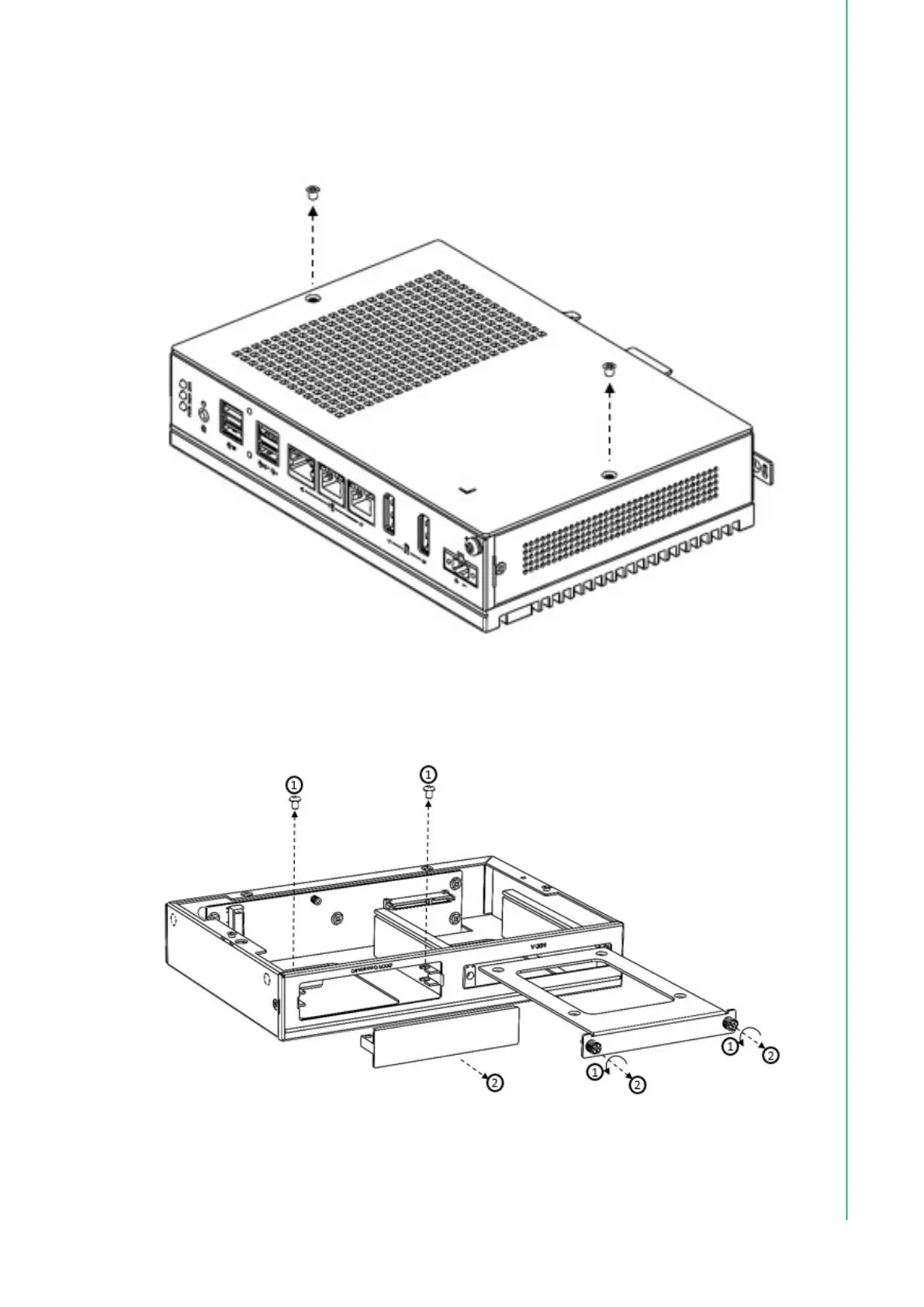

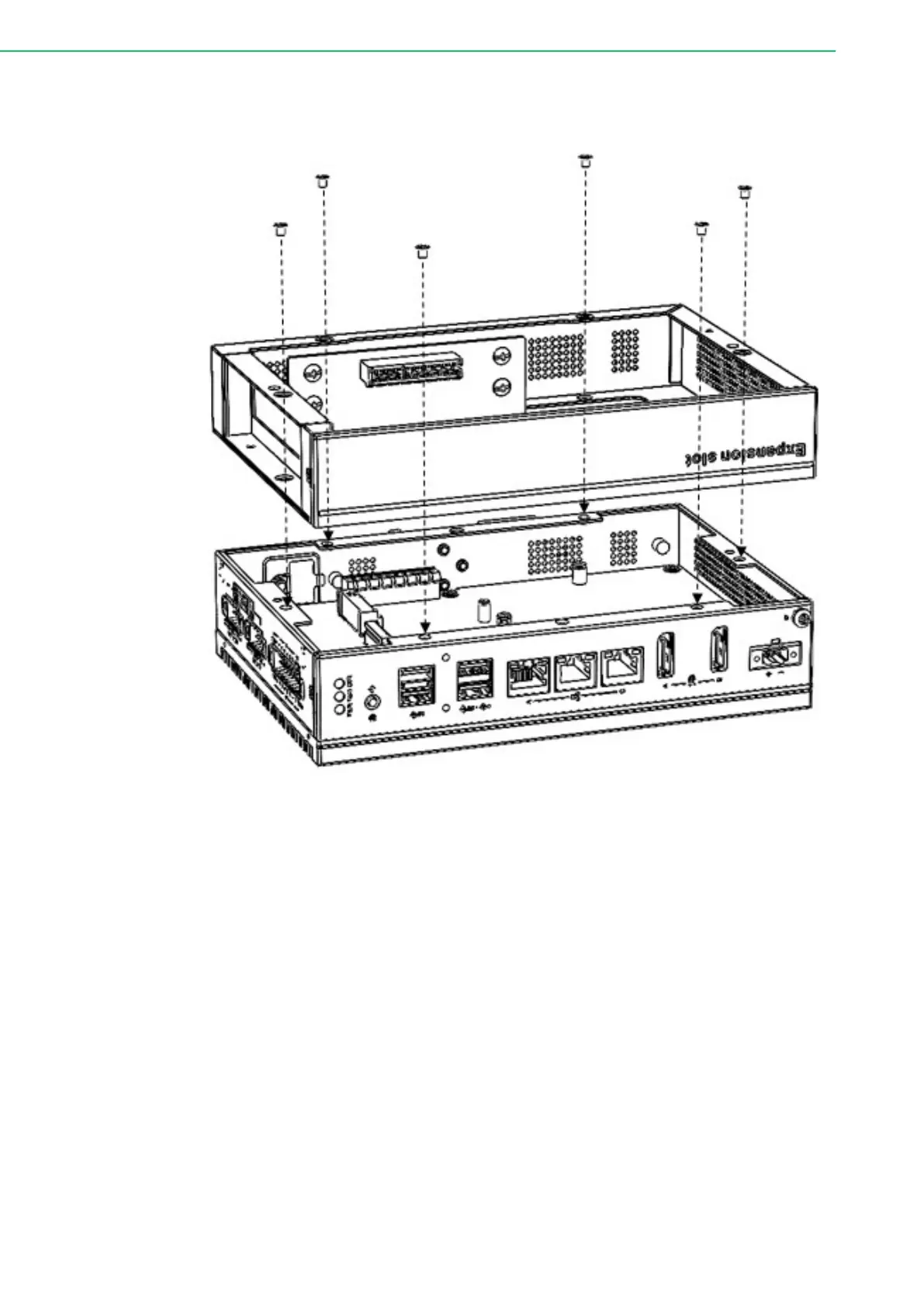

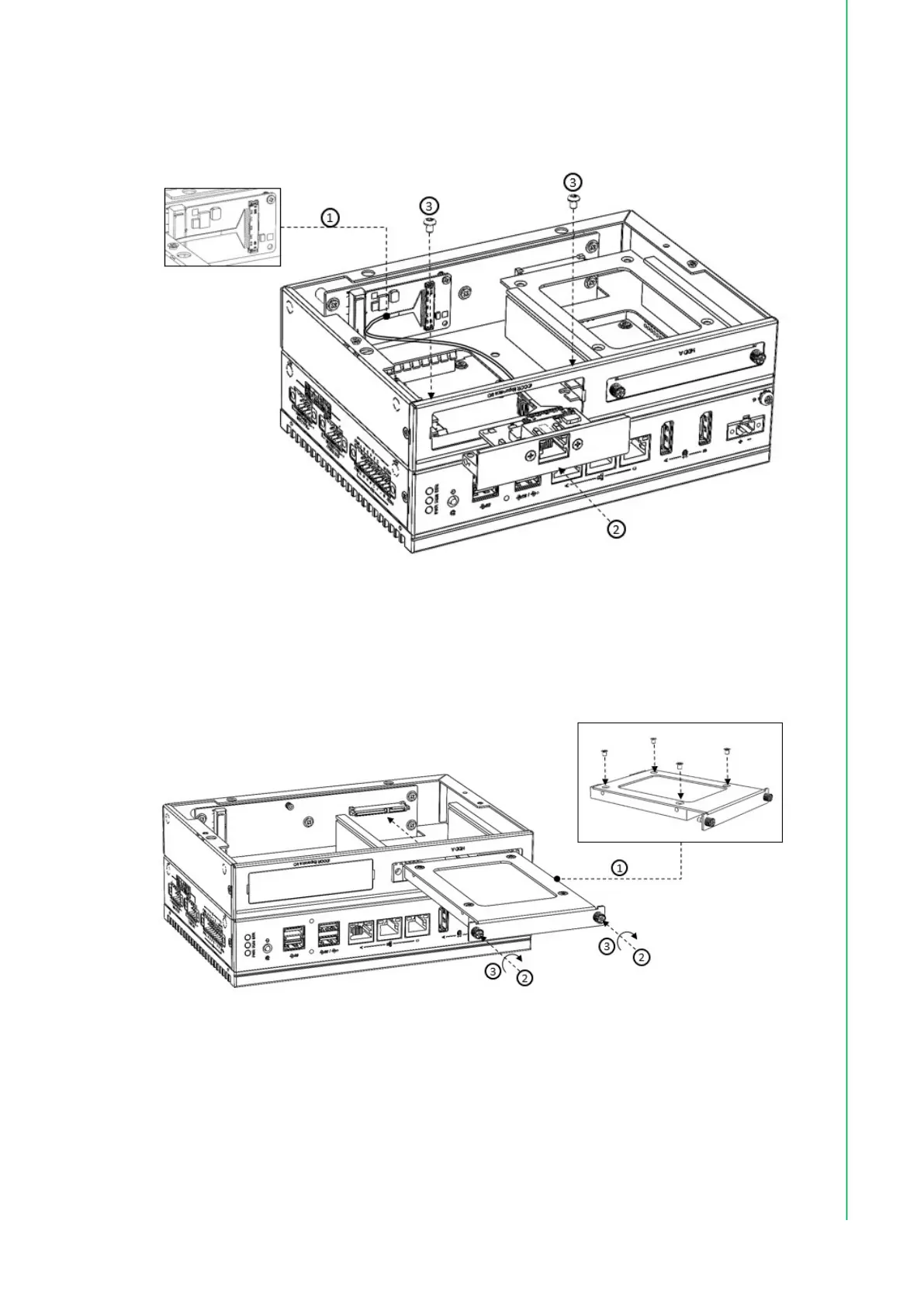

3.7.1 iDoor and HDD/SSD Storage Extension Kit (UNO-148-IS2EA) . 38

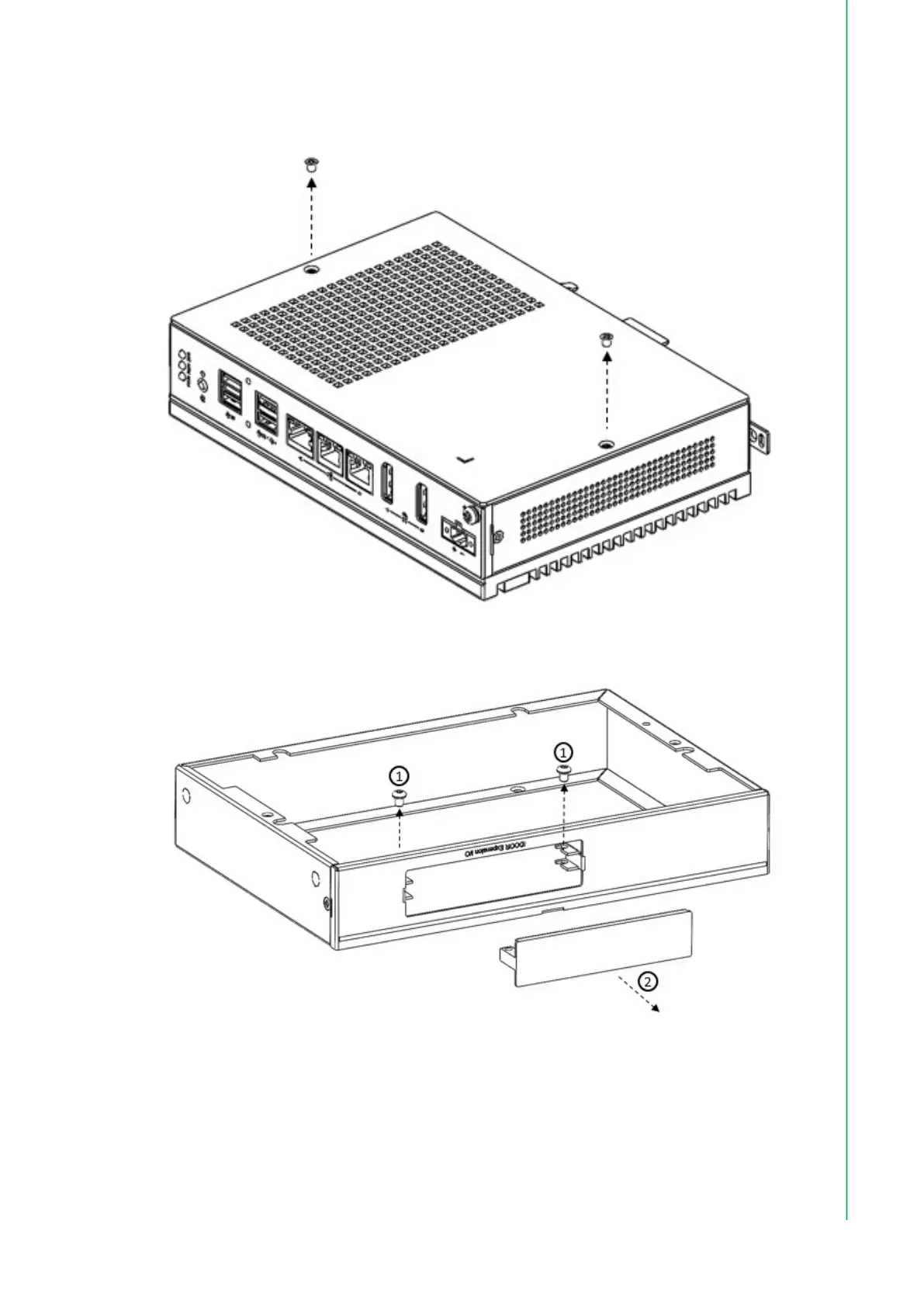

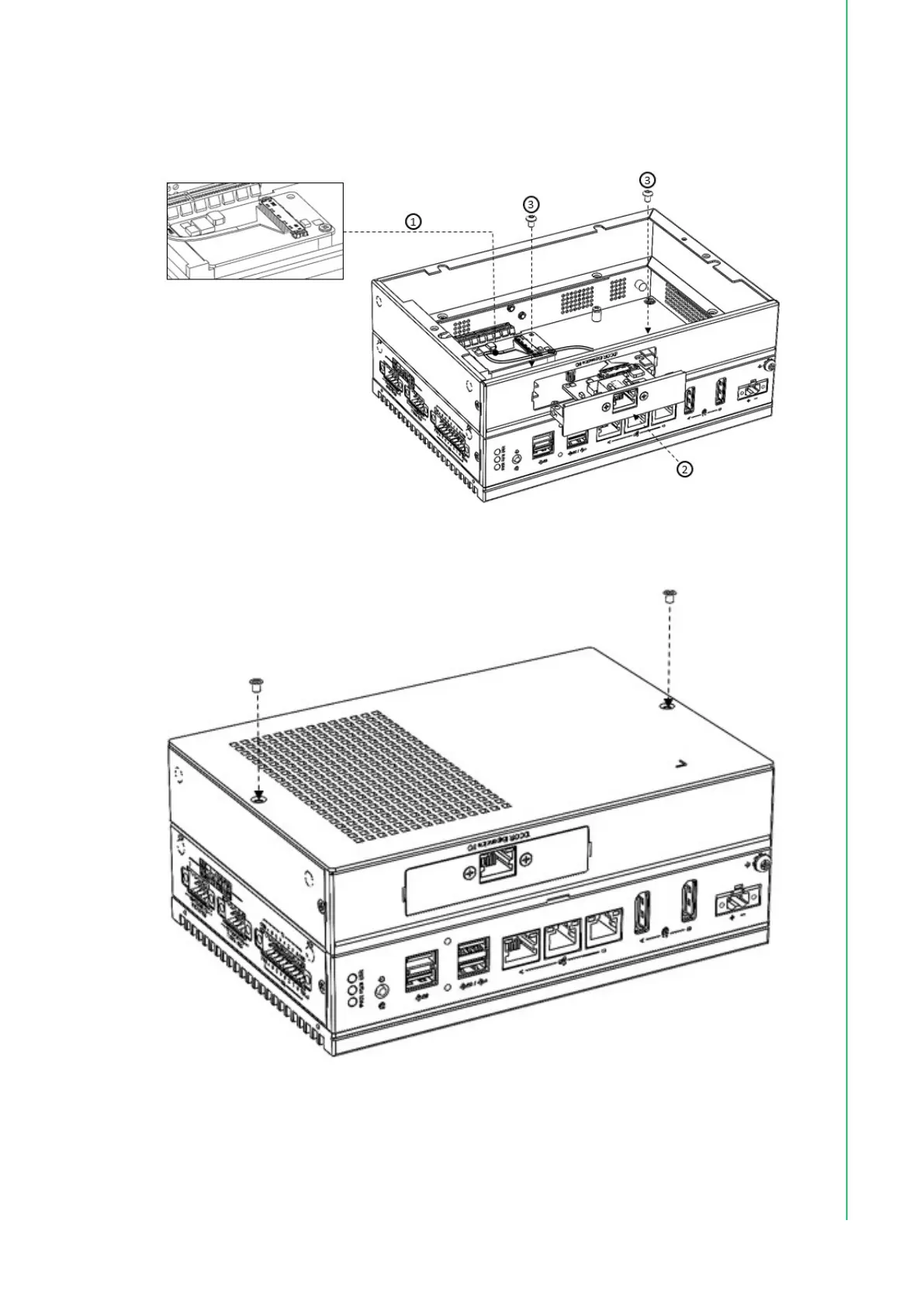

3.7.2 iDoor Extension Kit (UNO-148-ID1EA) ....................................... 42

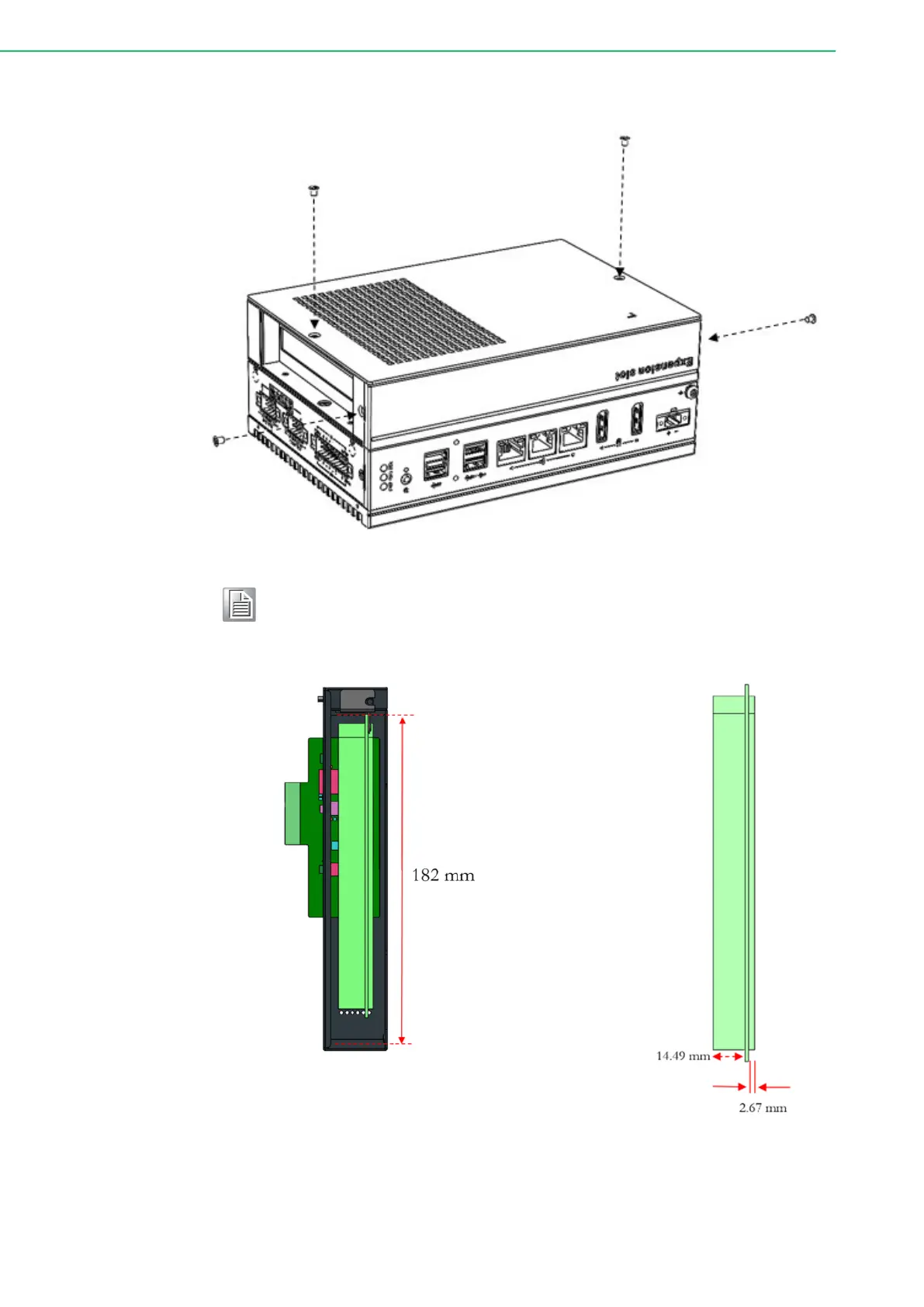

3.7.3 PCIe p10-x4 Expansion (UNO-148-P11EA) ...................................... 46

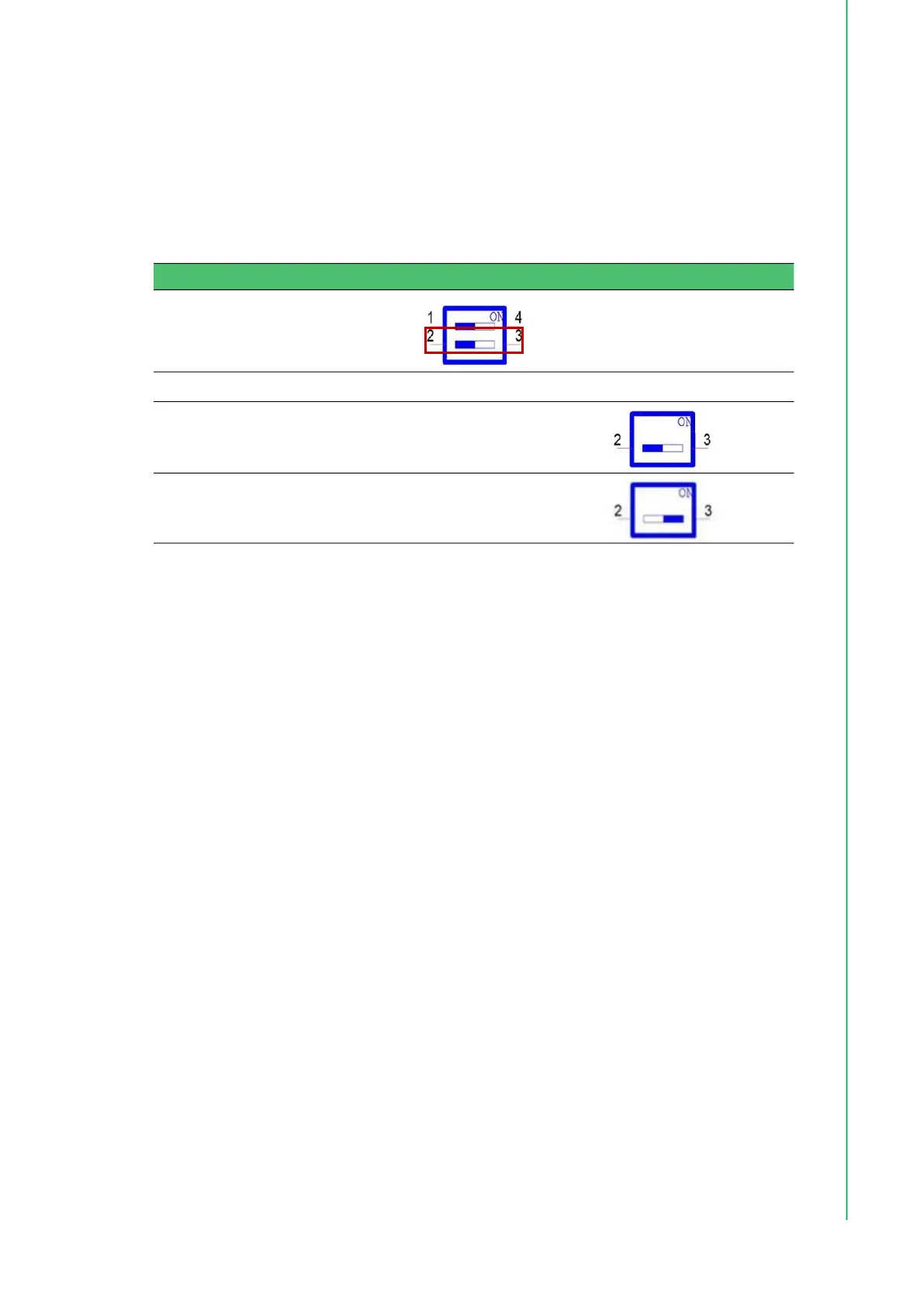

3.8 Remote Power & Reset Settings ............................................................ 51
Table 3.1: Remote Power/On & Reset Settings ........................ 51
3.9 BIOS Setting ........................................................................................... 51

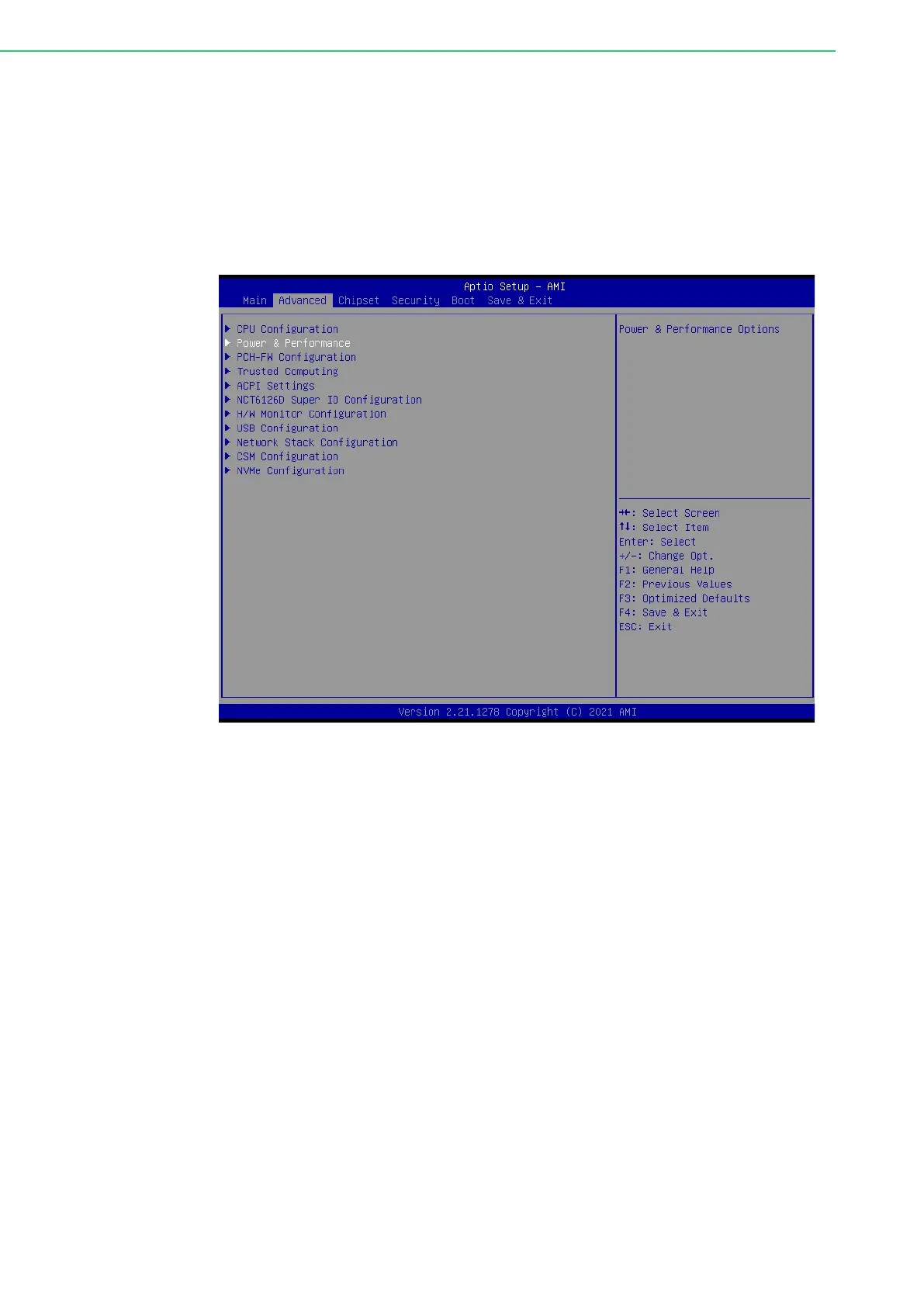

Appendix A System Settings / Pin Assignments 53

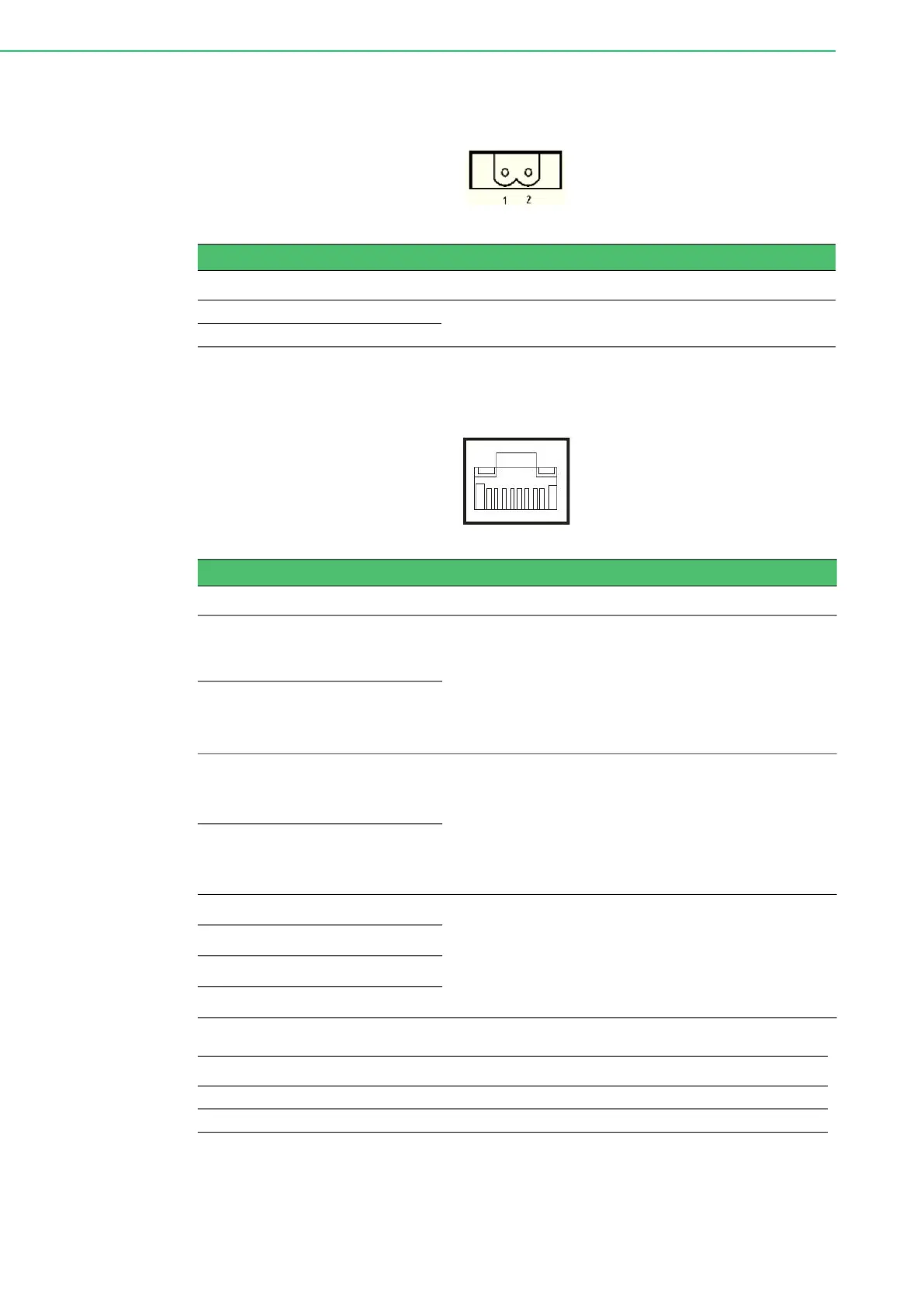

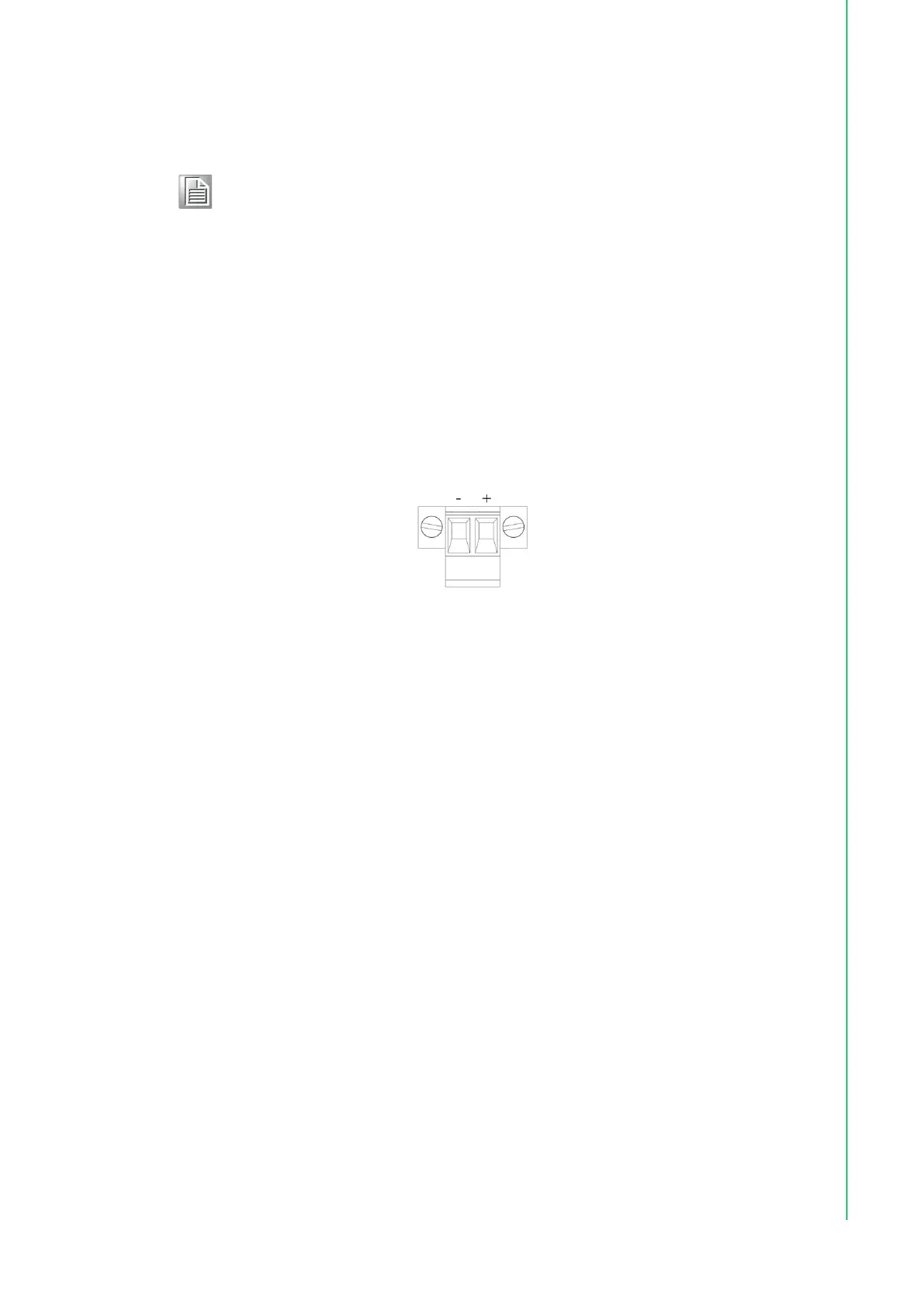

A.1 Power Connector (CN1).......................................................................... 54
Table A.1: Power Connector Pin Assignments.......................... 54
A.2 LAN: Ethernet Connector (CN4) ............................................................. 54
Table A.2: Ethernet Connector Pin Assignments ...................... 54

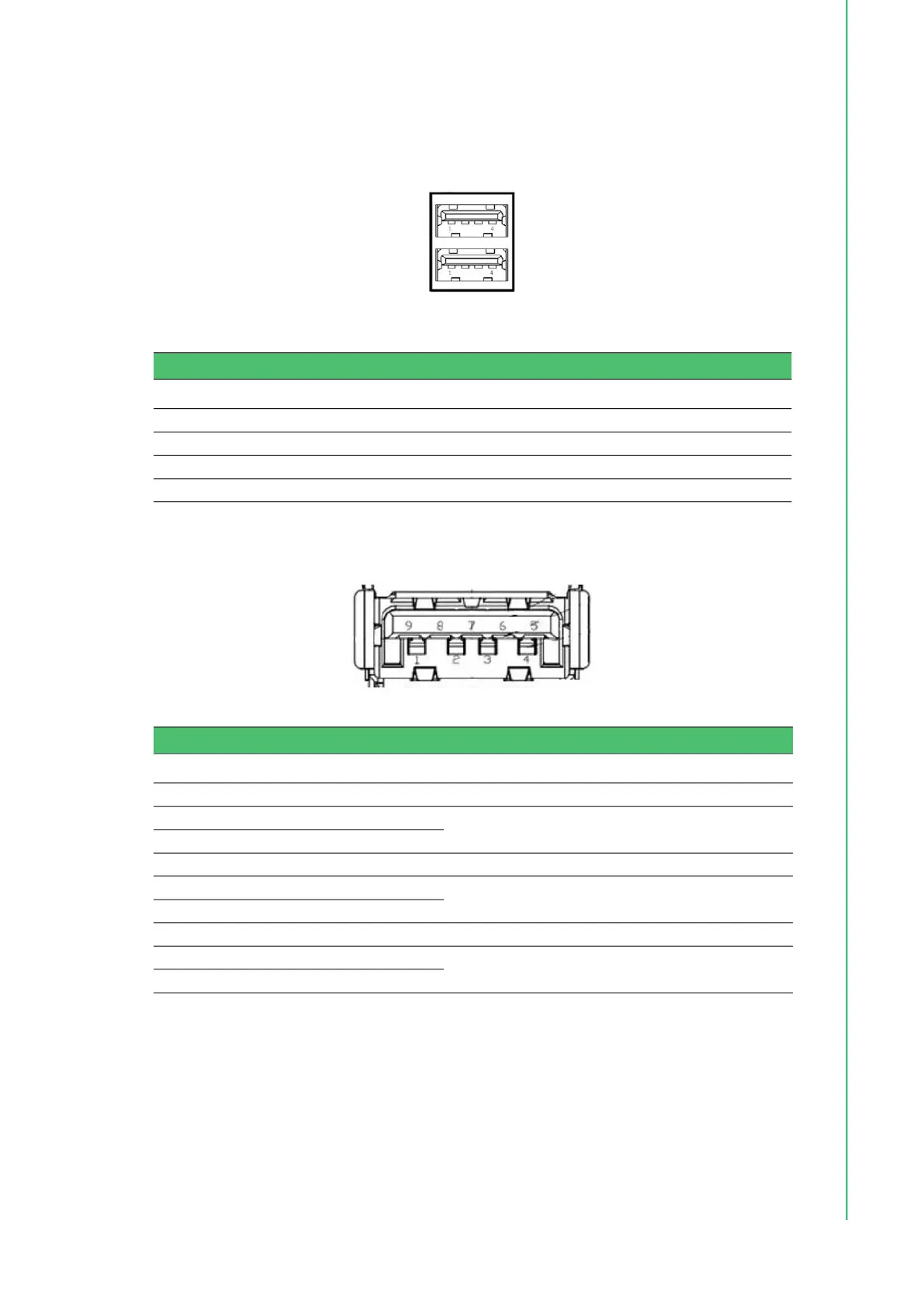

A.3 USB Connectors (CN5, CN6) ................................................................. 55
A.3.1 USB 2.0 Connector..................................................................... 55
Table A.3: Connector Pin Assignments ..................................... 55
A.3.2 USB 3.0 Connector..................................................................... 55
Table A.4: USB 3.0 Connector Pin Assignments....................... 55

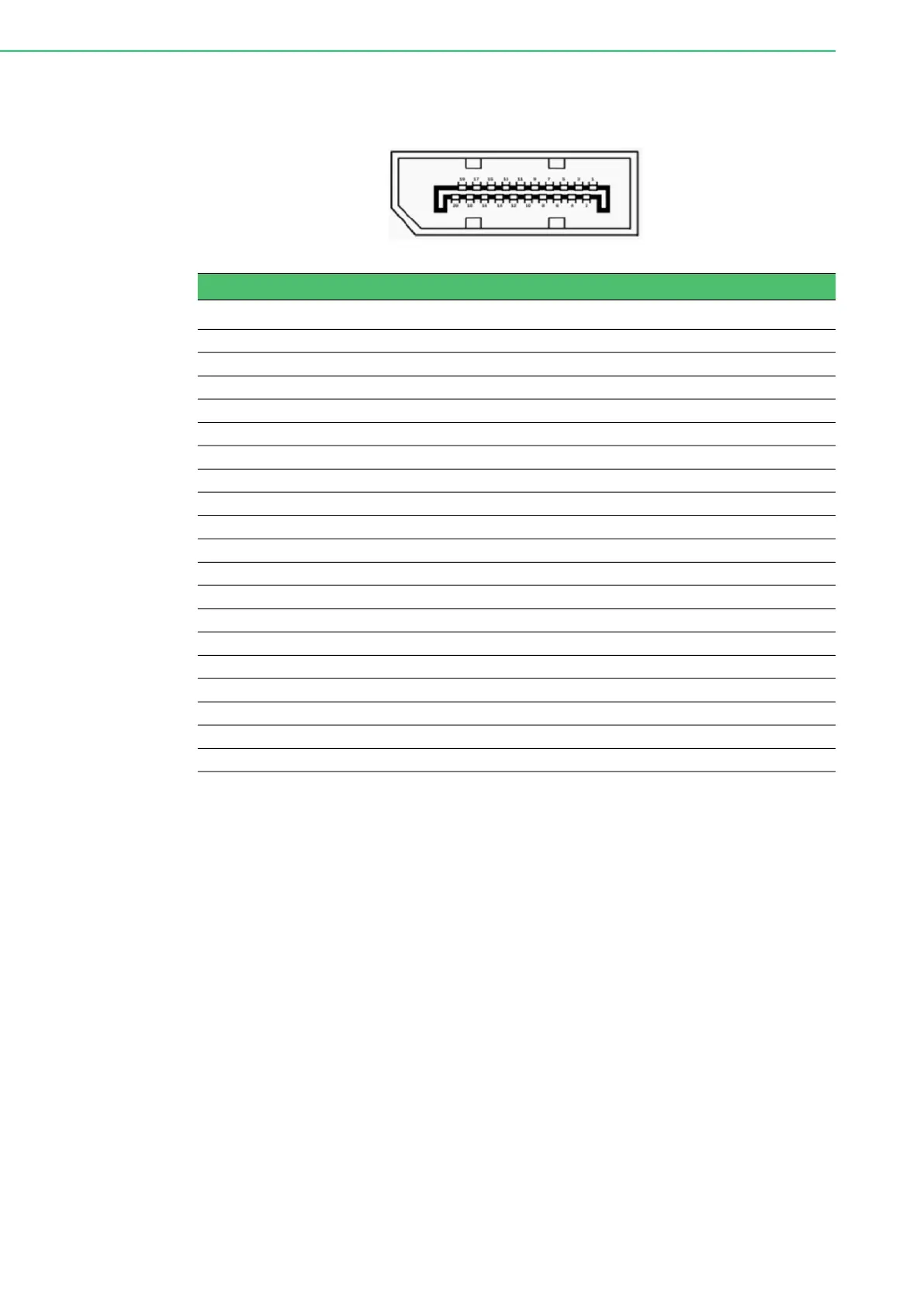

A.4 Display Connector (CN2, CN3)............................................................... 56
Table A.5: DisplayPort Adapter Cable Pin Assignments ........... 56
A.5 M.2 Connector (CN15) ............................................................................ 57
Table A.6: M.2 B-Key Connector Pin Assignments ................... 57
A.6 mPCIe Connector (MINI1) ...................................................................... 58
Table A.7: mPCIe Connector Pin Assignments ......................... 58

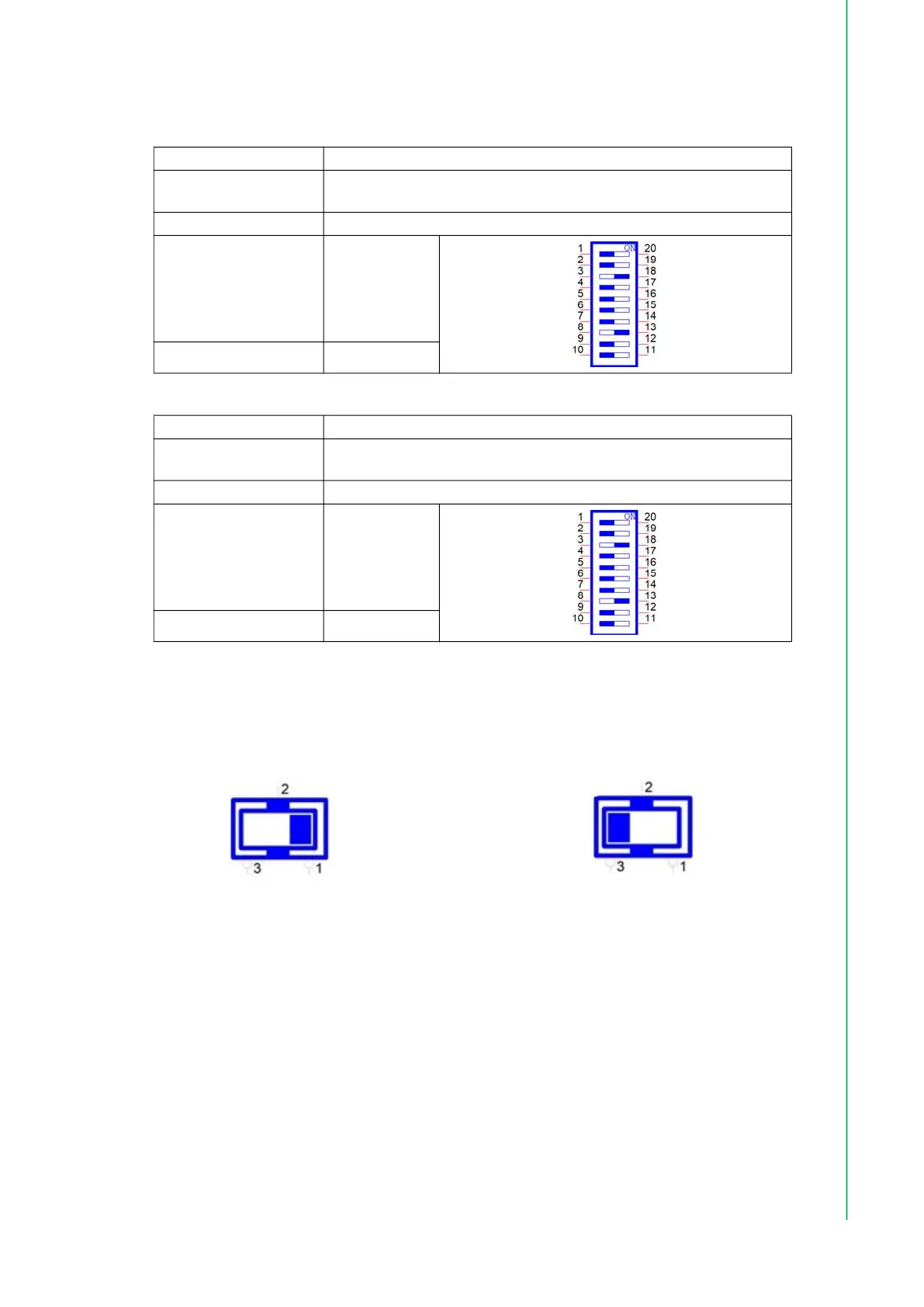

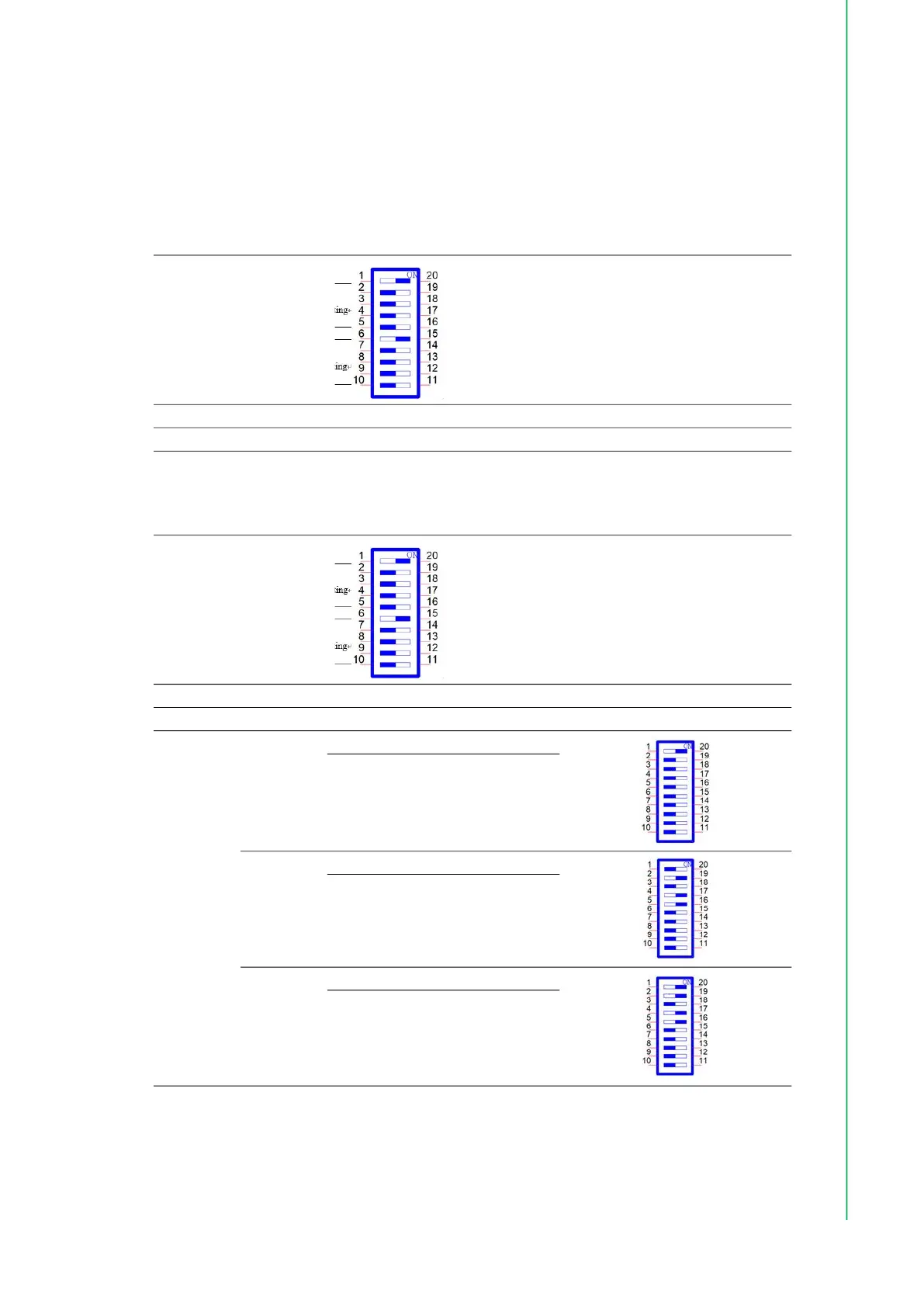

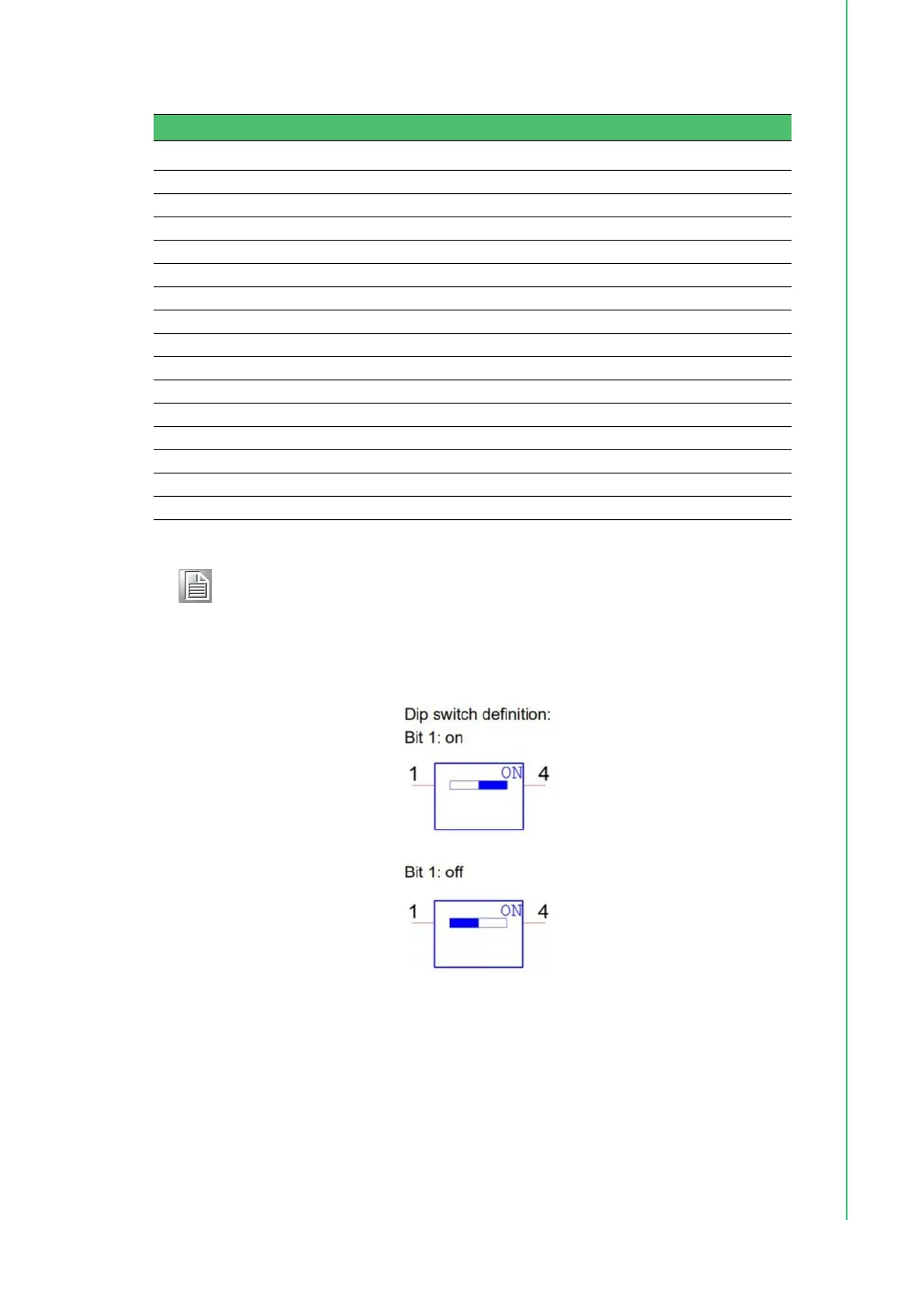

A.7 COM Port RS232/422/485 Settings ........................................................ 59
A.7.1 COM1/COM2 TS232/422/485 Settings (SW1) ........................... 59
A.7.2 COM3/COM4 RS232/422/485 Settings (SW2)........................... 59
A.7.3 COM Port RS422/485 Termination Resistor Settings................. 61
A.8 BIOS Update Settings............................................................................. 61

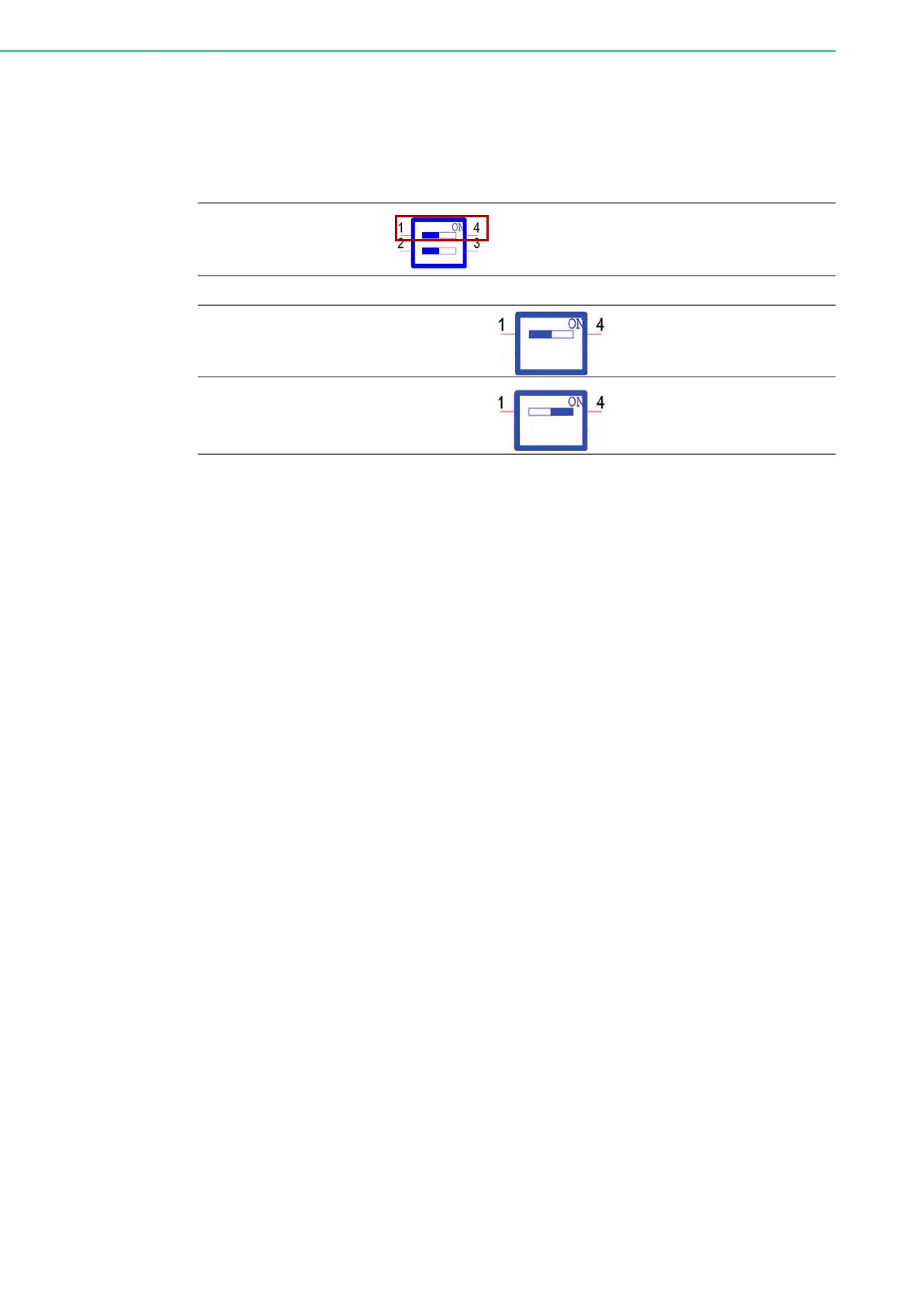

A.9 AT/ATX Setting (SW8) ............................................................................ 62
3 UNO-148 User Manual

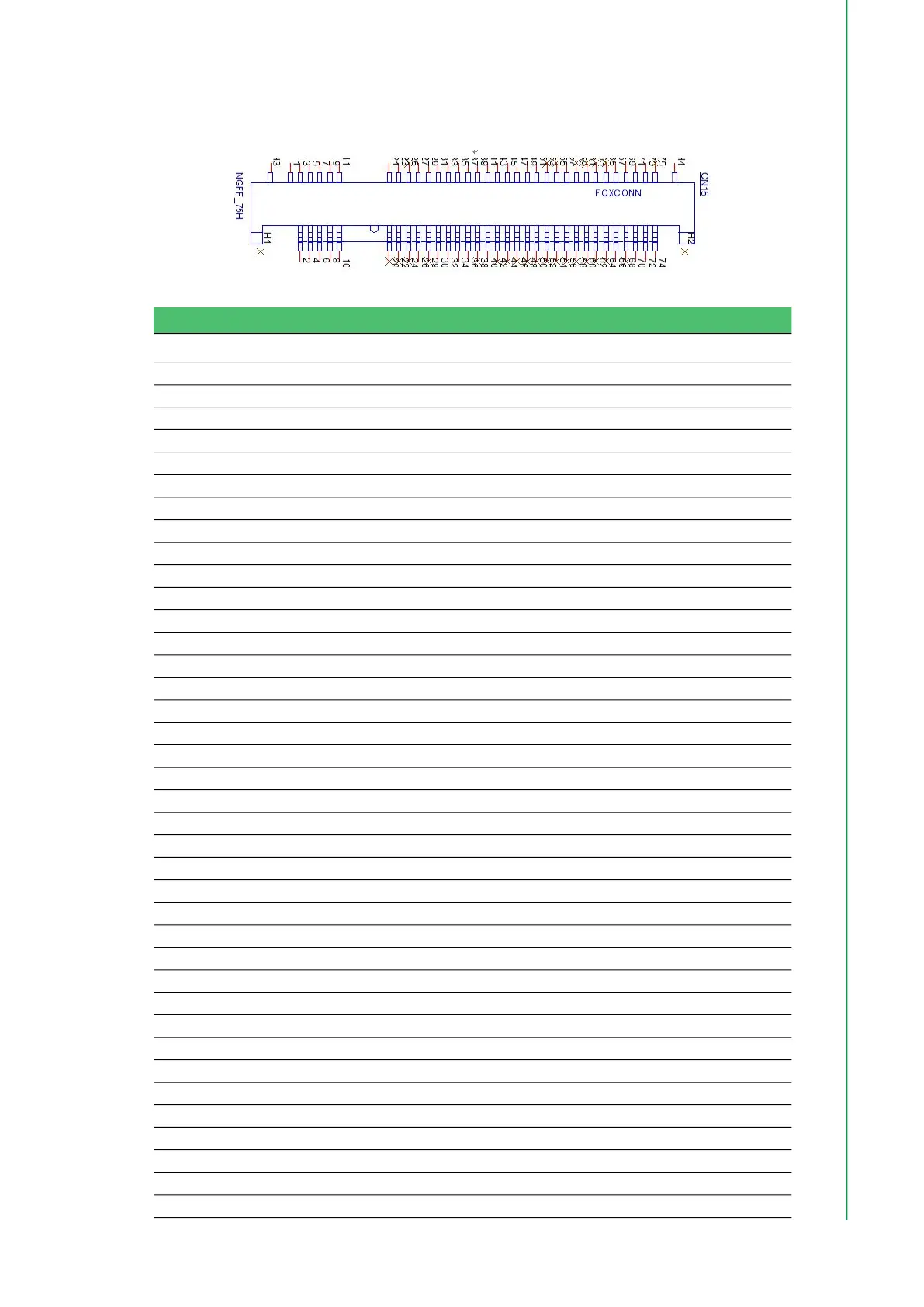

A.10 Riser Connector (CN12).......................................................................... 63
Table A.8: Expansion Board to Board Connector Pin Assignments
63

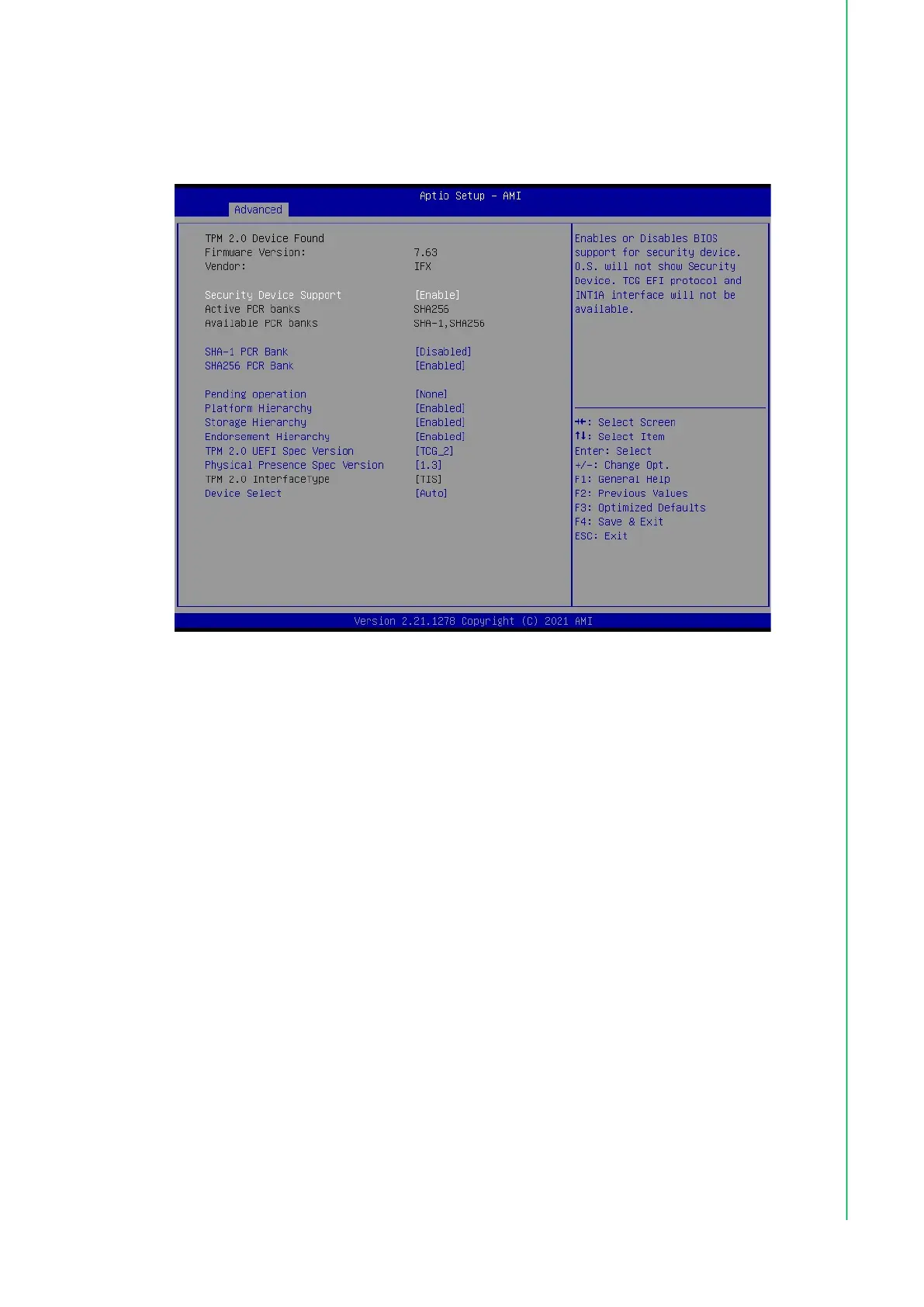

A.11 TPM 2.0 BIOS Settings ........................................................................... 64

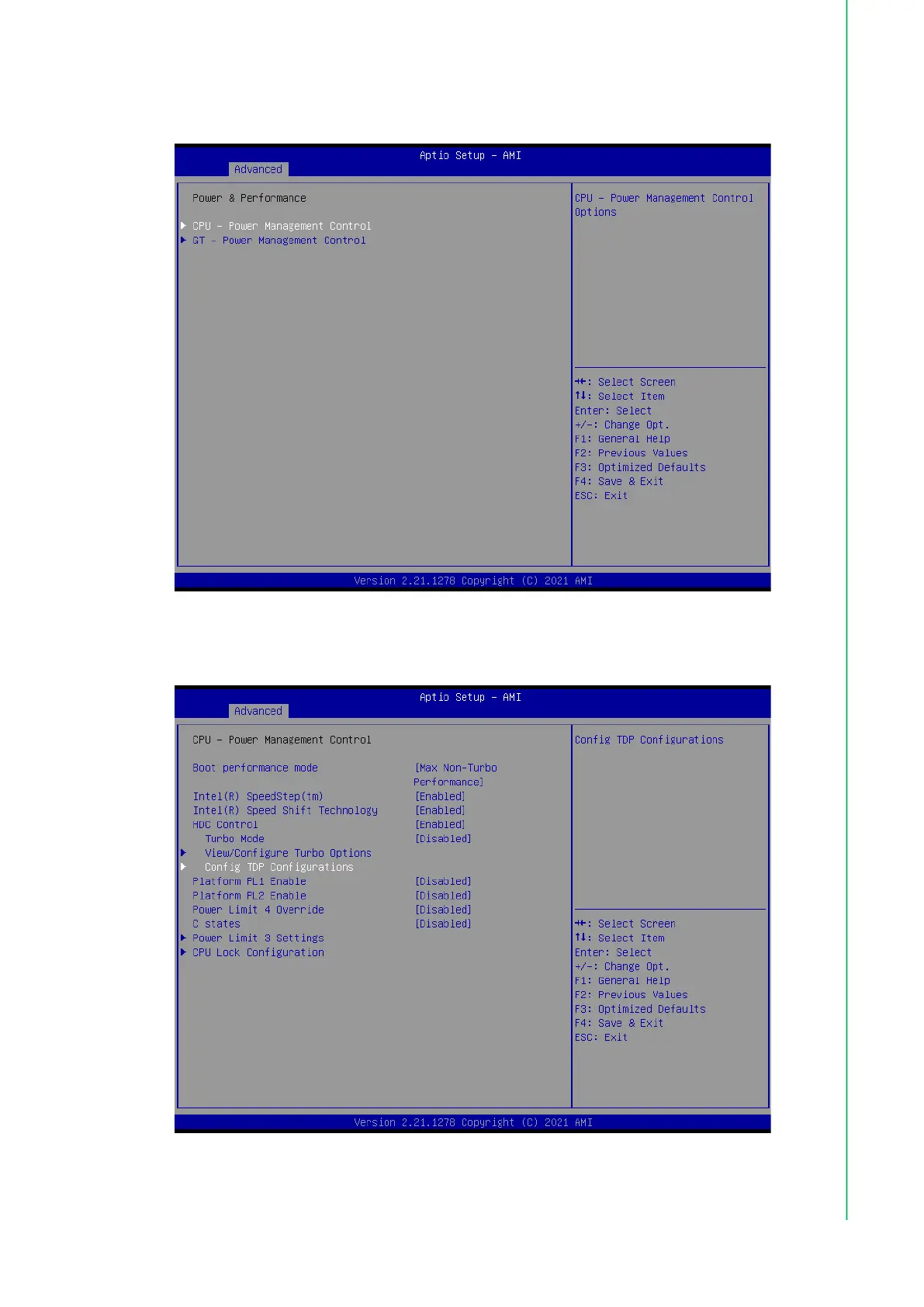

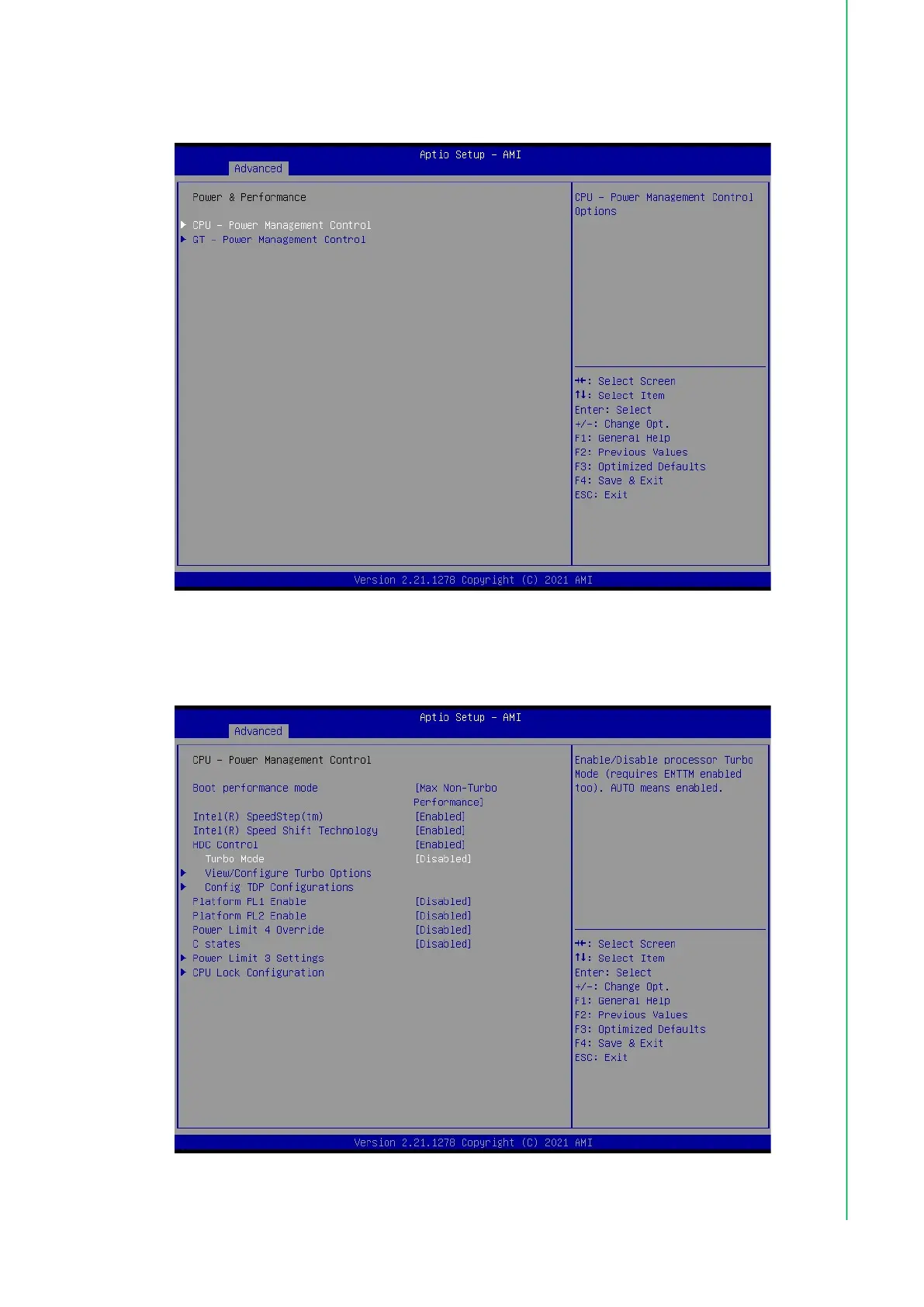

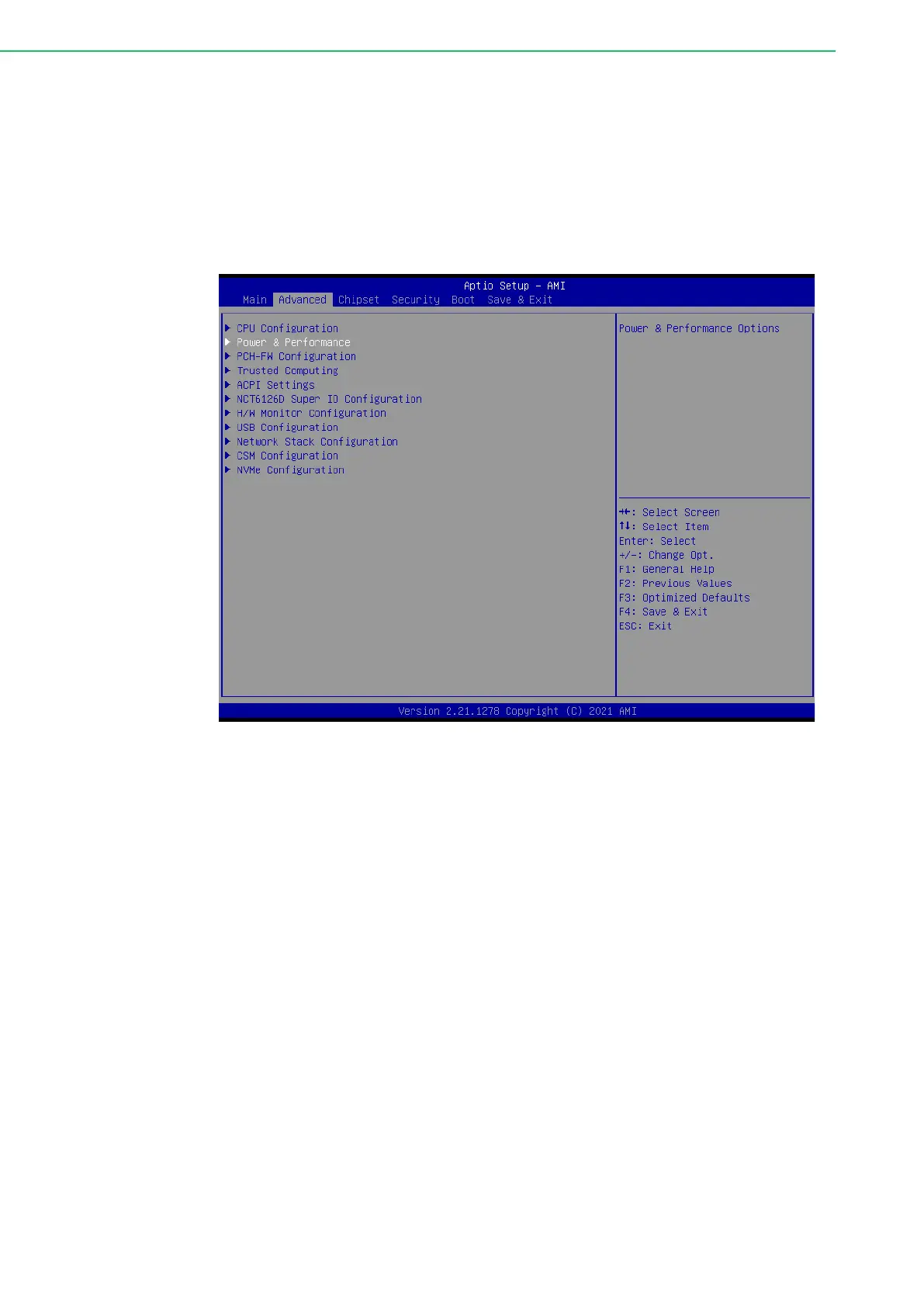

A.12 CPU Turbo Mode BIOS Settings............................................................. 66

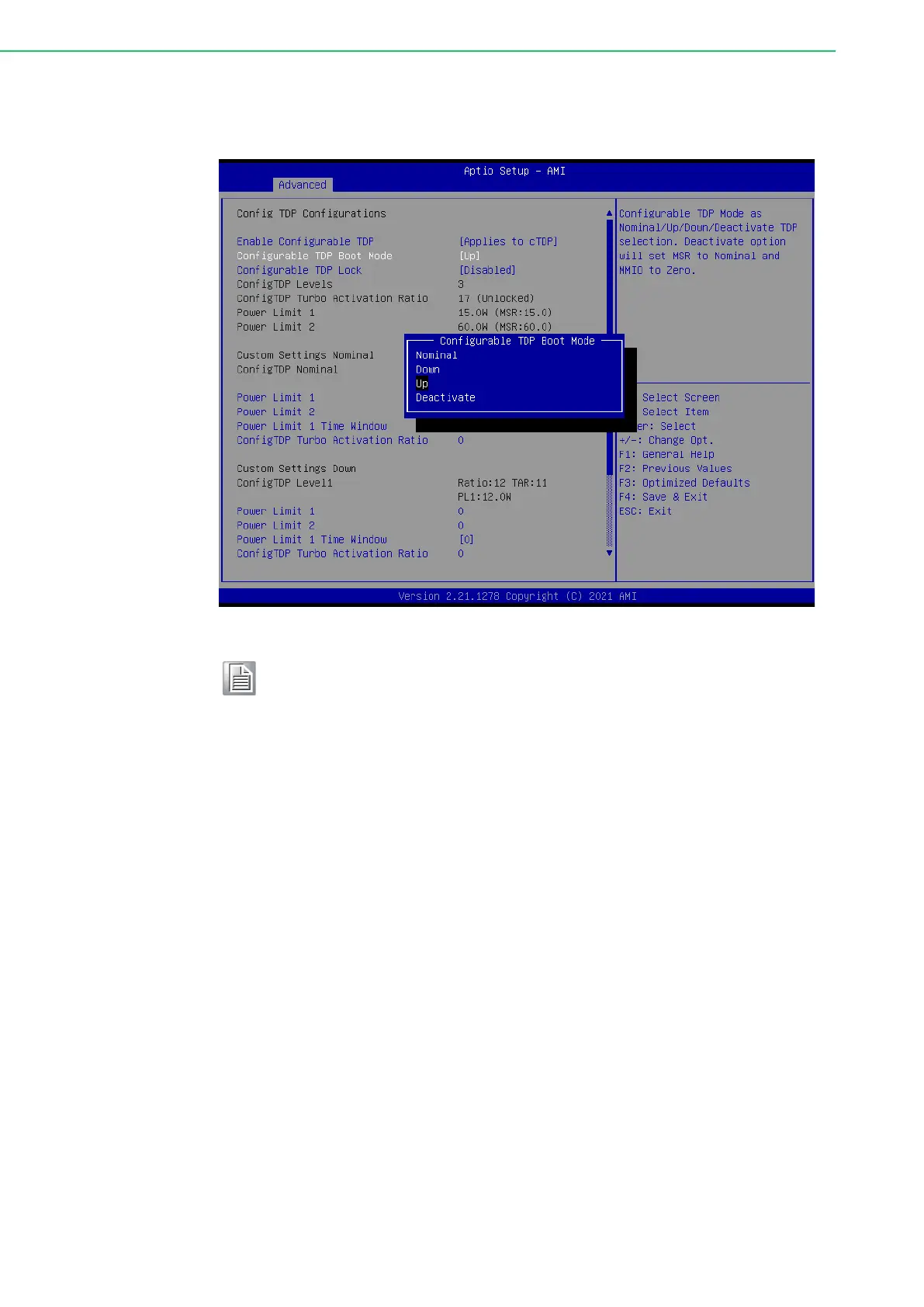

A.13 TDP Power Consumption BIOS Settings ................................................ 68

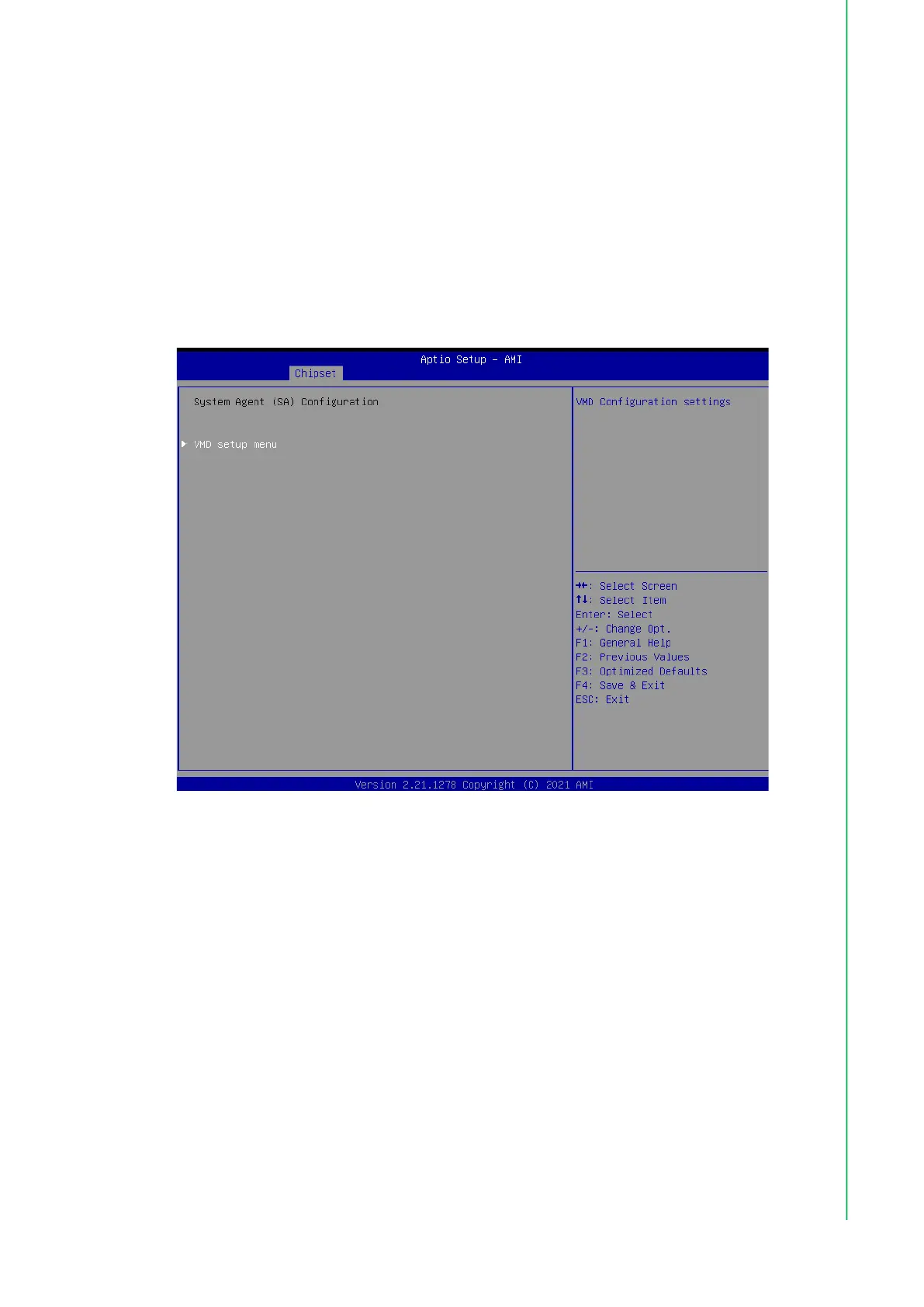

A.14 Storage RAID Configuration (VMD Setup).............................................. 71
A.15 Dynamic Range Temperature Statement................................................ 73
UNO-148 User Manual 4
Chapter 1
1Overview
This chapter outlines specifica-
tions for UNO-148.
Introduction
Safety Precautions
Accessories
Hardware Specifications
Dimensions
UNO-148 User Manual 2
1.1 Introduction
Advantech's UNO-100 series are DIN-rail integrated controllers that feature a modu-
lar design for flexible configuration according to specific usage requirements.
UNO-148 is equipped with an 11th Generation Intel ® Core™ i Processor (standard
1.8 GHz, optional up to 4.4 Ghz) with 8 GB DDR4 RAM, and 3 x LAN, 4 x COM, 3 x
USB 3.2 Gen 2, 1 x USB 2.0, 8 x DI, 8 x DO and 2 x DP 1.4. The controller also sup-
ports 1 x full size Mini PCIe, 1 x M.2 (B-Key), 1 x M.2 (M-Key), 1 x M.2 (E-Key), and
1 x nano SIM card for convenient expansion that supports Advantech’s iDoor tech-
nology for integrating additional industrial Fieldbus, wireless communication, I/O, and
peripheral modules.
1.2 Safety Precautions
Below are a few safety precautions for preventing injury when making connections. In
most cases, users can use a standard cable for connection.
1.3 Packing List
Please refer to the below packing list:
UNO-148 (with DIN-rail mount)
2 x 10-pin plug-in block for COM port
1 x 20-pin plug-in block for DIO
1 x 2-pin plug-in for Power
1 x earth-ground cable
Quick Start Guide
Warranty card
Warning! Always disconnect the power cord from the chassis before manual han-
dling. Do not connect the chassis while the system power is on. A sud-
den rush of power can damage sensitive electronic components. Only
experienced electronics personnel should open the chassis.
Warning! Toujours à la terre pour éliminer toute charge d'électricité statique avant
toucher UNO-148. Appareils électroniques modernes sont très sensi-
bles à charges d'électricité statique. Utilisez un bracelet antistatique à
tout moment. Placez tous composants électroniques sur une surface
antistatique ou dans un statique-sac blindé.
Caution! Always ground yourself to remove any static electric charge before
touching UNO-148. Modern electronic devices are very sensitive to
static electric charges. Use a grounding wrist strap at all times. Place all
electronic components on a static-dissipative surface or in a static
shielded bag.
Caution! Toujours débrancher le cordon d'alimentation de votre boîtier lorsque
vous êtes travailler. Ne branchez pas lorsque l'appareil est allumé. Un
afflux soudain de puissance peut endommager les composants électro-
niques sensibles. Seulement connu personnel de l'électronique
devraient ouvrir le châssis.
3 UNO-148 User Manual
Chapter 1 Overview
If anything is missing or damaged, contact your distributor or sales representative
immediately.
1.4 Hardware Specifications
1.4.1 General
1.4.2 System Hardware
Dimensions (W x D x H) 45 x 140 x 200 mm
Weight (Net) 1.5 kg
Mounting DIN-rail
Power Requirement 10 - 36VDC
Power Consumption 26 W (typical), 60 W (Max)
BIOS AMI UEFI 256 Mbit
Watchdog Timer Programmable 255-level timer interval, from 1 to 255 sec
Hardware Security TPM 2.0
Processor 11th Gen Intel® Core™ 1.8 GHz (up to 4.4 GHz)
Memory 2 Slots, Built-in 8 GB DDR4 3200 MHz (Default 8 GB single slot, max.
up to 32 GB per slot)
Graphics Engine Intel® Iris® Xᵉ (Supports i5 & i7 CPU)
Intel® UHD Graphics (Supports i3 CPU)
Ethernet 2 x 10/100/1000BASE-T Fast Ethernet (RJ-45)
1 x 10/100/1000/2500BASE-T Fast Ethernet (RJ-45)
LED Indicators
1x Power: Green-S0, Orange S3 or S5
1x RUN: Green-Programmable (PLED)
1x BTR: RED-RTC Battery Low
Communication M.2 slot for B-Key and E-Key
Storage 1 x M.2 M-Key 2280 NVMe SSD (PCIe p15-x4 Signal)
1 x M.2 B-Key 2242 (SATA Signal)
Expansion
1 x M.2 B-key 3042 or 3052 Module (USB 3.2 Gen 2 Signal)
1 x Nano SIM card slot for B-Key use
1 x M.2 E-Key 2230 WiFi module (PCIe / USB 2.0 Signal)
1 x Mini PCIe (PCIe / USB 2.0 Signal)
Note! The M.2 B-Key can support either 2242 storage (w/ SATA signal) or
3042/3052 Module (w/ USB signal).
UNO-148 User Manual 4
1.4.3 I/O Interfaces
1.4.4 Environment
1.4.5 Certification
Serial Ports 4 x RS-232/422/485 (terminal block), 50 ~115.2 kbps (Isolation
Protection: 2500 VDC)
LAN Ports
1x Intel® I225 Ethernet Chip
1x Intel® I219 Ethernet Chip
1x Intel® I210 Ethernet Chip
Speed 2 x 10/100/1000BASE-T Fast Ethernet (RJ-45)
1 x 10/100/1000/2500BASE-T Fast Ethernet (RJ-45)
USB Ports 3 x USB 3.2 Gen 2, and 1 x USB 2.0 (Type-A)
Isolated DIO
8-ch digital input, 8-ch digital output (Isolation Protection:
2500VDC)
Input Voltage (Wet Contact)
Logic 0: 10 ~ 30 VDC
Logic 1: 0 ~ 3 VDC
Input Voltage (Dry Contact)
Logic 0: Shorted to GND
Logic 1: Open
Digital Output
Output Voltage: 5 ~ 30 VDC
Output Capability Sink: 500 mA max./channel
Displays 2 x DP 1.4, up to 7680x3480 (4K) @ 60Hz
Power Connector 1 x 2 Pin (terminal block)
Operating Temperature -20 ~ 60 °C (-4 ~ 140 °F) with 0.7 m/s airflow
Storage Temperature - 40 ~ 85 °C (-40 ~ 185 °F)
Relative Humidity 95% RH @ 40 °C / 104 °F, non-condensing
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11 ms
Vibration Protection
Operating, IEC 60068-2-64, 4 Grms, random, 5 ~ 500 Hz, 1hr/
axis (SSD)
Operating, IEC 60068-2-64, 0.3 Grms, random, 5 ~ 500 Hz,
1hr/axis (HDD)
Certification CE, FCC, CB, UL 61010-2-201, BSMI
5 UNO-148 User Manual
Chapter 1 Overview
1.4.6 Extension Kit (Optional)
UNO-148 features a modularized design. Advantech offers an optional 2nd
extension kit.
UNO-148-ID1EA Expansion unit (iDoor x 1)
UNO-148-IS2EA Expansion unit (1 x iDoor and 1 x 2.5”SSD/HDD)
UNO-148-P11EA Expansion unit (1 x PCIe p17-x4 expansion)
Part number UNO-148-ID1EA
Description 2nd stack extension kit to support 1 x iDoor on UNO-148-
ID1EA
Ports 1 x iDoor
Dimensions (W x D x H) 35 x 140 x 200 mm
Weight 0.4 kg
Part number UNO-148-IS2EA
Description 2nd stack extension kit to support 1 x iDoor and 1 x 2.5”
SSD/HDD storage on UNO-148-IS2EA
Ports 1 x iDoor, 1 x 2.5” SSD/HDD
Dimensions (W x D x H) 35 x 140 x 200 mm
Weight 0.8 kg
Part number UNO-148-P11EA
Description 2nd stack extension kit to support 1 x PCIe p17-x4 on UNO-148-
P11EA
Ports 1 x PCIe p17-x4 expansion
Dimensions (W x D x H) 35 x 140 x 200 mm
Weight 0.5 kg
Note! 1. When UNO-148-P11EA is installed, the PCIe signals of the mPCIe
port and SATA signals of the M.2 B-Key socket are occupied by the
expansion kit and cannot be used anymore.
2. Because of the power used by PCIe x4, the recommended power
input for UNO-148 is 24 VDC (±20%).
UNO-148 User Manual 6
1.5 Dimensions
45 x 140 x 200 mm (W x D x H mm)
Figure 1.1 UNO-148 Dimensions
80 x 140 x 200 mm (W x D x H mm)
Figure 1.2 UNO-148 Dimensions (With UNO-148-IS2EA Optional Extension Kit))
7 UNO-148 User Manual
Chapter 1 Overview
80 x 140 x 200 mm (W x D x H mm)
Figure 1.3 UNO-148 Dimensions (With UNO-148-ID1EA Optional Extension Kit)
Figure 1.4 UNO-148 Dimensions (With UNO-148-ID1EA Optional Extension Kit)
UNO-148 User Manual 8
Chapter 2
2Hardware
Functionality
This chapter details setup instruc-
tions for the hardware functions
of the UNO-148. It includes con-
necting peripherals and indica-
tors.
Introduction
External I/O Connectors
Internal I/O Connectors
LED Indicators
Reset Buttons
Antenna Holes
11 UNO-148 User Manual
Chapter 2 Hardware Functionality
Table 2.1: Key Components, Connectors Onboard
Category Label Function
External
CN1 Power Connector
CN2 DisplayPort Connector
CN3 DisplayPort Connector
CN4 LAN Connector
CN5 LAN Connector
CN6 LAN Connector
CN7 USB 3.0 +2.0 Connector
CN8 USB 3.0 p23-x2 Connector
SW1 Reset Button + Power Button
D55 LED Indicator
CN9 8DI/8DO Terminal Connector
CN10 COM Port Terminal Connector (RS232/422/485)
CN11 COM Port Terminal Connector (RS232/422/485)
Internal
CN12 Riser Connector
MINI1 Mini PCIe Connector
CN14 M.2 B-Key for 2242/3042/3052 Connector
CN13 M.2 E-Key for 2230 Connector
CN15 M.2 M-Key for 2280 Connector
DIMM2 Memory Slot
DIMM1 Memory Slot
CPU CPU
UNO-148 User Manual 12
2.2 External I/O Connector
2.2.1 UNO-148 Base Unit

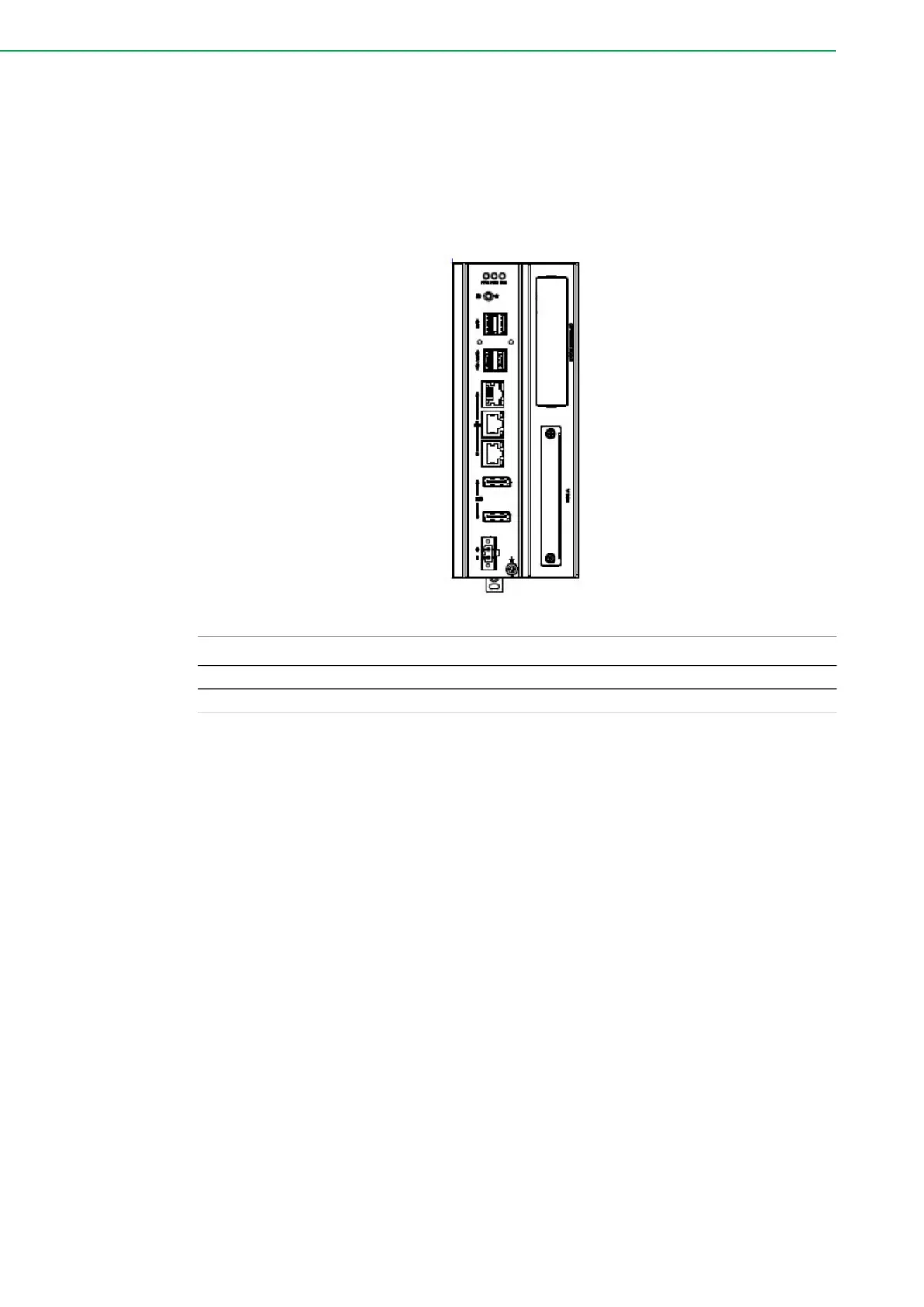

Figure 2.3 Front Panel of UNO-148
Figure 2.4 Top View of UNO-148
13 UNO-148 User Manual
Chapter 2 Hardware Functionality
2.2.2 UNO-148 Base Unit with UNO-148-IS2EA Expansion Unit (1 x
iDoor and 1 x 2.5” SSD/HDD)
Figure 2.5 Front Panel of UNO-148
Figure 2.6 Top View of UNO-148
UNO-148 User Manual 14
2.2.3 UNO-148 Base Unit with UNO-148-ID1EA Expansion Unit
(iDoor x 1)
Figure 2.7 Front Panel of UNO-148
Figure 2.8 Top View of UNO-148
15 UNO-148 User Manual
Chapter 2 Hardware Functionality
2.2.4 UNO-148 Base Unit with UNO-148-P11EA Expansion Unit (1 x
PCIe p27-x4 expansion)

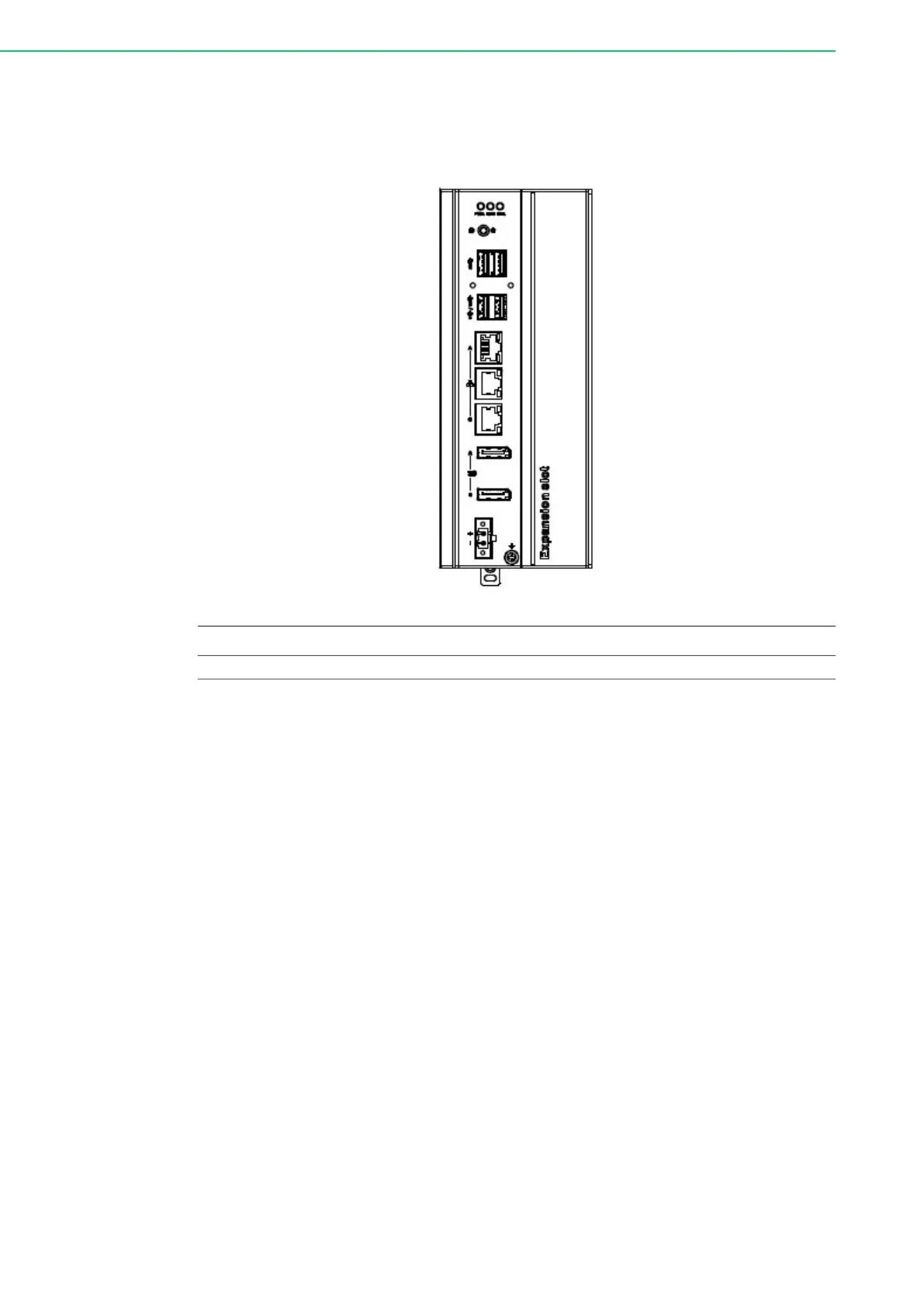

Figure 2.9 Front Panel of UNO-148
Figure 2.10 Top View of UNO-148
UNO-148 User Manual 16
2.2.5 Power Connector
UNO-148 comes with a Phoenix connector that carries 10 - 36 VDC external power
input, and features reversed wiring protection. Therefore, the system will not accrue
damage from reversed polarity of ground lines and power lines.
2.2.6 LAN: Ethernet Connectors
UNO-148 is equipped with two Gigabit LAN controllers. An Intel ® i210/i219/i225
Ethernet controller that complies with IEEE 802.3u 10/100/1000/2500 Base-T is used
as the controller chip. The Ethernet port is a standard RJ-45 jack. Additionally, LED
indicators are provided on the front of the device to indicate the system’s Link (off/
green/orange) and Active (green) status.
2.2.7 USB Connectors
UNO-148 features 4 x USB ports that comply with USB EHCI (3 x USB 3.2, 1 x USB
2.0 (Type-A)) specifications. The USB connectors support plug-and-play and hot-
swapping functionality for external devices. Additionally, this can be enabled/disabled
in the BIOS menu.
2.2.8 Display Connectors
The UNO-148 provides 2 x DP 1.4 connectors for a high-resolution interface up to
7680x3840 @ 60Hz. It also supports DP++ which can be compatible with a passive
adapter.
17 UNO-148 User Manual
Chapter 2 Hardware Functionality
2.2.9 COM Connector
UNO-148 has 4 x COM RS232/422/485 ports of terminal block type. They offer trans-
mission speeds of 50 ~115.2 kbps.
The default mode for both COM ports (COM1&COM2) is RS-232 Mode. Settings can
be adjusted via an on-board switch (SW1).
Table 2.2: COM Connector Pin Assignments
Pin COM1 Mode Signal Name Pin COM2 Mode Signal Name
1
RS232 CTS
2
RS232 CTS
RS422 T- RS422 T-
RS485 D- RS485 D-
3
RS232 RXD
4
RS232 RXD
RS422 T+ RS422 T+
RS485 D+ RS485 D+
5
RS232 TXD
6
RS232 TXD
RS422 R+ RS422 R+
RS485 RS485
7
RS232 RTS
8
RS232 RTS
RS422 R- RS422 R-
RS485 RS485
9
RS232 GND
10
RS232 GND
RS422 GND RS422 GND
RS485 GND RS485 GND
UNO-148 User Manual 18
2.2.10 Digital Inputs and Outputs
There are 8 x digital inputs and 8 x digital outputs configured from GPIO pins for on/
off triggering and status reading.
The following table indicates the mapping for DIO and GPIO.
And the below table indicates the mapping of DIO and Linux GPIO.
Use SW3 to set Wet Contact and Dry Contact for Digital input.
Dry: Configure to Setting 1 (Default) Wet: Configure to Setting 3
DI point Number DO point Number
DI0 424 DO0 314
DI1 425 DO1 315
DI2 426 DO2 325
DI3 427 DO3 326
DI4 428 DO4 327
DI5 429 DO5 328
DI6 430 DO6 329
DI7 431 DO7 330
19 UNO-148 User Manual
Chapter 2 Hardware Functionality
Digital Input
Input Channels 8
Input Voltage (Wet Contact), Configure SW3 to Setting 3
–Logic 0: 10 ~ 30 VDC
–Logic 1: 0 ~ 3 VDC
Input Voltage (Dry Contact), Configure SW3 to Setting 1
–Logic 0: Shorted to GND
–Logic 1: Open
Isolation Protection 2,500 VDC
Over-voltage Protection 30 VDC
Opto-Isolator Response 50 μs
Digital Output
Output Channels 8
Output Voltage: 5 ~ 30 VDC
Output Capability Sink: 500 mA max./channel
Opto-Isolator Response 50 μs
Isolated Digital Input
Each of the 8 x isolated digital input channels accept voltages from 0 to 30 V. The fol-
lowing figure shows how to connect an external input source to the isolated inputs of
UNO- 148.
Figure 2.11 Isolated DI Wet Connection Diagram
Figure 2.12 Isolated DI Dry Connection Diagram
21 UNO-148 User Manual
Chapter 2 Hardware Functionality
Configure the UNO-148 to match the needs of your application by setting switches.
The following details the switch setting definitions:
Table 2.3: Internal Connectors and Jumper Switches
Label Function
CN19 Internal USB Connector
CN12 Riser Connector
SW2 COM Port RS232/422/485 settings
SW8 AT/ATX/Remote setting
MINI1 Mini PCIe Connector
SW1 COM Port RS232/422/485 settings
CN14 M.2 B-Key for 2242/3042/3052 Connector
SW3 DI Setting (Dry/Wet)
J3 Clear CMOS Connector
CN13 M.2 E-Key for 2230 Connector
CN20 iDoor Power Connector
CN15 M.2 M-Key for 2280 Connector
CN14-1 Nano SIM slot Connector
BAT1 RTC Battery Connector
SW4 BIOS update Setting
Note! *This power is from DC Power inputs.
UNO-148 User Manual 22
2.3.1 M.2 Connector
There is one M.2 B-Key connector for M.2 cards, labeled “CN14” on the board. This
M.2 interface is an SATA signal co-lay with a USB signal. It will automatically detect
which device you installed and determine the appropriate SATA or USB signal to use.
Therefore, it supports the installation of M.2 2242 (w/SATA signal) or 3042/3052 mod-
ule (w/ USB Signal).
2.3.2 mPCIe Connector
There is one socket for a full-size Mini PCI Express card, labeled “MINI1” on the
board. It supports the iDoor module for diversified applications such as isolated COM
port, Profibus, WLAN GPRS, LTE, and MRAM. Users can install iDoor easily with the
optional extension kit.
2.3.3 Nano SIM Slot
There’s one Nano SIM Slot for supporting LTE functionality, labeled “CN14-1” on the
board. In addition to installing a SIM card in “CN14-1”, users are required to install an
LTE Module on “CN14” M.2 B-Key to enable the functionality.
2.4 Others
Figure 2.15 Indicators, Reset Buttons, and Antenna Holes
2.4.1 LED Indicators
Three LEDs indicate the status of the system’s power, RTC battery, and programma-
ble LED for user configurations.
PWR (Power): Green indicates “normal” and orange indicates “standby”.
BTR (RTC Battery): Red indicates a low RTC battery. Check the RTC battery.
RUN (Programmable): Users can configure the LED indicator’s behavior
through GPO signal controls. Green indicates programmed operation.
2.4.2 Reset Buttons
Press the “Reset” button to initiate a hardware reset.
23 UNO-148 User Manual
Chapter 2 Hardware Functionality
2.4.3 Antenna Hole
This product offers two antenna mounting holes pre-cut for users to install an
antenna kit for LTE or wireless functions.
Figure 2.16 Diagram of Maximum OD Value for the Antenna Holes
Note! Please be aware of the Maximum OD value of the Antenna Hole when
selecting the antenna.
UNO-148 User Manual 24
Chapter 3
3Initial Setup
This chapter explains how to Ini-
tialize UNO-148.
Chassis Grounding
Connecting Power
Storage Installation (Optional)
DIN-Rail Installation
Wireless Module Installation
(Optional)
Expansion Module Installation
(Optional)
Remote Power/On & Reset Set-
ting
BIOS Setting
27 UNO-148 User Manual
Chapter 3 Initial Setup
perature of 70 °C (158 °F). If you need further assistance or information, please con-
tact Advantech.
Follow the below instructions:
1. Insert the positive and negative wires into the V+ and V- contacts on the termi-
nal block connector.
2. Tighten the wire-clamp screws to prevent the DC wires from coming loose.
Take the following guidelines into consideration before wiring the device:
1. The terminal block is suitable for 12-24 AWG (12 A). Torque value = 7 lb-in. Use
copper conductors only.
2. The temperature rating of the input connection cable should be higher than 95
°C (203 °F).
3.3 Storage Installation (Optional)
UNO-148 supports the installation of one M.2 2280 NVMe SSD. The installation is
demonstrated in the following steps.
Note! It is recommended to choose a 150 W adapter when the iDoor expan-
sion module (e.g. PCM-24R2PE) is installed. Recommended PN:
96PSA-A150W24T2-3.
UNO-148 User Manual 28
3.3.1 Installing M.2 2280 NVMe

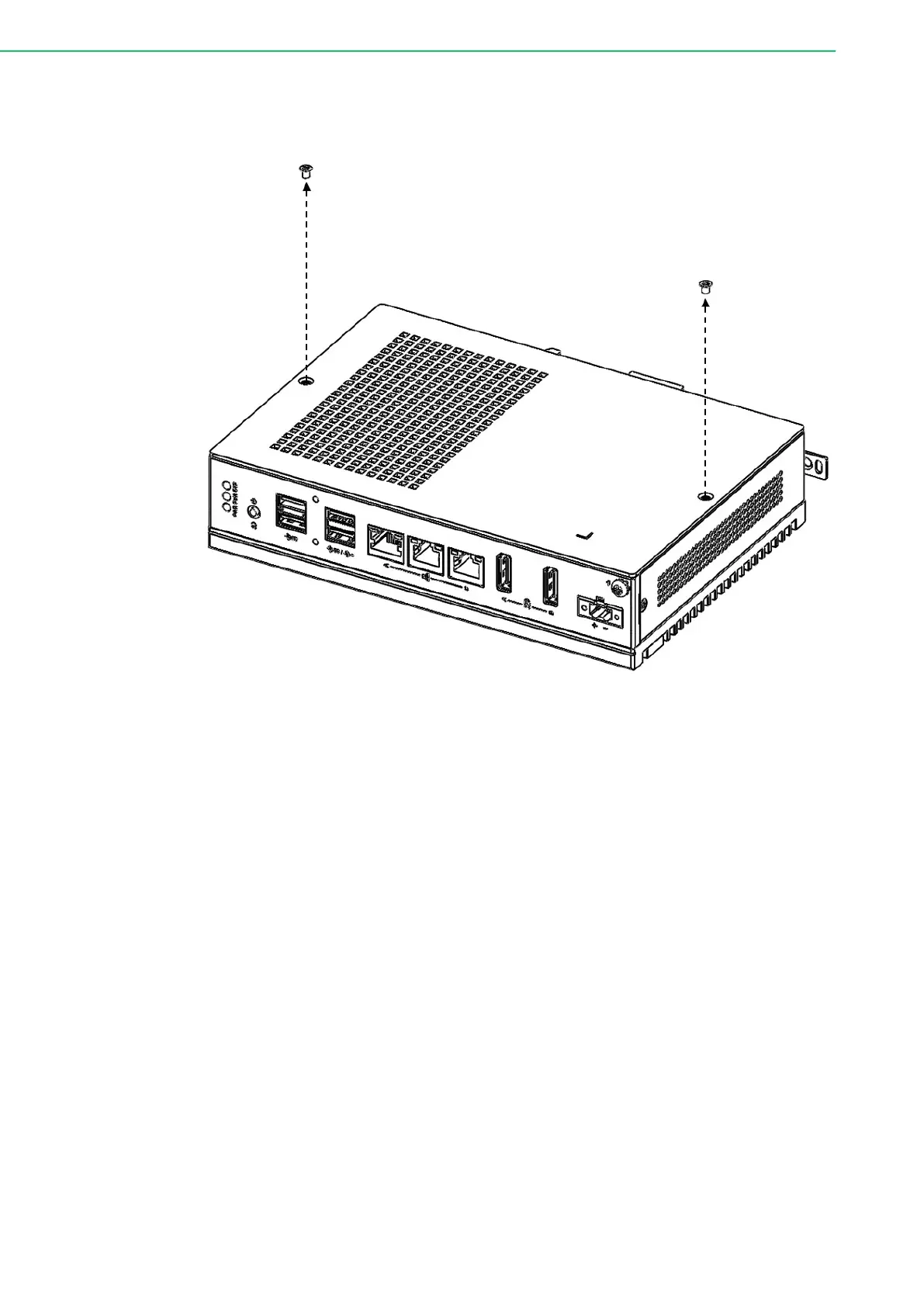

1. Remove the 2 screws from the UNO-148 back cover.
2. Remove the provided screws from the board.
29 UNO-148 User Manual
Chapter 3 Initial Setup
3. Insert the NVMe Card at the “CN15” location. Secure it with the provided screws
from Step 2.
UNO-148 User Manual 30

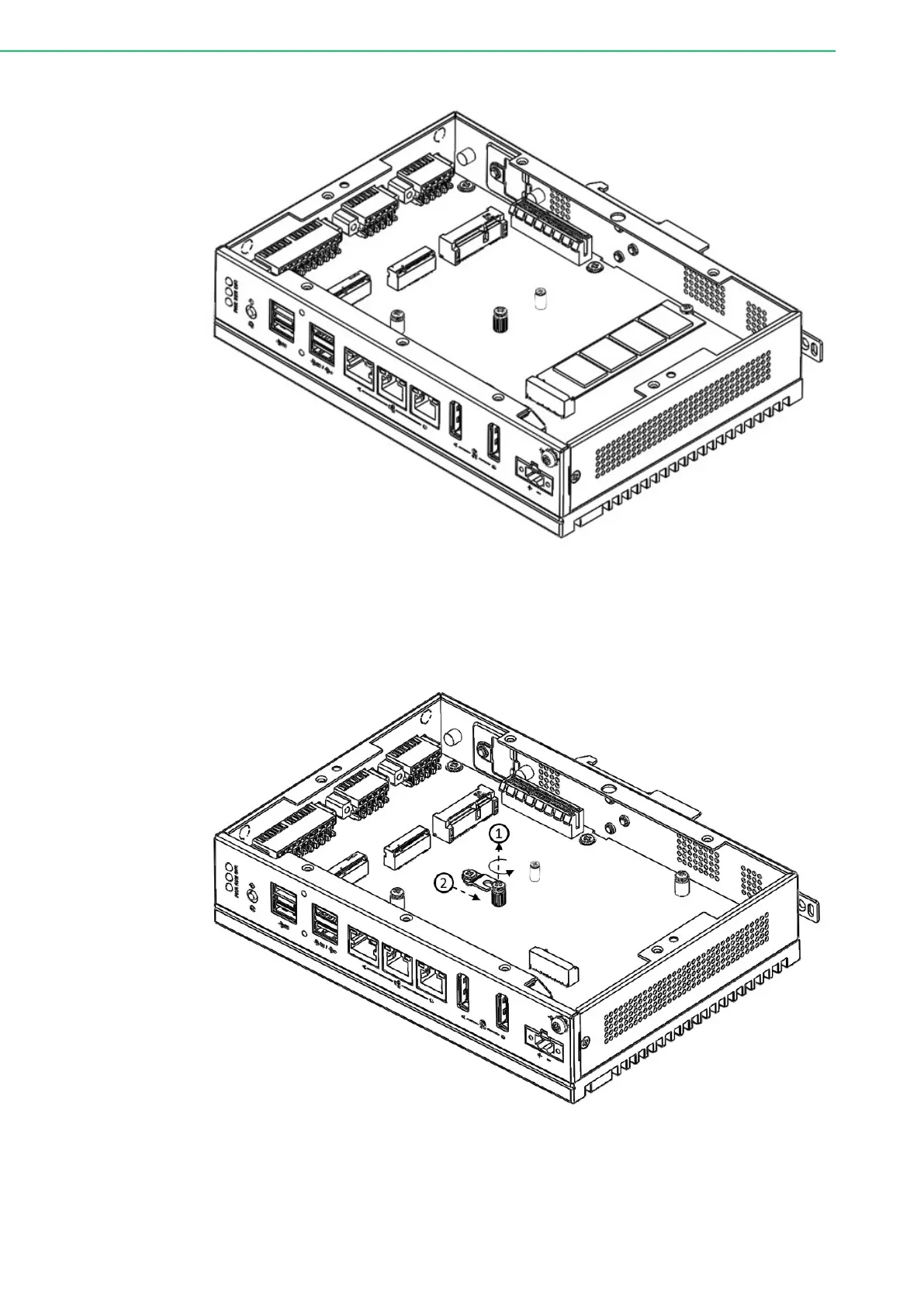

3.3.2 Installing the M.2 3042 Module
1. Loosen the provided screws on the board. (No need to remove the screws.)
2. Use the 3042 bracket from the accessory bag and insert it in the gap under-
neath where the screw was loosened in Step1.
31 UNO-148 User Manual
Chapter 3 Initial Setup
3. Move the 3042 bracket to the center of M.2 and tighten the screws.
4. Remove the provided screw from the 3042 bracket first.
Insert the M.2 3042 card and tighten the screw.
33 UNO-148 User Manual
Chapter 3 Initial Setup

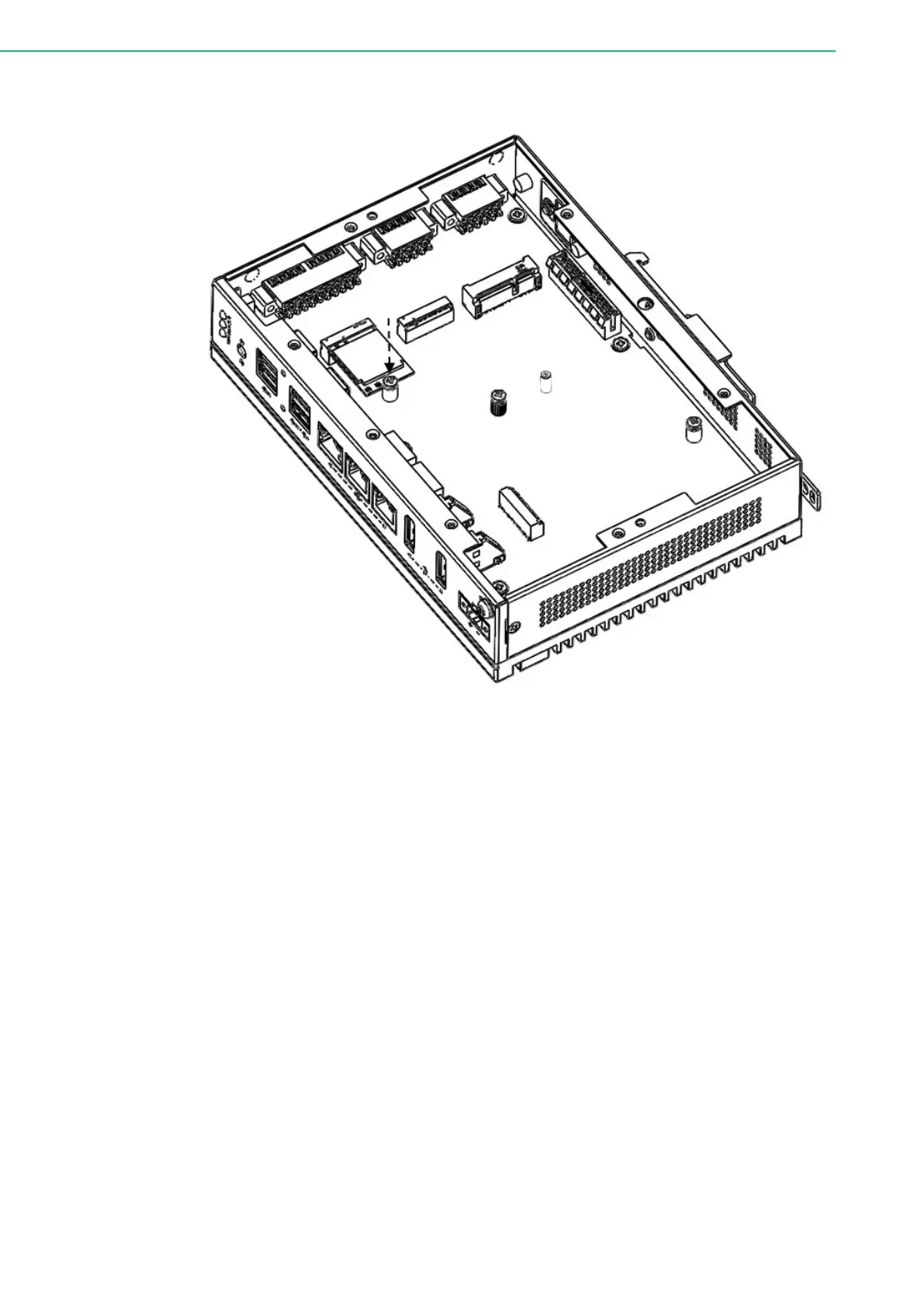

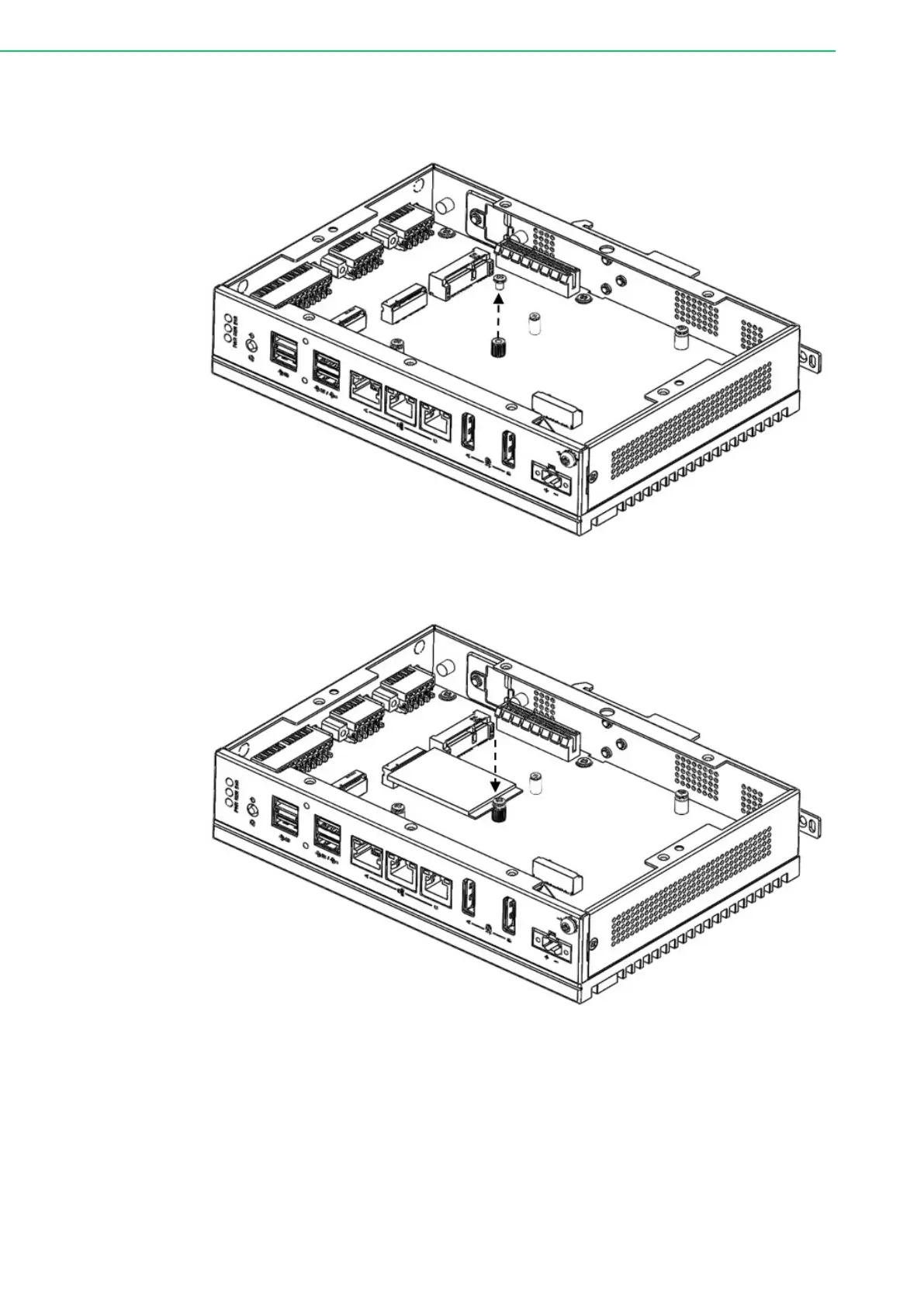

3.4 Installing the M.2 2230 Module
1. Remove the provided screws from the board.
UNO-148 User Manual 34
2. Insert the M.2 2230 to the “CN13” location and tighten the screw.
35 UNO-148 User Manual
Chapter 3 Initial Setup

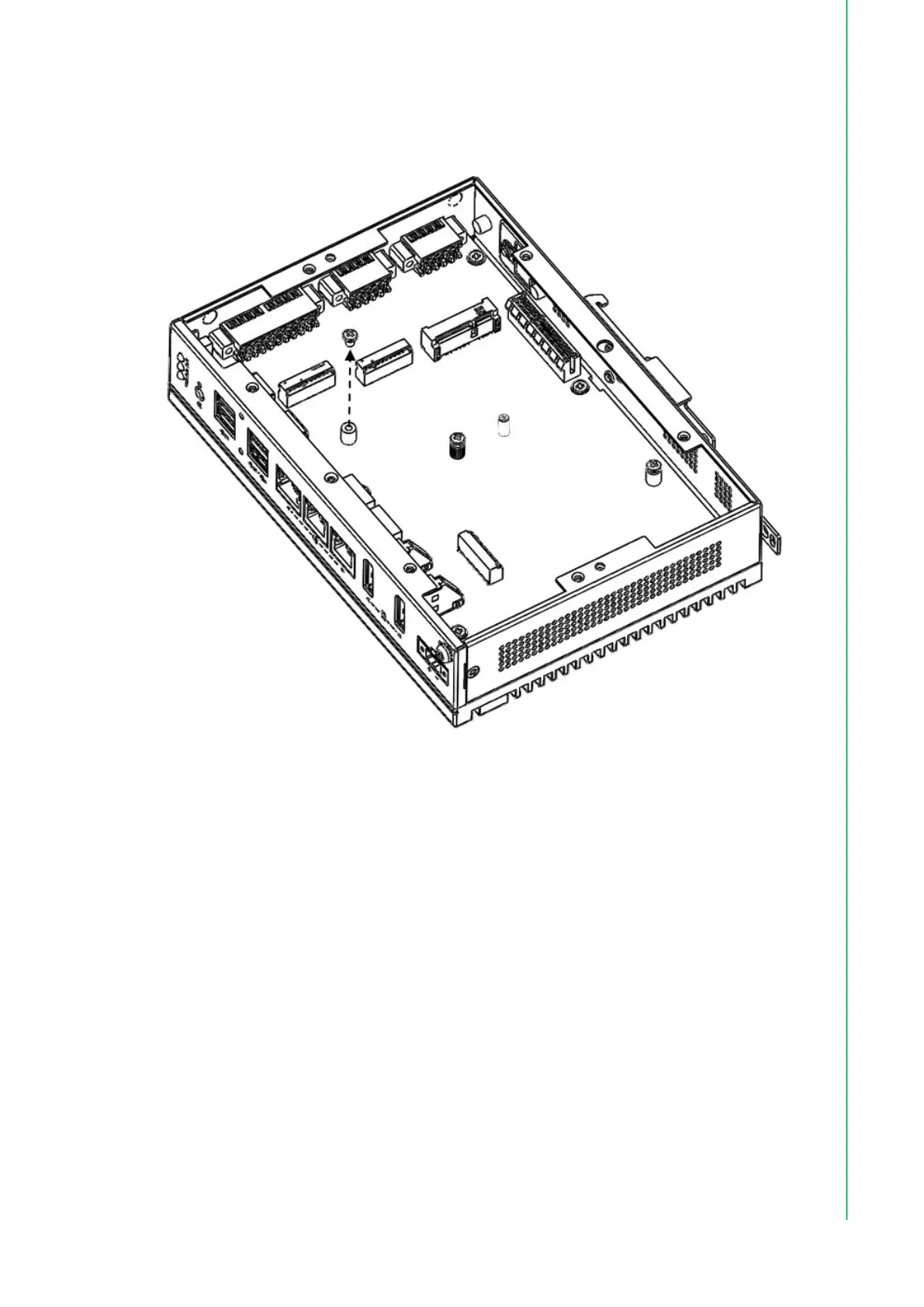

3.4.1 Installing mPCIe
1. Remove the provided screws from the board.
2. Insert the mPCIe to the “MINI1” location and tighten the screw.
UNO-148 User Manual 36
3.5 DIN-Rail Installation
1. Install UNO-148 on the rail and secure it to the rail.
2. Pull down the “Release Latch” for disassembly using a screwdriver.
Buckle inward
37 UNO-148 User Manual
Chapter 3 Initial Setup
3.6 Wireless Module Installation (Optional)
UNO-148 supports a WiFi iDoor/M.2 3042/M.2 3052 module. Follow the steps below
for installation:
1. Remove the 2 screws from the back cover of the UNO.
2. Remove the plugs in the pre-cut antenna hole(s) on the top panel for antenna
installation.
3. Install the SMA connector for the *Antenna cable to the Antenna hole.
4. Connect the MHF of the Antenna cable to the module.
5. Affix the washers and screw nut.
6. Return the back cover and gently screw it into place.
UNO-148 User Manual 38
3.7 Extension Kit Installation (Optional)
3.7.1 iDoor and HDD/SSD Storage Extension Kit (UNO-148-IS2EA)
You can additionally install a 2nd stacked iDoor and external swappable 2.5" HDD/
SSD storage extension kit (PN: UNO-148-IS2EA) on UNO-148 to expand its function-
ality:
The accessory list for iDoor extension kit (PN: UNO-148-IS2EA)
5 x M3x4L screws for extension kit installation
4 x M3x4L screws for HDD/SSD installation
39 UNO-148 User Manual
Chapter 3 Initial Setup
Follow the steps below for extension kit Installation:

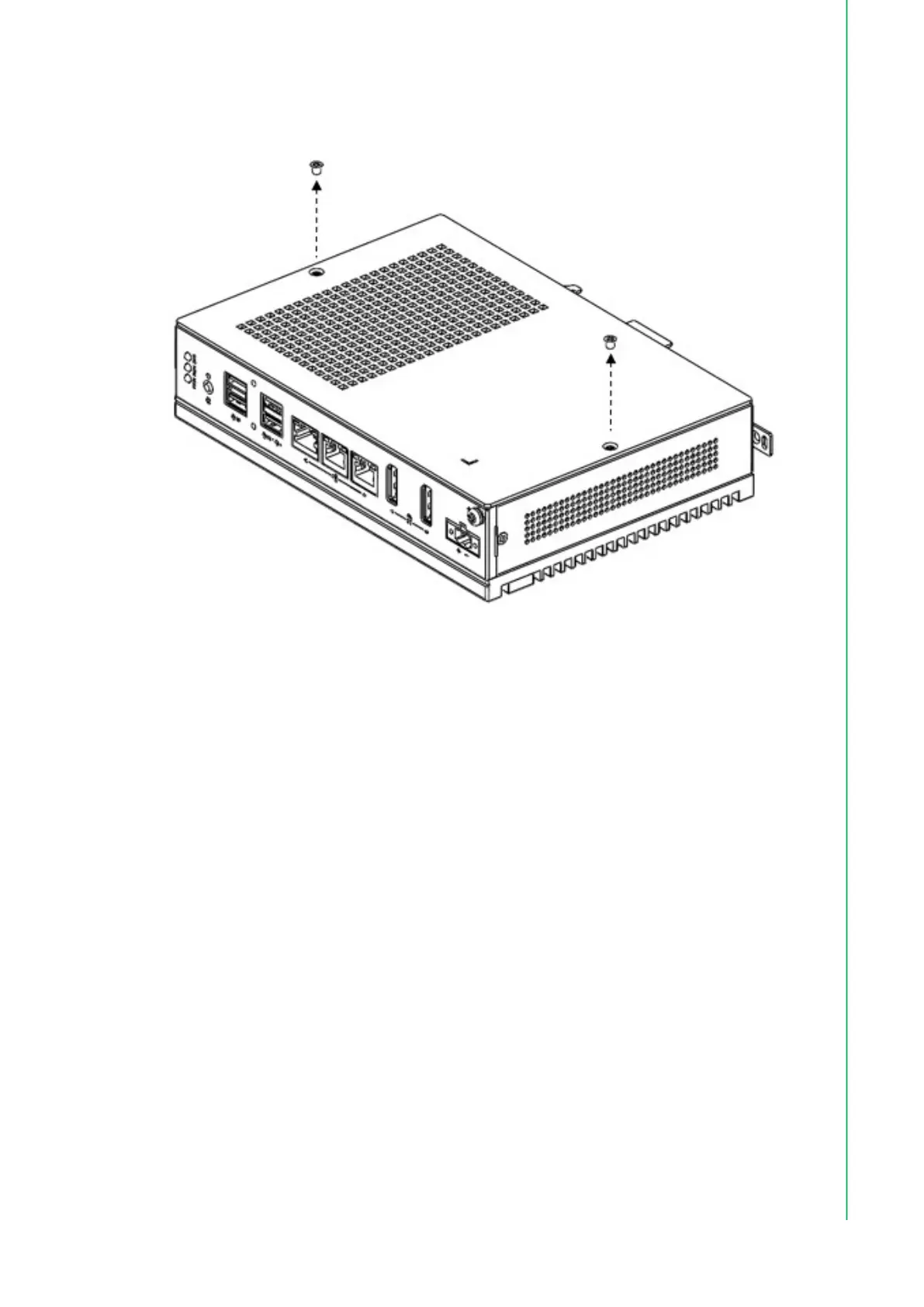

1. Remove the 2 x M3x4L screws from the back cover of UNO-148.
2. Remove the 2 x M3x6L screws from the extension kit.
3. Detach the iDoor dummy cover from the iDoor extension kit.
4. Loosen the 2 screws holding the SSD/HDD tray and remove the tray.
UNO-148 User Manual 40
5. Attach the 2nd bracket (UNO-148-IS2EA) with 6 x M3x4L screws to the Base
Unit (UNO-148).
41 UNO-148 User Manual
Chapter 3 Initial Setup
6. Connect the mPCIe connector of the iDoor module onto the board of the UNO-
148, and affix it with the 2 x M2x4L screws from the accessory bag of the iDoor
extension kit.
7. Detach the HDD/SSD bracket from the 2nd stack extension kit, then affix the
2.5” HDD/SSD to the HDD bracket with the 4 x M3x4L screws from the acces-
sory bag of the iDoor extension kit.
8. Affix the HDD/SSB bracket back to the extension kit with the provided screws
from Step 4.
UNO-148 User Manual 42
9. Return the back cover and gently screw it into place.
3.7.2 iDoor Extension Kit (UNO-148-ID1EA)
You can additionally install a 2nd stack iDoor extension kit (PN: UNO-148-ID1EA) on
UNO-148 to expand its functionality:
The accessory list for the iDoor extension kit (PN: UNO-148-ID1EA)
5 x M3x4L screws for extension kit installation
43 UNO-148 User Manual
Chapter 3 Initial Setup
Follow the steps below for extension kit Installation:
1. Remove 2 x M3x4L screws from the back cover of UNO-148.
2. Detach the iDoor dummy cover from the iDoor extension kit.
UNO-148 User Manual 44
3. Attach the 2nd bracket (UNO-148-ID1EA) with 6 x M3x4L screws to the Base
Unit (UNO-148).
45 UNO-148 User Manual
Chapter 3 Initial Setup
4. Connect the mPCIe connector of the iDoor module onto the board of the UNO-
148, and affix it with the 2 x M3x4L screws from the accessory bag of the iDoor
extension kit.
5. Return the back cover and gently screw it into place.
47 UNO-148 User Manual
Chapter 3 Initial Setup
Follow the steps below for extension kit Installation:
1. Remove the 2 x M3x4L screws from the back cover of UNO-148.
UNO-148 User Manual 48
2. Attach the 2nd bracket (UNO-148-P11EA) with 6 x M3x4L screws to the Base
Unit (UNO-148).
49 UNO-148 User Manual
Chapter 3 Initial Setup
3. Remove the PCIe cover and PCIe bracket from the 2nd extension kit (UNO-148-
P11EA) with 3 x M3x4L screws.
4. Install the PCIe card and tighten the screw.
UNO-148 User Manual 50
5. Return the back cover of UNO-148.
Note! PCIe expansion module dimension limitations.
The maximum length of the PCIe expansion module is 182 mm.
UNO-148 User Manual 52
Appendix A
ASystem Settings / Pin
Assignments
UNO-148 User Manual 54
A.1 Power Connector (CN1)
A.2 LAN: Ethernet Connector (CN4)
Table A.1: Power Connector Pin Assignments
Pin Signal Description
1 Power IN V+ 10 - 36 VDC
2 Power IN V- (GND)
Table A.2: Ethernet Connector Pin Assignments
RJ45 Pin Signal Description
1 MDI0+
In BASE-T: Media Dependent Interface[0]:
2500BASE-T: In MDI configuration, MDI[0]+/- cor-
responds to BI_DA+/- and in MDI-X configuration
MDI[0]+/- corresponds to BI_DB+/-.
10BASE-T and 100BASE-TX: In MDI configuration,
MDI[0]+/- is used for the transmit pair and in MDIX
configuration MDI[0]+/- is used for the receive pair.
2 MDI0-
3 MDI1+
In BASE-T: Media Dependent Interface[1]:
2500BASE-T: In MDI configuration, MDI[1]+/- cor-
responds to BI_DB+/- and in MDI-X configuration
MDI[1]+/- corresponds to BI_DA+/-.
10BASE-T and 100BASE-TX: In MDI configuration
MDI[1]+/- is used for the receive pair and in MDI-X
configuration MDI[1]+/- is used for the transmit pair.
6 MDI1-
4 MDI2+ In BASE-T: Media Dependent Interface[3:2]:
2500BASE-T: In MDI and in MDI-X configuration,
MDI[2]+/- corresponds to BI_DC+/- and MDI[3]+/-
corresponds to BI_DD+/-.
100BASE-TX: Unused.
10BASE-T: Unused.
5 MDI2-
7 MDI3+
8 MDI3-
Left LED Right LED
100/10 Link 1000 Link 2500 Link Active
Off Orange Green Green
55 UNO-148 User Manual
Appendix A System Settings / Pin Assignments
A.3 USB Connectors (CN5, CN6)
A.3.1 USB 2.0 Connector
A.3.2 USB 3.0 Connector
Table A.3: Connector Pin Assignments
Pin Signal Name Description
1 VBUS Power
2 D- USB 2.0 differential pair
3 D+
4 GND Ground for power return
Table A.4: USB 3.0 Connector Pin Assignments
Pin Signal Name Description
1 VBUS Power
2 D- USB 2.0 differential pair
3 D+
4 GND Ground for power return
5 StdA_SSRX- SuperSpeed receiver differential pair
6 StdA_SSRX+
7 GND_DRIAN Ground for signal return
8 StdA_SSTX- SuperSpeed transmitter differential pair
9 StdA_SSTX+
