LED Outdoor Luminaires Model # BTLW061007L30ENBK

Wall Mount

120VAC / 60Hz

Page 1 of 1 R1 8061237

Limited Factory Warranty

AFX Inc. hereby warranty that this xture is free from defects in materials and workmanship when installed and used under normal operating conditions for a period of 5 years

from date of shipment from factory. This warranty covers all component parts and extends only to replacement of defective xture or components; it does not cover failure due

to improper installation, misuse, mishandling or damage incurred in transit.

Safety Precautions

 Read all safety precautions and installation instructions carefully before installing or servicing this xture. Failure to comply with these instructions could result in potentially fatal

electric shock and/or property damage.

 It is recommended that a qualied electrician perform all wiring. This xture must be wired in accordance with all national and local electrical codes.

 Do not handle any energized xture or attempt to energize any xture with wet hands or while standing on a wet or damp surface or in water.

 This xture is designed for use in a 120VAC, 60Hz fused circuit. This xture is not compatible with dimming circuit.

 Make sure that the power source conforms to the requirements of the xture. (See labels on the xture housing).

 To reduce the risk of electrical shock, and to assure proper operation, this xture must be adequately grounded. To accomplish proper grounding, there must be a separate ground

wire (green) contact between this xture and the ground connection of your main power supply panel.

 This xture is intended to be used for general outdoor lighting in dry, damp locations. , xture must be mounted at least 48 inches above ground leveor wet For wet location l.

 Disclaimer

Changes or modications not expre uipment has been ssly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This eq

tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian ICES- -005 (B). These limits are designed to 005 (B) / NMB

provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiver antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult with the dealer or an experienced radio/TV technician for help.

Any modications to this xture may void the warranty and interfere with the safe operation of the luminai re.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may

cause undesired operation of the device.

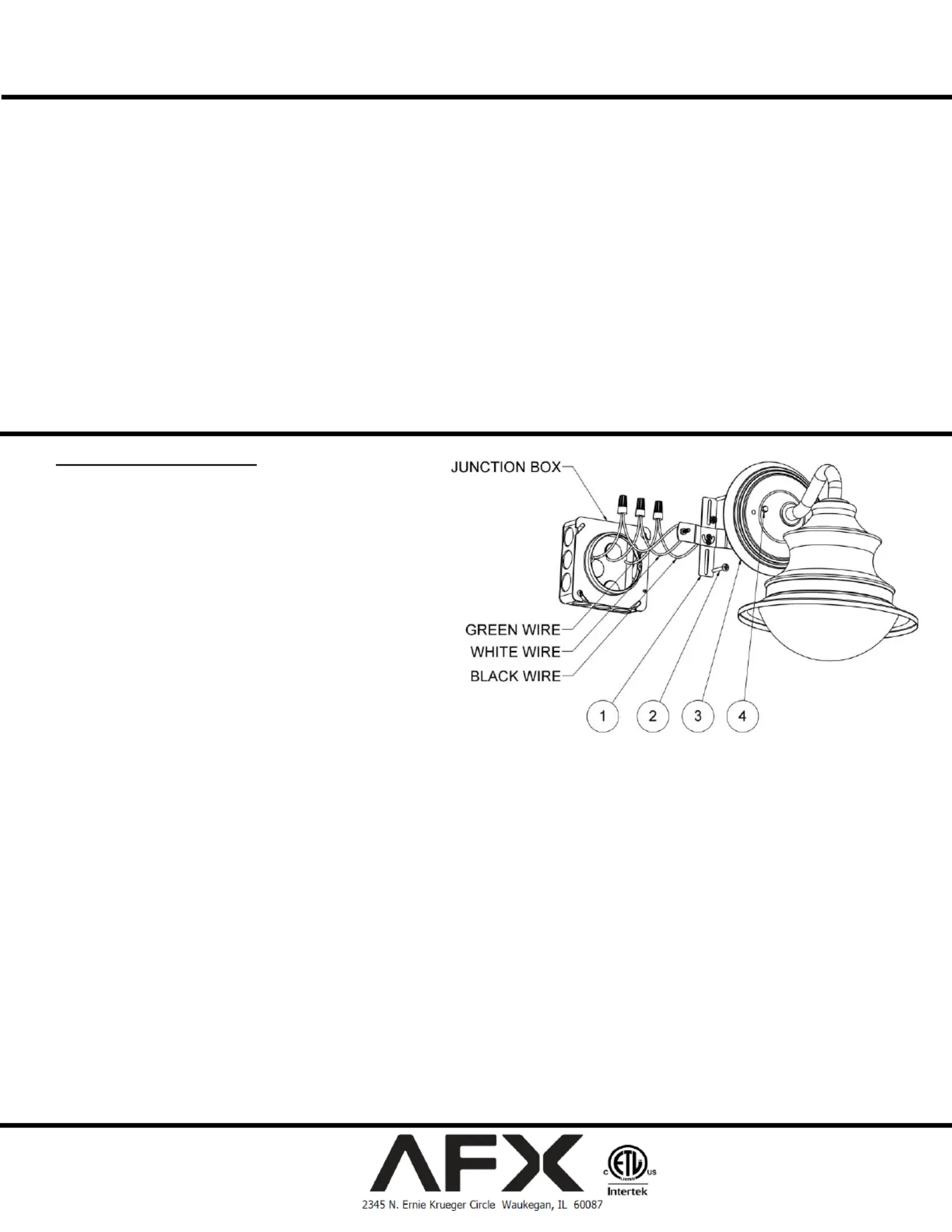

Assembly Instructions

Step 1 Preparing for installation–

A. before installing or servicing any Disconnect electrical power

part of this xture.

B. Remove xture from carton; remove components from hardware

kit.

C. Remove mounting bracket (1) from the xture.

D. Install mounting bracket (1) to junction box (not included) securely

with two screws (2).

E. Feed the black, white, and green supply wires into the xture

through the opening of the mounting bracket.

Wiring All wiring must take place inside junction box (not included) –

Caution: Make sure power is o at fuse or circuit breaker box.

Check power wires for damage or scrapes. If the power supply

wires are within three inches of the DOB, use a wire suitable for at

least 90°C (194°F). Most dwellings built before 1985 have Note:

supply wire rated to 60°C. Consult a qualied electrician to ensure

correct branch circuit conductor before installing.

Step 2 Wiring –

A. Make all wire connections to appropriate wire. Secure with wire

nuts (provided).

B. Connect the green wire from the xture to the supply power source ground wire.

C. Connect black wire from the xture to the black (L) wire from supply power source.

D. Connect white wire from the xture to the white (N) wire from supply power source.

E. . Pull on each wire lead to make sure connections are secure. Make certain no bare wires are exposed outside of wire Do not mix wires

connectors. Tuck all connections neatly into junction box.

Step 3 Mounting–

A. Install xture housing (3 to the mounting bracket by aligning two front holes on housing to threaded studs then secure it with two acorn )

nuts (4 ).

Step 4 For wet location use–

A. Apply the perimeter of xture (3 ere it contacts with a small amount of silicone (not included) per manufacturer’s instruction around ) wh

the surface of the wall but not the bottom .

Step 5 Power to the xture can now be restored–
