LED Indoor Sconce Luminaire

Wall Mount

120 277- VAC / 60Hz

Page 1 of 1 8060402 R0

Model # NS070708L30D2WH CM

CMNS072716L30D2WH

Safety Precautions

 Read all safety precautions and installation instructions carefully before installing or servicing this xture. Failure to comply with these instructions could result in

potentially fatal electric shock and/or property damage.

 It is recommended that a qualied electrician perform all wiring. This xture must be wired in accordance with all national and local electrical codes.

 Do not handle any energized xture or attempt to energize any xture with wet hands or while standing on a wet or damp surface or in water.

 This xture is designed for use in a 120-277VAC, 60Hz fused circuit and can be used in conjunction with 0- dimmers. 10V

 To reduce the risk of electrical shock, and to assure proper operation, this xture must be adequately grounded. To accomplish proper grounding, there must be a

separate ground wire (green) contact between this xture and the ground connection of your main power supply panel.

 This xture is intended to be used for general indoor or outdoor lighting in dry, damp or wet locations. For wet location, fixture must be mounted 48” above ground level.

 Disclaimer

Changes or modications not is expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: Th

equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian ICES-005 (B) / NMB-005

(B). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiver antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult with the dealer or an experienced radio/TV technician for help.

Any modications to this xture may void the warranty and interfere with the safe operation of the luminaire.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference

that may cause undesired operation of the device.

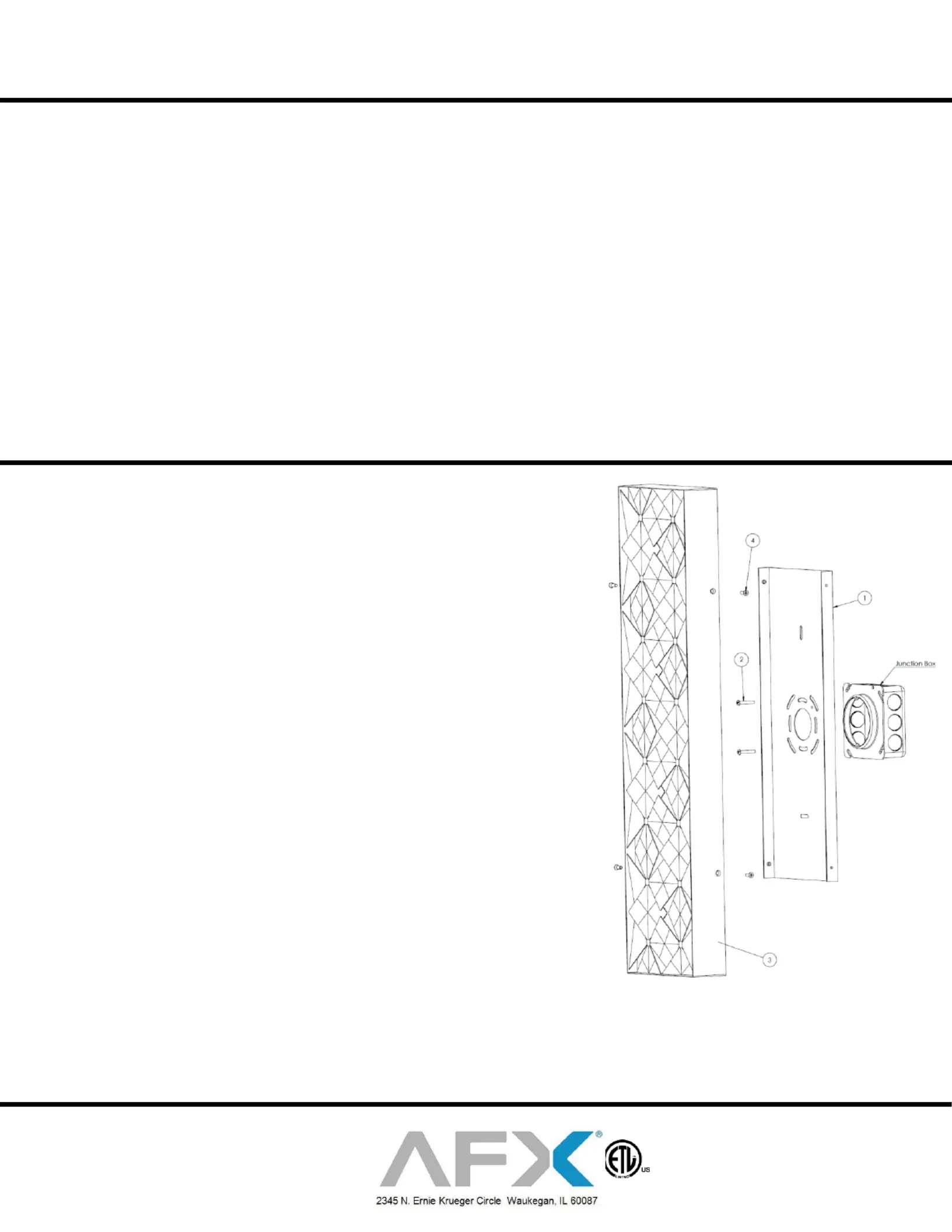

Assembly Instructions

1. Preparing for installation.

A. Disconnect electrical power before installing or servicing any part of this xture.

B. Remove xture from box. Separate contents of parts bag.

C. Remove wall plate (1) from the xture (3) by removing - screws (4). #8 32

2. Wiring.

All wiring must take place inside junction box.

Caution: Make sure power is o at fuse or circuit breaker box. Check power wires for damage or

scrapes. If power supply wires are within three inches of driver use wire suitable for at least 90C (194F). ,

Note: Most dwellings built before 1985 have supply wire rated to 60C. Consult a qualied electrician

before installing.

A. This unit will not operate properly unless connected to a “grounded” electrical circuit. Electrical

shock, over-heating, low or no light output, and shortened LED life can result if proper grounding is

not done.

B. Make all wire connections to appropriate wire. Secure with wire nuts (supplied).

C. Connect green wire from the xture to the ound power source green wire gr .

D. For Non-dimming. Fixture will operate normally w/o a connection to a dimmer. Connect white

xture lead to white (N) wire from supply power source. Connect black xture lead to black (L) wire

from supply power source. Make sure to cap gray and purple wires separately to prevent shorting.

E. For 0-10V dimming. Connect gray wire from the xture to the dimmer source gray wire. Connect

purple wire from the xture to the dimmer source purple wire. Connect white xture lead to white

(N) wire from supply power source. Connect black xture lead to black (L) wire from supply power

source.

F. Do not mix wires. Pull on each wire lead to make sure connections are secure. Make certain no

bare wires are exposed outside of wire connectors. Tuck all connections neatly into the junction

box.

3. Fixture mounting.

A. Install mounting plate (1) to handy box (not provided) and secure ush to wall with two #8-32

screws (2).

B. Install xture (3 the mounting plate (1) by aligning side holes and secure with two #4-40 screws ) to

(4) from top and bottom.

4. For Wet application .

A. Place a small bead of silicone or water proof caulk (not included) around the xture (3) where it

contacts with the surface of wall apply on top and two sides, but not on bottom.

5 Restore power at fuse or circuit breaker box. .

Limited Factory Warranty

AFX Inc. hereby warranty that this xture is free from defects in materials and workmanship when installed and used under normal oper ing conditions for a period of 5 years at

from date of purchase. This warranty covers all component parts and extends only to replacement of defective xture or components; it does not cover failure due to improper

installation, misuse, mishandling or damage incurred in transit.
