Outdoor Flood Light LED Flood Light
Model: 326919 120VAC / 60Hz
8060665 R7
1
of
1
Limited Factory Warranty
AFX, Inc. warrants this xture is free from defects in materials and workmanship when installed and used under normal operating conditions for a period of 5
years from date of purchase. This warranty covers all component parts and extends only to replacement of defective xture or components; it does not cover
failure due to improper installation, misuse, mishandling or damage incurred in transit.
Safety Precautions
Read all safety precautions and installation instructions carefully
before installing or servicing this fixture. Failure to comply with these
instructions could result in potentially fatal electric shock and/or
property damage.
It is recommended that a qualied electrician perform all wiring. This
xture must be wired in accordance with all national and local
electrical codes.
Do not handle any energized xture or attempt to energize any xture
with wet hands or while standing on a wet or damp surface or in water.
This xture is designed for use in a 110-120VAC, 60Hz fused circuit.
Do not use on a dimming circuit.
To reduce the risk of electrical shock, and to assure proper operation,
this fixture must be adequately grounded. To accomplish proper
grounding, there must be a separate ground wire (green) contact
between this xture and the ground connection of your main power
supply panel.
This xture is intended to be used for general outdoor lighting in wet
locations.
ASSEMBLY INSTRUCTIONS
1. Preparing for installation
A. Disconnect electrical power at fuse or circuit breaker box before installing or servicing any part of this xture.
B. Carefully remove the xture from the carton.
2. Wiring-all wiring must take place inside junction box (not included)
Caution: Make sure power is off at fuse or circuit breaker box. Check power wires for damage or scrapes. If power
supply wires are within three inches of the ballast power supply, use wire suitable for at least 90C (194F). Note:
Most dwellings built before 1985 have supply wire rated to 60C. Consult a qualied electrician before installing.

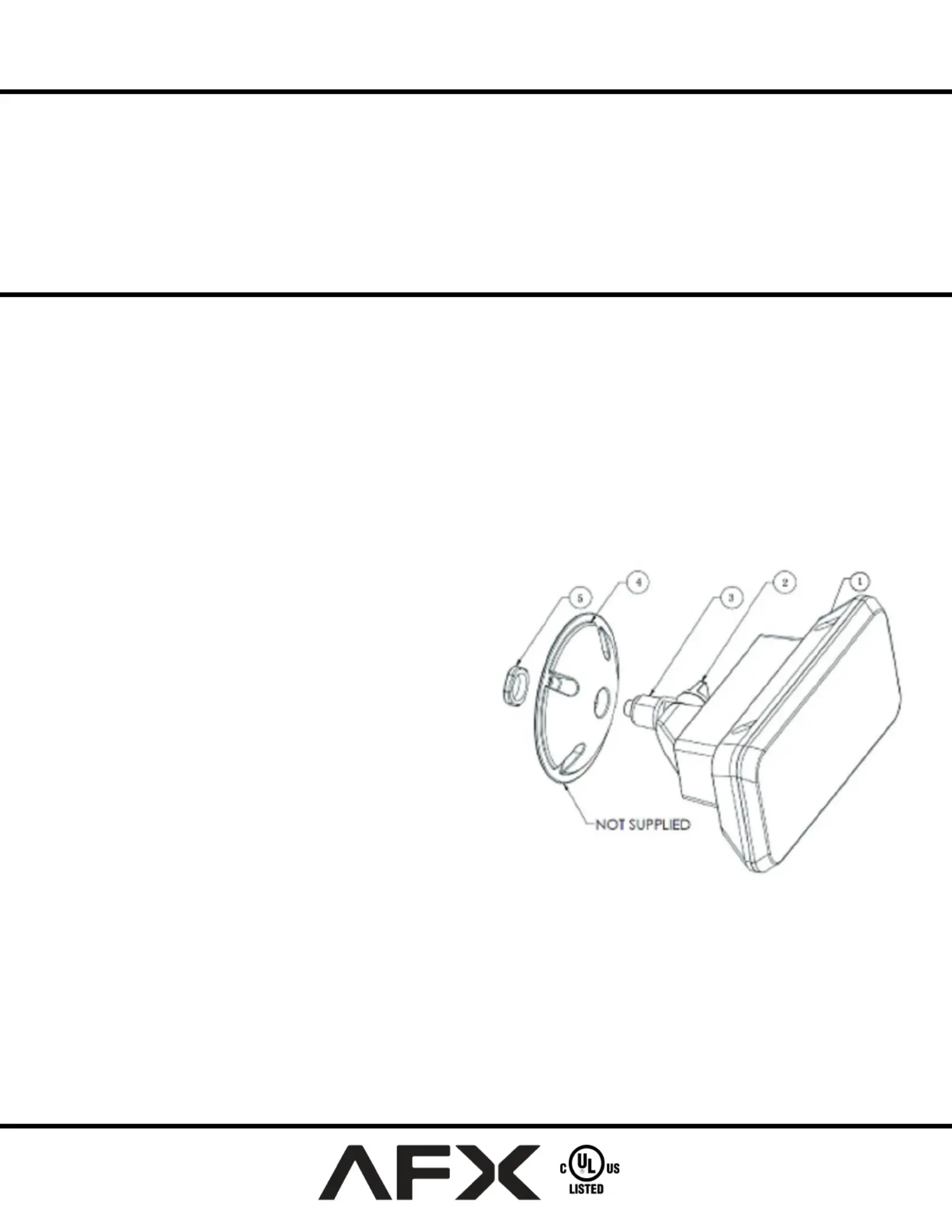

A. Secure xture arm (3) on the threaded cover (4) (not supplied) with locknut (5) (supplied).
B. Make all wire connections to appropriate wire. Secure
with wire nuts (included).
C. Connect the green wire from the fixture to the power
source green wire.
D. The black wire from the xture is connected to the black
wire from power source.
E. The white wire from the xture is connected to the white
(neutral) wire from power source.
F. Tuck all connections neatly into junction box.
3. Secure threaded cover (4) on the junction box with
two screws (not supplied).
4. Positioning Fixture with the Swivel/Arm Assembly
A. Loosen the knob (2) on the swivel arm assembly base.
Adjust the correct xture aiming angle position by rotating
it upward or downward. Tighten the knob (2).
5. Restore power at fuse or circuit breaker box.
NOTE:
This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of
the product and the hazards involved.
