AFX Post PTS3151200L30D1SBBK Bruksanvisning
Läs nedan 📖 manual på svenska för AFX Post PTS3151200L30D1SBBK (2 sidor) i kategorin Lättnad. Denna guide var användbar för 11 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/2

LED door Luminaires In
Wall Mount
120V / 60HzAC
Page 1 of 2 1 R2 806 005
Model #: PTS3151200L30D1SBBK
Model #: PTS3151200L30D1SNGY
Model #: PTS3151200L30D1SNWH
Limited Factory Warranty
AFX Inc. hereby warranty that this xture is free from defects in materials and workmanship when installed and used under normal operating
conditions for a period of 5 years from date of shipment from factory. This warranty covers all component parts and extends only to replacement of
defective xture or components; it does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit.
Safety Precautions
Read all safety precautions and installation instructions carefully before installing or servicing this xture. Failure to comply with these instructions could result
in potentially fatal electric shock and/or property damage.
It is recommended that a qualified electrician perform all wiring. This xture must be wired in accordance with all national and local electrical codes.
Do not handle any energized xture or attempt to energize any xture with wet hands or while standing on a wet or damp surface or in water.
This xture is designed for use in a 120VAC, 60Hz fused circuit only. This xture is compatible with a TRIAC (forward-phase or leading-edge) / ELV (reverse-
phase or trailing-edge) dimmer.
To reduce the risk of electrical shock, and to assure proper operation, this xture must be adequately grounded. To accomplish proper grounding, there must
be a separate ground wire (green) contact between this xture and the ground connection of your main power supply panel.
This xture is intended to be used for general indoor lighting in dry or damp locations.
Disclaimer
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian ICES-
005 (B) / NMB-005 (B). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiver antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult with the dealer or an experienced radio/TV technician for help.
Any modications to this xture may void the warranty and interfere with the safe operation of the luminaire.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.

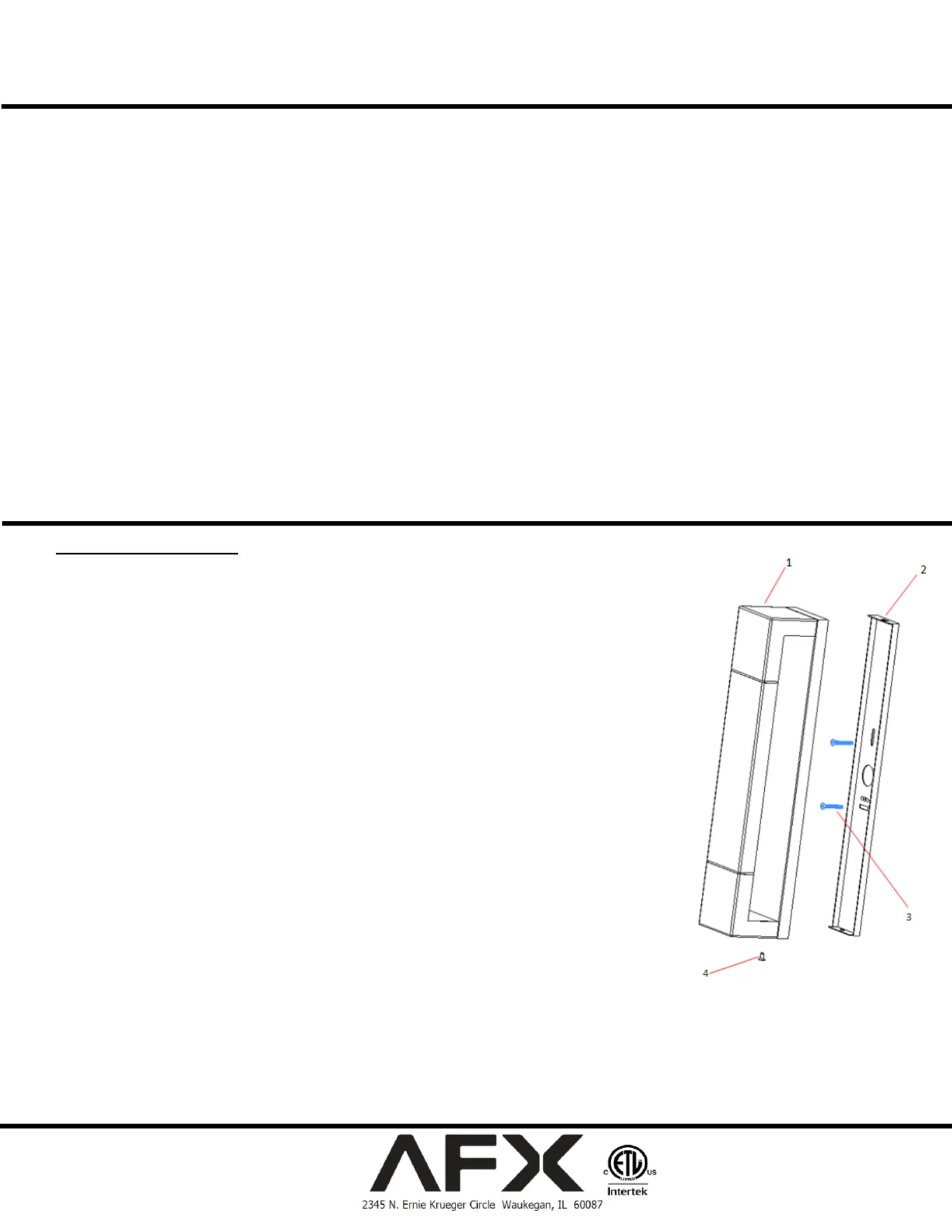

Assembly Instructions
Step 1 Preparing for installation–
A. at fuse or circuit breaker box before installing or servicing any part of this xture. Disconnect electrical power
B. Carefully remove the xture from the carton, remove components from hardware kit.
C. Install mounting bracket (2) to the junction box (not included) using two screws ) to secure it. (3
Wiring All wiring must take place inside junction box (not included) –
Caution: Make sure power is o at fuse or circuit breaker box. Check power wires for damage or scrapes. If power
supply wires are within three inches of the LED driver, use wire suitable for at least 90°C (194°F). Most Note:
dwellings built before 1985 have supply wire rated to 60°C. Consult a qualied electrician to ensure correct branch
circuit conductor before installing.
Step 2 Wiring xture –
A. Make all wire connections to appropriate wire. Secure with wire nuts (provided).
B. Connect the green wire from the xture to the supply power source ground wire.
C. Connect the white wire from the xture to the white (N) wire from supply power source. For none-dimming xture.
Connect the black xture wire to the black (L) wire from supply power source.
D. Connect the white wire from the xture to the white (N) wire from dimming source per dimmer For TRIAC dimming.
wiring instructions. Connect the black wire from the xture to the black (L) wire from dimmer supply power source per
dimmer wiring instructions.
E. Pull on each wire lead to make sure connections are secure. Make certain no Do not mix wires.
bare wires are exposed outside of wire connectors. Tuck all connections neatly into the junction box.
Step 3 Mounting fixture –
A. Place xture (1) over the xture mounting plate (2), aligning the holes on top and bottom. Then use two screws (4) to
secure the xture in place.
Step 4 Restore power at fuse or circuit breaker box.–

Luminaires d’intérieur
Monture de luminaire
120VAC / 60Hz
Page 2 of 2 1 R2 806 005
Model #: LOUS0512L30D1BK
Garantie limitée du fabricant
AFX Lighting Inc. garantit ce luminaire contre tout vice de matériau et de fabrication lorsqu’il est installé correctement et utilisé dans des conditions
normales pendant une période de 5 ans à compter de la date de l’achat. Cette garantie couvre tous les composants et se limite au remplacement du
luminaire défectueux ou de ses composants; elle ne couvre pas les pannes consécutives à une installation non conforme, à une mauvaise utilisation, à
une mauvaise manipulation ou à un endommagement pendant le transport.
Précautions de sécurité
Read attentivement l’ensemble des instructions de sécurité et d’installation avant d’installer ce luminaire ou de procéder à son entretien. Le non
respect de ces instructions pourrait avoir pour conséquence des risques mortels d’électrocution ou endommager le produit.
Il est recommandé qu’un technicien électrique qualifié installe le câblage. Ce luminaire doit être câblé conformément aux exigences du Code
canadien de l'électricité, des lois provinciales sur les installations électriques et des règlements municipaux.
Ne manipulez pas un luminaire sous tension et n’essayez pas de le mettre sous tension si vos mains sont mouillées ou si vous êtes sur une
surface mouillée ou dans l’eau.
Ce luminaire est conçu pour être monté sur un circuit 120 V c.a. 60 Hz équipé d'un boîtier de disjoncteurs ou d’un fusible.
Assurez-vous que la source d’alimentation répond aux exigences de ce luminaire. (Lisez les étiquettes sur le boîtier du luminaire.)
Pour réduire les risques d’électrocution et pour assurer un fonctionnement convenable, ce luminaire doit être mis à la terre. Pour installer
convenablement la mise à la terre, le luminaire doit être relié au circuit de mise à la terre de votre tableau de distribution à l'aide d’un câble distinct
(vert) ou d’un conduit métallique flexible. L’emplacement de la vis de mise à la terre est clairement indiqué en vert sur le boîtier.
Ce luminaire est destiné uniquement à être utilisé comme éclairage d’intérieur dans un endroit sec ou device

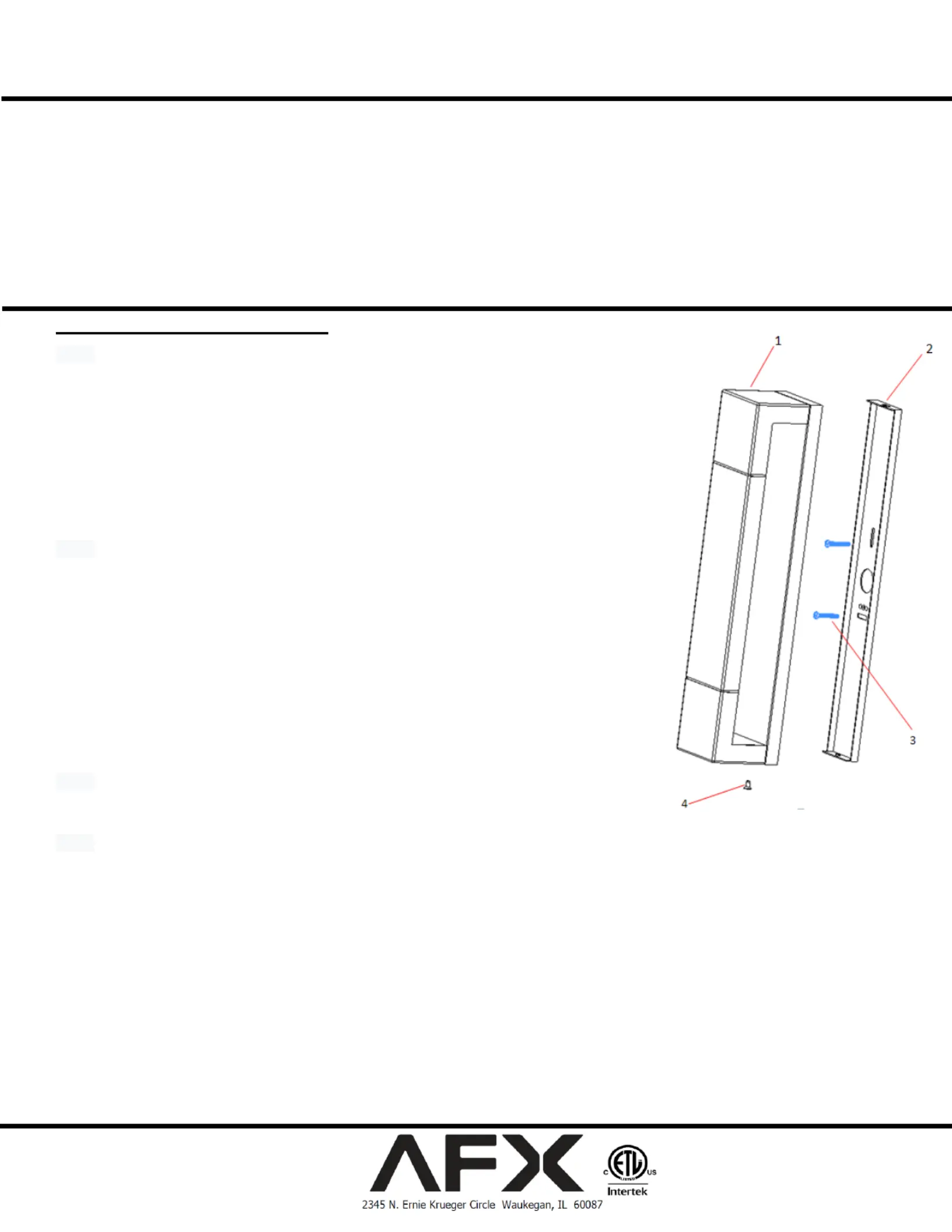

INSTRUCTIONS DE MONTAGE
Étape 1 – Préparation pour l’installation
A. Coupez l’alimentation électrique avant de procéder à l’installation ou à l’entretien de tout ou
partie de ce luminaire
B. Rettirez le luminaire de l’emballage. Séparez les contenus des sachets de pièces.
C. lez la traverse (2) sur la boîte de jonction (non comprise) à l'aide de deux vis (3Instal ).
Câblage – Tout le câblage doit être placé à l’intérieur de la boîte de jonction.
Attention : Assurez-vous que l’alimentation est coupée au disjoncteur ou au fusible. Vérifiez
que les câbles ne sont pas endommagés ou déchirés par endroit. Utilisez des câble
d’alimentation résistant à une température d’au moins 90 °C (194 °F). Remarque: La plupart
des habitations construites avant 1985 sont équipées de câbles d’alimentation ne supportant
que 60 °C. Prenez conseil auprès d’un électricien qualifié avant l’installation.
Étape 2 Câblage–
A. Cet appareil ne fonctionnera pas convenablement s’il n’est pas connecté à un circuit électrique
mis à la terre. Si la mise à la terre n'est pas convenablement eectuée, il existe des risques
d’électrocution, de surchauffe, de mauvais fonctionnement et cela peut réduire la durée de vie
des ampoules.
B. Connectez les câbles entre eux de façon appropriée. Sécurisez le câblage en utilisant les
capuchons de connexion (fournis).
C. Connectez le fil vert du luminaire au fil vert du circuit d’alimentation.
D. Le fil blanc du luminaire doit être connecté au fil blanc (N) de la source d’alimentation.
E. Le fil noir du luminaire doit être connecté au fil noir (L) de la source d’alimentation.
N’intervertissez pas les fils. Tirez sur chaque l pour vous assurer que les raccordements sont
solides. Assurez-vous qu’aucun fil nu n’est visible hors des raccords. Repoussez bien les
raccordements à l’intérieur de la boîte jonction.
Étape Montage du luminaire 3 –
A. Installez le pavillon de recouvrement (1) sur la traverse en alignant les trous de chaque côté et
en y vissant deux vis (4) pour l'arrimer au plafond.
Étape Remettre le courant au fusible ou au boîtier de disjoncteurs4 –.
Produktspecifikationer
Varumärke: | AFX |
Kategori: | Lättnad |
Modell: | Post PTS3151200L30D1SBBK |
