WW W.AIDAIMAGING.COM Toll Free: 844.631.8367 Tel: 909.333.7421 info@aidaimaging.com

When it comes to streaming workhorses, the HD-NDI-X20 does it all. From streaming HDMI and NDI®|HX,

to relaying visually inspiring FHD quality with 20x optical zoom, its no wonder why the HD-NDI-X20 is a

juggernaut in the streaming world.

APPLICATIONS:

INDOOR EVENTS GAMING EVENTS POV SHOTS SCIENCE RESEARCHMACHINE VISION

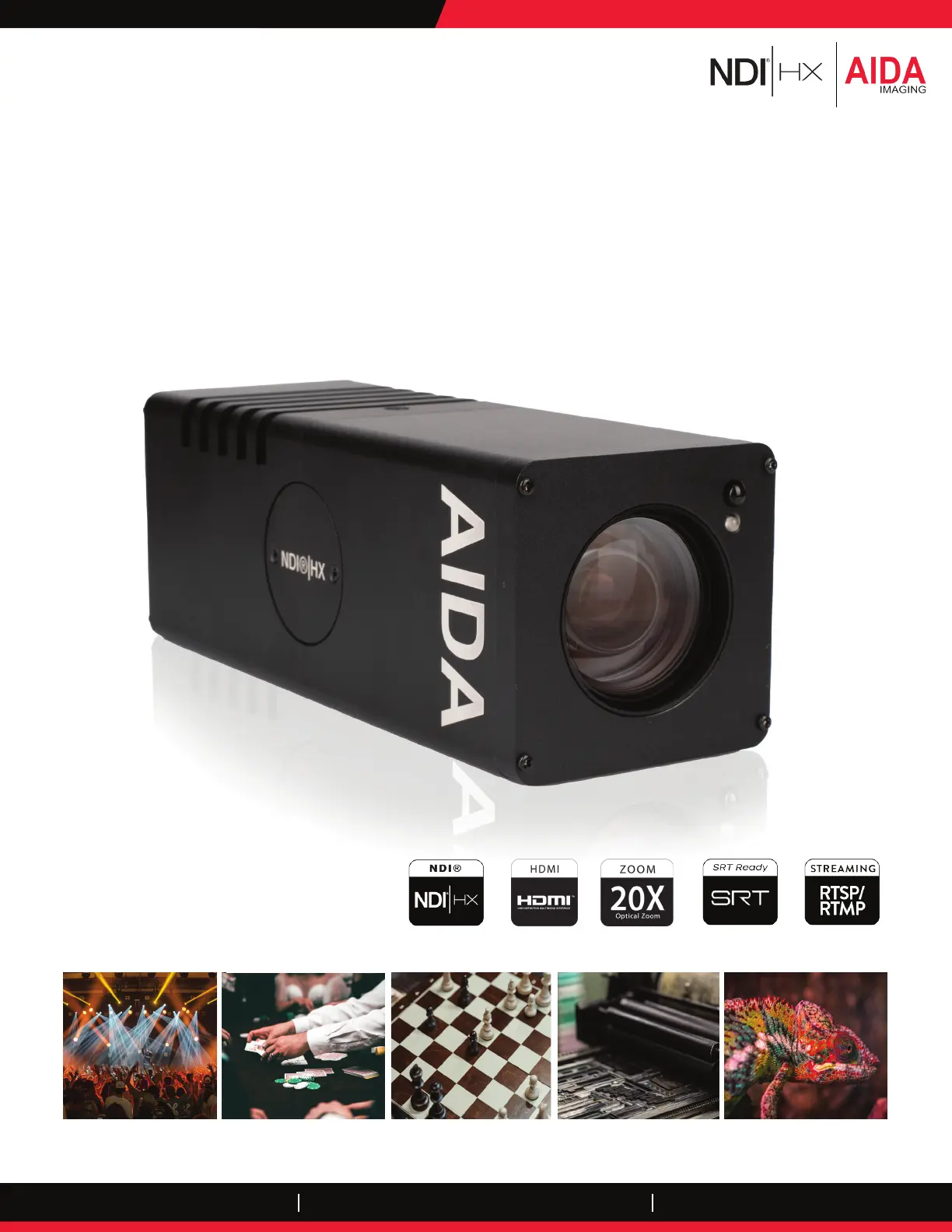

HD-NDI-X20

NDI®|HX Compatible 20x Optical Zoom POV Camera

POV Camera

*NDI® is a registered trademark of Newtek, Inc.

KEY FEATURES:

WW W.AIDAIMAGING.COM Toll Free: 84 4.631.8367 Tel: 909.333.7421 info@aidaimaging.com

MAIN FEATURES

SPECIFICATIONS

PACKAGE CONTENTS

• Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX

Video.

• Accessible Web UI to stream directly to social media platforms

and control image parameters over IP.

• 20x optical zoom for FHD shots over distances of up to 140 ft.

• OSD Breakout cable provides power or control of zoom over serial RS485

communication.

• Flawlessly relays multi-channel embedded audio via NDI®|HX.

• Perfectly suited for beginning and exisisting NDI® setups.

• PoE Compatible to ease cable runs with 1 ethernet cable.

VIDEO

Image Sensor 1/2.8” Progressive CMOS

Eective Pixels Horizontal: 1920, Vertical: 1080

Pixel Size 2.9 μm (H) x 2.9 μm (V)

Resolution 1080p, 1080i, 720p

Resolution Rate 1080 60p/59.94/50p/30p/29.97p/25p

24p

1080 60i/59.94i/50i

720 60p/59.94p/50p

Output HDMI, IP (NDI|HX/SRT/RTMP/RTSP)

Color Space 4:2:2 (YCbCr) 10bit

Min Illumination 0.2Lux (day), 0.1Lux (Night)

OPTICS

Lens 20X HD Optical Zoom, F1.5 ~ F3.0

Field of View 61° WIDE, 3.4° TELE’d

STANDARD

IP Protocol UDP|IP, RTSP|RTMP, SRT, NDI|HX

AUDIO

IP Protocol 3.5 TRS Stereo Audio Port

Sample Rate 16/24/32 Bits

PHYSICAL

Camera Control Protocol: VISCA Over IP

Control: OSD Button, Web UI or Controller

Operation Temp 32°F - 104°F

Dimension 171mm x 64mm x 64mm (6.73in x 2.52 in x 2.52 in)

Weight 800g / 1.76lbs (with default WP cap)

Power 12VDC (+9 - +15VDC) (PoE+ 24Watts)

At , innovation is key to crafting our tried and tested quality imaging solutions. We strive to raise the bar by engineering and manufacturing cutting edge cameras and converters. ADIA Imaging
