Sida 1/12

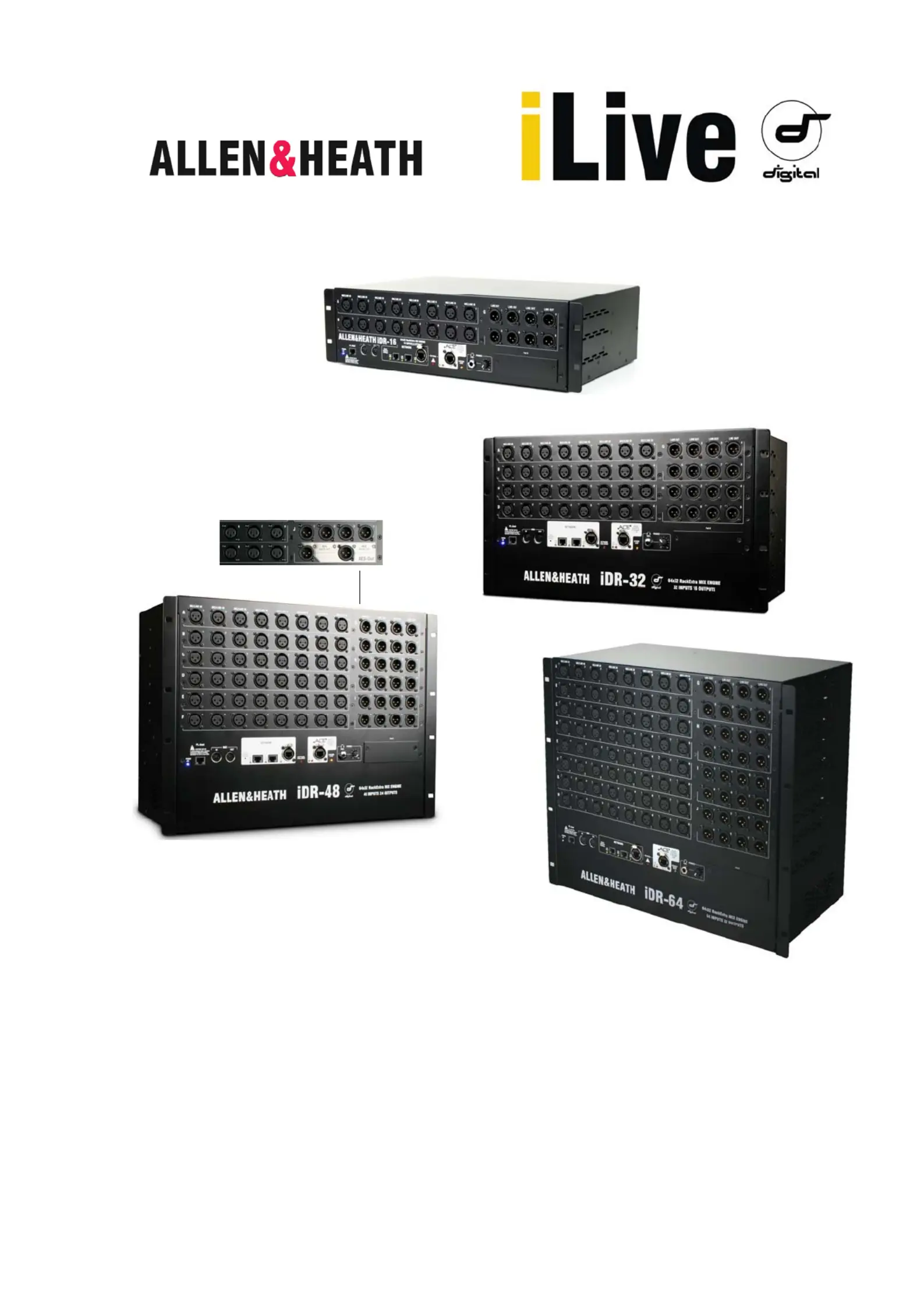

Fixed Format MixRacks
iDR-16 iDR-32 iDR-48 iDR-64
Getting Started Guide
Publication AP7445
iDR MixRack Getting Started Guide 2 AP7445 iss.3
ALLEN&HEATH
Safety Instructions
Before starting, read the Important Safety Instructions printed on the sheet supplied with the
equipment. For your own safety and that of the operator, technical crew and performers, follow
all instructions and heed all warnings printed on the sheet and on the equipment panels.
System operating firmware
The feature set of the iLive system is determined by the firmware (operating software) that runs it.
Firmware is updated regularly as new features are added and improvements made, and is
available for download from the Allen & Heath web site. This guide relates to Version 1.7
firmware. Some of the details shown in this guide may differ from those in the current release of
firmware. Refer to the web site for the latest version and read the Release Notes that come with
each version of firmware for further details.
Note: Make sure all your iLive MixRacks and Surfaces are running the same version of
firmware, and that the Editor software running on your laptop is compatible.
This user guide
This guide provides quick start information for the fixed format iLive Series iDR-16, iDR-32, iDR-
48 and iDR-64 MixRacks. The modular iDR10 and iDR0 MixRacks are referred to here but please
see their user guides for further information about those models. The guides can be
downloaded from the Allen & Heath web site.
Further information
For further information, refer to the user guides associated with each system component. Refer
also to the iLive Fixed Format Systems Getting Started Guide AP7141. Use the HELP
MANUAL available from the iLive Surface TouchScreen UTILITY menu and the Editor software.
Refer to the Allen & Heath web site for the latest information on iLive and additional resources
for download.
IMPORTANT- Please read carefully
By using this Allen & Heath product and the software within it, you agree to be bound by the
terms of the relevant End User Licence Agreement (EULA), a copy of which can be found on
the Allen & Heath website in the product's pages. You agree to be bound by the terms of the
EULA by installing, copying, or otherwise using the software.
iDR-16, 32, 48 and 64 MixRack Getting Started Guide AP7445 Issue 3
Copyright © 2010 Allen & Heath. All rights reserved
Designed in the United Kingdom by Allen & Heath Limited, Kernick Industrial Estate, Penryn, Cornwall,
TR10 9LU, UK
http://www.allen-heath.com
iDR MixRack Getting Started Guide 3 AP7445 iss.3
Introduction
iLive is a state of the art system of components providing a uniquely flexible solution dedicated to live
sound mixing and associated applications. It separates the mix engine from the control surface putting
the audio and the DSP where it is needed near the stage, and offering a host of control and audio
networking possibilities. Refer to the Allen & Heath web site to find out more about the iLive system.
The MixRack is the heart of the system. It is the mixer itself complete with audio sockets, DSP to process
the audio, and control and audio networking ports. The MixRack is typically connected to one of the
many iLive Surfaces available, but can also be controlled at the same time as or even without a Surface
using a laptop running the iLive Editor software, or preconfigured to run with PL Series remote controllers.
Walking the stage with a wireless laptop or touch tablet opens up a whole new world of mixing…
Distributed system – Separate MixRack (DSP) and Surface (controller)
Network, wireless laptop, touch tablet control
Editor software for online or offline PC/Mac control
System can be run without a Surface using laptop only
Choice of 6 MixRacks (DSP only, modular, 16, 32, 48, 64 mics)
Mix and match any combination of MixRack and Surface
Digital snake for local audio at the Surface – ACE™ single CAT5 up to 120m
Port B audio network option for digital mic splitting and system linking
Choose from ACE™, ES, MADI, ADAT, Aviom™ and more
64x32 RackExtra DSP engine with 8 stereo FX processors
32 buses can be configured as mono/stereo groups, auxes, mains, matrix
Main mix types – none, M, LR, LCR, LCRplus, LRSub, LCRSub and more
Unique Sub main mix mode for instant access to separate sub bass level
Monitor mix capability with engineer’s Wedge and IEM monitors
64 channels configurable as mono or stereo
Two MixRacks can be linked in Dual-Rack mode to provide 128 input channels
Up to 72 sources to the mix including FX returns (136 in Dual-Rack mode)
3 Dynamics, PEQ, HPF and Delay on all 64 inputs
2 Dynamics, PEQ, 1/3 octave GEQ and Delay on all 32 mixes
8 Stereo FX with dedicated returns, PEQ and DFX Shaper
FX emulations of popular industry standard devices
Input, output and insert soft patchbays
Up to 8 channel Gangs with choice of which parameters to link
16 DCAs with DCA or Mute Group mode
Built-in signal generator and RTA
User definable channel names and colours
Libraries, Scenes and Show memories with USB transfer and Scene filter
Firmware and memories compatible across all models
Store all or selected items in Scene memories
Get started quickly with built-in Template Shows
8 Password protectable User Profiles
Compatible with Allen & Heath PL remote controllers and iDR Series
MIDI interface at both the MixRack and Surface
High performance, recallable mic/line preamps
Digital +/-24dB Trim for FOH/Monitor gain sharing
Low latency, low noise, very high preamp and mix headroom
Relay protected outputs
Redundant backup PSU capability
