Sida 1/2
© ALOGIC. All rights reserved. Reproduction in whole or in part without permission is prohibited. All other trademarks are the properties of their
owners. Tested to Comply with FCC and CE Standards. HOME OR OFFICE USE. www.alogic.co

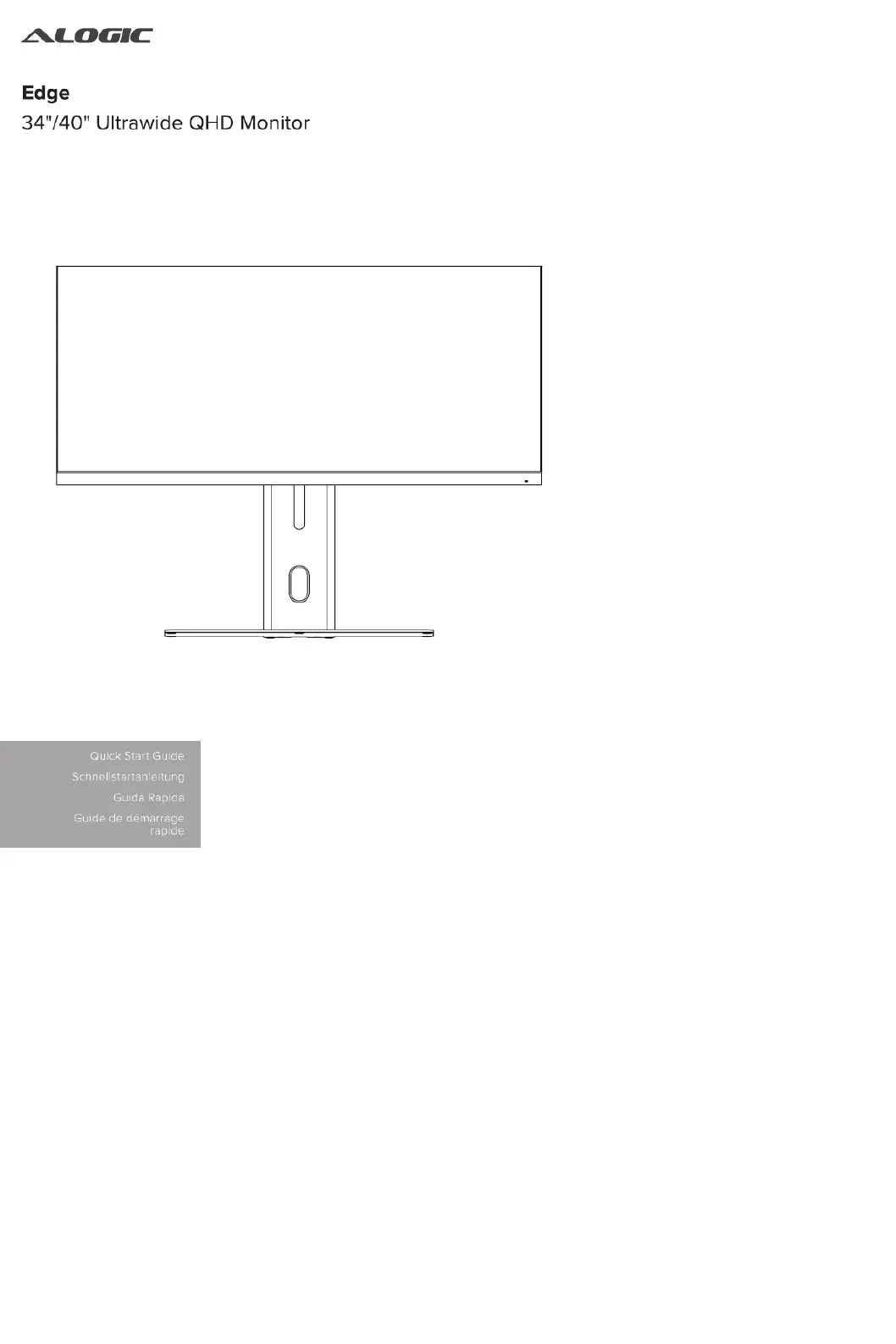

Edge
34’’ Ultrawide QHD Monitor
34C2KPD
34C2KPDSGR
34’’
34’’ Silver
Space Grey
Monitors
Connectivity
Power Input
Ports
DC 24V 7.5A, 180W (Max)
1 x USB-C Host Connection w/ 90W Charging and
Data, DP Alt Mode required for Video
1 x HDMI 2.0
1 x DisplayPort 1.4
2 x USB-C (USB 2.0, 5W Charging, For Accessories)
1 x 3.5mm Audio Output
1 x RJ45 GbE Passthrough
Display Properties
Maximum Resolution 3440*1440 (UWQHD)
Refresh Rate 60Hz / 100Hz
Response Time 6ms (with overdrive)
14ms (grey to grey)
Panel Type IPS
Pixel Density 110 PPI
Aspect Ratio 21:9
Viewing Angle 178°(H) / 178°(V)
Brightness 350 nits (Min), 400 nits (Typical)
Static Contrast Ratio 1000:1 (Typical)
Colour Accuracy Colour Saturation (NTSC): 89%
Colour Saturation (DCI-P3): 97%
Colour Saturation (SRGB): 99%
Colour Saturation (Adobe RGB): 94%
Average ΔE: less than 1
Screen Finish Matte Anti-Glare
Power Adapter
Input
Output
AC 100-240V~, 50/60Hz
DC 24V 7.5A, 180W (Max)
Audio
Speakers: 3Wx2 Audio Out: Yes
Warranty
2 Years
Device Compatibility
Apple, Chromebook, Microsoft
Package Includes
Edge Ultrawide Monitor
HDMI Cable
USB-C Cable
Power Adapter
USB PD Power Delivery / Laptop Charging
Up to 90W max power over USB-C to host computer
Physical Characteristics
Product Dimensions (incl. stand) 815*245*518mm (LxDxH)
Dimensions (incl. stand) 815*245*642mm (LxDxH)
Monitor Dimensions (without stand) 815*41*367mm (LxDxH)
Height from Desk to Monitor 275mm (Stand at Max Height),
151mm (Stand at Min Height)
Included Stand Dimensions 450*245*370mm (LxDxH)
Monitor sits 110mm from front
of base
Screen Size 34”
Material ABS, Glass, Aluminium
VESA Mount Compatible 100x100mm (FDMI MIS-D)
Part no ColourScreen Size
© ALOGIC. All rights reserved. Reproduction in whole or in part without permission is prohibited. All other trademarks are the properties of their
owners. Tested to Comply with FCC and CE Standards. HOME OR OFFICE USE. www.alogic.co
Edge
40’’ Ultrawide QHD Monitor
40C2KPD
40C2KPDSGR
40’’
40’’
Silver
Space Grey
Part no ColourScreen Size
Connectivity
Power Input
Ports
DC 24V 7.5A, 180W (Max)
1 x USB-C Host Connection w/90W Charging and
Data, DP Alt Mode required for Video
1 x HDMI 2.0
1 x DisplayPort 1.4
2 x USB-C (USB 2.0, 5W Charging, For Accessories)
1 x 3.5mm Audio Output
1 x RJ45 GbE Passthrough
Display Properties
Maximum Resolution 3440*1440 (UWQHD)
Refresh Rate 60Hz/100Hz
Response Time 4ms (with overdrive)
8ms (grey to grey)
Panel Type IPS
Pixel Density 94 PPI
Aspect Ratio 21:9
Viewing Angle 178°(H) / 178°(V)
Brightness 370 nits (Min) 400 nits (Typical)
Static Contrast Ratio 1200:1 (Typical)
Colour Accuracy Colour Saturation (NTSC): 91%
Colour Saturation (DCI-P3): 90%
Colour Saturation (SRGB): 95%
Colour Saturation (Adobe RGB): 92%
Average ΔE: less than 1
Screen Finish Matte Anti-Glare
Power Adapter
Input
Output
AC 100-240V~, 50/60Hz
DC 24V 7.5A, 180W (Max)
Audio
Speakers: 3Wx2 Audio Out: Yes
Warranty
2 Years
Device Compatibility
Apple, Chromebook, Microsoft
Package Includes
Edge Ultrawide Monitor
HDMI Cable
USB-C Cable
Power Adapter
USB PD Power Delivery / Laptop Charging
Up to 90W max power over USB-C to host computer
Physical Characteristics
Overall Dimensions (incl. stand) 941*245*570mm (LxDxH)
Dimensions (incl. stand max height) 941*245*694mm (LxDxH)
Monitor Dimensions (without stand) 941*41*419mm (LxDxH)
Height from Desk to Monitor 275mm (Stand at Max Height),
151mm (Stand at Min Height)
Included Stand Dimensions 450*245*370mm (LxDxH)
Monitor sits 110mm from front
of base
Screen Size 40”
Material ABS, Glass, Aluminium
VESA Mount Compatible 100x100mm (FDMI MIS-D)
