AmpliVox SW230A Bruksanvisning

AmpliVox högtalare SW230A

Läs nedan 📖 manual på svenska för AmpliVox SW230A (7 sidor) i kategorin högtalare. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF

Sida 1/7

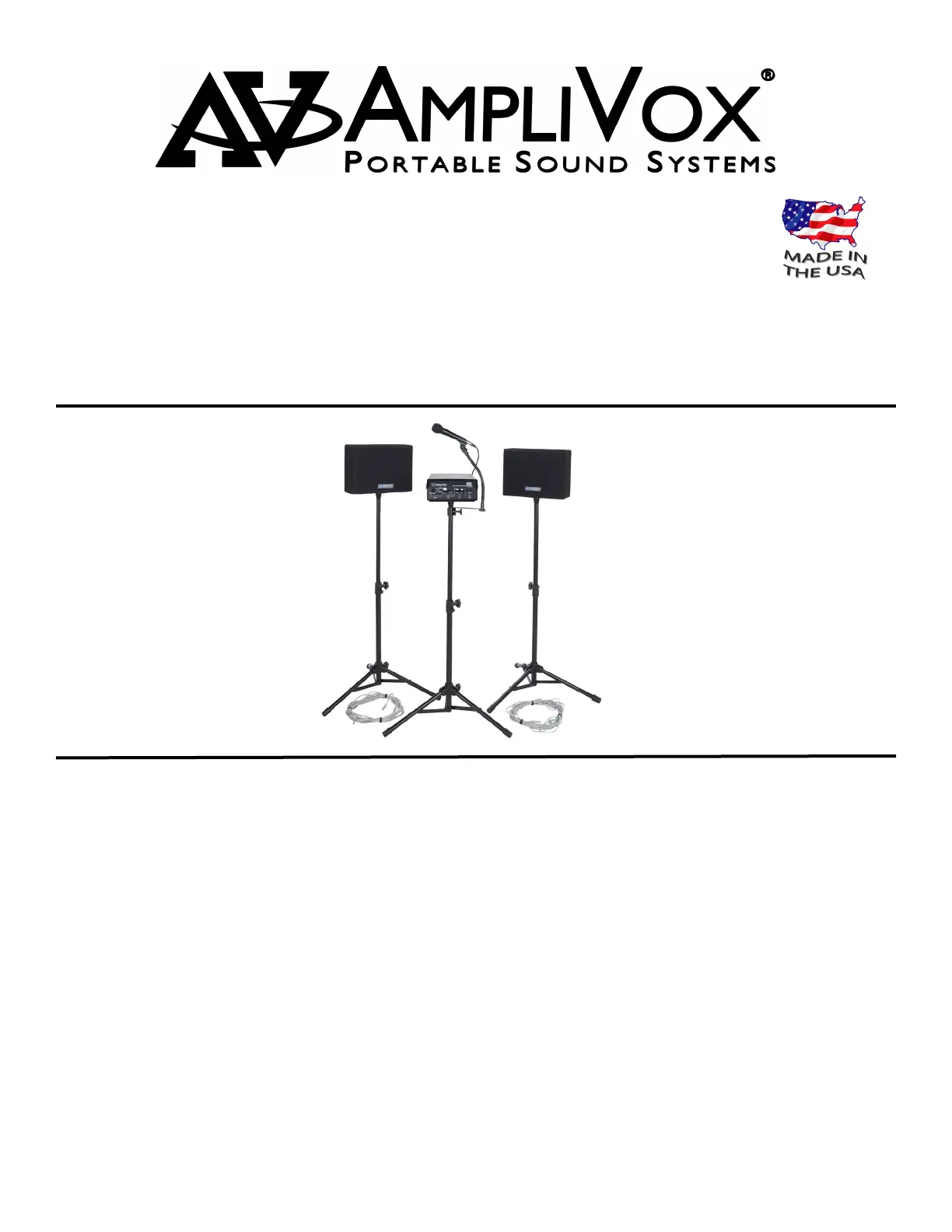

User Guide

S230A / SW230A

Wired Voice Carrier PA System

Thank you for choosing the from S230A / SW230A Wired Voice Carrier PA System AmpliVox Portable

Sound Systems.

We are excited in introducing this truly unique system. Our system combines flexibility with functionality.

Please refer to this user guide as you enjoy the unique capabilities of another quality product from Am-

pliVox Portable Sound Systems.

We encourage you to visit our website to register your product for its warranty coverage, www.ampli.com

pliVox audio visual products, including portable PA systems, and lecterns.

AmpliVox 650 Anthony Trail Suite D, Northbrook, IL 60062 Phone: (800)267-• • 5486 • Fax: (800)267-5489 www.ampli.com

IMPORTANT SAFETY INSTRUCTIONS

Before using this product, read the instruction manual for important safety information. Please retain this manual for

future reference and warranty information.

Troubleshooting & Servicing

Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at-

tempt to modify the device in anyway. Doing so could invalidate your warranty.

Cleaning

When cleaning the device, please use a soft, dry cloth. Never use benzene, paint thinner, or other chemicals on the -

device.

Location

Place the device in stable location, so it will not fall causing damage to the device or bodily harm.

Intended use

The product may only be used with the original parts intended for it. The intended use includes adherence to the speci-

fied installation instructions. The manufacturer accepts no liability for damage arising due to improper use.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance instructions in this owner’s guide.

IMPORTANT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ-

ing interference that may cause undesired operation.

The unit’s circuitry may cause interference to nearby radios. To prevent interference, either switch the unit off or move

away from the affected radio.

NOTE: This equipment complies within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-

vision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

NOTE: Shielded cables may be required to be used with this unit to en sure compliance with the Class B FCC limits.-

PACKAGE CONTENTS

SPECIFICATIONS

Amplifier System

 Power Output 50 Watt RMS into 4 ohms-

 AC/DC Operation

 Stereo Speaker Output

 3.5mm Line Output

 3.5mm Line Input

 Separate Volume and Tone Control for

Line Input

 Master Volume Control

Wireless System

SW805A

 Built in UHF Selectable 16 Channel Receiver -

with RF Signal LED

 Wireless Range: 300 feet

 Frequency: 584 608 MHz-

Model S230A

 One SW805A Amplifier

 Two S1201 Speakers (Dual 6” x 8” speaker

each cabinet)

 Three S1090 Compact Tripods

 Two 40 Ft Speaker Cables

 Microphone Mounting Bracket

 Gooseneck with Microphone Clip

 Dynamic Handheld Microphone with 15 ft. cord.

 One S1960 Nylon Rolling Case

Model SW230A

 One SW805A Amplifier

 Two S1201 Speakers (Dual 6” x 8” speaker

each cabinet)

 Three S1090 Compact Tripods

 Two 40 Ft Speaker Cables

 Microphone Mounting Bracket

 Gooseneck with Microphone Clip

 Dynamic Handheld Microphone with 15 ft. cord.

 One S1960 Nylon Rolling Case

 Wireless 16 CH UHF Microphone Transmitter

(S1690T)

 Lapel and Headset Microphone

Produktspecifikationer

Varumärke:	AmpliVox
Kategori:	högtalare
Modell:	SW230A
