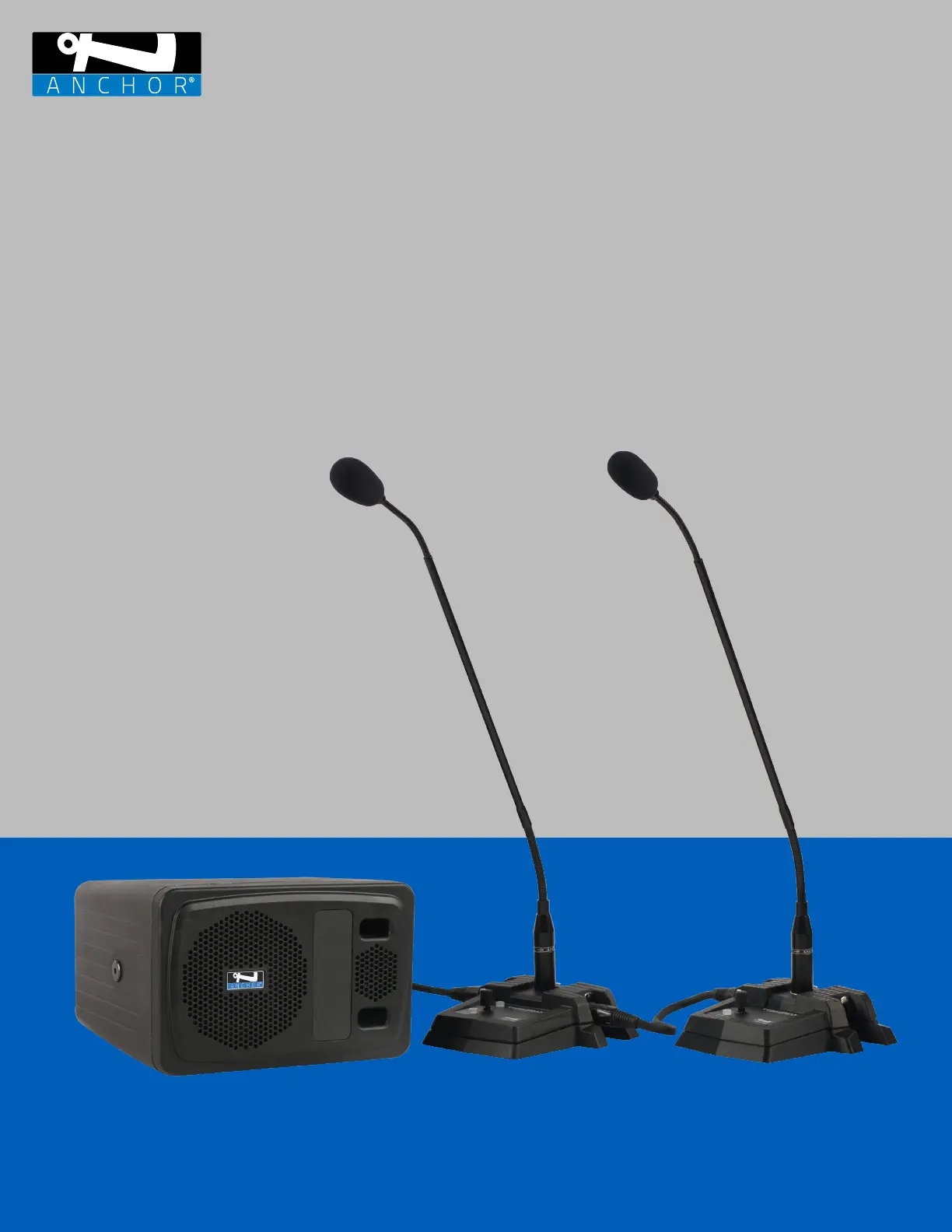

OWNER’S MANUAL
C O U N C I L M A N
1
For service or repair, please call us at 1-800-262-4671 x782 or visit www.anchoraudio.com/technical-support-form.html
Our Technical Support team will help to troubleshoot. If unsuccessful and under warranty, they will issue you a Return Merchandise
Authorization (RMA) number. Once you ship your product back to Anchor Audio with the RMA number clearly noted on the box, we will diagnose
your unit and repair your unit then ship it back to you. All products must be shipped prepaid. C.O.D. shipments and shipments without an RA
number will be refused and returned at your expense.
IMPORTANT: Save the shipping box & packing materials. They were specially designed to ship your unit!
GETTING STARTED 1 ............................................................................................................................................................................
CONNECTING AN EXTERNAL AUDIO DEVICE.........................................................................................................................................2
BASIC SYSTEM OPERATION 2 - 3 .........................................................................................................................................................
AN-100CM+ 2 .............................................................................................................................................................................
CHM-100 3 ...................................................................................................................................................................................
DEL-100 3 ...................................................................................................................................................................................
OPERATING THE ANCHORLINK WIRELESS MICROPHONE/TRANSMITTER ......................................................................................... 4 - 5
TECHNICAL SPECIFICATIONS 6 ..............................................................................................................................................................
TROUBLESHOOTING / FAQ 7 .................................................................................................................................................................
IMPORTANT SAFETY INSTRUCTIONS 8 - 9 .............................................................................................................................................
WARRANTY 10 .....................................................................................................................................................................................
RETURN AUTHORIZATION PROCEDURES............................................................................................................................................10
CONTENTS
GETTING STARTED
Please check your new unit carefully for any damage which may have occurred during shipment. Each Anchor Audio product is carefully
inspected at the factory and packed in specially designed boxes for safe transport.
Notify the freight carrier immediately of any damage to the shipping box or product. Repack the unit in the original box and wait for inspection
by the carrier’s claim agent. Notify your Anchor Audio authorized dealer of the pending freight claim.
NOTE: All damage claims must be made with freight carrier!
RETURNING SYSTEMS FOR SERVICE OR REPAIR
MESSAGE FROM ANCHOR AUDIO
Congratulations on purchasing an Anchor Audio portable conference system! You have joined the thousands of satisfied customers including the
various professional athletic teams, prestigious universities, school districts nationwide, first responders, and the branches of the U.S. Military.
From developing our products on giant sticky notes to testing them in the parking lot and driving our neighbors crazy, our hearts - and ears -
are 110% committed to delivering reliable battery powered portable sound systems and portable PA systems for you. But we don’t stop there.
Anchor Audio is proudly manufactured in America and has plenty more solutions for you to choose from: speaker monitors, conference systems,
assistive listening, lecterns, and intercoms. We are your best friend in portable sound and are here for you when you need us...or even when
you don’t. We’re just a phone call away. With over 40 years of experience, our Engineering and Production to Sales and Tech Support teams will
provide you with the most reliable portable audio products and customer service.
Welcome to the Anchor Audio family! Feel free to contact us at any time. We’d love to hear from you.
Alex Jacobs
President
BASIC SYSTEM OPERATION: AN-100CM+ AMPLIFIER
COUNCILMAN
To pair or unpair your AnchorLink wireless microphone or belt pack, see the instructions on page 4.
AN-100CMU2+
3.5 MM LINE INPUT
ANCHORLINK DUAL
WIRELESS MIC RECEIVER
Depending on your purchase, your unit
may include zero or one dual wireless
mic receiver
XLR INPUTS
POWER INLET
POWER SWITCH
1. Position the speaker to face your audience
2. Set volume control of speaker to minimum
3. Plug in AC power cord to the Power Inlet then in to a wall power outlet
4. Plug in a standard 3-pin XLR cable to the 24 VDC Phantom Power then into a CHM-100 and DEL-100 bases. Continue
daisy chaining the conference microphones until desired setup is complete. Anchor Audio recommends no more than 11
microphones be daisy chained for optimal performance. Or plug an external audio source into the 3.5 mm Line Input.
5. Turn the power switch on the rear panel ON (red LED will light)
6. Adjust volume to desired level.
To operate the CHM-100 and DEL-100, see the instructions on page 3.
For use with the CHM-100
and DEL-100
UNIVERSAL BALANCED
LINE OUT
VOLUME CONTROL
CONNECTING AN EXTERNAL SPEAKER
The AN-100CM+ can be connected to an in house or external sound system.
1. Ensure the AN-100CM+ is turned OFF.
2. Plug an XLR or 1/4” cable in to the Balanced Line Out of the AN-100CM+ then plug the other end of the cable into the in house
system or external sound system (such as an Anchor Audio Liberty).
3. Turn the power switch on the rear panel ON (red LED will light)
