Sida 1/21

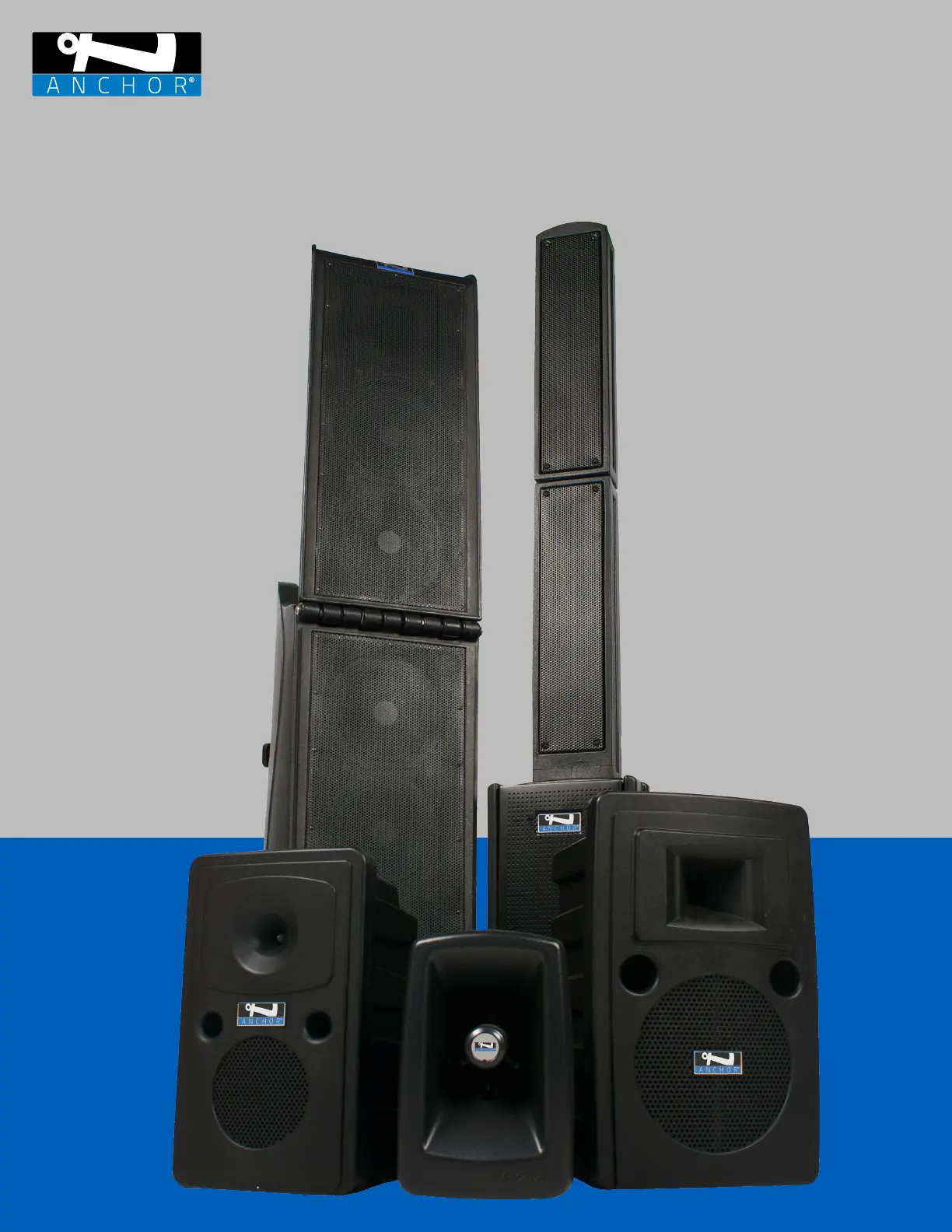

OWNER’S MANUAL
BIGFOOT | BEACON LIBERTY GO GETTER MEGAVOX| | |
1
GETTING STARTED 1 ............................................................................................................................................................................
BASIC SYSTEM OPERATION / BACK PANEL 2 - 6 ..................................................................................................................................
BIGFOOT 2 2 .................................................................................................................................................................................
BEACON 2 3 ..................................................................................................................................................................................
LIBERTY 2...................................................................................................................................................................................4
GO GETTER 2 5 .............................................................................................................................................................................
MEGAVOX 2 6 ................................................................................................................................................................................
OPERATING THE BLUETOOTH RECEIVER 7 .............................................................................................................................................
OPERATING THE ANCHORLINK WIRELESS MICROPHONE/TRANSMITTER ......................................................................................... 8 - 9
OPERATING THE AIR TRANSMITTER AND WIRELESS AIR COMPANION SPEAKER ......................................................................... 10 - 12
CONNECTING MULTIPLE SOUND SYSTEMS 13 ......................................................................................................................................
OPERATING THE CD/MP3 COMBO PLAYER 13 ........................................................................................................................................
SYSTEM PLACEMENT 14 .....................................................................................................................................................................
BATTERY INFORMATION 15 ..................................................................................................................................................................
TECHNICAL SPECIFICATIONS 16 ............................................................................................................................................................
TROUBLESHOOTING 17 .........................................................................................................................................................................
IMPORTANT SAFETY INSTRUCTIONS 18 - 19 .........................................................................................................................................
WARRANTY 20 .....................................................................................................................................................................................
CONTENTS
GETTING STARTED
Please check your new unit carefully for any damage which may have occurred during shipment. Each Anchor Audio product is carefully
inspected at the factory and packed in specially designed boxes for safe transport.
Notify the freight carrier immediately of any damage to the shipping box or product. Repack the unit in the original box and wait for inspection
by the carrier’s claim agent. Notify your Anchor Audio authorized dealer of the pending freight claim.
NOTE: All damage claims must be made with freight carrier. Save the shipping box & packing materials! They were specially designed to ship your unit.
MESSAGE FROM ANCHOR AUDIO
Congratulations on purchasing an Anchor Audio portable sound system! You have joined the thousands of satisfied customers including the
various professional athletic teams, prestigious universities, school districts nationwide, first responders, and the branches of the U.S. Military.
From developing our products on giant sticky notes to testing them in the parking lot and driving our neighbors crazy, our hearts - and ears -
are 110% committed to delivering reliable battery powered portable sound systems and portable PA systems for you. But we don’t stop there.
Anchor Audio is proudly manufactured in America and has plenty more solutions for you to choose from: speaker monitors, conference systems,
assistive listening, lecterns, and intercoms. We are your best friend in portable sound and are here for you when you need us...or even when
you don’t. We’re just a phone call away. With over 40 years of experience, our Engineering and Production to Sales and Tech Support teams will
provide you with the most reliable portable audio products and customer service.
Welcome to the Anchor Audio family! Feel free to contact us at any time. We’d love to hear from you.
Alex Jacobs
President
2
BASIC SYSTEM OPERATION
1. Unfold Bigfoot Line Array
2. Securely attach the rubber latches
3. Set all Input Levels to minimum & Tone Controls to flat
(middle)
setting
4. Plug wired microphone into the MIC 1 or MIC 2 jacks and/or any audio source into the LINE-IN jacks
5. Switch Power to ON - Power On LED will light
6. Slowly increase Level Controls for active Input Jacks to desired volume
7. Adjust Tone Controls for desired sound quality
EXT
ANT
AIR COMPANION TRANSMIT TER
TX
SETUP DOWN
CHANNEL SELECTION
1. Hold “SET ” for 2 seconds
2. Press “UP” or “DOWN” to change channel
3. Press “SET” once to set channel
1. Press “POWER” once to turn ON
2. Hold “POWER” for 2 sec to turn OFF
CHANNEL
BIGFOOT 2
AIR WIRELESS COMPANION TRANSMITTER
ANCHORLINK DUAL WIRELESS MIC RECEIVERS
POWER CORD INLET
BLUETOOTH
NOTE: Make all connections with shielded cables to avoid hum, buzzing, and interference.
ACTIVE BATTERY GAUGE
BALANCED 1/4” LINE OUT
LINE INPUTS & VOLUME CONTROLS
• UNBALANCED 1/4”
• STEREO 3.5 MM (1/8”)
UNIVERSAL WIRED MIC INPUTS & VOLUME CONTROLS
• BALANCED XLR
• BALANCED 1/4”
POWER SWITCH
TONE CONTROLS
BIG2-XU4
Depending on your purchase, your unit may include an AIR Wireless
Receiver or Transmitter, CD/MP3 combo player, or nothing
Depending on your purchase, your unit may include one, two, or zero
wireless mic receivers
To pair your Bluetooth enabled device, see the instructions on page 7.
To pair or unpair your AnchorLink wireless microphone or belt pack, see the instructions on page 8.
To operate the Anchor AIR, see the instructions on page 10.
