Sida 1/8
HCG- P S 620M OWER UPPLY
U M SER’S ANUAL
U M SER’S ANUAL
HCG M SERIES
HCG- P S 620M OWER UPPLY

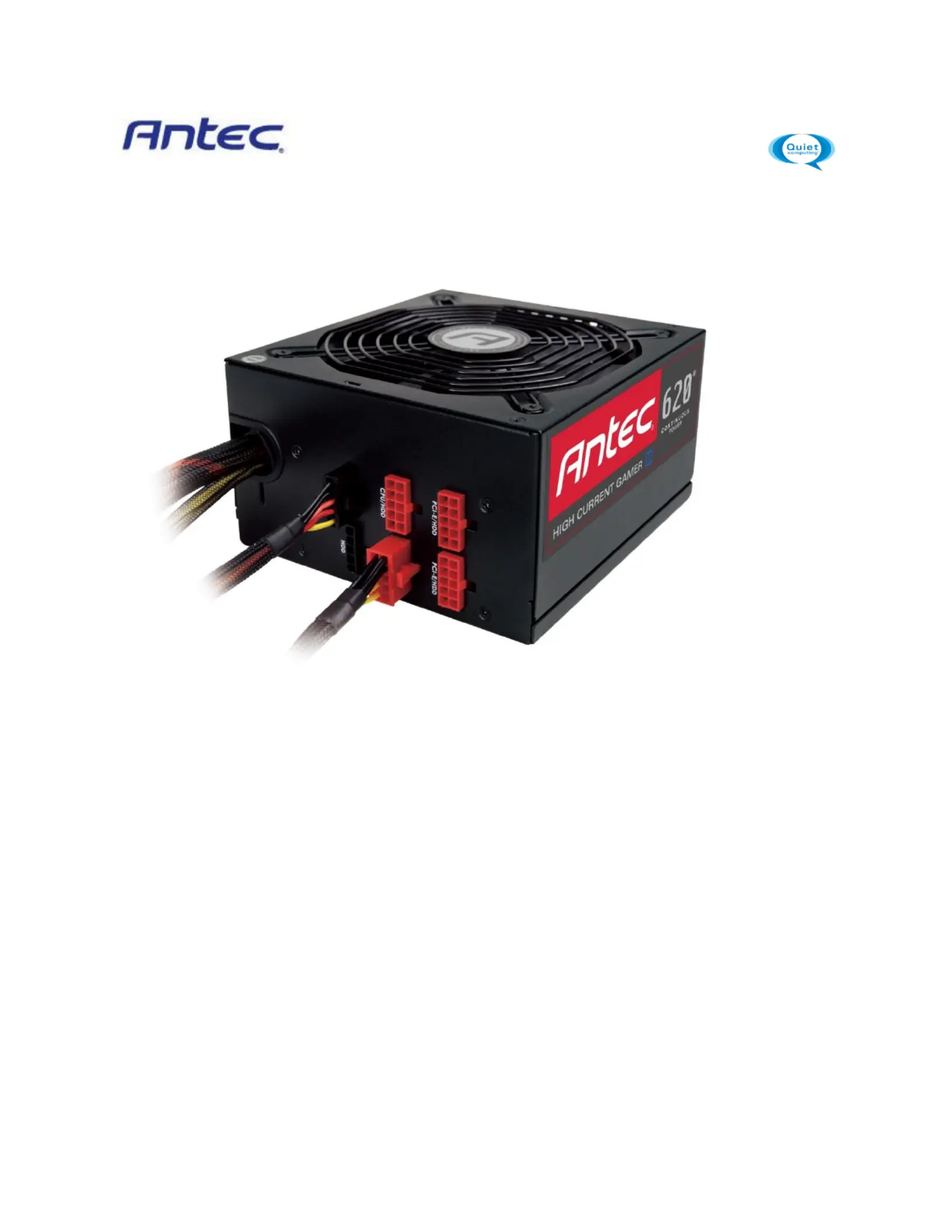

E LITE POWER MEETS UNRIVALED PERFORMANCE
Antec’s HCG M power supplies are the perfect combinaon of power and eciency. The HCG M features special
heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb eciency thanks
to 80 PLUS® Bronze cercaon and Acve PFC. Highest-quality connectors, Japanese-brand capacitors, and a
quiet 135 mm double ball bearing fan complete the package. The HCG-620M features High Current Cable
Management and 10-pin modular connectors. If loads of power, High Current engineering and extreme eciency
are what you’re aer, the HCG M is the PSU for you.
S F TANDARDS AND EATURES
The connectors and power specicaons of the HCG- PSU are all compatible with ATX12V v2.32 and EPS12V 620M
v2.92 specicaons. The HCG- features Universal Input, which automacally senses when you connect the 620M
power supply to any AC power source between 100 - 240V without seng a voltage switch. This power supply also
features Acve Power Factor Correcon (PFC), which improves the power factor value of the power supply by
altering the input current wave shape, helping to power transmission across the grid.
S P YSTEM ROTECTION
A variety of industrial-grade safety circuitry will help protect your computer: Over Current Protecon (OCP), Over
Voltage Protecon (OVP), Under Voltage Protecon (UVP), Short Circuit Protecon (SCP), Over Power Protecon
(OPP) and Surge & Inrush Protecon (SIP). Somemes the PSU will “latch” into a protected state. You will need to
power o the PSU and clear the fault before it will funcon again. There are no user-replaceable fuses in your
HCG- . 620M
80 PLUS® C ERTIFICATION
80 PLUS® cercaon is the most widely recognized
independent standard in power supply eciency. An 80
PLUS® cered power supply uses less energy and
generates less heat to stay cooler, run quieter and last
longer. The HCG-620M has been 80 PLUS® Bronze
cered to be at least 82% ecient at a wide range of
operang loads; this will lower your operang costs and
help protect the environment.
P O OWER UTPUT
To see the output capacity and regulaon for each dierent voltage, see table 1.
T 1 ABLE
Output Voltage
Load Max.
Regulaon
Ripple & Noise
+3.3V
24A
±5%
< 50 mV
+5V
24A
±5%
< 50 mV
+12V
48A
±5%
< 120 mV
- 12V
0.8A
±5%
< 120 mV
+5VSB
2.5A
±5%
< 50 mV
I H C M NTELLIGENT YBRID ABLE ANAGEMENT
The HCG-620M uses Intelligent Hybrid Cable Management. Cables that are important or mandatory are
permanently connected to the PSU for the highest quality power delivery. There are modular jacks on the back of
the PSU to add addional cables as needed. Using only the cables you need will reduce cluer and improve airow
inside your case. For the list of connected and oponal cables, see table 2.
M C J ODULAR ABLE ACKS
There are two 5-pin black jacks and four 10-pin red jacks on the back of your HCG-620M PSU. These jacks are for
the oponal cables that come with your power supply. A modular 10-pin connector system allows you plug 5-pin
connectors into the 10-pin jacks if you run out of 5-pin jacks.
