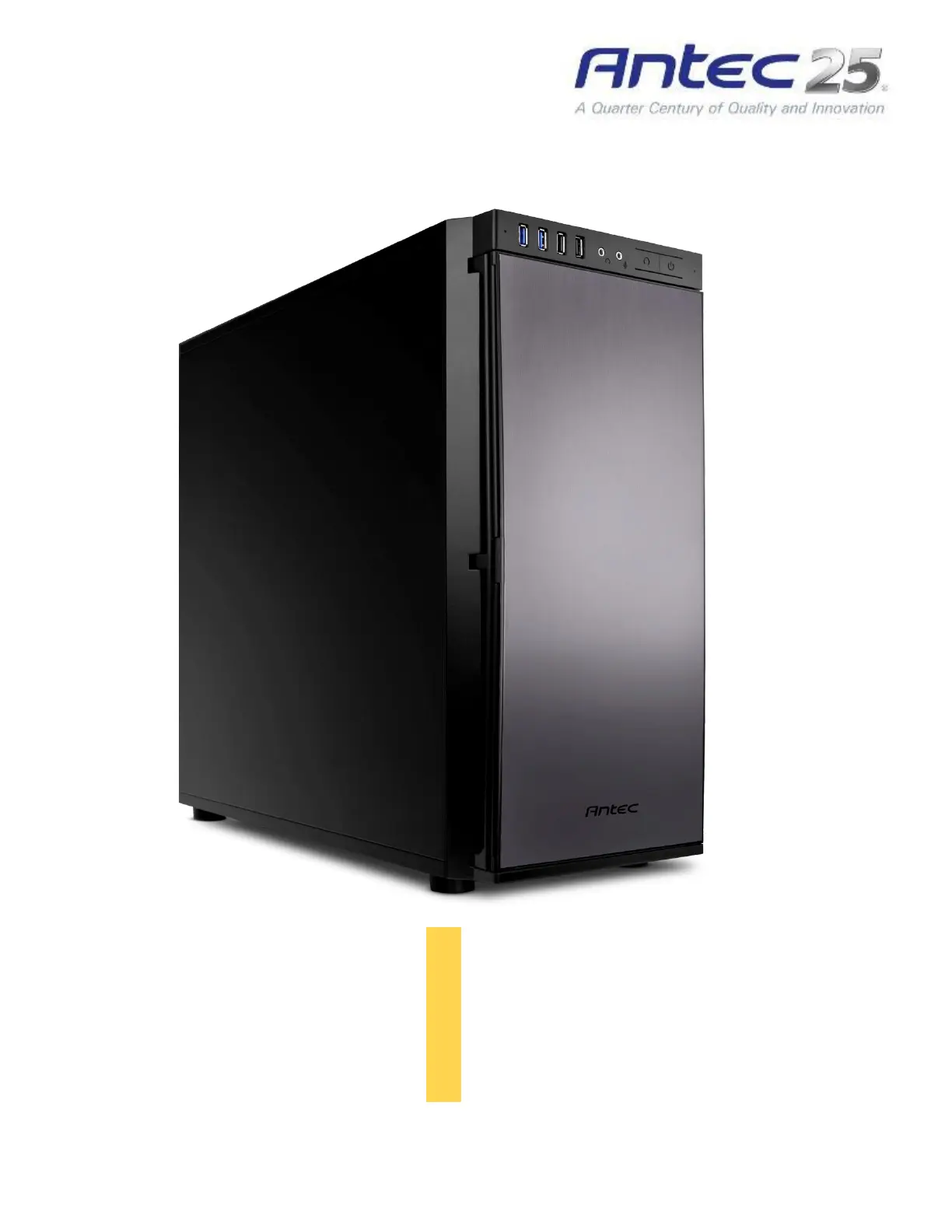

P 100
User
Manual
2
P User Manual100
Congratulaons on your purchase of the Antec P100!
The P100 is an ATX case that epitomizes cool, quiet, and sophiscaon. It features Antec’s award
winning the Performance One series design and Quiet Compung™ technologies that minimize system
noise.
In addion to 7 expansion slots, the P100 also supports 2 tool-less 5.25” drives and 7 tool less 3.5”/ 2.5” -
drives. With a great price to feature rao the P100 is the only economical case that delivers rst class
silence performance. A balance of price and feature is achieved by integrang Antec design with
superior build quality. Engineered with Quiet Compung™ Technology, the P100 is truly in a class all its
own.
At Antec, we connually rene and improve our products to ensure the highest quality. As such, your
new chassis may dier slightly from the descripon in this manual due to improvements applied for the
opmal building experience. As of November 15, 2011, all features, descripons, and illustraons in this
manual are correct.
Disclaimer
This manual is intended only as a guide for Antec’s computer
enclosures. For more comprehensive instrucons on installing the
motherboard and peripherals, please refer to the manuals that
come with those components.
3
Table of Contents
Secon 1: Introducon
1.1 Geng to Know Your Chassis ............................................................................ 5
1.2 Chassis Specicaons ......................................................................................... 6
1.3 Included Screws ................................................................................................. 6
1.4 Before You Begin ................................................................................................ 7
Secon 2: Hardware Installation
2.1 Seng Up 9 ..........................................................................................................
2.2 Motherboard Installaon 9 ...................................................................................
2.3 Installing KUHLER H2O Liquid Coolers ................................................................ 11
2.4 Power Supply Installaon .................................................................................. 12
2.5 External 5.25” Device Installaon ...................................................................... 13
2.6 Internal 3.5” / 2.5” Device Installaon .............................................................. 14
2.7 Cable Management ............................................................................................ 16
Secon 3: Front I/O Ports
3.1 USB 2.0 ............................................................................................................... 18
3.2 USB 3.0 ............................................................................................................... 18
3.3 AC’97 / HD Audio Ports ...................................................................................... 19
3.4 Power Switch / Reset Switch / Hard Disk Drive LED Connectors ....................... 19
3.5 Rewiring Motherboard Header Connecons ..................................................... 20
Secon 4: Cooling System
4.1 Included Fans ..................................................................................................... 22
4.2 Oponal Fans ..................................................................................................... 22
4.3 Fan Switch Controller ........................................................................................ 23
4.4 Air Filters ............................................................................................................ 24
