Sida 1/20

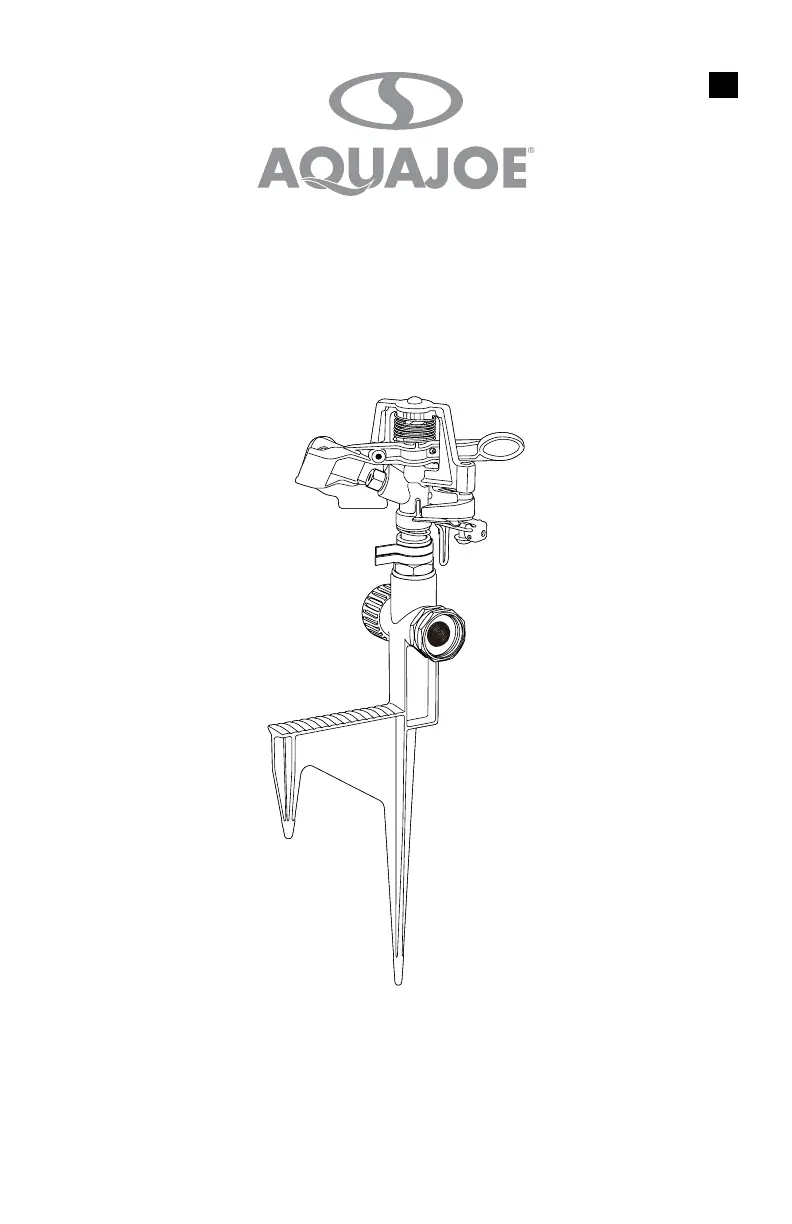

Form No. SJ-AJ-ISH-2PK-880E-M
If you have any questions or comments,
please call the Snow Joe
® + Sun Joe® customer service department at:
1-866-SNOWJOE (1-866-766-9563)
Original instructions.
© 2022 Snow Joe, LLC. All rights reserved. SAVE THESE INSTRUCTIONS
INDESTRUCTIBLE ZINC
IMPULSE 360° SPRINKLER
1400 SQ FT COVERAGE MAX | STEP SPIKE | 2-PACK
Model AJ-ISH-2PK
EN
1
2
Know Your Indestructible Zinc Impulse 360° Sprinkler
Read the owner’s manual and safety rules carefully before using your Indestructible Zinc Impulse
360° Sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with
the location of the various controls and adjustments. Save this manual for future reference.
Technical Data
Coverage Max 1400 sq ft ........................
Spray Diameter Max 42 ft (12.8 m) ...............
Max Pressure* 120 PSI ........................
Max Flow 4.5 GPM (17 l/min) ................................
Spray Patterns Jet to mist ........................
Adjustable Coverage Partial to full .........
360º circle
Fitting Size Standard garden hose .........................
Net Weight 2.2 lbs (1 kg) .........................
*Peak pressure at initial discharge; working pressure under typical load is 60 PSI.
4
7
8
1. Anti-backsplash arm
2. Nozzle
3. Friction collars
4. Trip lever
5. Diuser pin
6. Deector shield
7. Hose-end connector
8. Step spike
5
6
Sprinkler Head
2
1
3
3
Unpacking
Carton Contents
• Impulse 360º sprinkler (x2)
• Manual and registration card
1. Carefully remove the sprinkler and check to
see that all of the above items are supplied.
2.
Inspect the product carefully to make sure
no breakage or damage occurred during
shipping. If you nd damaged or missing
parts, DO NOT return the unit to the store.
Instead, please call the Snow Joe
®
+ Sun Joe
®
customer service center at 1-866-SNOWJOE
(1-866-766-9563).
NOTE: Do not discard the shipping carton
and packaging material until you are ready
to use your new sprinkler. The packaging
is made of recyclable materials. Properly
dispose of these materials in accordance
with local regulations.
IMPORTANT! The equipment and packaging
material are not toys. Do not let children
play with plastic bags, foils, or small parts.
These items can be swallowed and pose a
suocation risk!
Operation
Distance Control
Use the deflector shield to adjust the length of
the spray (Fig. 1).
Rotation Control
Set the friction collars for desired part circle
coverage (5˚ - 360˚) (Fig. 2).
360º Coverage Control
Flip the trip lever up for full circle (0˚ – 360˚)
(Fig. 3).
Deflector shield
Fig. 1
1/4 1/2 3/4
Fig. 2
Friction collars
Fig. 3
Trip lever
